Toyota Cressida

1984-08 → 1988-08 · chassis YX70,RX7#,GX71,MX7#,LX7# · catalogue 311250 · Europe

Discontinued model Data version 1989-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

37 part groups · 21 illustrations

Illustrations

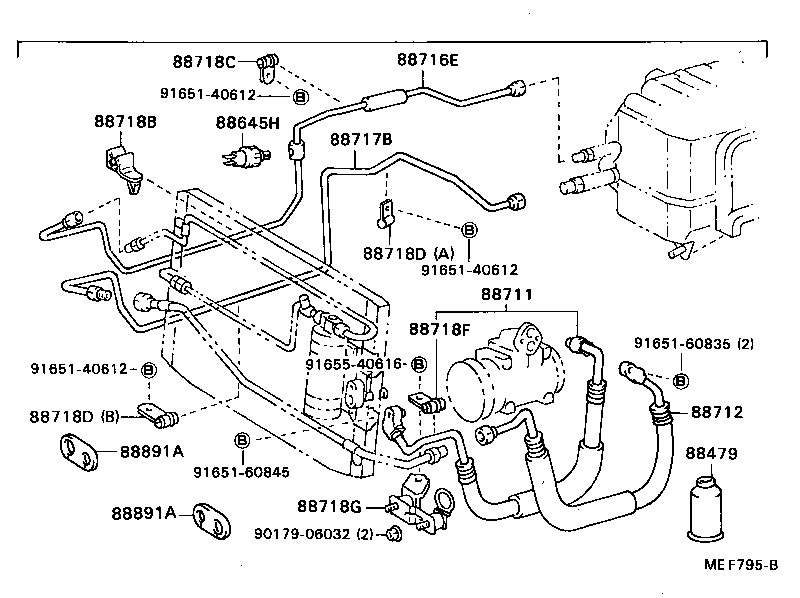

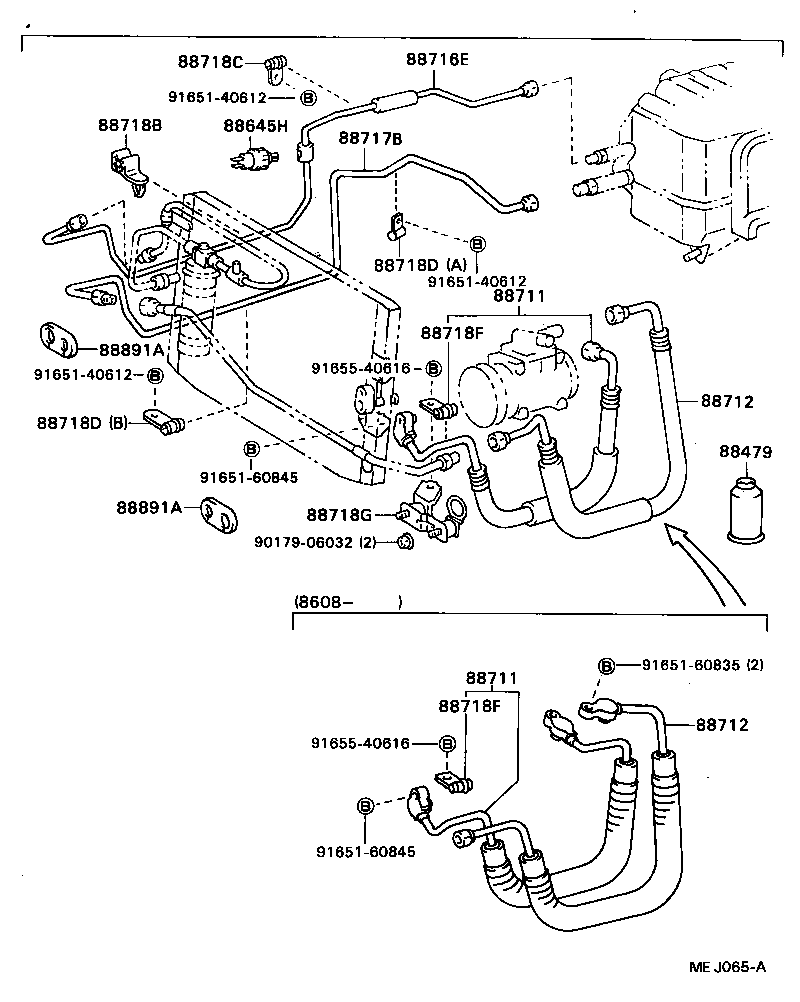

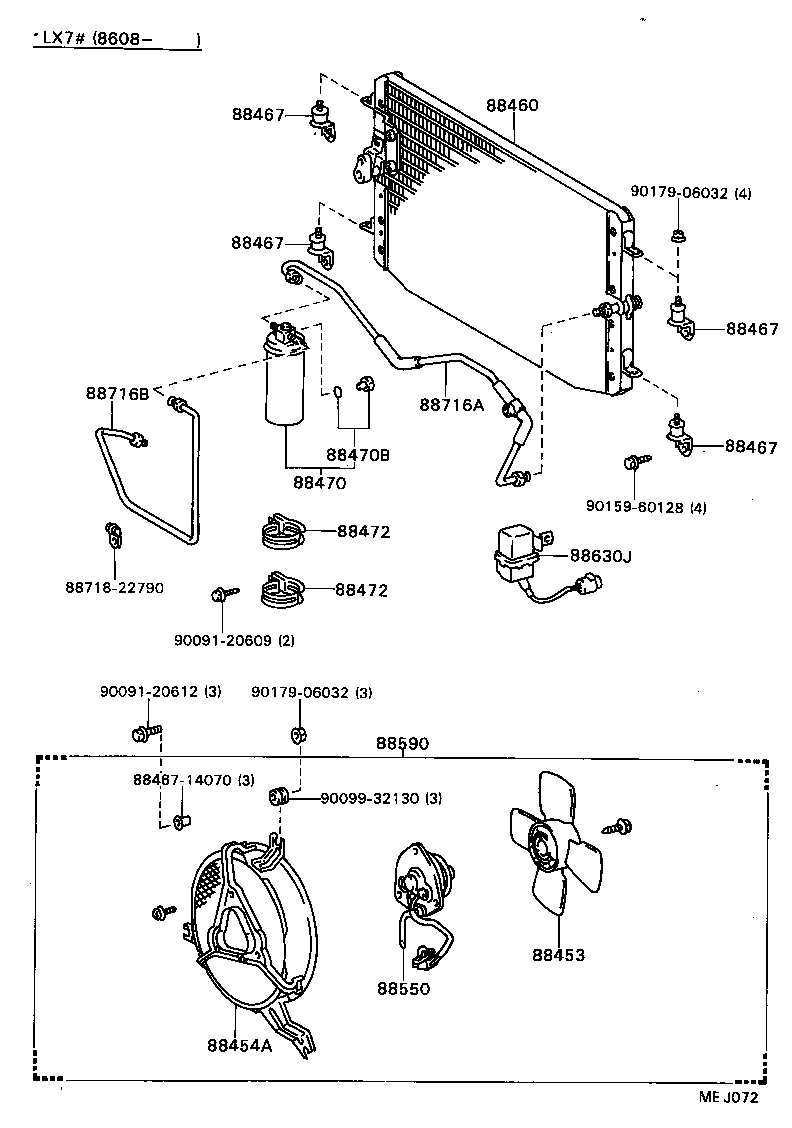

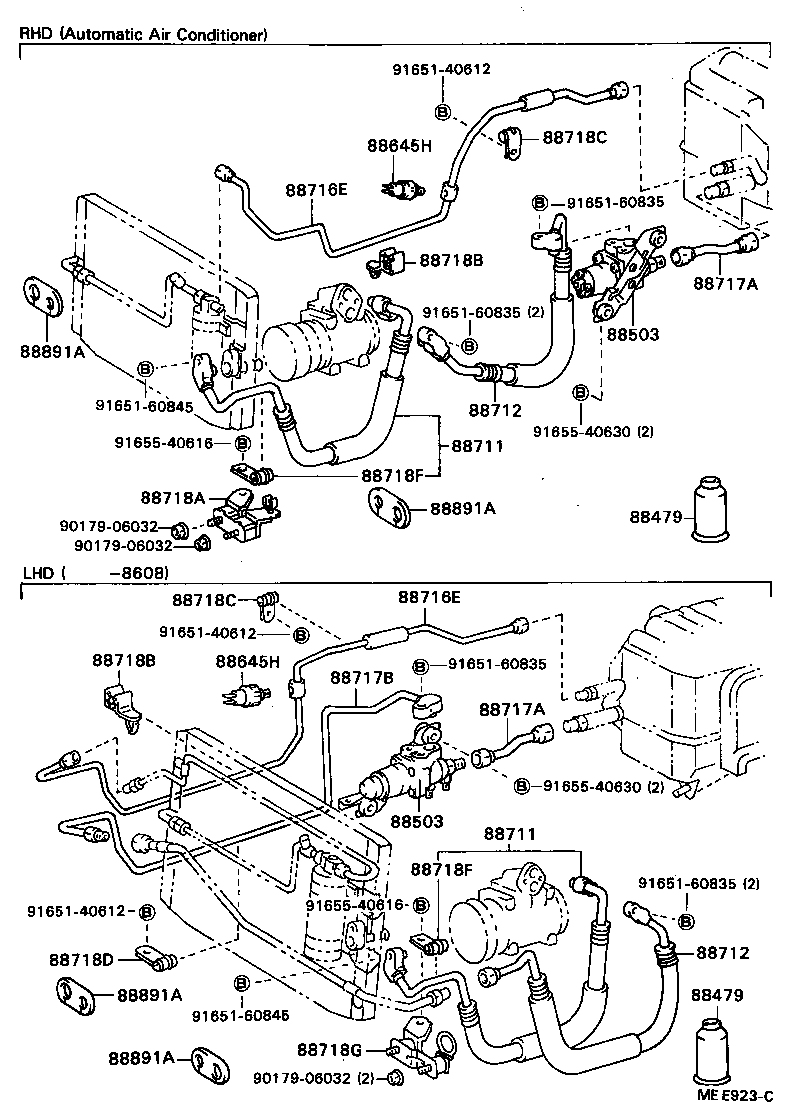

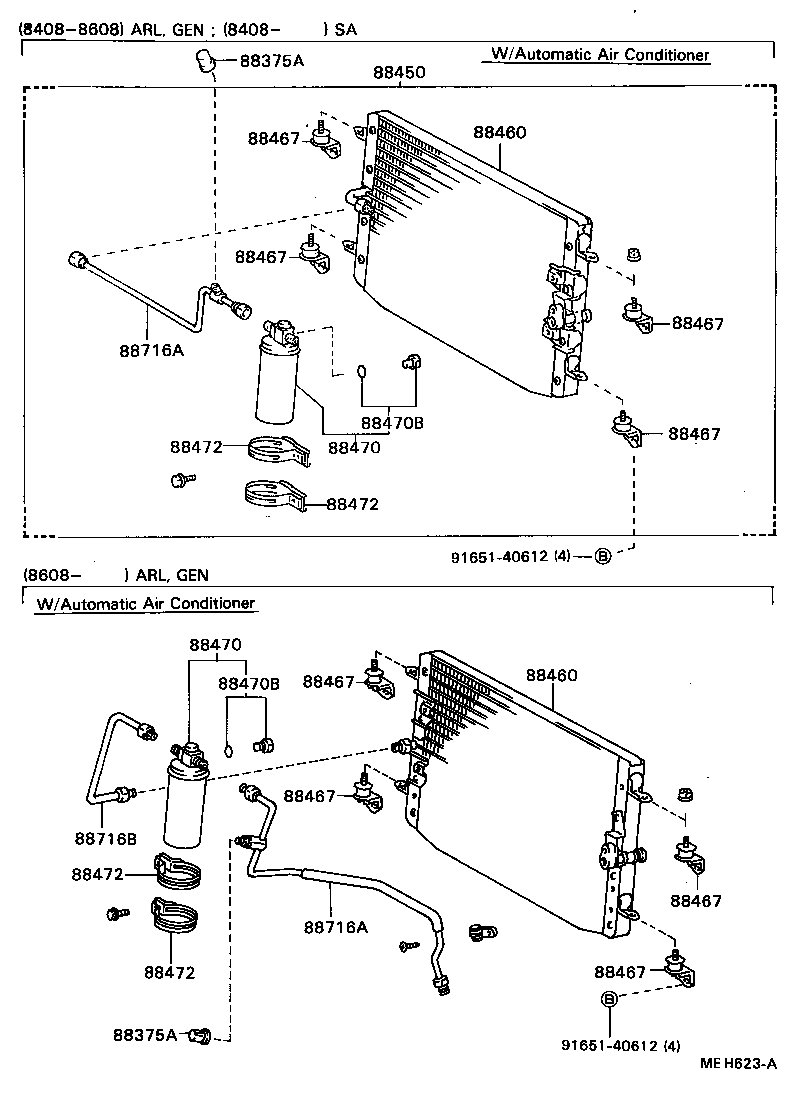

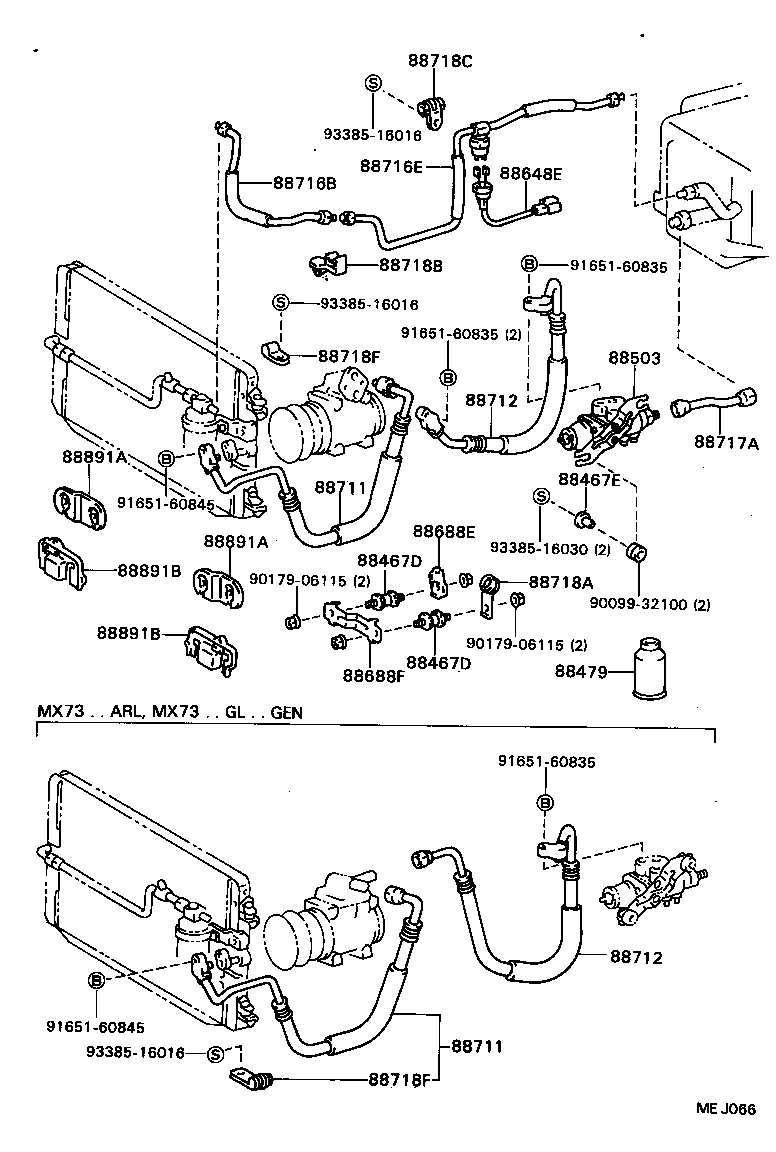

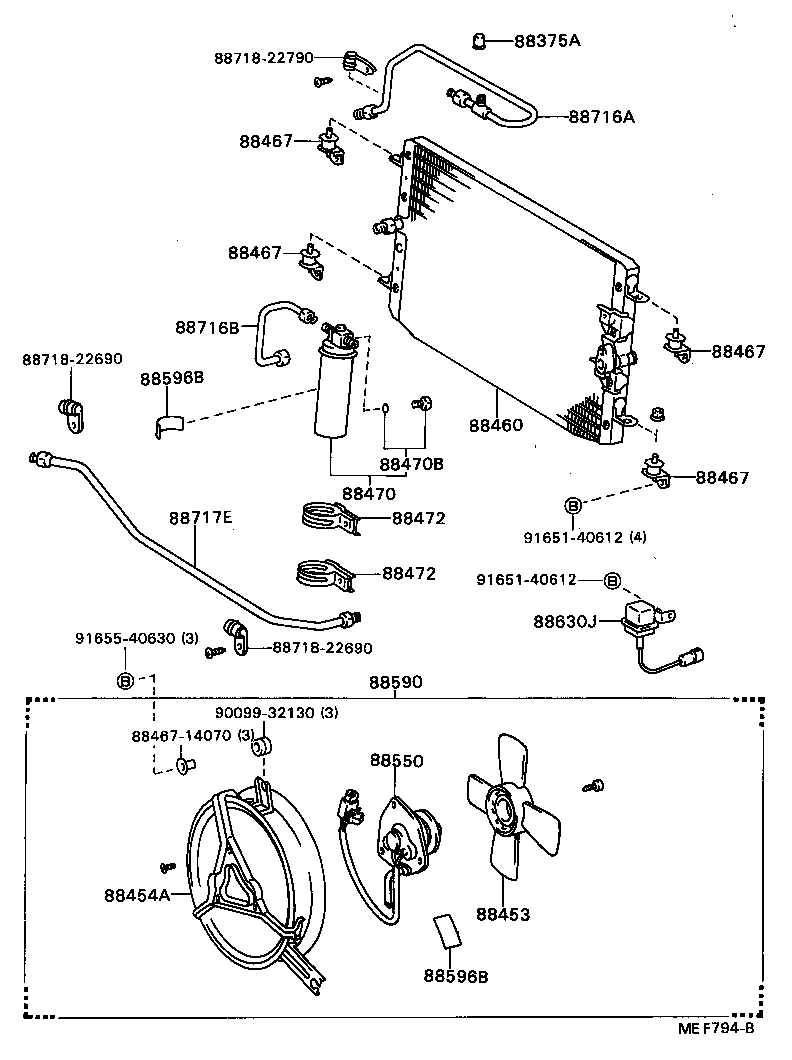

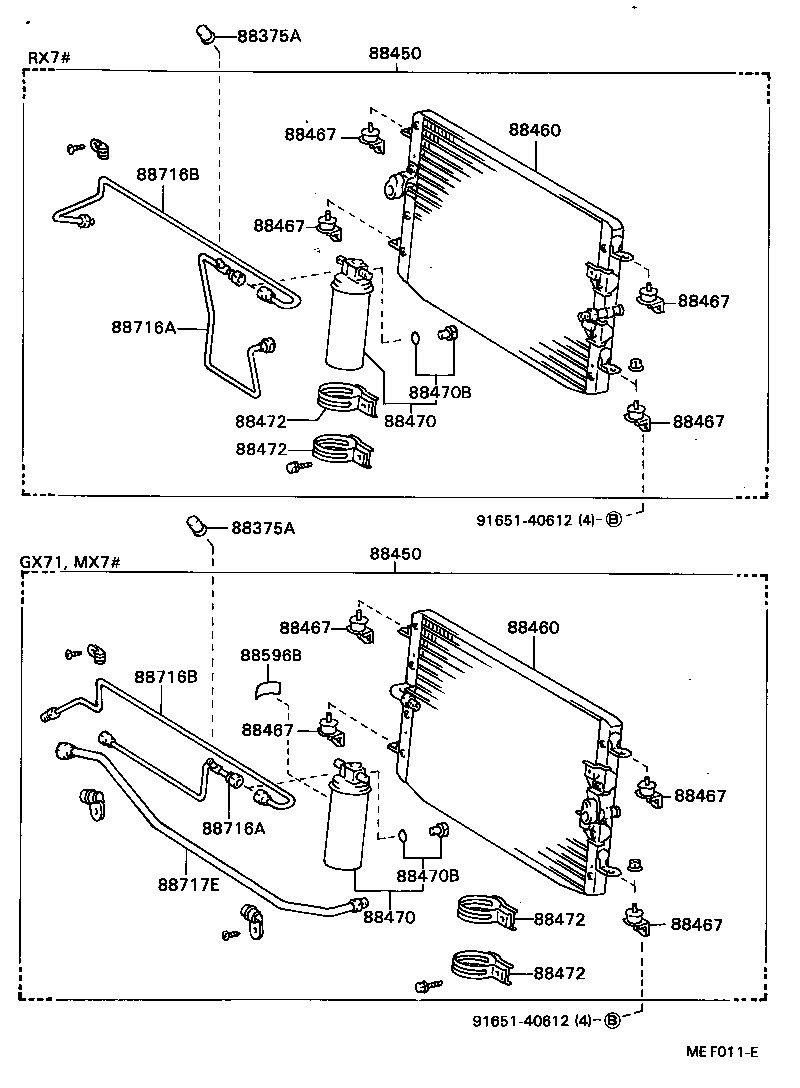

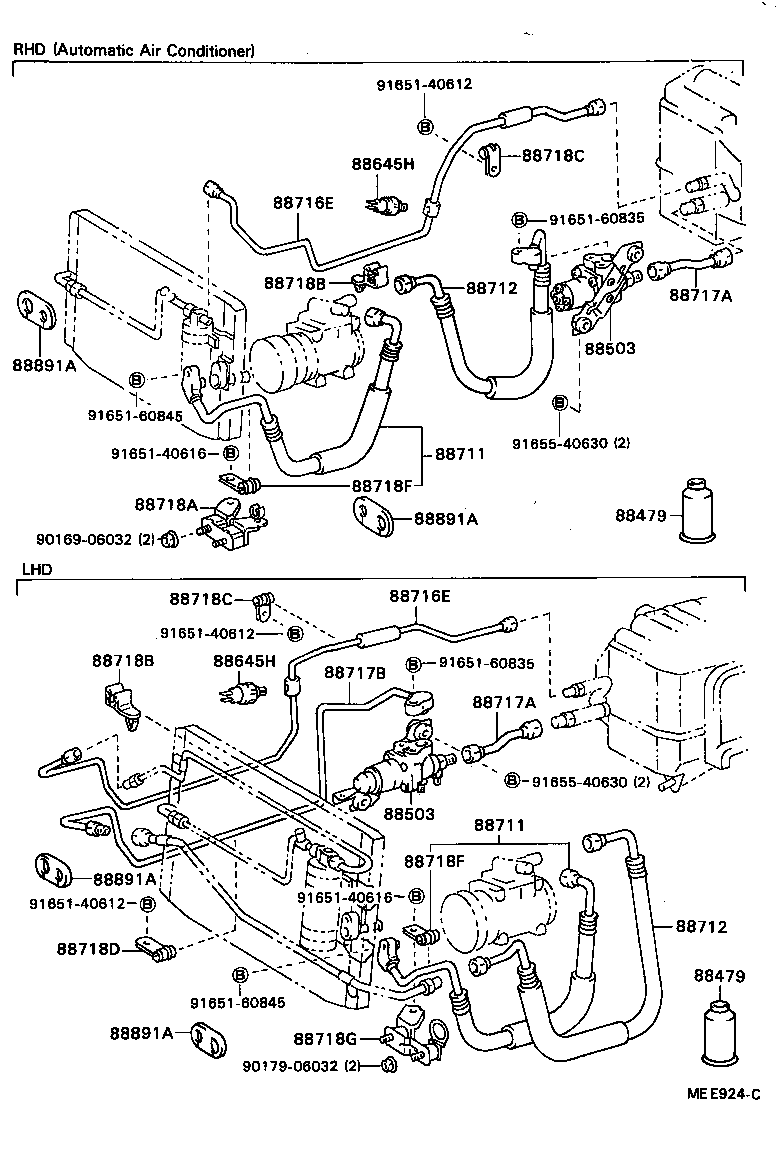

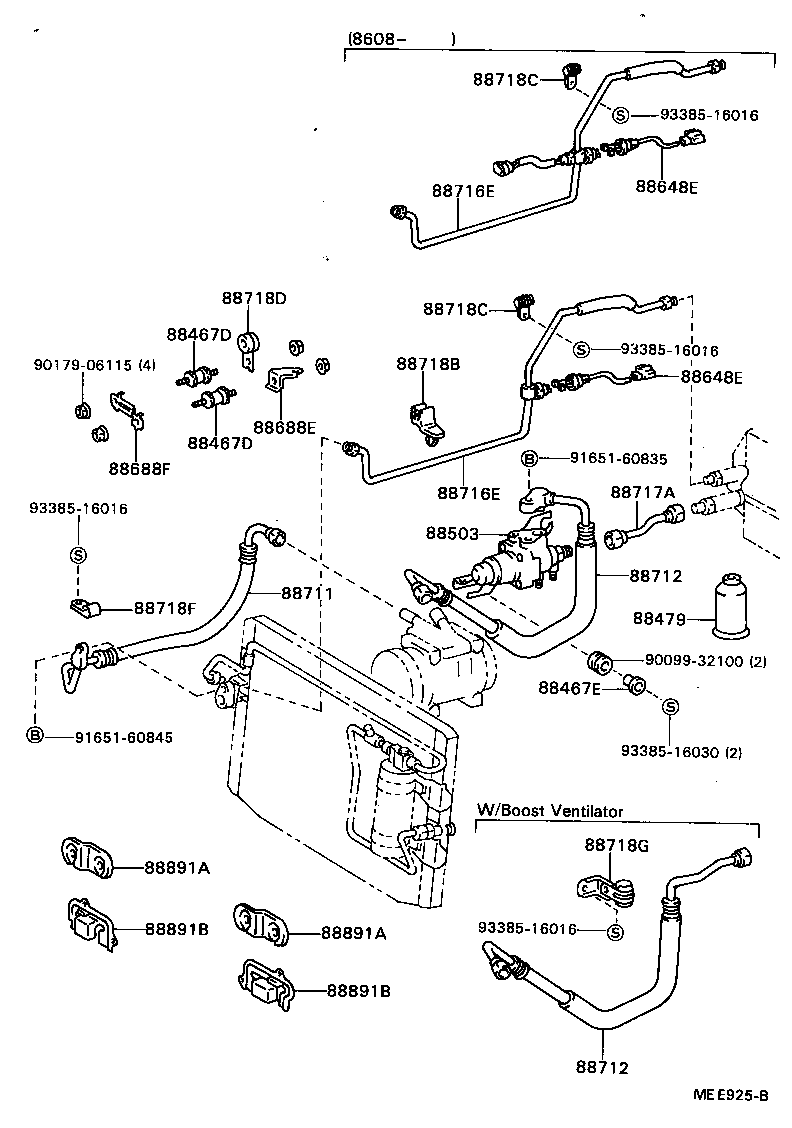

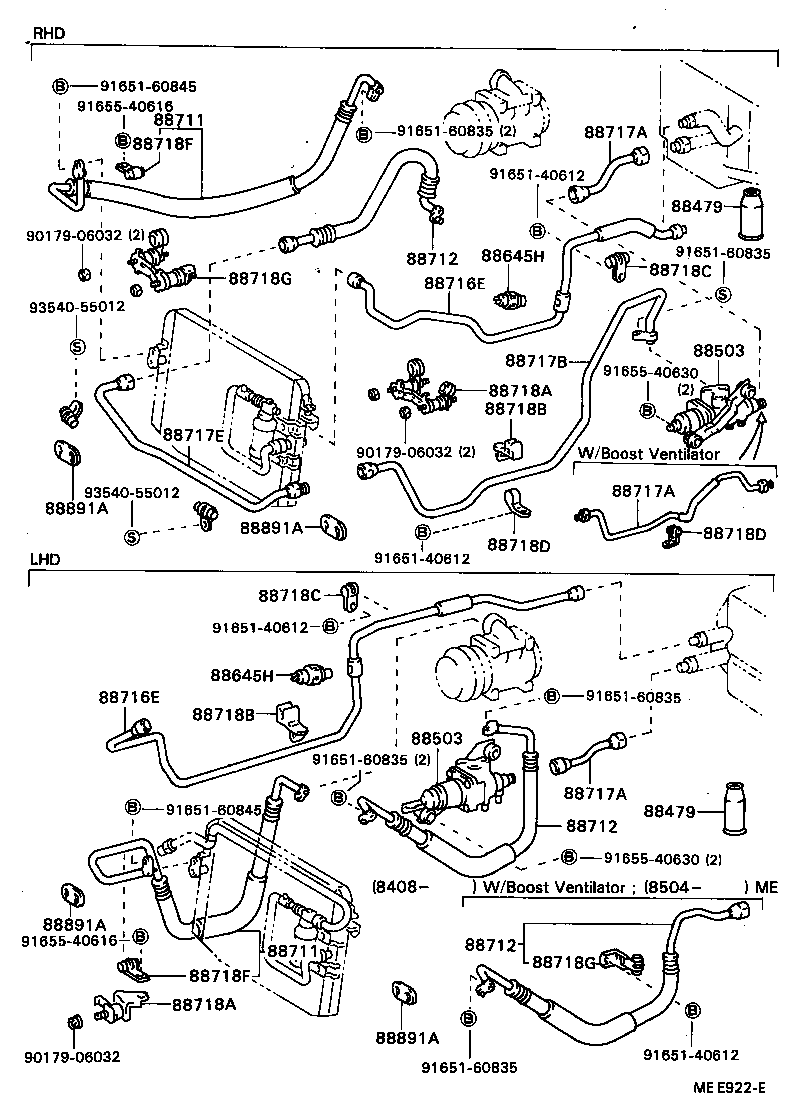

Figure MEE921C MEE921C 1984-08 → — Figure MEH623A MEH623A 1984-08 → — Figure MEJ070 MEJ070 1984-08 → — Figure MEJ070 MEJ070 1987-01 → — Figure MEF011E MEF011E 1984-08 → 1985-04 Figure MEF011E MEF011E 1984-08 → 1985-08 Figure MEF011E MEF011E 1984-08 → — Figure MEJ071 MEJ071 1984-08 → 1986-08 Figure MEJ072 MEJ072 1986-08 → — Figure MEF794B MEF794B 1985-04 → — Figure MEF794B MEF794B 1985-08 → — Figure MEE922E MEE922E 1984-08 → — Figure MEE923C MEE923C 1984-08 → 1985-04 Figure MEE923C MEE923C 1984-08 → — Figure MEJ066 MEJ066 1984-08 → — Figure MEJ066 MEJ066 1987-01 → — Figure MEE924C MEE924C 1984-08 → 1985-04 Figure MEE924C MEE924C 1984-08 → — Figure MEE925B MEE925B 1984-08 → — Figure MEF795B MEF795B 1985-04 → — Figure MEJ065A MEJ065A 1985-04 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467D Cushion, Cooler Refrigerant Pipe Clamp
88467E Cushion, Pressure Regulator
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88630J Relay Assy (FOR CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717E Pipe, Cooler Refrigerant Suction, E
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
