Toyota Cressida
1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe
Discontinued model
Data version 1997-05
Camshaft & Valve

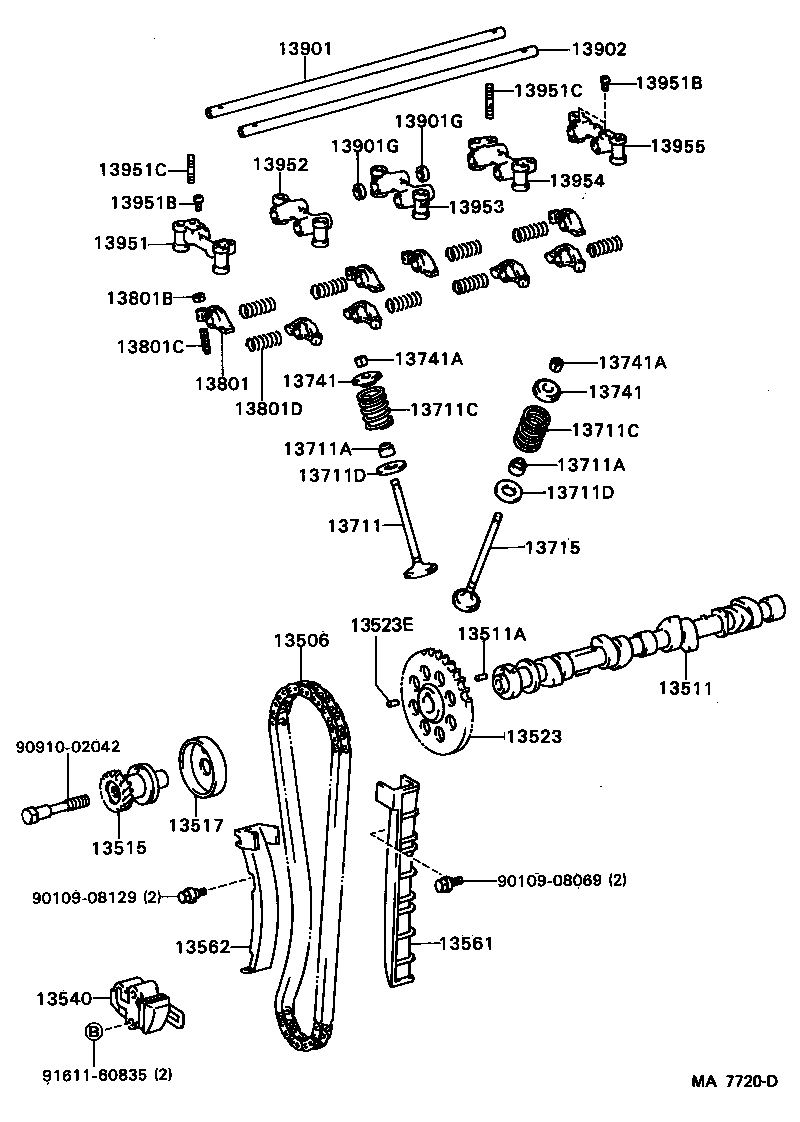

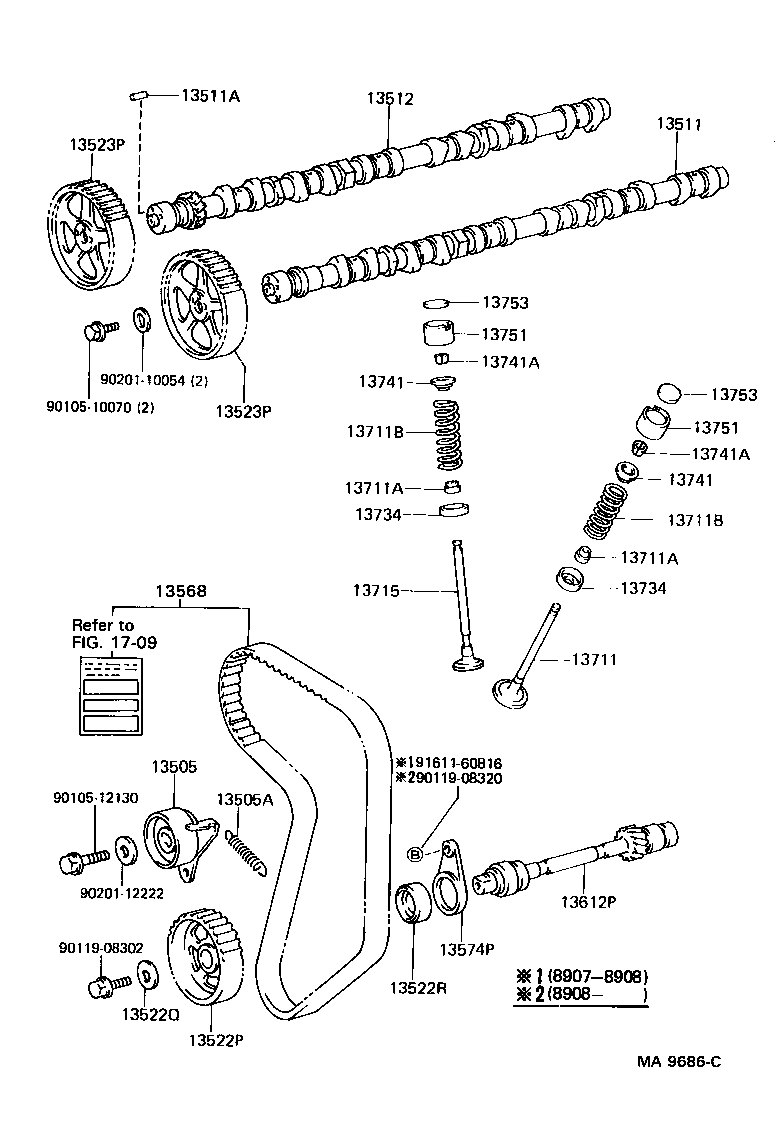

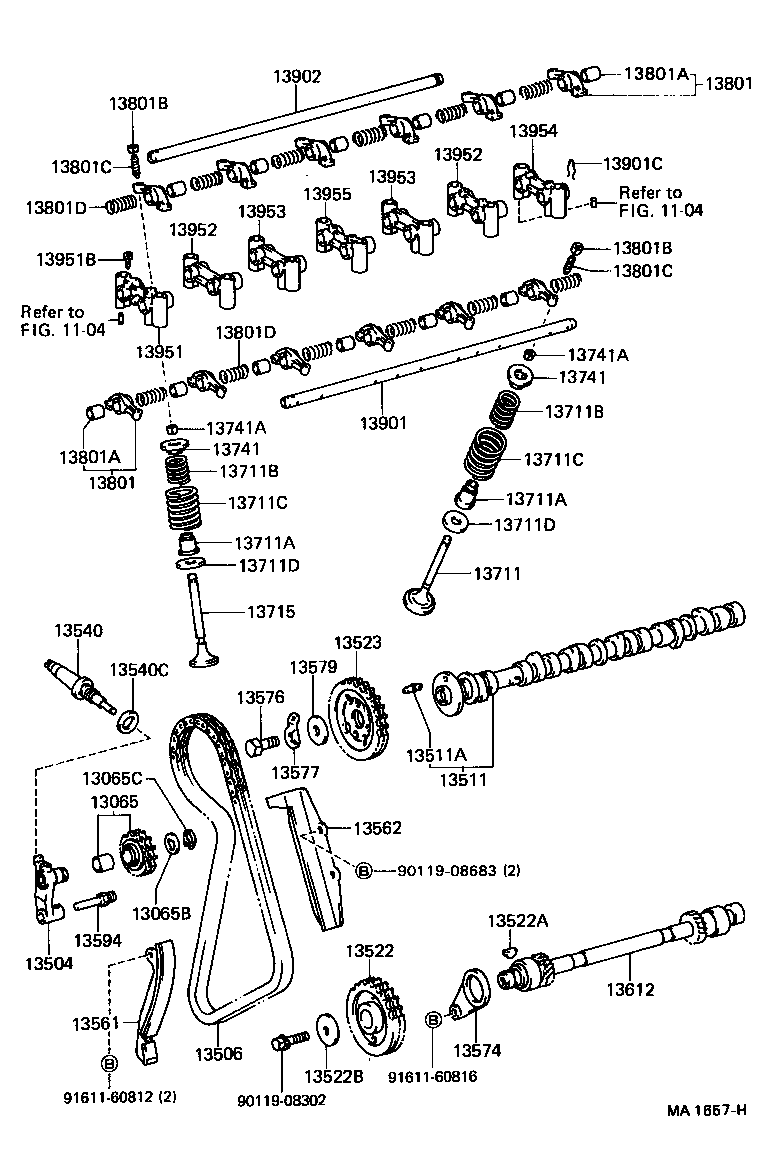

68 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11802 | Bearing Set, Camshaft |
| 13065 | Gear Sub-assy, Tension |
| 13065B | Washer, Timing Chain Tension Gear Claw |
| 13065C | Ring, Shaft Snap(FOR TENSION GEAR) |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13504 | Arm Sub-assy, Tension |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13506 | Chain Sub-assy |
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13515 | Gear, Distributor Drive |
| 13517 | Cam, Fuel Pump Drive |
| 13522 | Gear, Pump Drive Shaft |
| 13522A | Key, Woodruff(FOR PUMP DRIVE SHAFT GEAR) |
| 13522B | Washer, Plate(FOR PUMP DRIVE SHAFT GEAR) |
| 13522P | Pulley, Pump Drive Shaft |
| 13522Q | Washer, Plate(FOR PUMP DRIVE SHAFT PULLEY) |
| 13522R | Collar(FOR PUMP DRIVE SHAFT PULLEY) |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523A | Key, Woodruff(FOR TIMING GEAR) |
| 13523E | Pin, Straight(FOR TIMING GEAR) |
| 13523P | Pulley, Camshaft Timing |
| 13529 | Gear, Camshaft Sub |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540C | Gasket(FOR CHAIN TENSIONER) |
| 13558 | Bracket, Spring(FOR IDLER) |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13562 | Damper, Chain Vibration, NO.2 |
| 13568 | Belt, Timing |
| 13574 | Plate, Pump Drive Shaft |
| 13574P | Plate, Pump Drive Shaft Thrust |
| 13576 | Bolt, Camshaft Timing Gear |
| 13577 | Plate, Lock |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13594 | Shaft, Tension Gear Arm |
| 13612 | Shaft, Pump Drive |
| 13612P | Shaft, Pump Drive |
| 13613P | Pulley, Injection Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13751D | Pad, Valve Adjusting |
| 13753 | Shim, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13801A | Bush, Bimetal Formed(FOR ROCKER ARM) |
| 13801B | Nut, Hexagon(FOR VALVE ADJUSTING) |
| 13801C | Screw, Valve Adjusting |
| 13801D | Spring, Compression(FOR ROCKER ARM) |
| 13901 | Shaft Sub-assy, Valve Rocker, NO.1 |
| 13901C | Spring, Retainer(FOR VALVE ROCKER SHAFT) |
| 13901G | Washer, Rocker Shaft |
| 13902 | Shaft Sub-assy, Valve Rocker, NO.2 |
| 13951 | Support, Valve Rocker, NO.1 |
| 13951B | Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK) |
| 13951C | Bolt, Stud(FOR ROCKER SUPPORT) |
| 13952 | Support, Valve Rocker, NO.2 |
| 13953 | Support, Valve Rocker, NO.3 |
| 13954 | Support, Valve Rocker, NO.4 |
| 13955 | Support, Valve Rocker, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
