Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

38 part groups · 5 illustrations

Illustrations

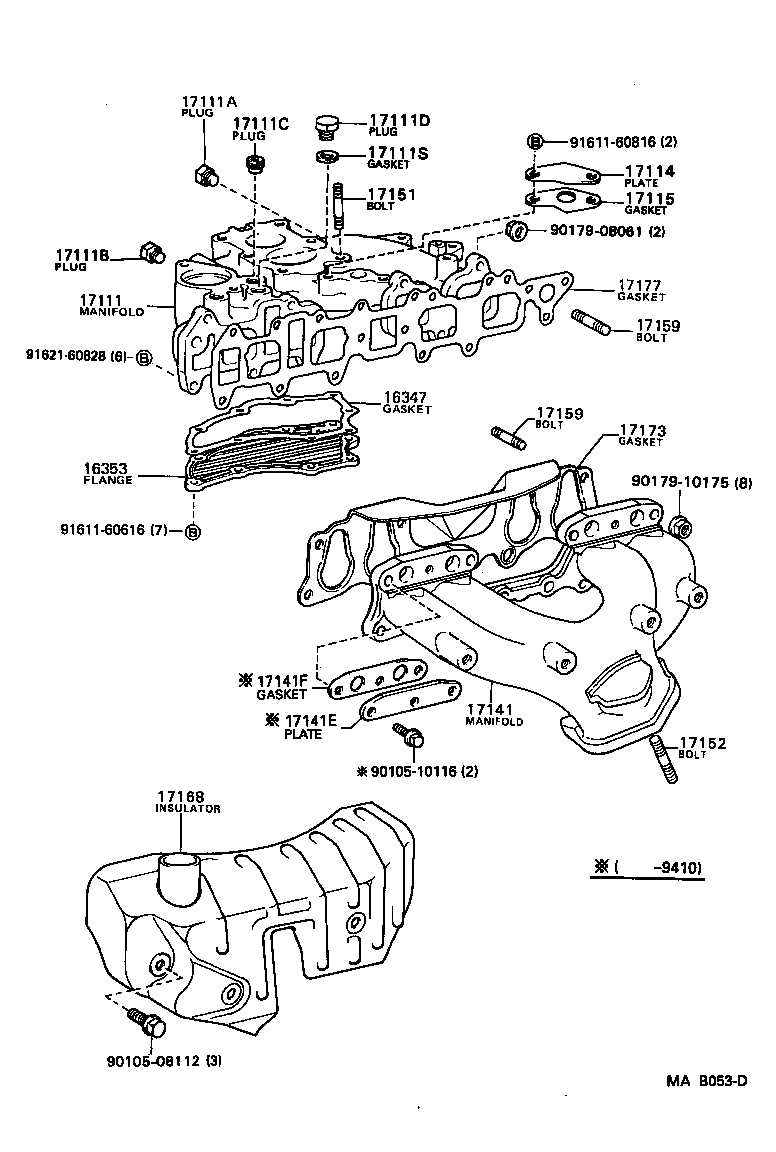

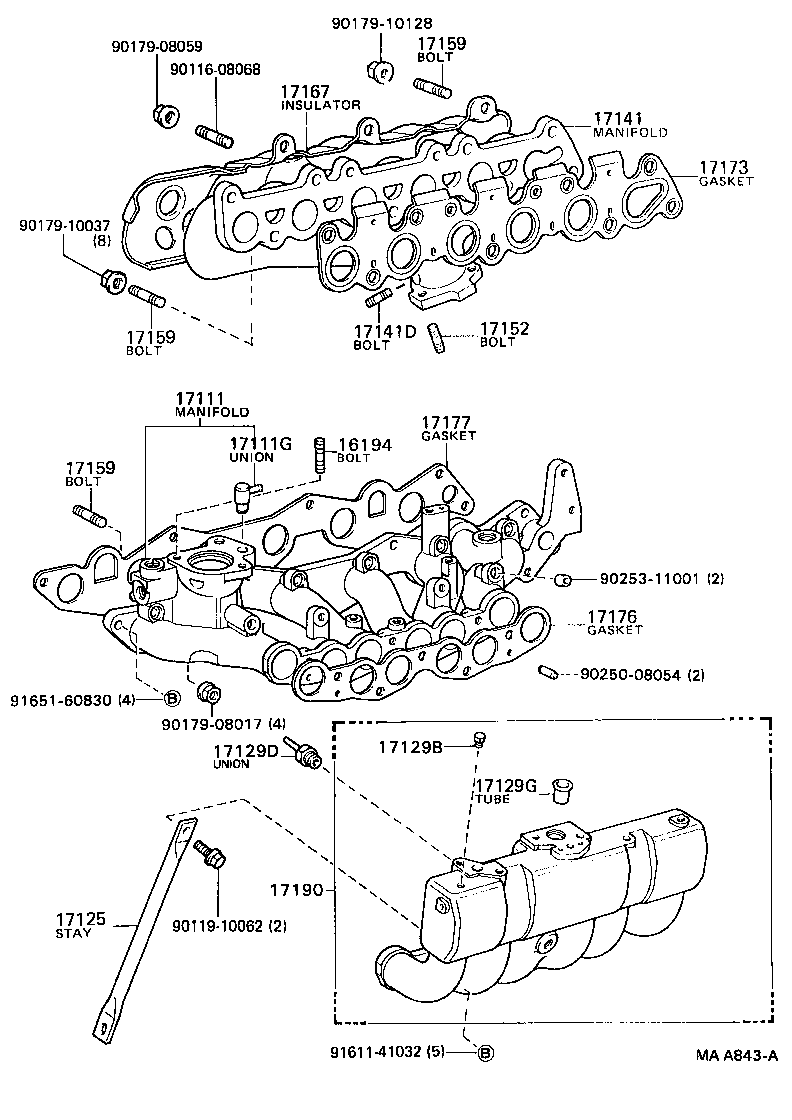

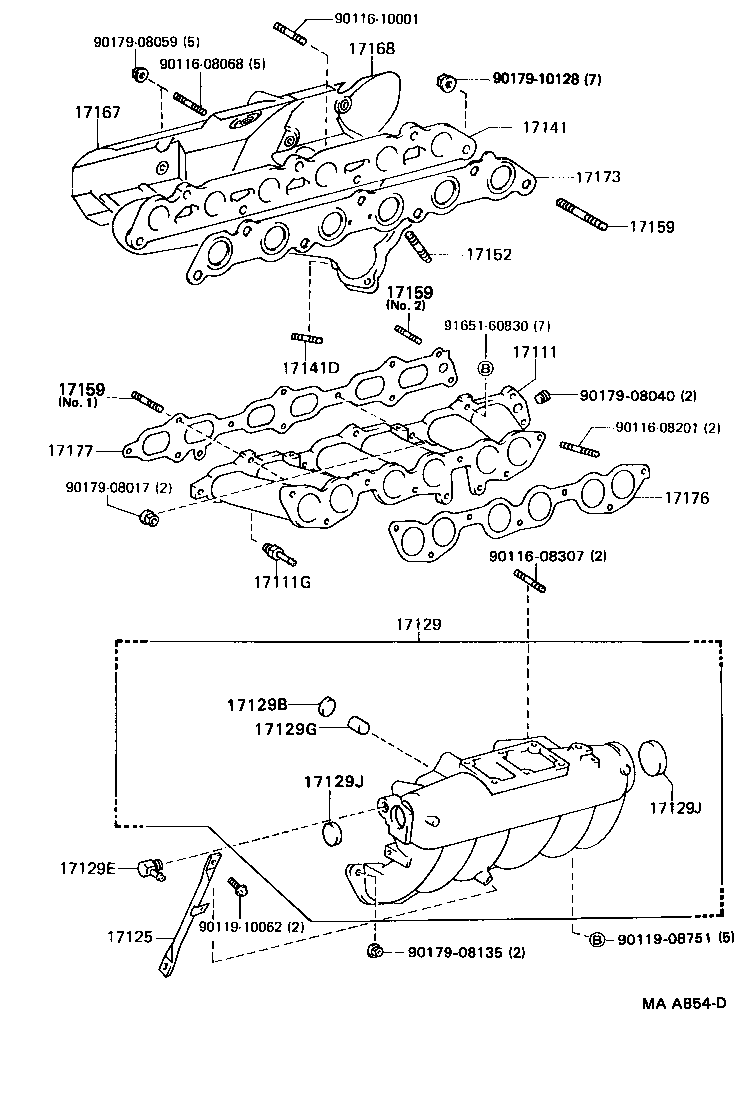

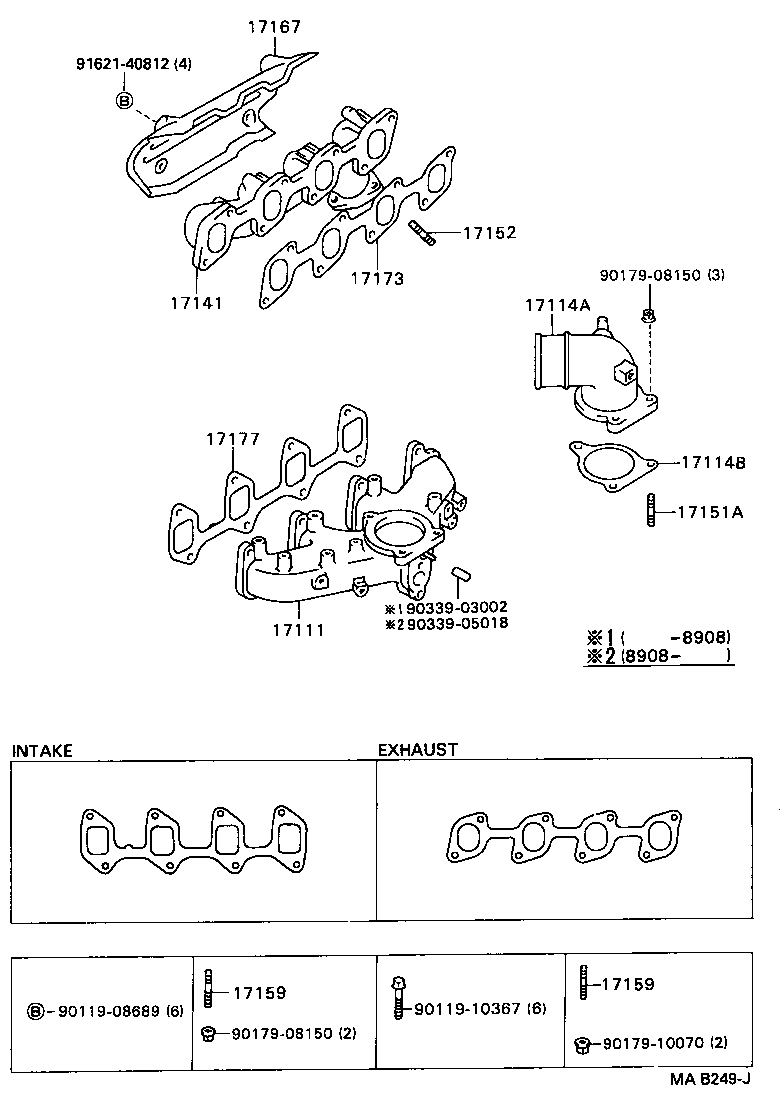

Figure MAC114B MAC114B 1988-08 → 1993-02 Figure MAB249J MAB249J 1988-08 → 1993-02 Figure MAA843A MAA843A 1988-08 → 1993-02 Figure MAA854D MAA854D 1988-08 → 1993-02 Figure MAB053D MAB053D 1988-08 → —

Part groups

PNCDescription
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110A Union, Vacuum Hose
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17111G Union(FOR INTAKE MANIFOLD WATER)
17111S Gasket(FOR MANIFOLD PLUG)
17114 Plate, Intake Manifold Hole Cover
17114A Flange, Intake
17114B Gasket, Intake Flange
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17129G Tube, Egr Inlet
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17190 Tank Assy, Intake Air Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
