Toyota Cressida
1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe
Discontinued model
Data version 1997-05

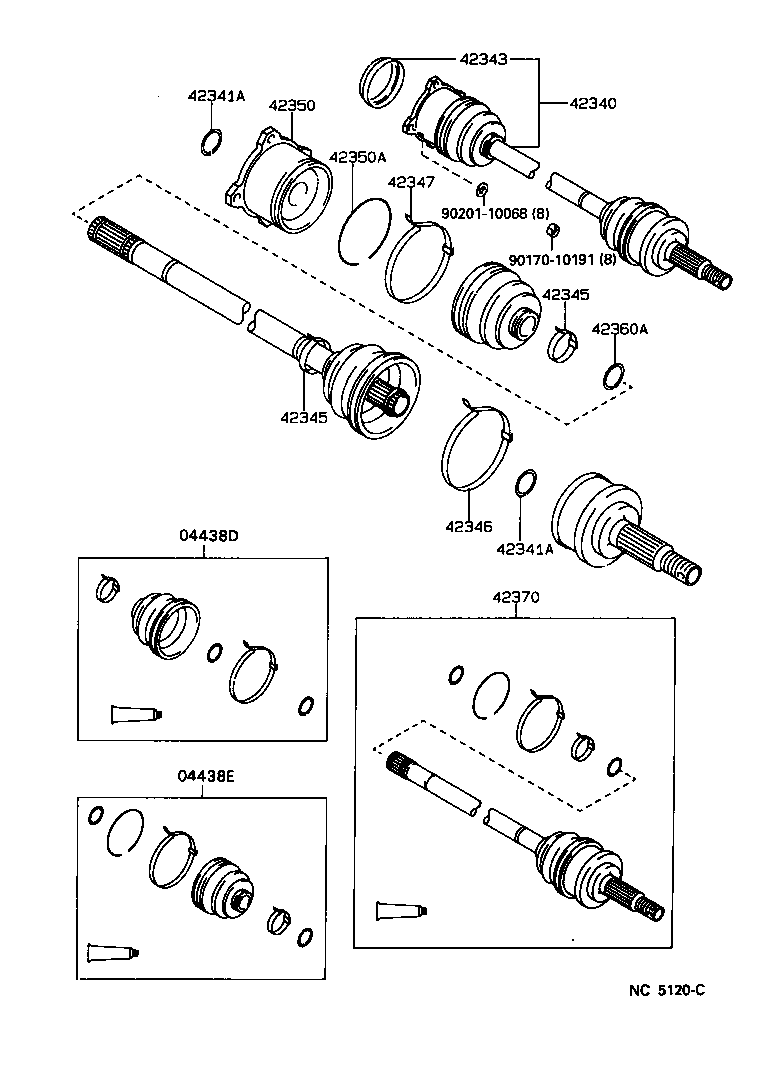

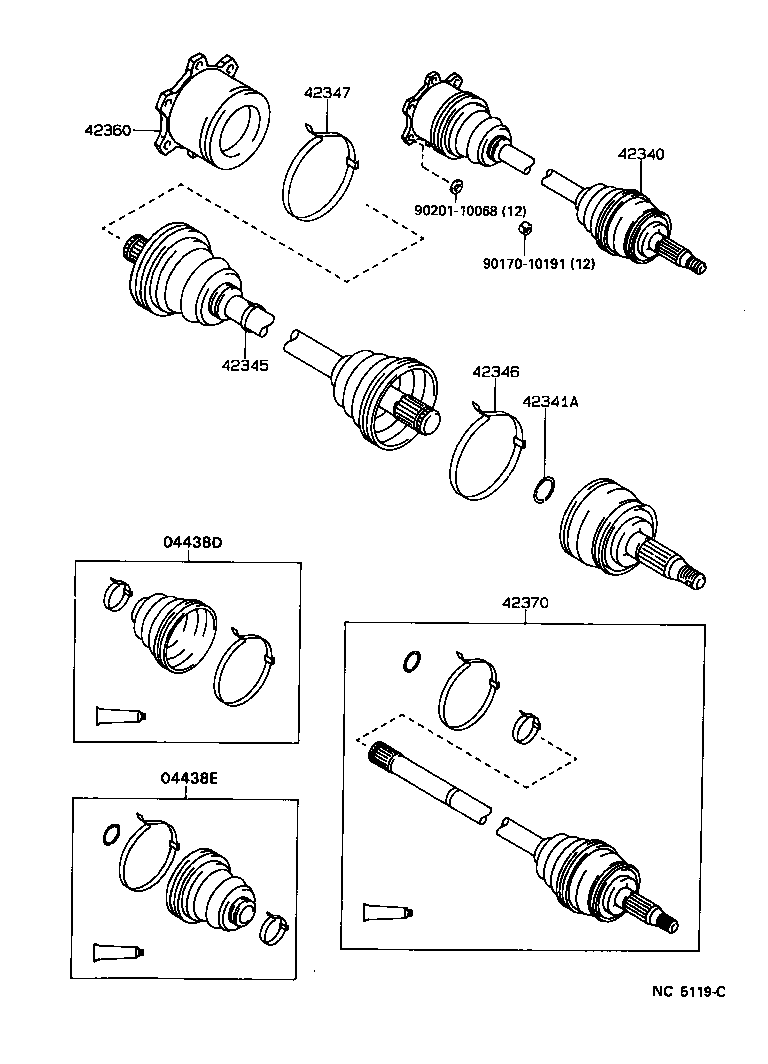

Rear Axle Shaft & Hub
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04421 | Bearing Kit, Rear Axle Shaft |
| 04438D | Boot Kit, Rear Drive Shaft Inboard Joint |
| 04438E | Boot Kit, Rear Drive Shaft Outboard Joint |
| 42185 | Gasket, Rear Axle Housing End |
| 42311 | Shaft, Rear Axle |
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311C | Bearing(FOR REAR AXLE SHAFT) |
| 42311D | Ring, Snap(FOR REAR AXLE SHAFT) |
| 42311E | Seal, Oil(FOR REAR AXLE SHAFT OUTER) |
| 42311G | Nut(FOR REAR AXLE SHAFT) |
| 42340 | Shaft Assy, Rear Drive |
| 42341A | Ring, Snap (FOR REAR DRIVE SHAFT) |
| 42343 | Cover, Outboard Joint End |
| 42345 | Clamp, Rear Drive Shaft Boot |
| 42346 | Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) |
| 42347 | Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) |
| 42350 | Joint Assy, Rear Drive Shaft Outboard |
| 42350A | Ring, Hole Snap |
| 42360 | Joint Assy, Rear Drive Shaft Inboard |
| 42360A | Ring, Shaft Snap (FOR REAR DRIVE SHAFT INBOARD JOINT) |
| 42370 | Shaft Assy, Rear Drive Outboard Joint |
| 42403 | Drum Sub-assy, Rear Brake |
| 42403A | Piece, Balance (FOR REAR BRAKE DRUM) |
| 42424 | Retainer, Rear Axle Bearing, Outer, RH |
| 42425 | Gasket, Rear Axle Bearing Retainer |
| 42428 | Plate, Rear Axle Lock Nut |
| 42431 | Disc, Rear |
| 42451 | Deflector, Rear Wheel Bearing Dust, NO.1 |
| 42452 | Deflector, Rear Wheel Bearing Dust, NO.2 |
| 42454 | Retainer, Rear Axle Bearing, Outer, LH |
| 42491 | Plug, Shoe Adjusting Hole (FOR PARKING BRAKE) |
| 42611E | Bolt, Hub (FOR REAR AXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
