Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Disc Wheel & Wheel Cap

8 part groups · 3 illustrations

Illustrations

Figure MCL364C

MCL364C 1988-08 → —

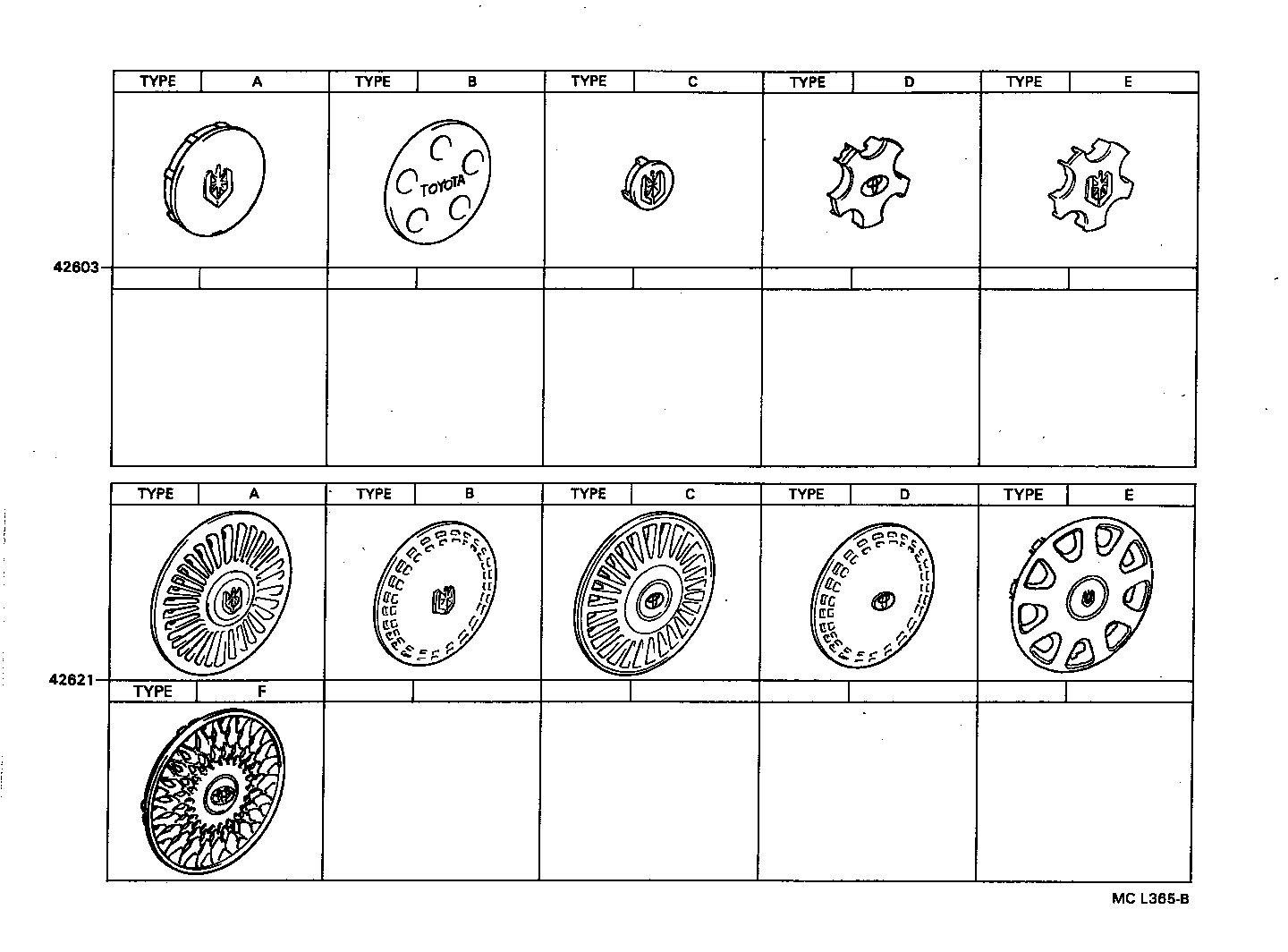

Figure MCL365B

MCL365B 1988-08 → —

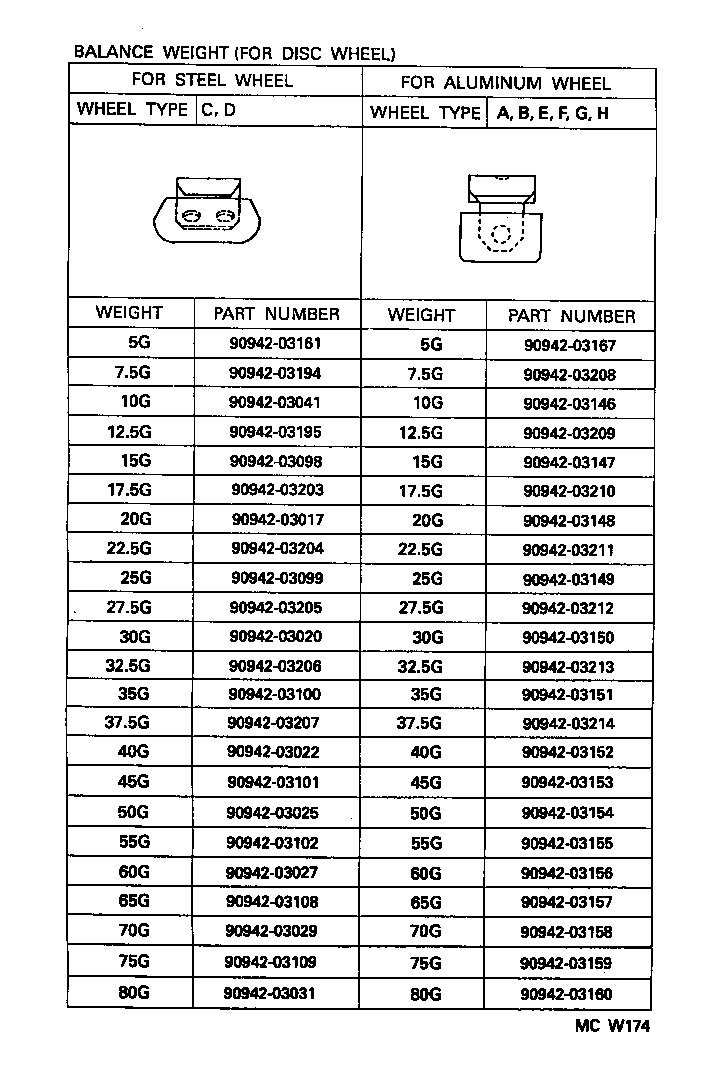

Figure MCW174

MCW174 1988-08 → —

Part groups

PNC	Description
42601	Wheel, Disc
42601A	Wheel, Disc (FOR SPARE)
42601C	Nut, Hub (FOR AXLE)
42603	Ornament Sub-assy, Wheel Hub
42611G	Valve (FOR TUBELESS TIRE)
42621	Cap, Wheel
42652	Tire
42652A	Tire (FOR SPARE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
