Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 7 illustrations

Illustrations

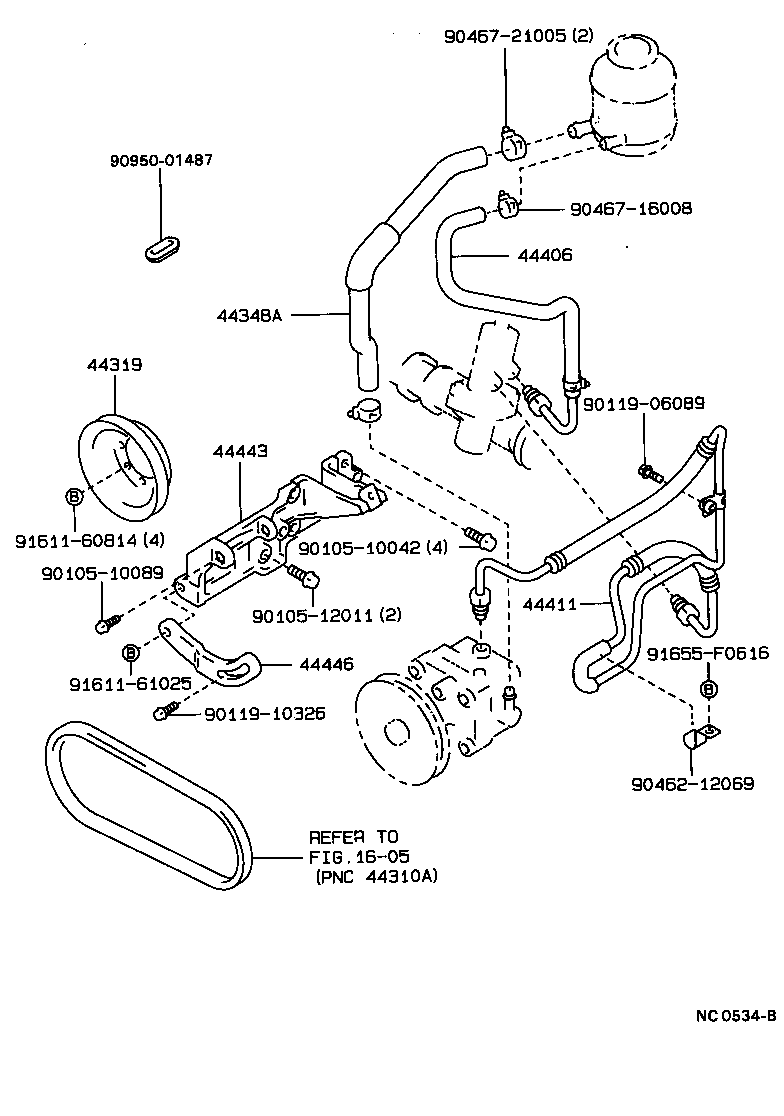

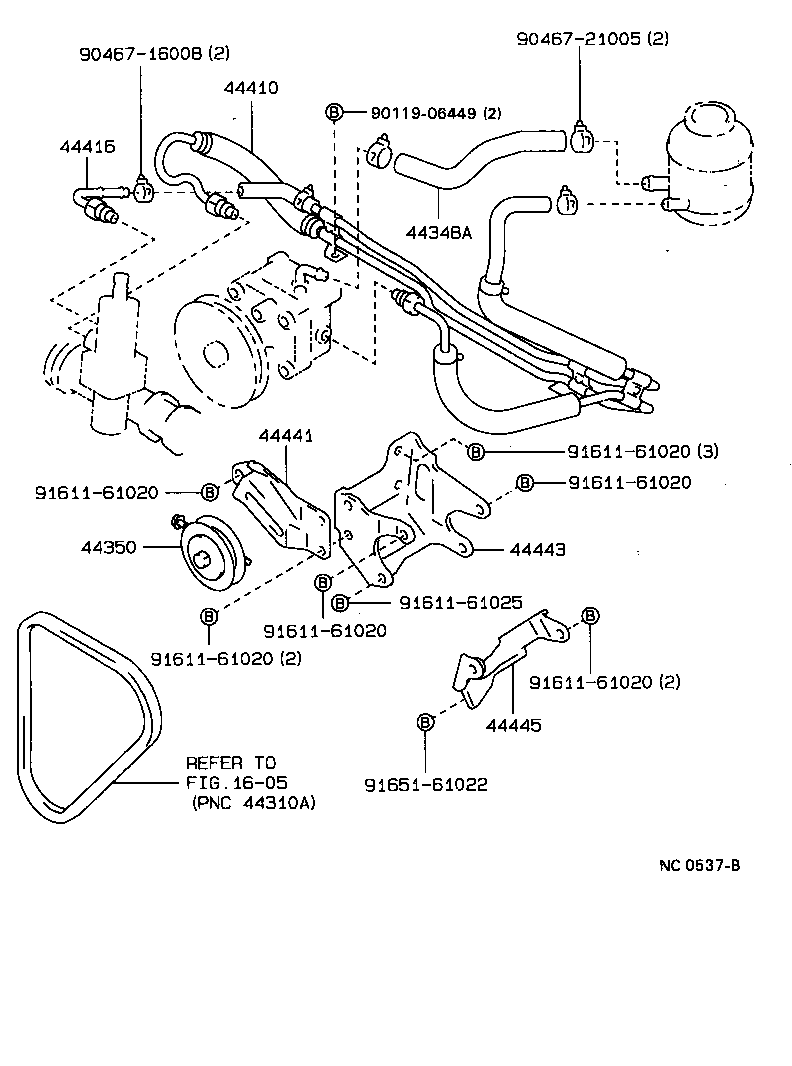

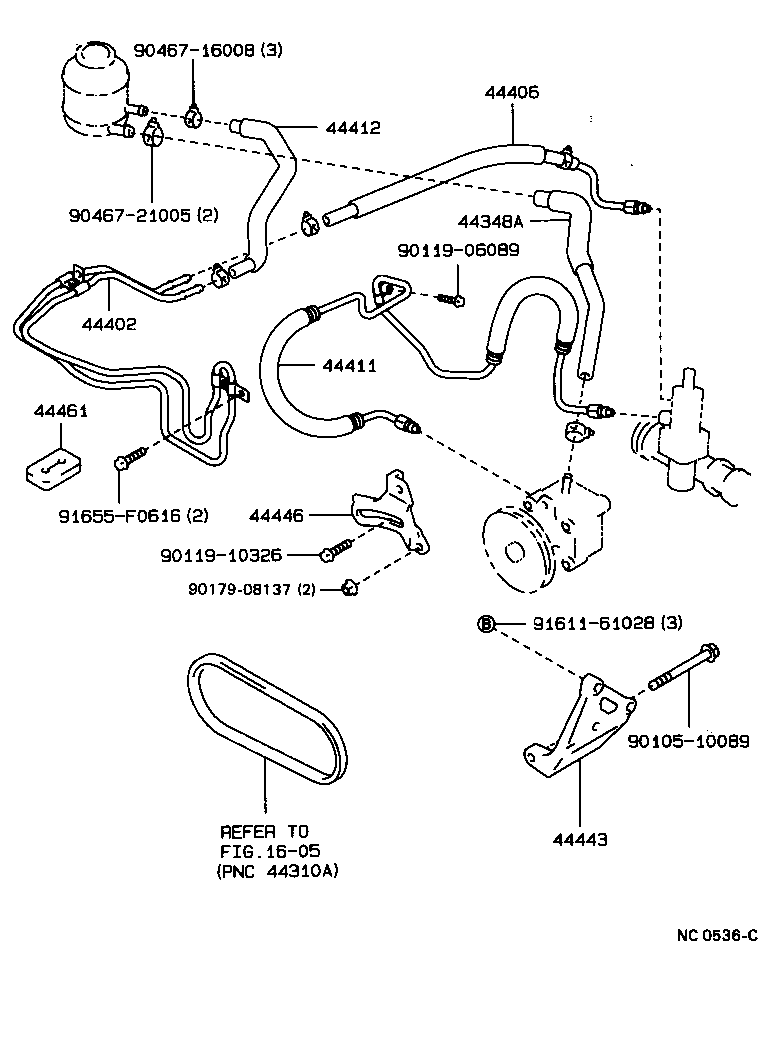

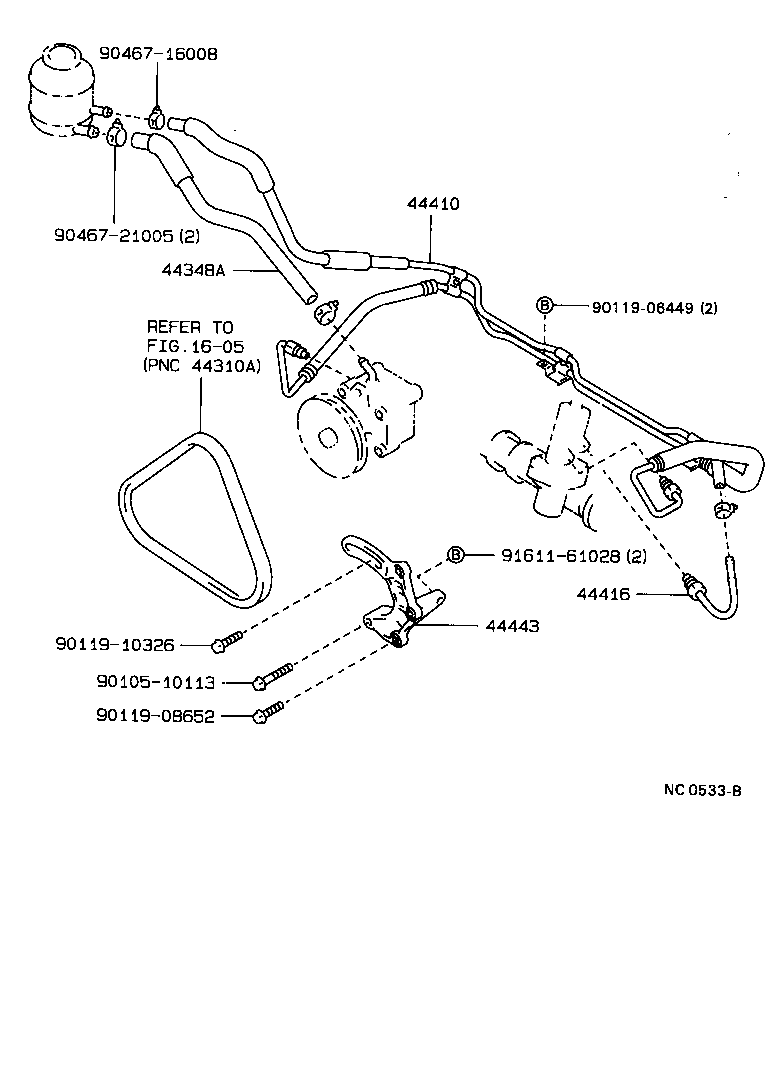

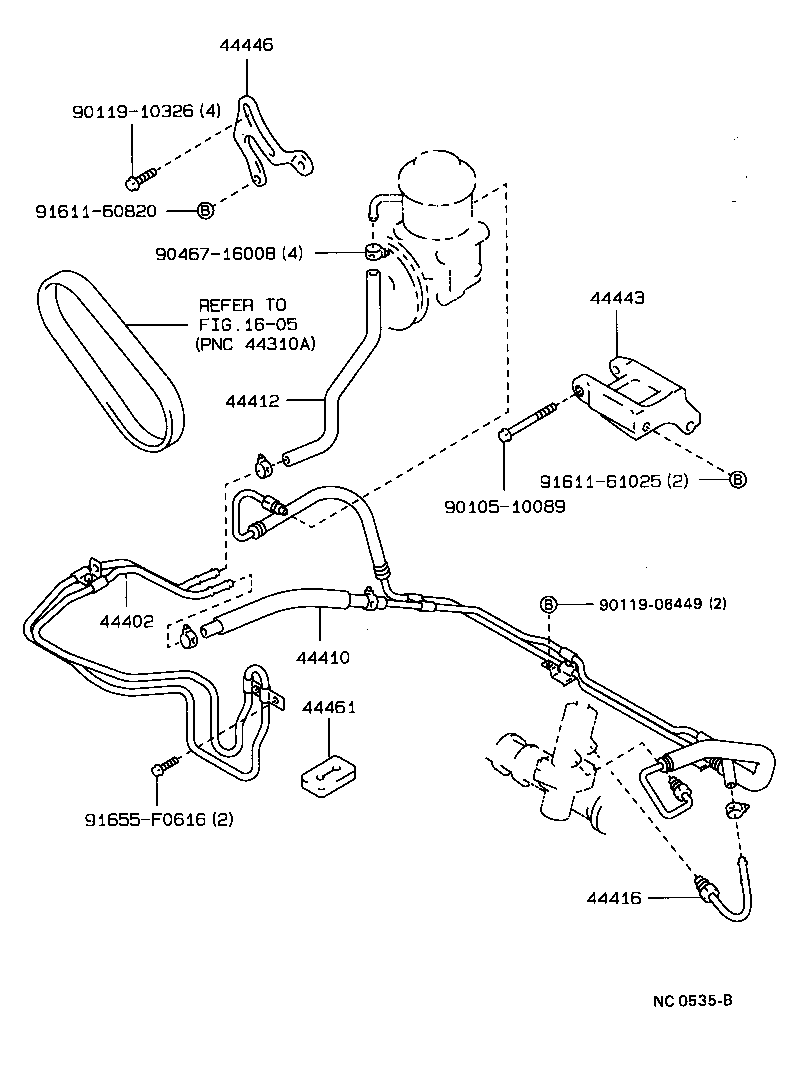

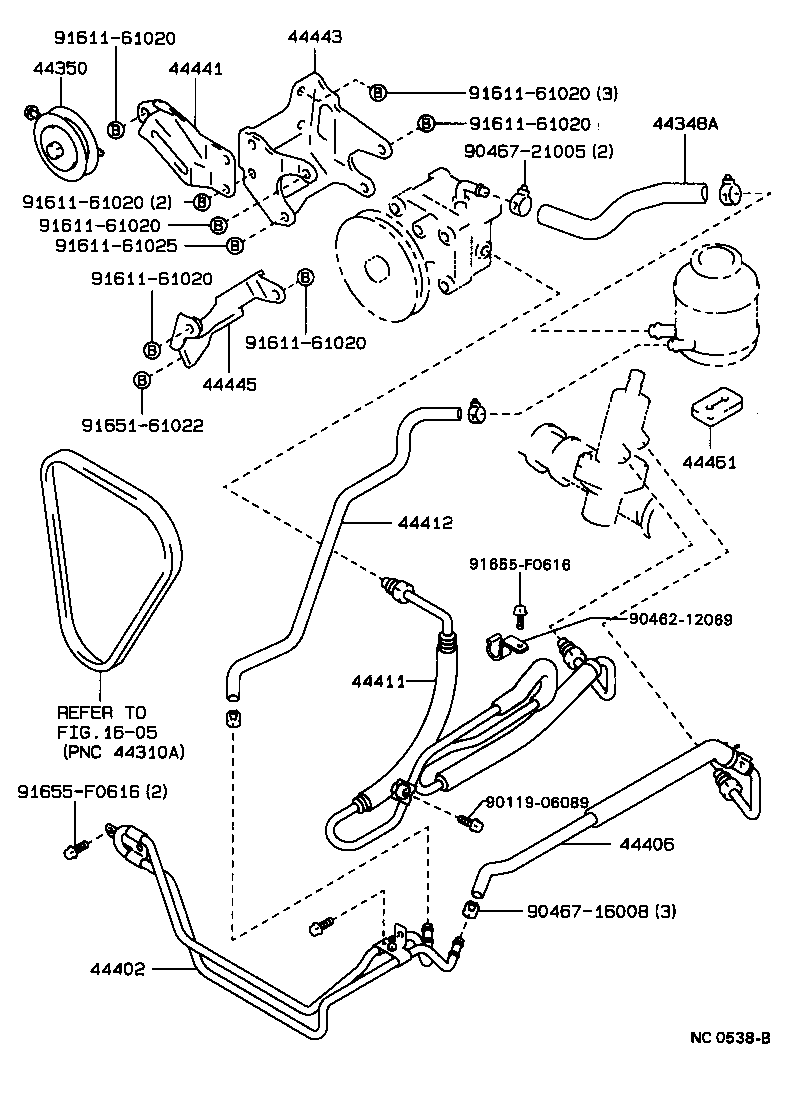

Figure NC0527 NC0527 1988-08 → — Figure NC0533B NC0533B 1988-08 → — Figure NC0534B NC0534B 1988-08 → — Figure NC0535B NC0535B 1988-08 → — Figure NC0536C NC0536C 1988-08 → — Figure NC0537B NC0537B 1988-08 → — Figure NC0538B NC0538B 1988-08 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44412 Hose, Return
44412C Clamp(FOR RETURN HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44445 Bracket, Pump, Lower
44446 Strut, Adjusting
44461 Insulator, Tube Refrigerant
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
