Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05

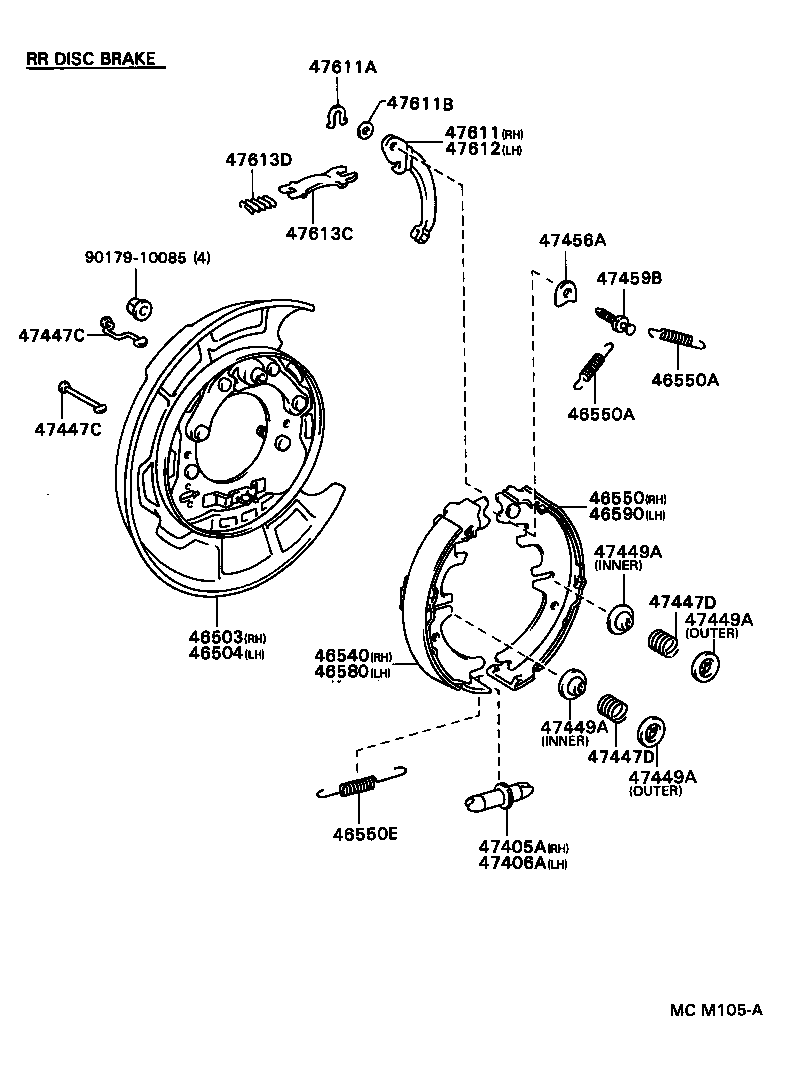

Parking Brake & Cable

34 part groups · 3 illustrations

PNC	Description
46201E	Lever Sub-assy, Parking Brake
46217	Knob, Parking Brake Release Rod
46225A	Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46241	Boot, Parking Brake Lever
46249	Shield, Parking Brake Hole
46304	Equalizer Sub-assy, Parking Brake
46361	Rod, Parking Brake Pull
46361A	Pin, Parking Brake Pull Rod
46361C	Grommet(FOR PARKING BRAKE PULL ROD)
46420	Cable Assy, Parking Brake, NO.2
46420A	Clamp, NO.1(FOR PARKING BRAKE CABLE)
46430	Cable Assy, Parking Brake, NO.3
46458	Retainer, Cable
46503	Plate Sub-assy, Parking Brake, RH
46504	Plate Sub-assy, Parking Brake, LH
46540	Shoe Assy, Parking Brake, RH OR Center NO.1
46550	Shoe Assy, Parking Brake, RH OR Center NO.2
46550A	Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550E	Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46580	Shoe Assy, Parking Brake, LH NO.1
46590	Shoe Assy, Parking Brake, LH NO.2
47405A	Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
47406A	Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
47447C	Pin, Shoe Hold Down Spring(FOR PARKING BRAKE)
47447D	Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN)
47449A	Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE)
47456A	Plate, Shoe Guide(FOR PARKING BRAKE)
47459B	Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE)
47611	Lever, Parking Brake Shoe, RH
47611A	Washer, Type C(FOR PARKING BRAKE SHOE LEVER)
47611B	Shim(FOR PARKING BRAKE SHOE LEVER)
47612	Lever, Parking Brake Shoe, LH
47613C	Strut, Parking Brake Shoe
47613D	Spring, Compression(FOR PARKING BRAKE SHOE STRUT)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
