Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

18 part groups · 2 illustrations

Illustrations

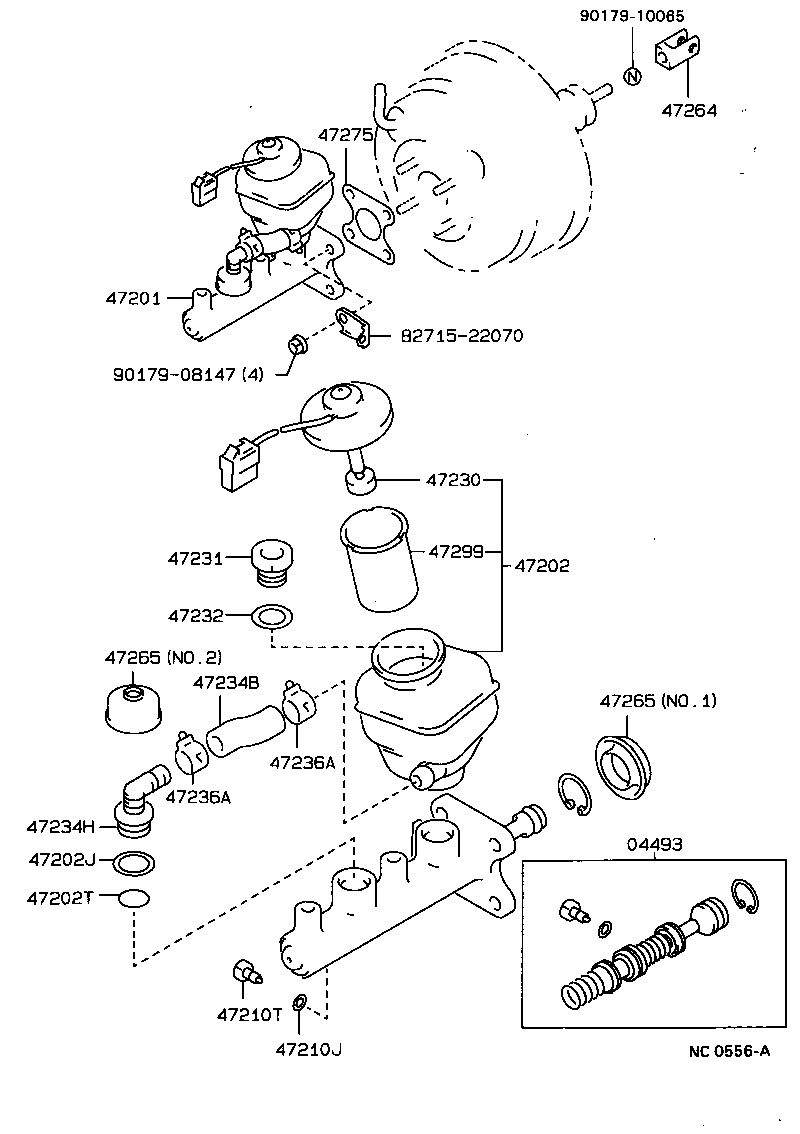

Figure NC0612A NC0612A 1988-08 → — Figure NC0556A NC0556A 1988-08 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
47201 Cylinder Sub-assy, Brake Master
47202 Reservoir Sub-assy, Brake Master Cylinder
47202J Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE)
47202T Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47231 Bolt, Brake Master Cylinder Reservoir Set
47232 Washer, Brake Reservoir Set Bolt
47234B Tube, Reservoir, NO.1
47234H Elbow(FOR RESERVOIR TUBE)
47236A Clip(FOR RESERVOIR TUBE)
47255 Grommet, Master Cylinder Reservoir
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
