Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 3 illustrations

Illustrations

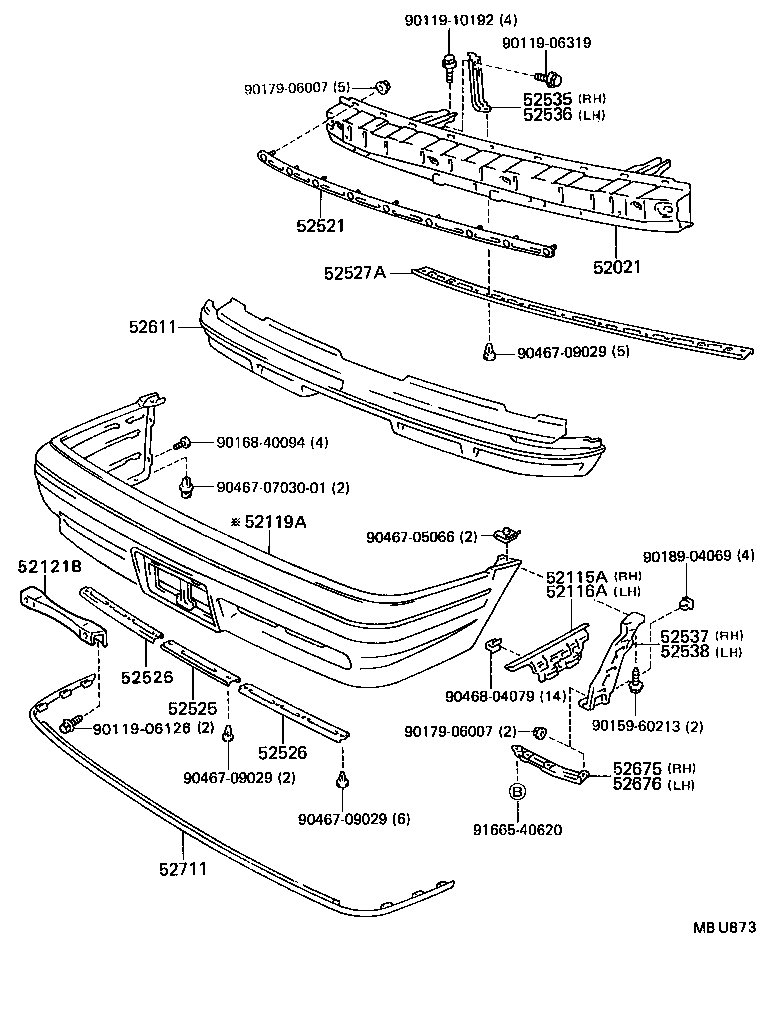

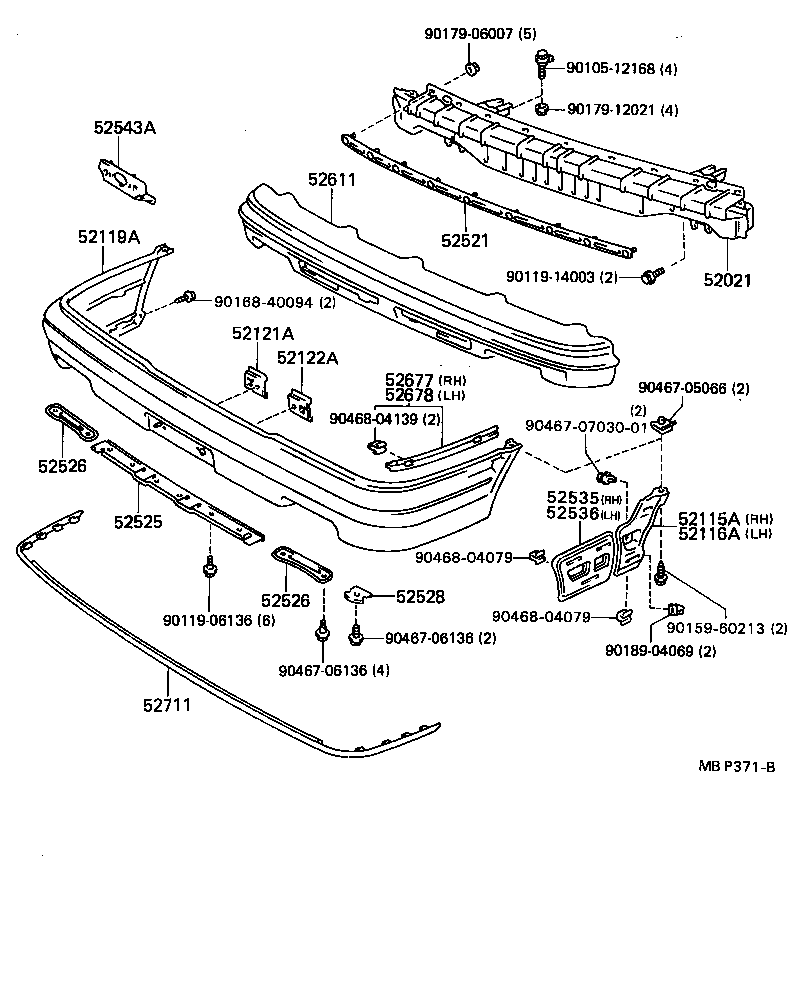

Figure MBP370B MBP370B 1988-08 → 1990-08 Figure MBP371B MBP371B 1988-08 → — Figure MBU873 MBU873 1990-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52121A Bracket, Front License Plate Mounting, RH
52121B Bracket, Front Licence Plate Mounting
52122A Bracket, Front License Plate Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52527A Retainer, Front Bumper, Lower Center NO.2
52528 Retainer, Front Bumper, Lower Corner
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52537 Retainer, Front Bumper End, RH
52538 Retainer, Front Bumper End, LH
52543A Seal, Front Bumper Side
52611 Absorber, Front Bumper Energy
52675 Support, Front Bumper Lower Side, RH
52676 Support, Front Bumper Lower Side, LH
52677 Support, Front Bumper Side, NO.2, RH
52678 Support, Front Bumper Side, NO.2, LH
52711 Moulding, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
