Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

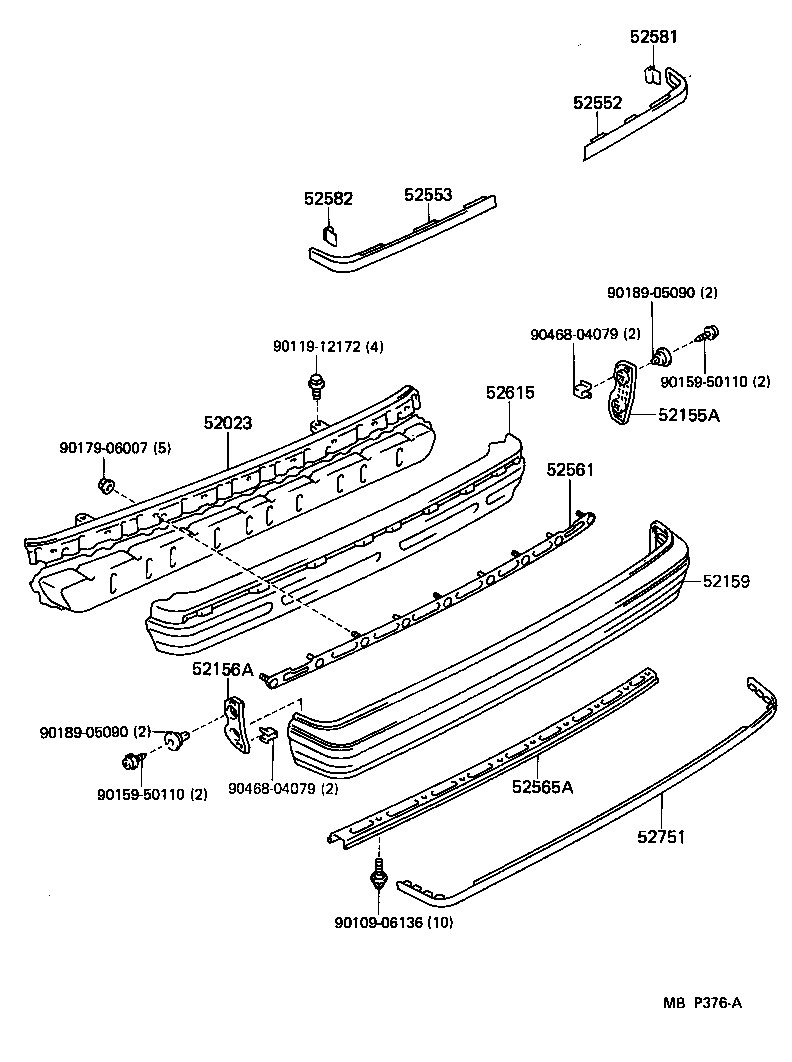

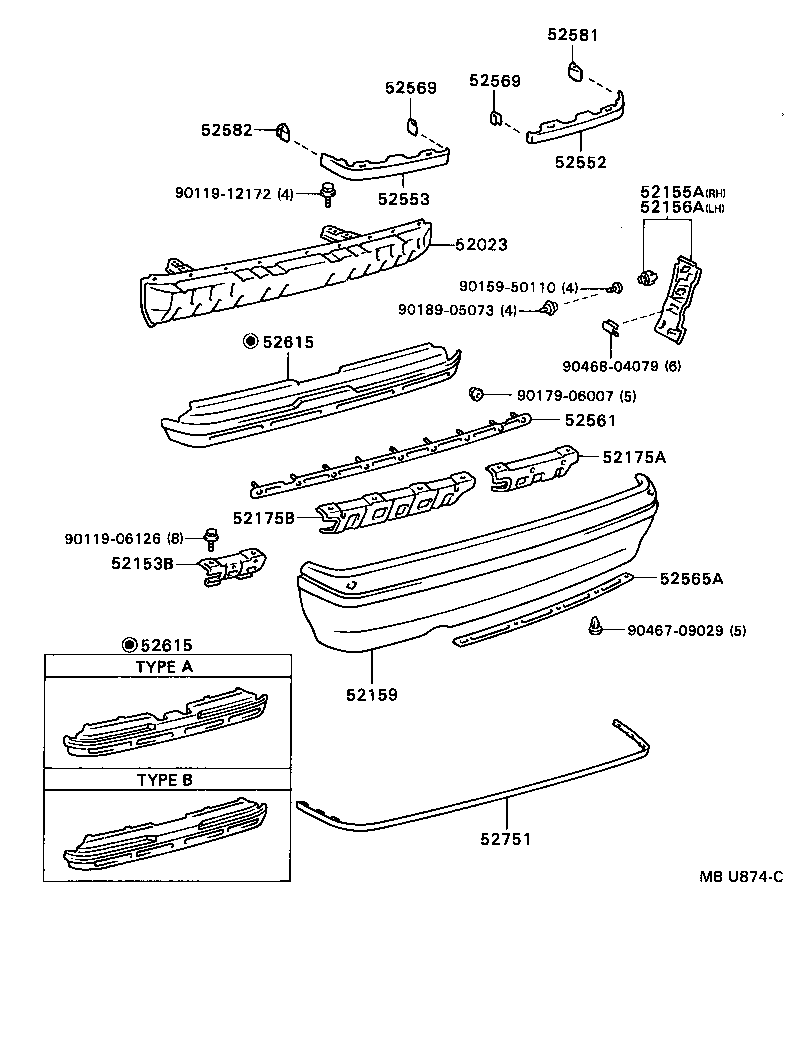

Figure MBP375A MBP375A 1988-08 → 1990-08 Figure MBP376A MBP376A 1988-08 → — Figure MBU874C MBU874C 1990-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52153B Extension, Rear Bumper, LH
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52175A Bracket, Rear Bumper Arm Mounting, RH
52175B Reinforcement, Rear Bumper, NO.5
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52569 Pad, Rear Bumper Filler
52581 Protector, Rear Bumper, RH
52582 Protector, Rear Bumper, LH
52615 Absorber, Rear Bumper Energy
52751 Moulding, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
