Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05

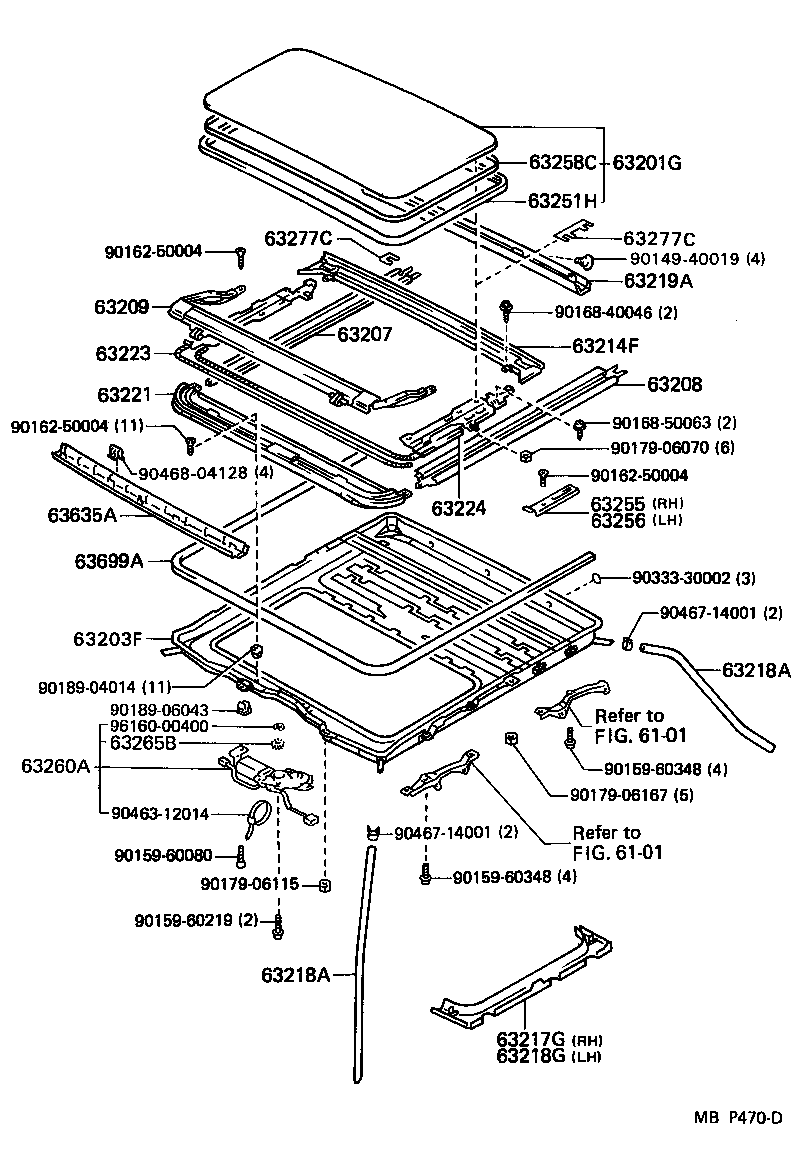

Roof Panel & Back Window Glass

40 part groups · 2 illustrations

PNC	Description
04641	Dam Kit, Back Window Glass
63102A	Panel Sub-assy, Windshield Header
63105D	Frame Sub-assy, Back Window, Upper
63111	Panel, Roof
63126A	Damper, Windshield Header Panel
63127B	Damper, Back Window Upper Freme
63141G	Reinforcement, Roof Panel, NO.1
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63207	Rail Sub-assy, Sliding Roof Guide, RH
63208	Rail Sub-assy, Sliding Roof Guide, LH
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217G	Garnish, Sliding Roof Side, RH
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63218G	Garnish, Sliding Roof Side, LH
63219A	Garnish, Sliding Roof, Rear
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63251H	Weatherstrip, Sliding Roof
63255	Cover, Sliding Roof Guide Rail, RH
63256	Cover, Sliding Roof Guide Rail, LH
63258C	Holder, Sliding Roof Weatherstrip, Rear
63260A	Gear Sub-assy, Sliding Roof Drive
63265B	Gear, Sliding Roof Drive
63277C	Shim, Sliding Roof Panel
63635A	Garnish, Sliding Roof, Front
63699A	Seal, Sliding Roof Guide Rail
64101	Panel Sub-assy, Upper Back
64165B	Cover, Upper Back Panel Hole, NO.1
64166B	Cover, Upper Back Panel Hole, NO.2
64167B	Cover, Upper Back Panel Hole, NO.3
64185A	Damper, Upper Back, NO.1
64811	Glass, Back Window
64818	Spacer, Back Window Glass
64819	Spacer, Back Window Glass, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
