Toyota Cressida
1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe
Discontinued model
Data version 1997-05
Battery Carrier

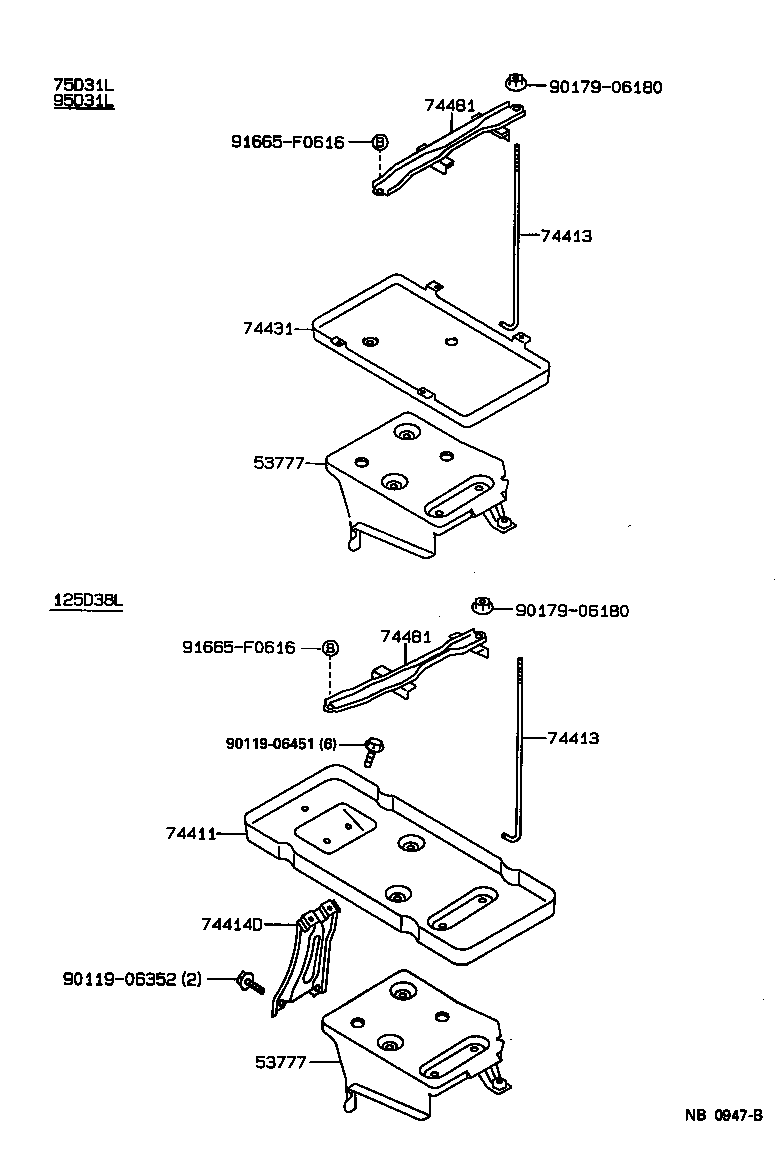

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53777 | Support, Battery Carrier, NO.2 |
| 74407A | Bolt Sub-assy, Battery Clamp |
| 74411 | Carrier, Battery |
| 74413 | Bolt, Battery Clamp |
| 74414D | Support, Battery Carrier |
| 74431 | Tray, Battery |
| 74481 | Clamp, Battery Hold Down |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
