Toyota Cressida
1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe
Discontinued model
Data version 1997-05

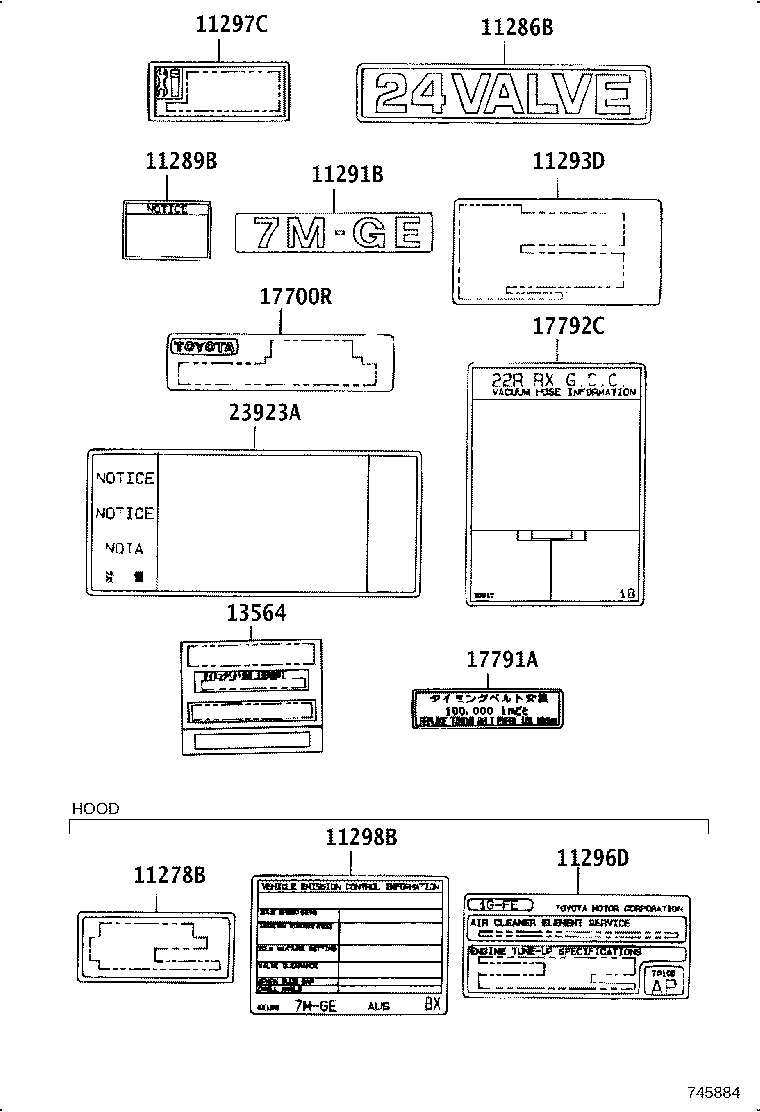

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11286B | Plate, Engine Specification |
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11296D | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 11298B | Label, Emission Control Information |
| 13564 | Label, Timing Belt Replacement Information |
| 17700R | Label, Air Cleaner Information |
| 17791A | Label, Maintenance Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 23923A | Label, Fuel Sedimenter Notice |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
