Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 12 illustrations

Illustrations

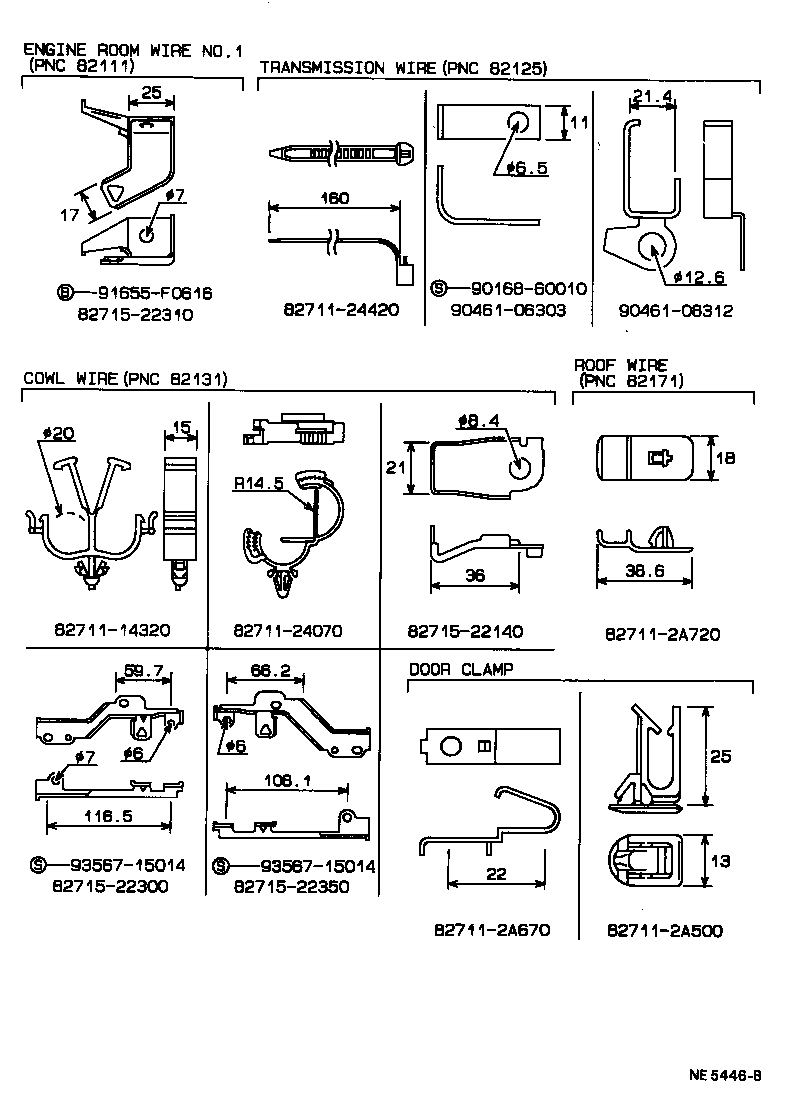

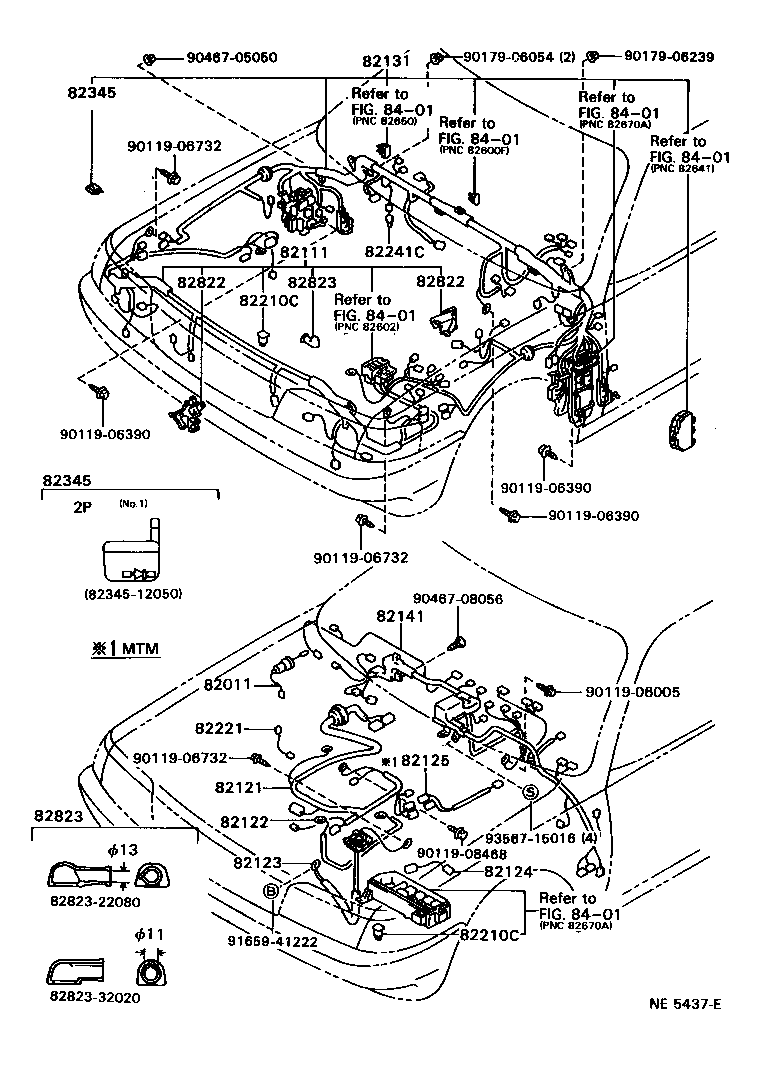

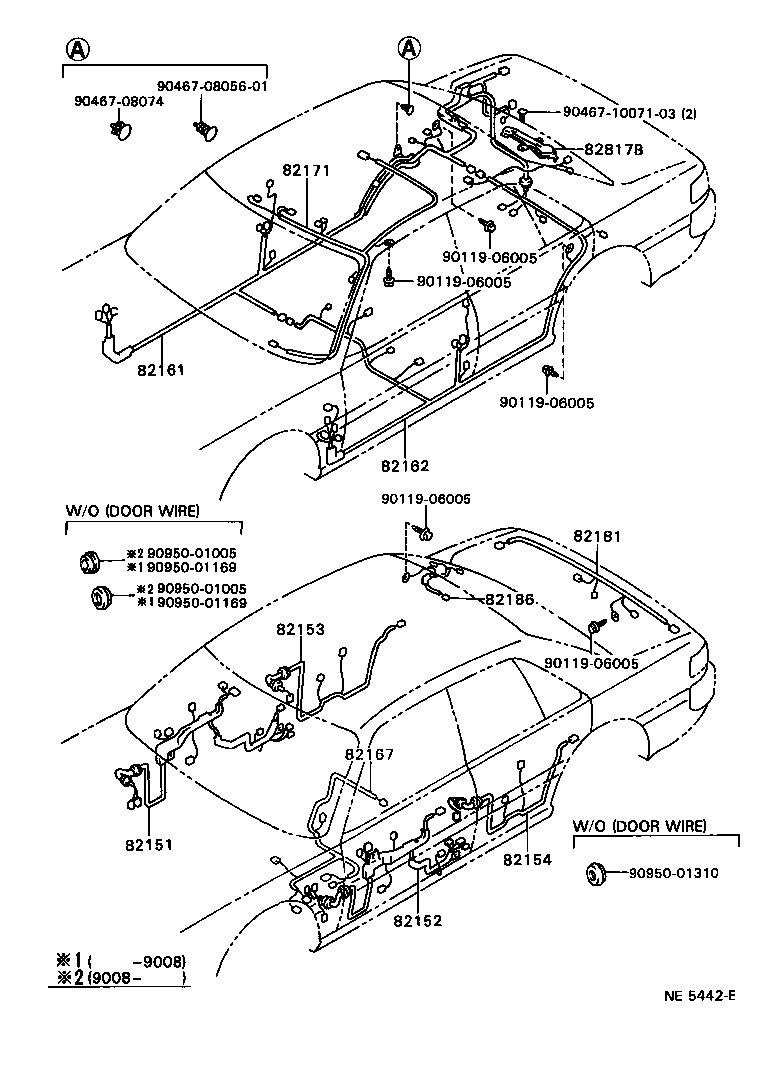

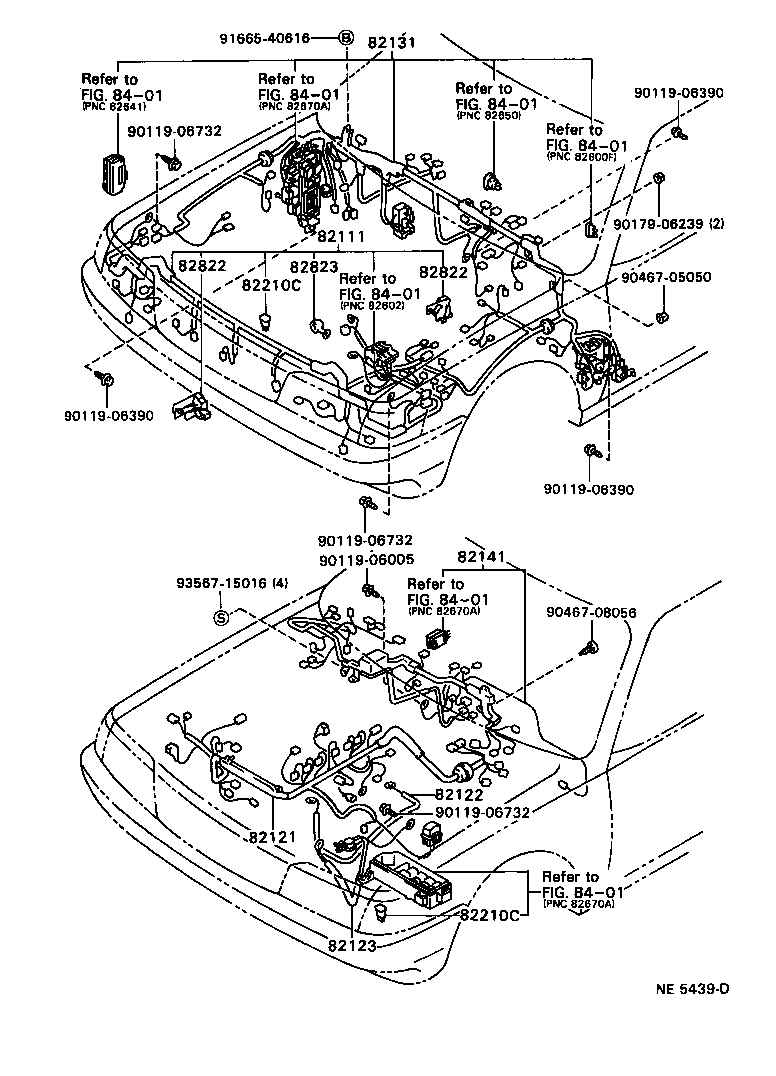

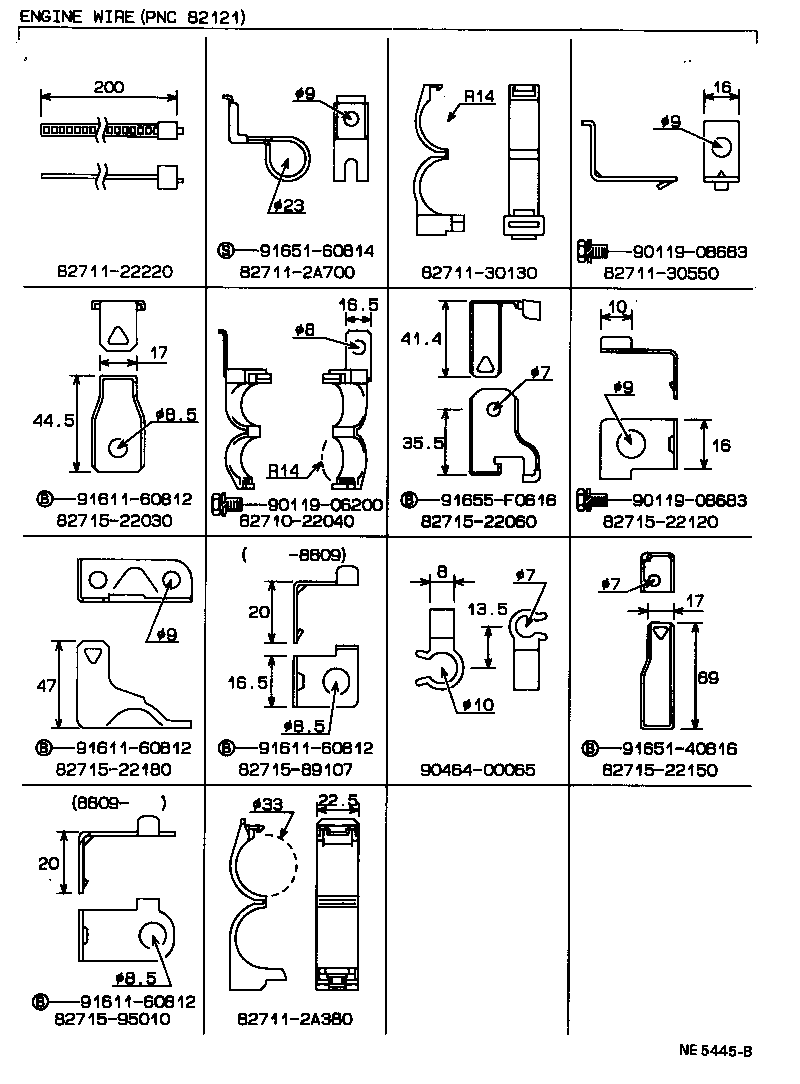

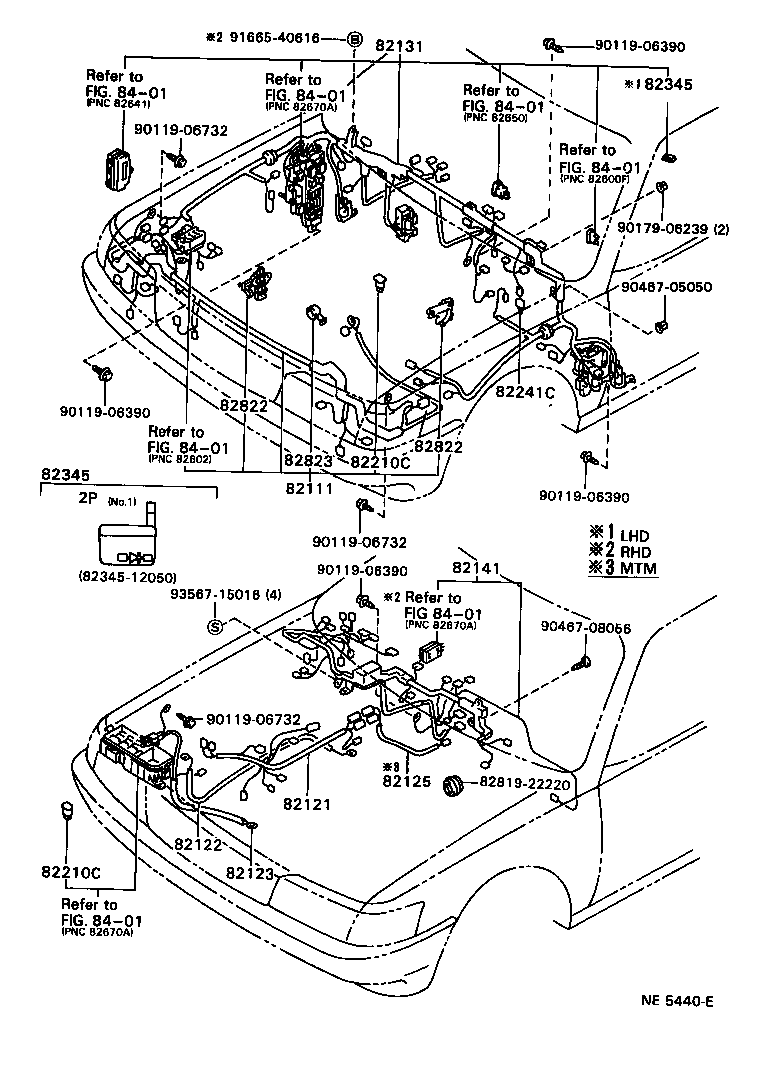

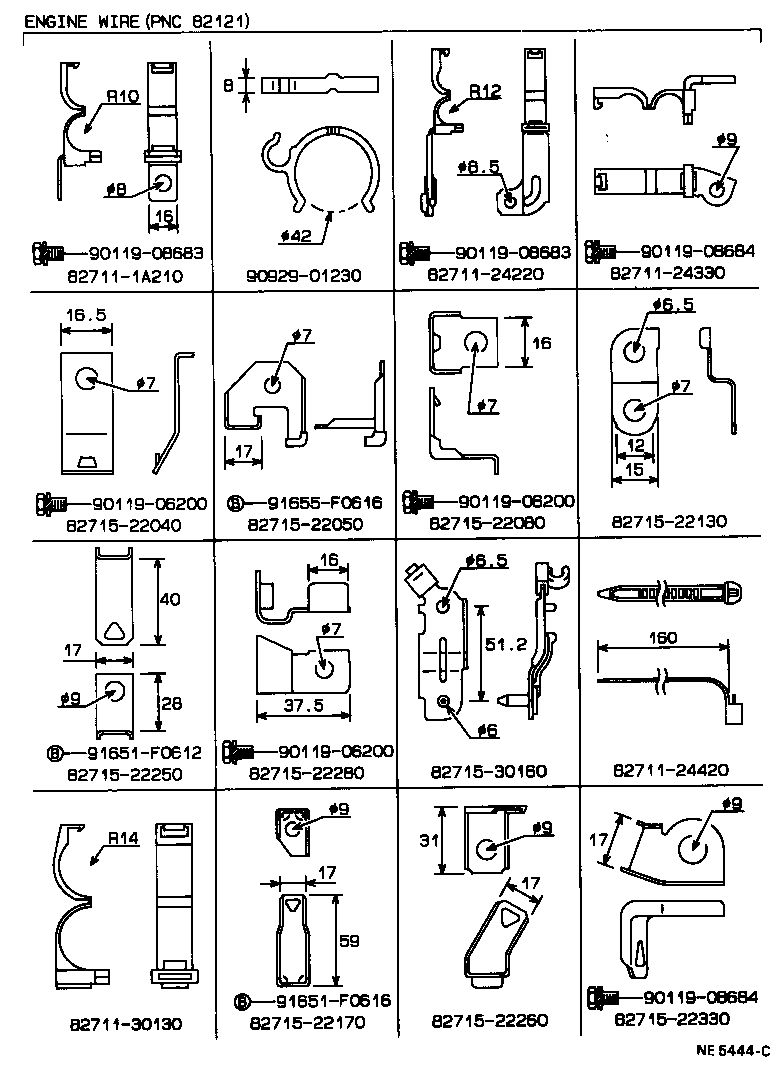

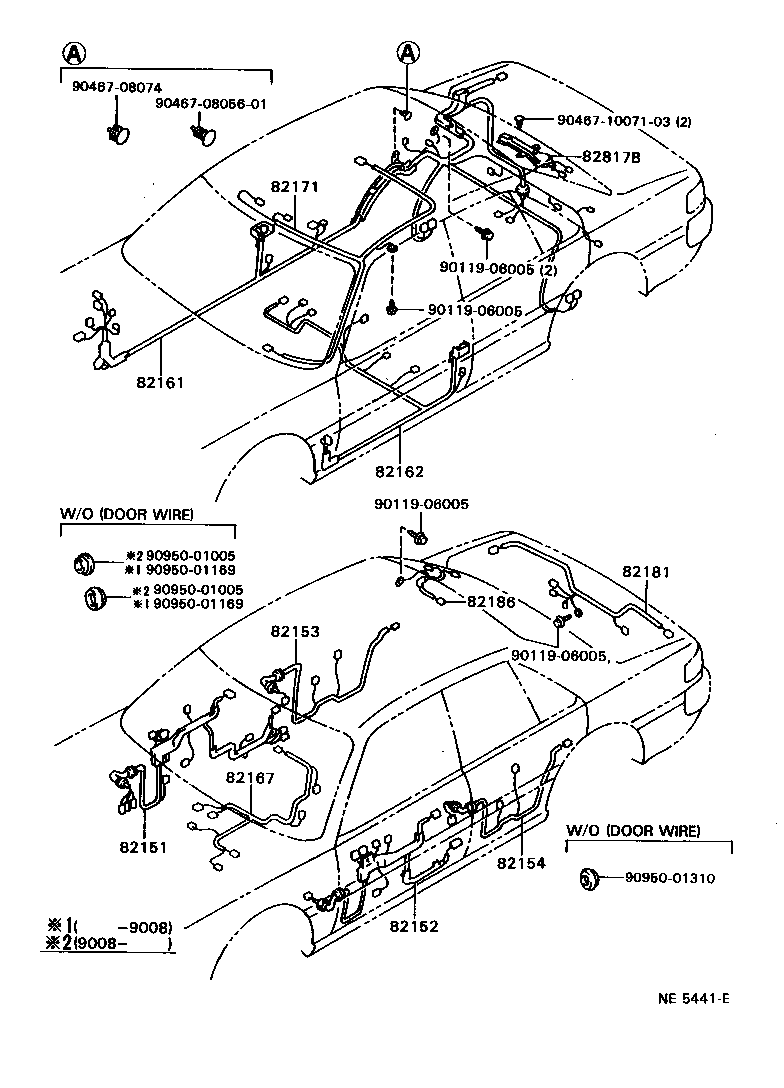

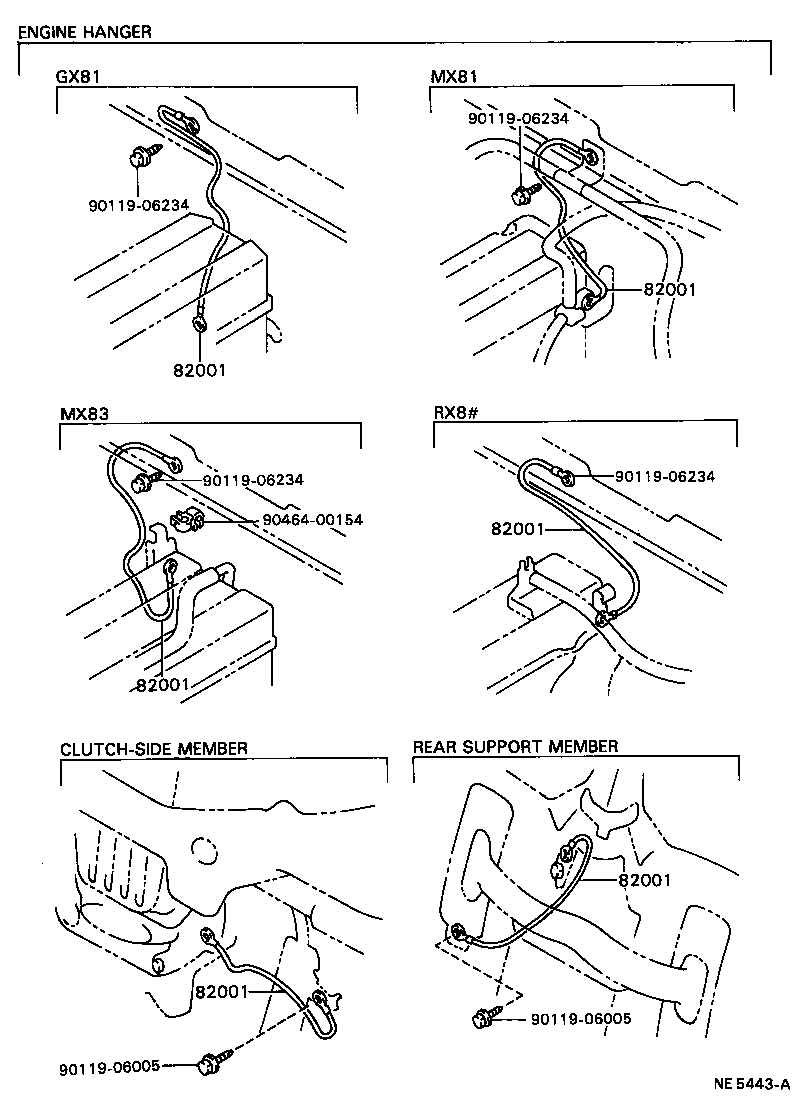

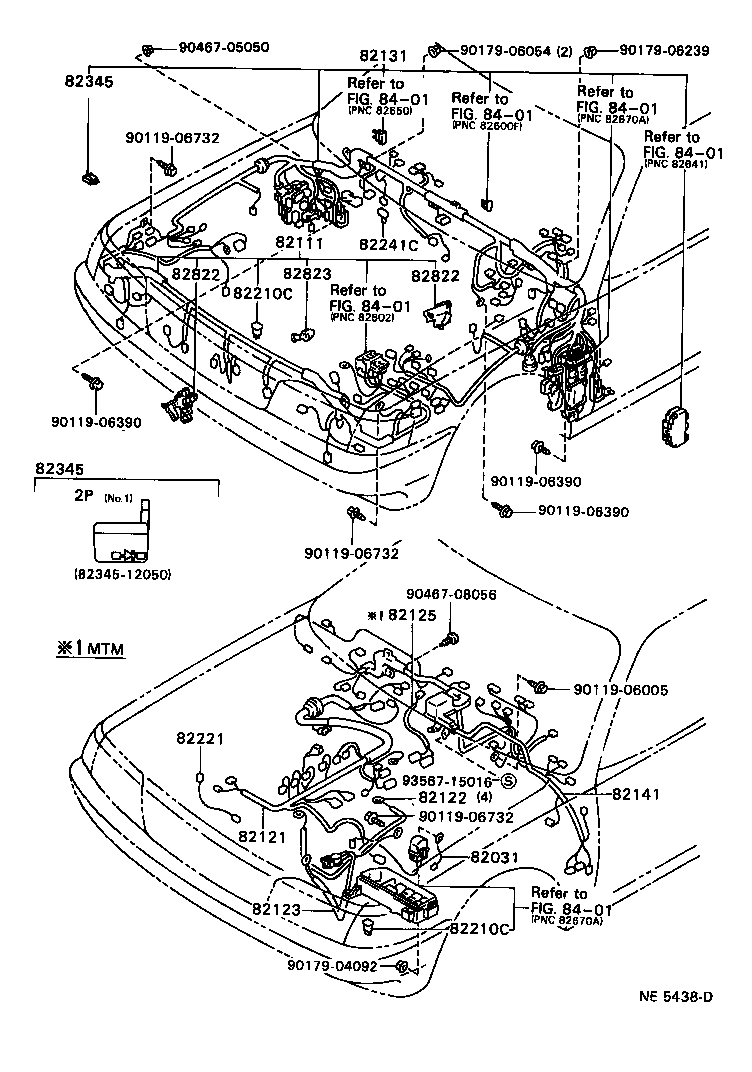

Figure NE5436I NE5436I 1988-08 → 1993-02 Figure NE5437E NE5437E 1988-08 → 1993-02 Figure NE5438D NE5438D 1988-08 → 1993-02 Figure NE5439D NE5439D 1988-08 → 1993-02 Figure NE5440E NE5440E 1988-08 → — Figure NE5441E NE5441E 1988-08 → 1993-02 Figure NE5442E NE5442E 1988-08 → — Figure NE5443A NE5443A 1988-08 → — Figure NE5444C NE5444C 1988-08 → — Figure NE5445B NE5445B 1988-08 → — Figure NE5446B NE5446B 1988-08 → — Figure MEW205 MEW205 1990-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82031 Wire Sub-assy, Ignition Coil
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82817B Protector, Wiring Harness, NO.3
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82987 Wire, Fog Lamp Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
