Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

80 part groups · 12 illustrations

Illustrations

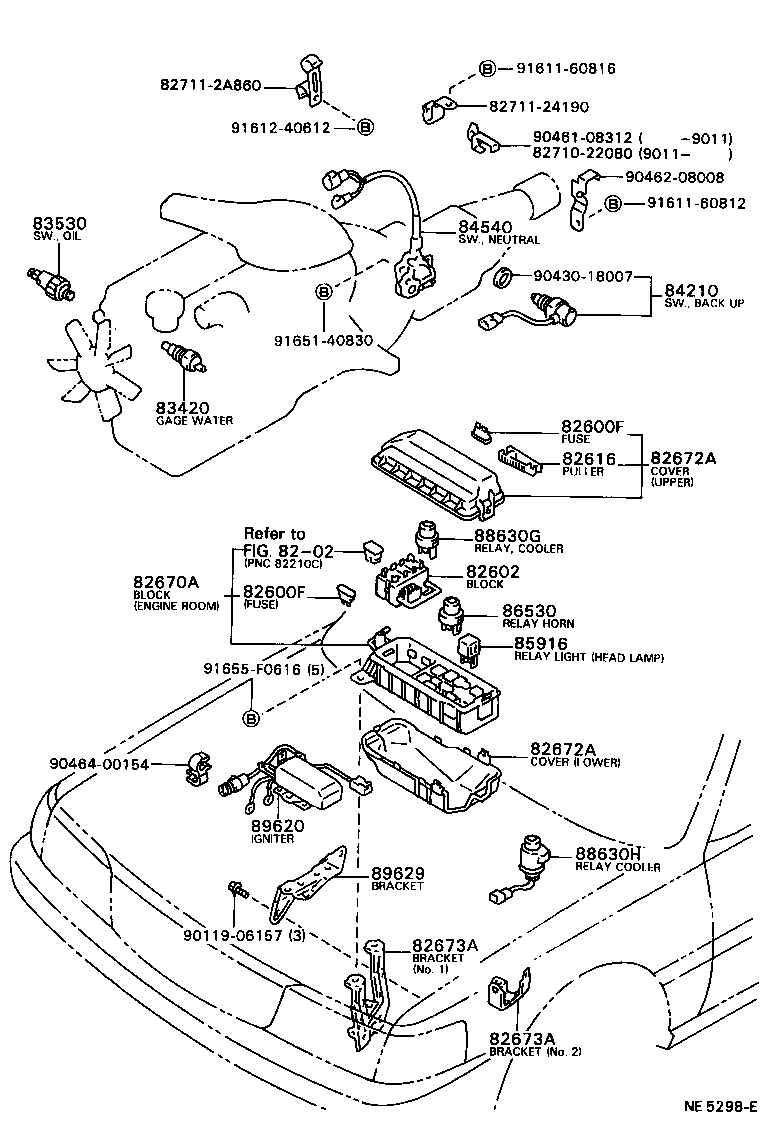

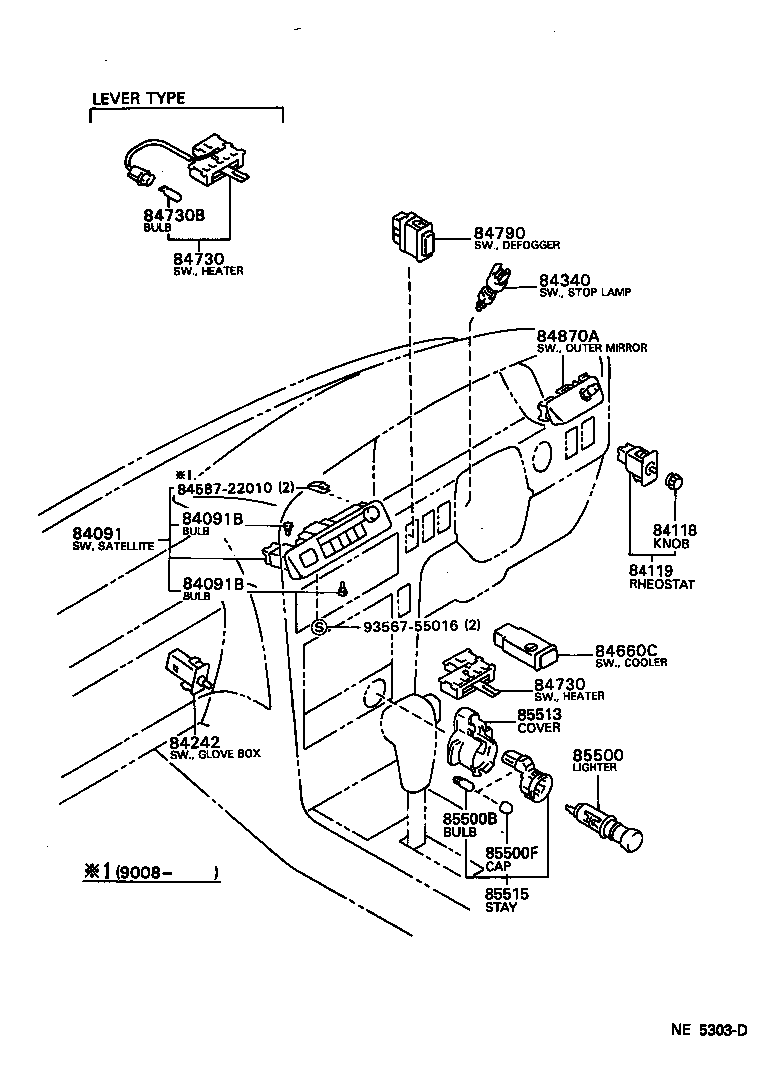

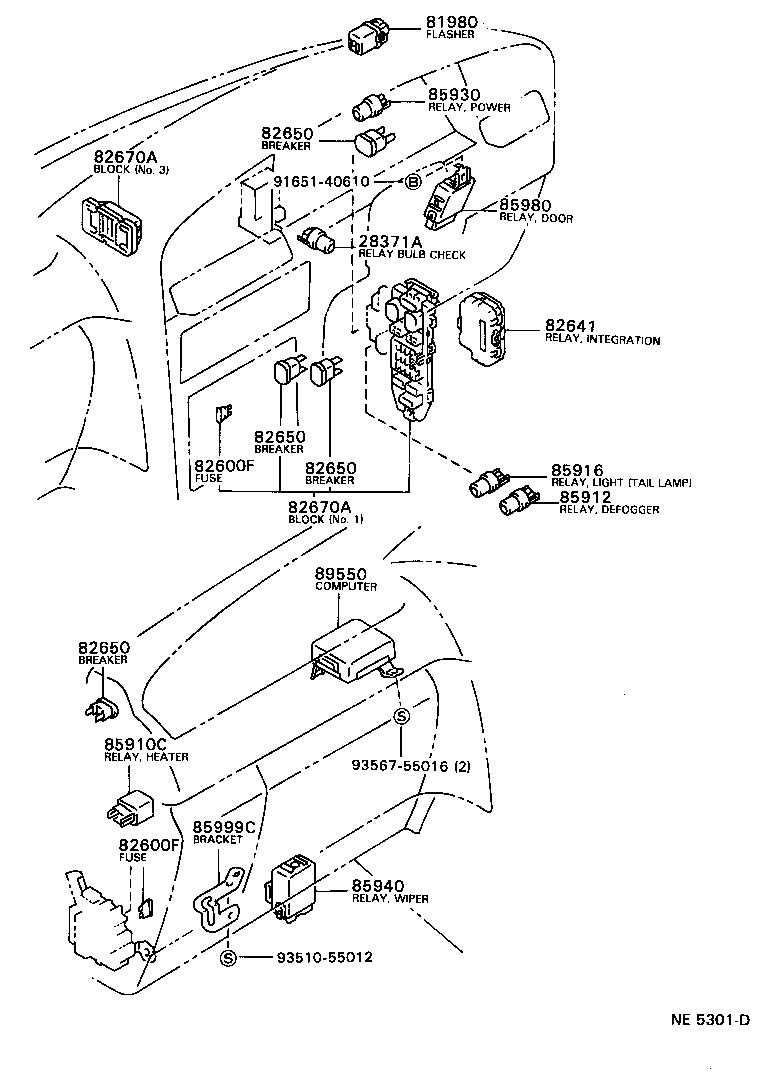

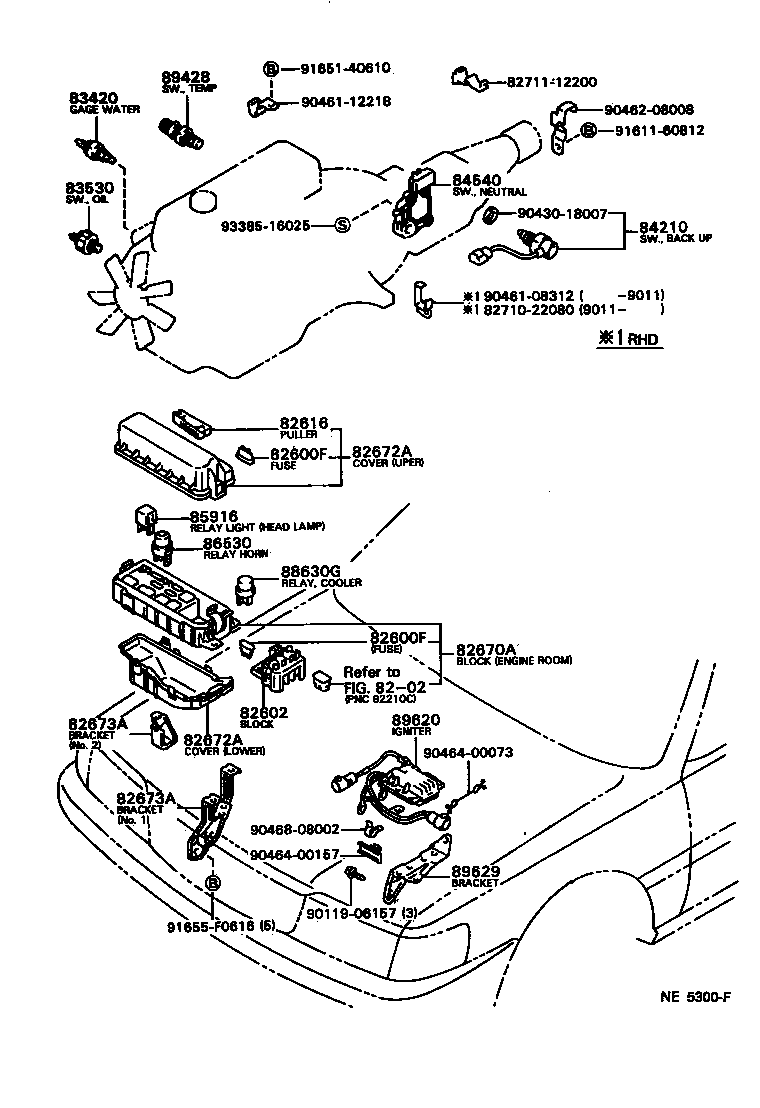

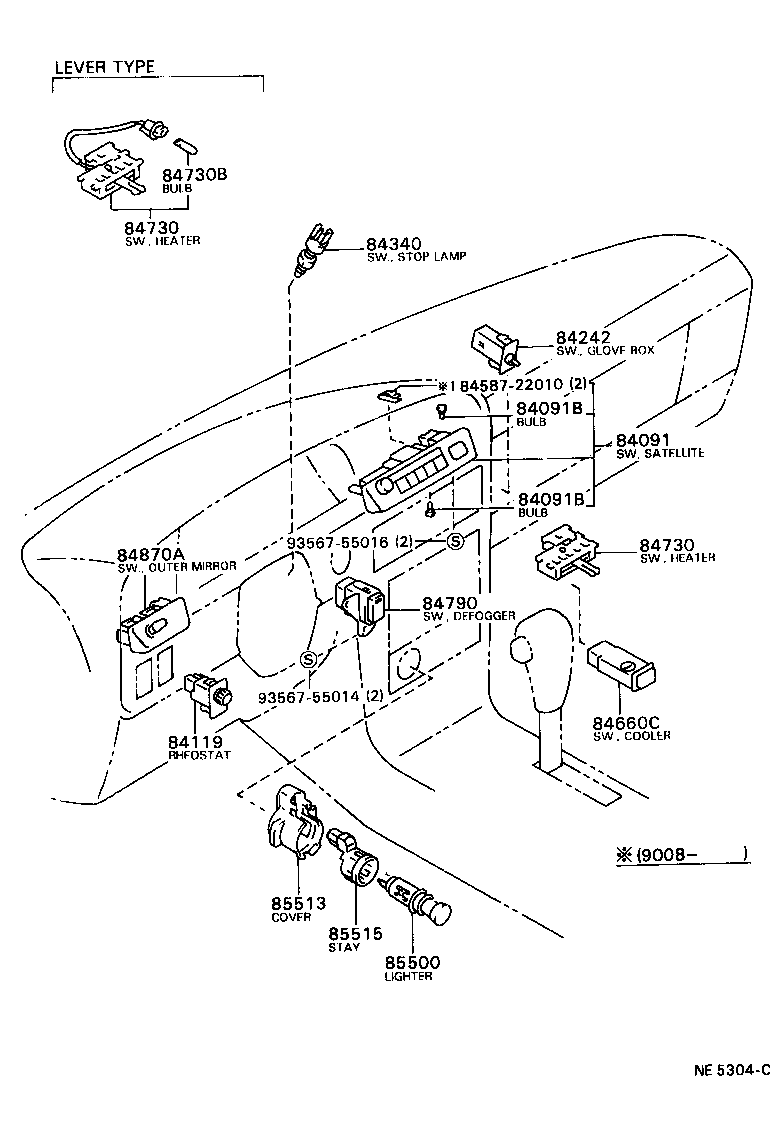

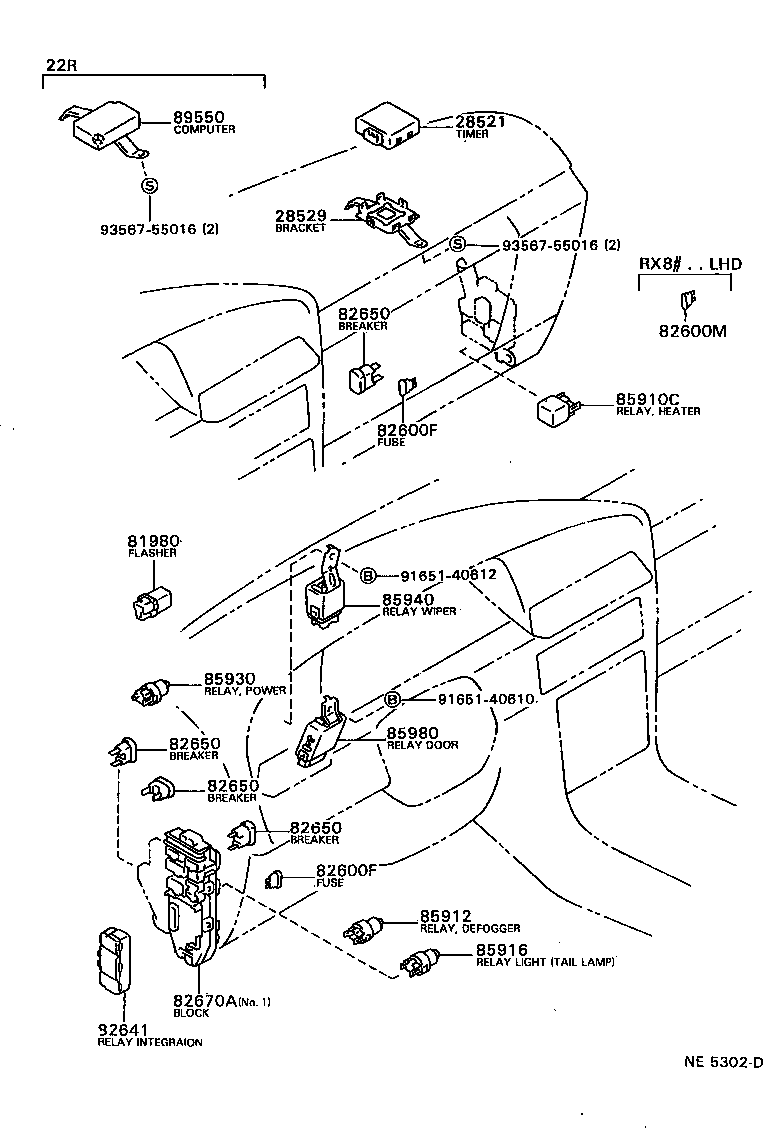

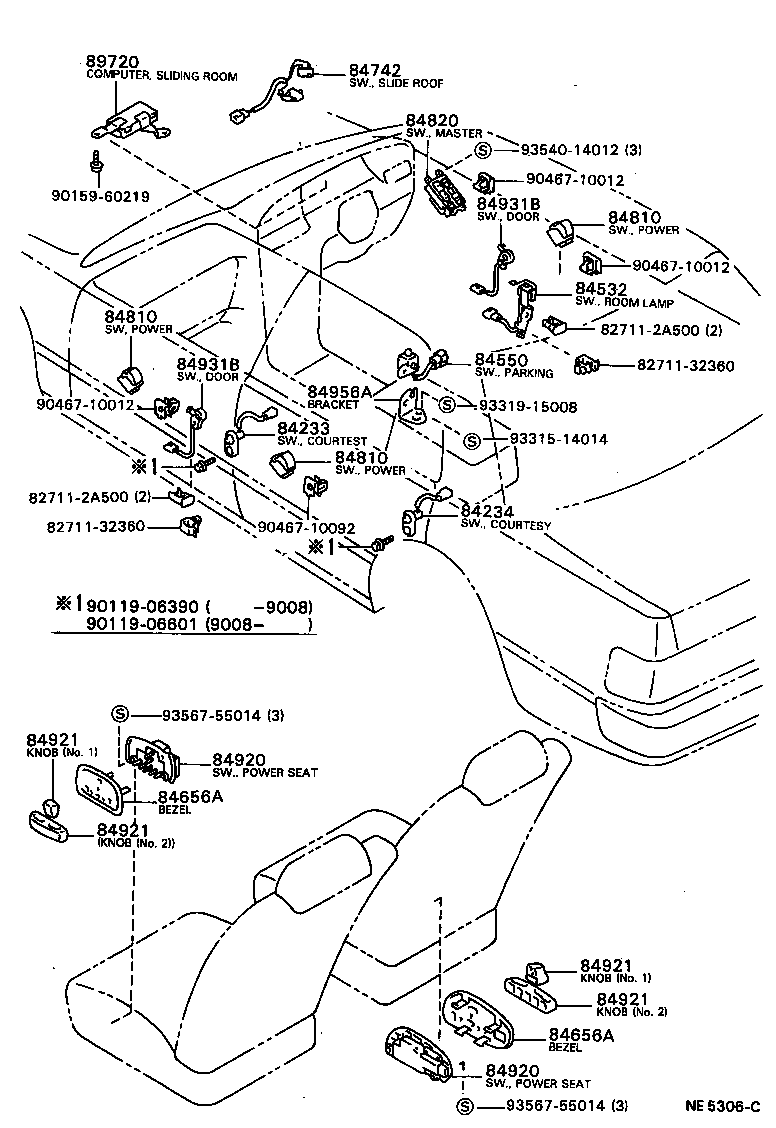

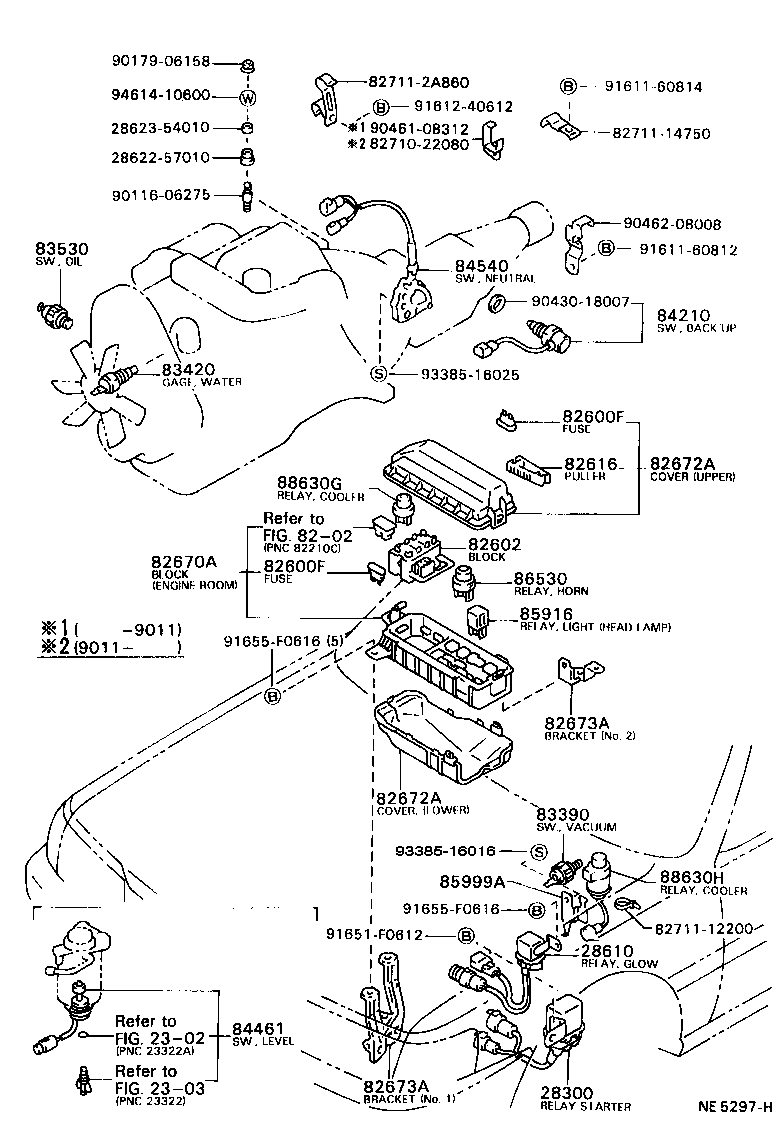

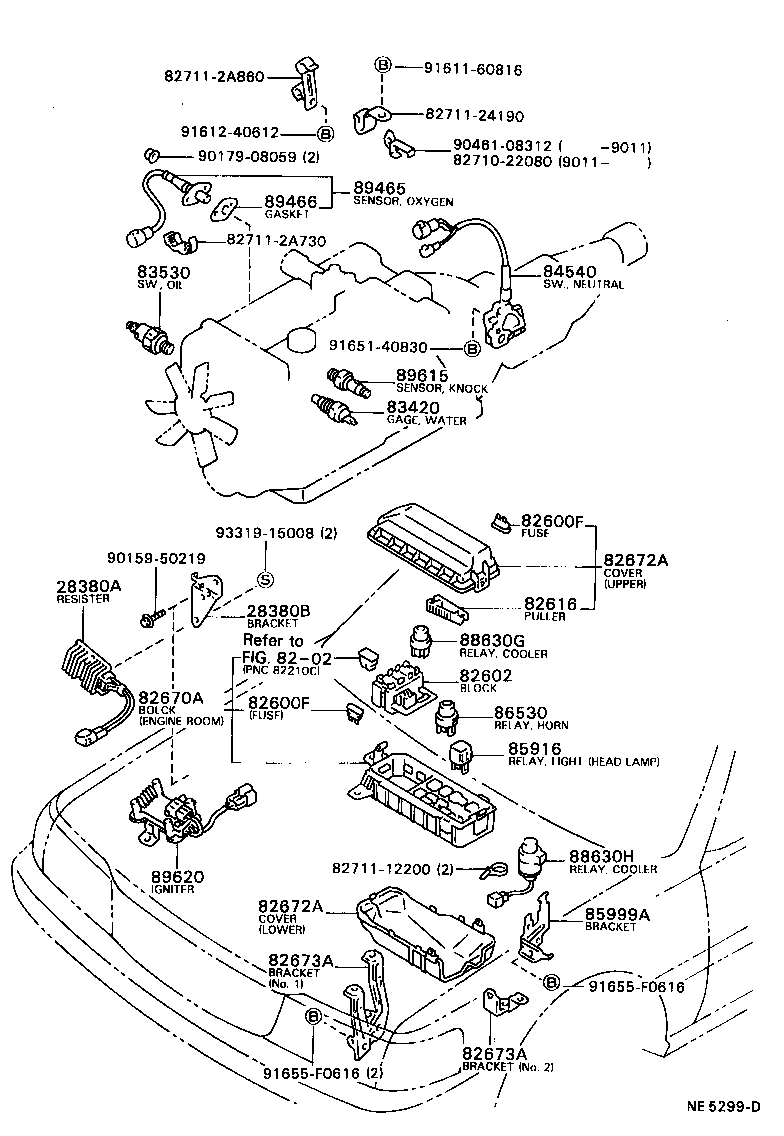

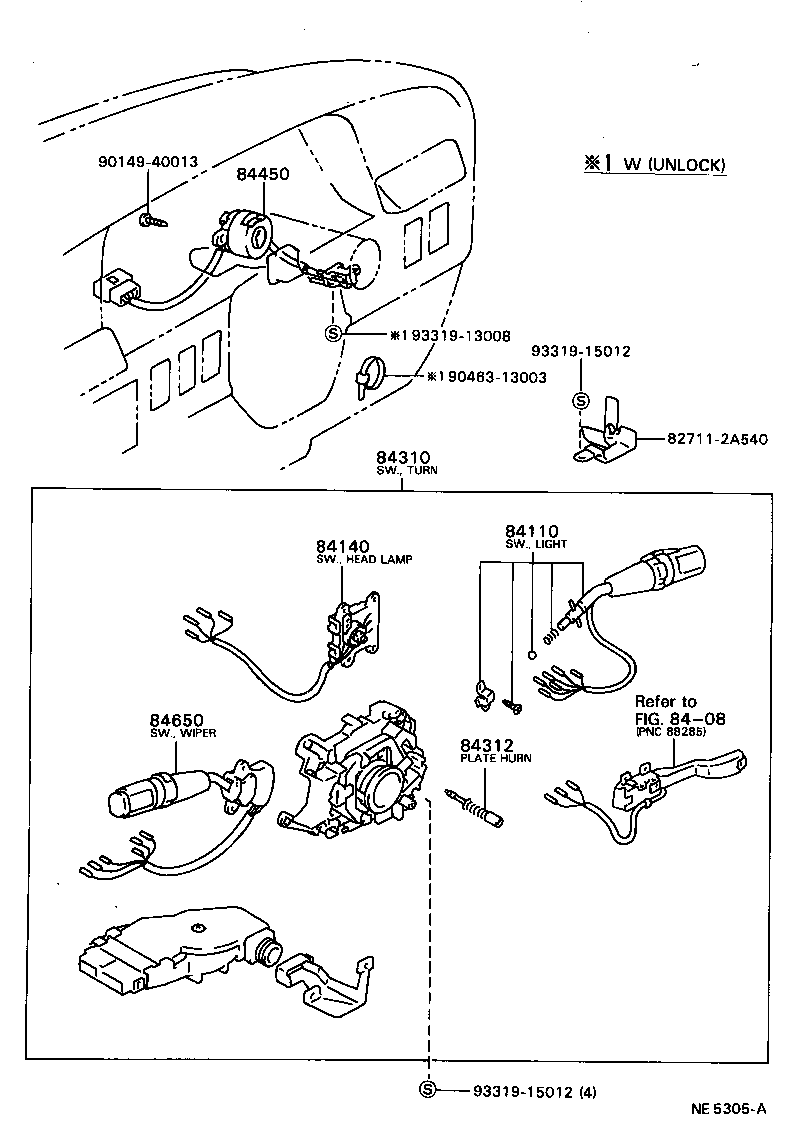

Figure NE5296E NE5296E 1988-08 → 1993-02 Figure NE5297H NE5297H 1988-08 → 1993-02 Figure NE5298E NE5298E 1988-08 → 1993-02 Figure NE5299D NE5299D 1988-08 → 1993-02 Figure NE5300F NE5300F 1988-08 → — Figure NE5301D NE5301D 1988-08 → 1993-02 Figure NE5302D NE5302D 1988-08 → — Figure NE5303D NE5303D 1988-08 → 1993-02 Figure NE5304C NE5304C 1988-08 → — Figure NE5305A NE5305A 1988-08 → — Figure NE5306C NE5306C 1988-08 → — Figure NE5307A NE5307A 1988-08 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371A Relay, Bulb Check
28380A Resister, Fuel Pump
28380B Bracket, Fuel Pump Resister
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600M Fuse, Medium Current
82602 Block Sub-assy, Relay
82616 Puller, Fuse
82641 Relay, Integration NO.1
82650 Breaker Assy, Wiring Circuit, NO.1
82670A Block Assy, Junction, NO.1
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84091 Switch Set, Satellite
84091B Bulb, Satellite Switch
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84242 Switch, Glove Box Lamp
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84461 Switch, Level Warning
84532 Switch, Room Lamp Retainer
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84660C Switch, Cooler
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84742 Switch, Slide Roof Limit
84790 Switch Assy, Rear Window Defogger
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921 Knob, Power Seat Switch
84931B Switch, Door Control
84956A Bracket, Hand Brake Signal Switch
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916 Relay, Light Control
85930 Relay Assy, Power Window
85940 Relay Assy, Windshield Wiper
85980 Relay Assy, Door Control
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
86530 Relay Assy, Horn
88630G Relay Assy, Cooler
88630H Relay Assy, Cooler
89373 Sensor, Lamp Failure Indicator
89428 Switch, Temperature Detect, NO.2
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89550 Computer Assy, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89720 Computer Assy, Sliding Roof Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
