Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

13 part groups · 3 illustrations

Illustrations

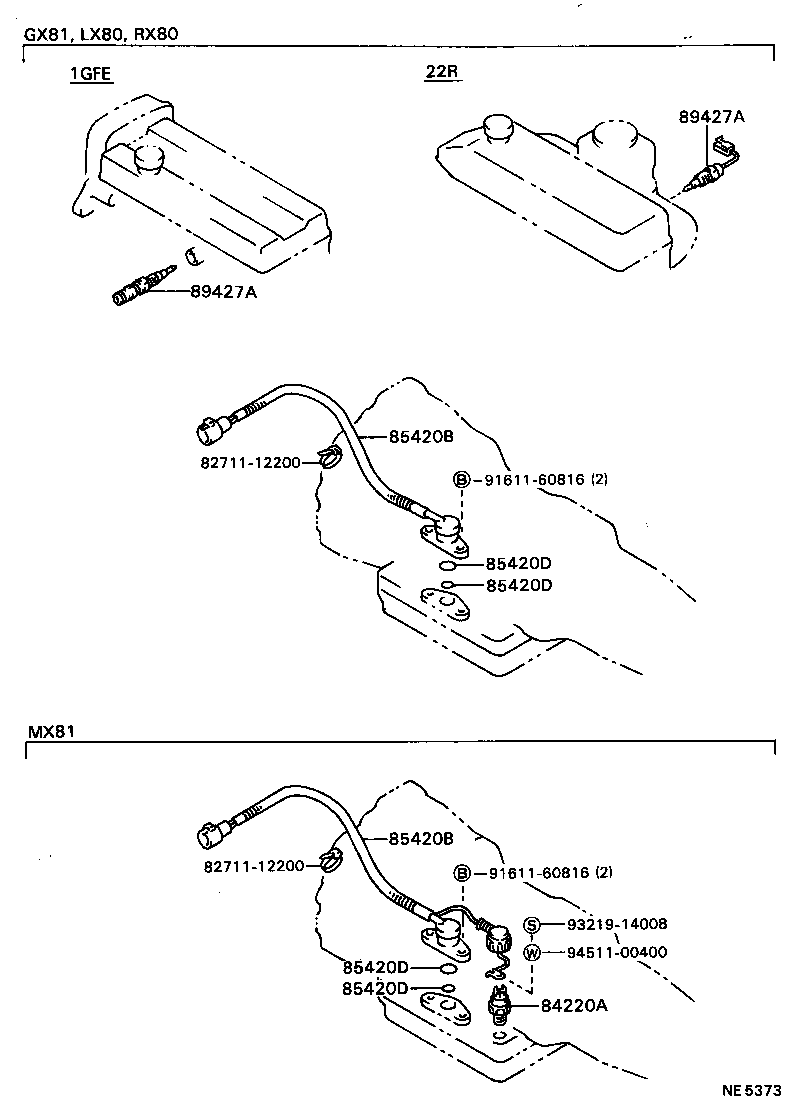

Figure NE5372 NE5372 1988-08 → 1993-02 Figure NE5373 NE5373 1988-08 → 1993-02 Figure NE5374A NE5374A 1988-08 → 1993-02

Part groups

PNCDescription
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84220A Switch Assy, Transmission Position Indicator
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89427A Switch, Temperature
89530A Computer Assy, Transmission Control
89531 Relay, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
