Toyota Cressida
1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe
Discontinued model
Data version 1997-05

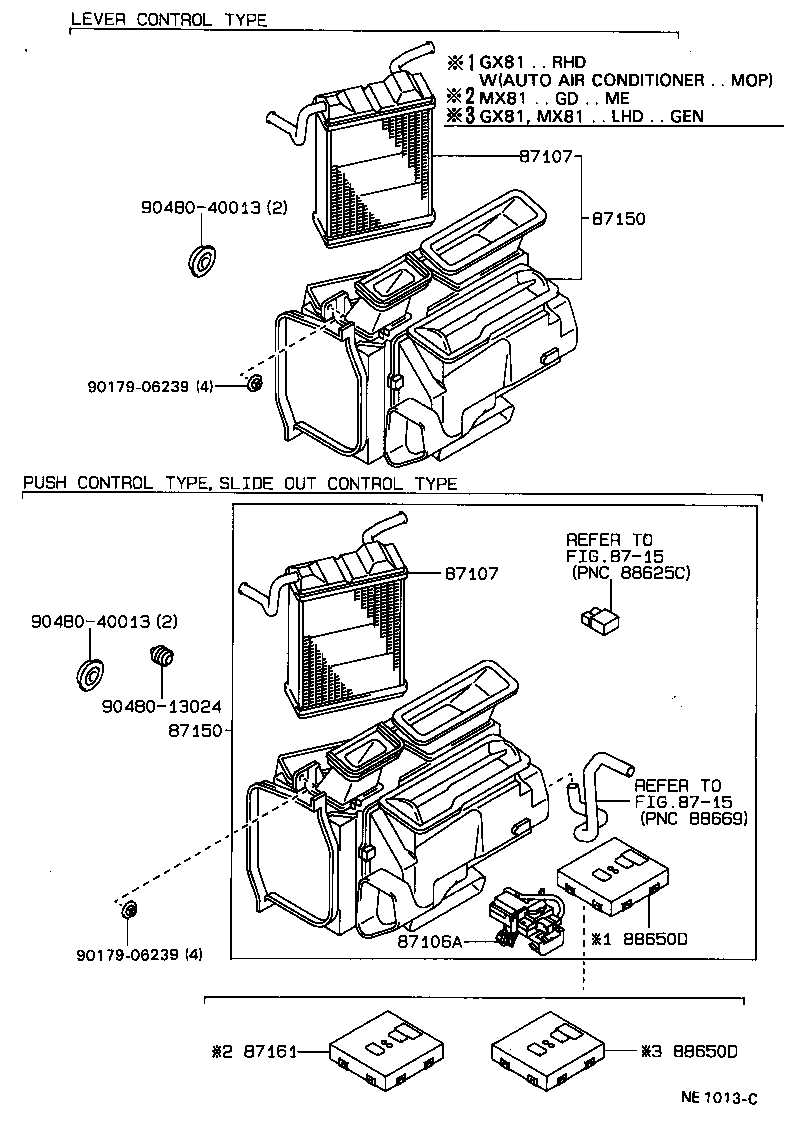

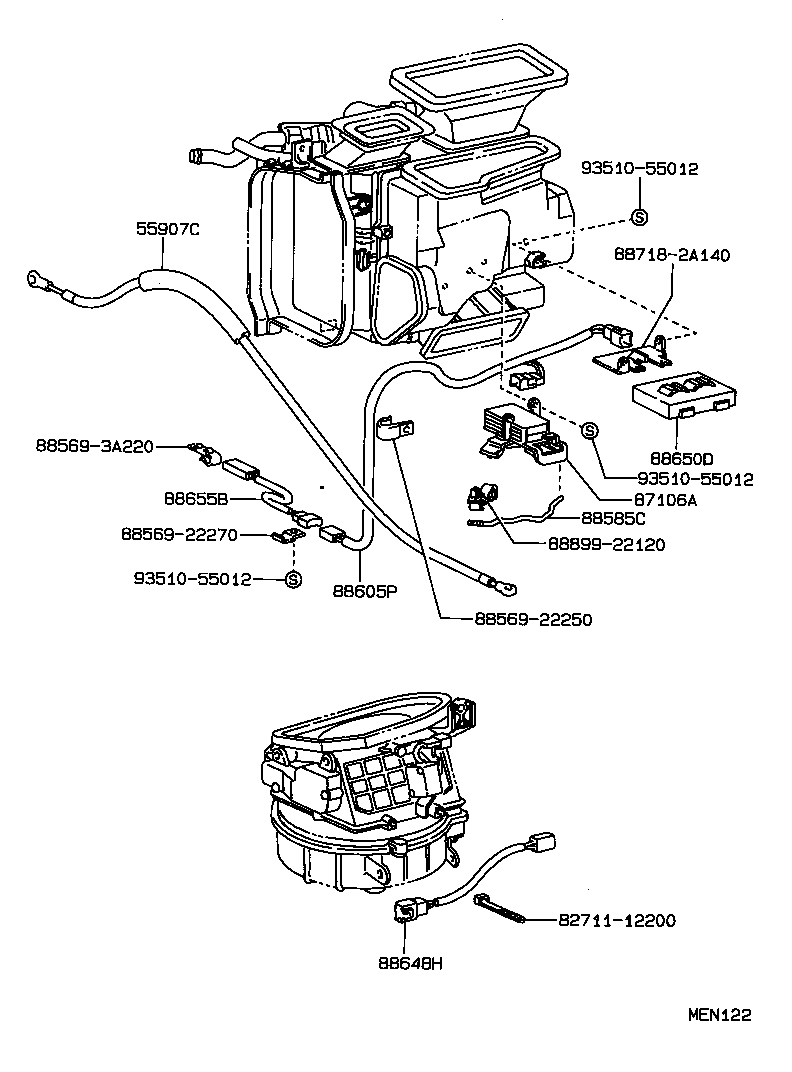

Heating & Air Conditioning - Heater Unit & Blower
15 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55907C | Cable Sub-assy, Water Valve Control |
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87105 | Fan Sub-assy, Heater Blower |
| 87106A | Servo Sub-assy, Damper |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87130 | Blower Assy, Heater, Front |
| 87138 | Resistor, Heater Blower |
| 87150 | Radiator Assy, Heater |
| 87161 | Amplifier, Heater Servo Motor |
| 88585C | Shaft |
| 88605P | Harness Sub-assy, Air Conditioner Wiring |
| 88648H | Wire, Air Conditioner |
| 88650D | Amplifier Assy |
| 88655B | Switch, Water Temperature |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
