Toyota Cressida

1988-08 → 1996-08 · chassis GX81,LX80,MX8#,RX8# · catalogue 311260 · Europe

Discontinued model Data version 1997-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 7 illustrations

Illustrations

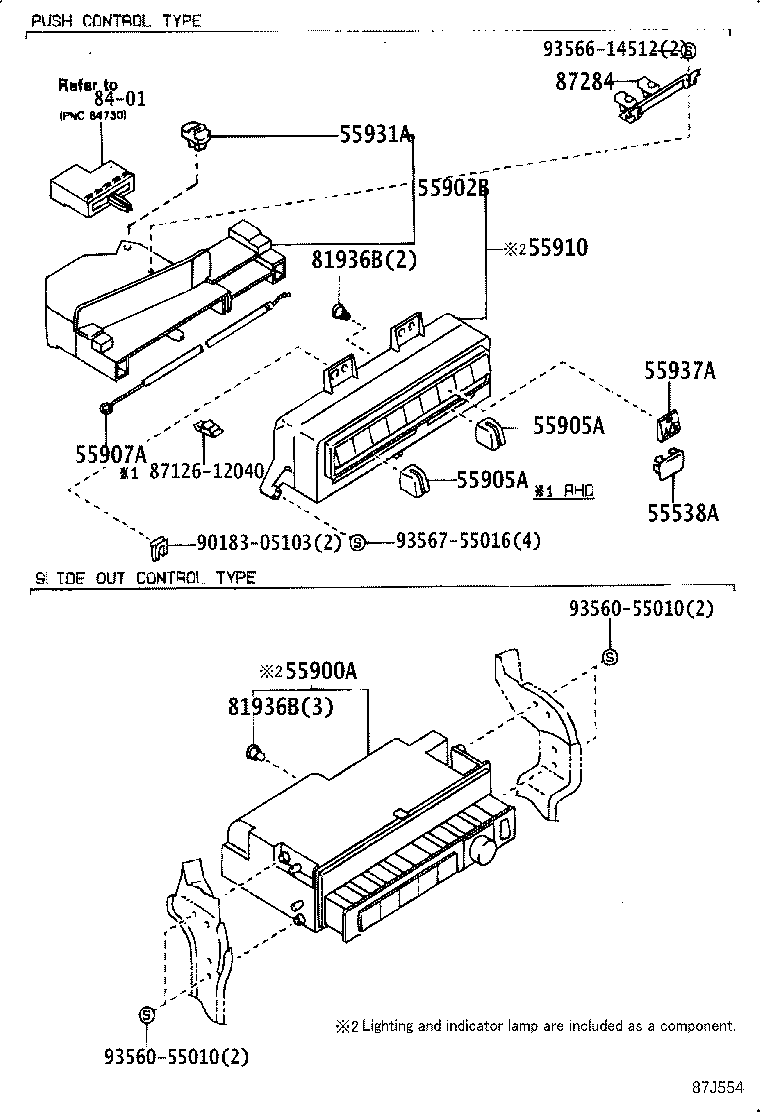

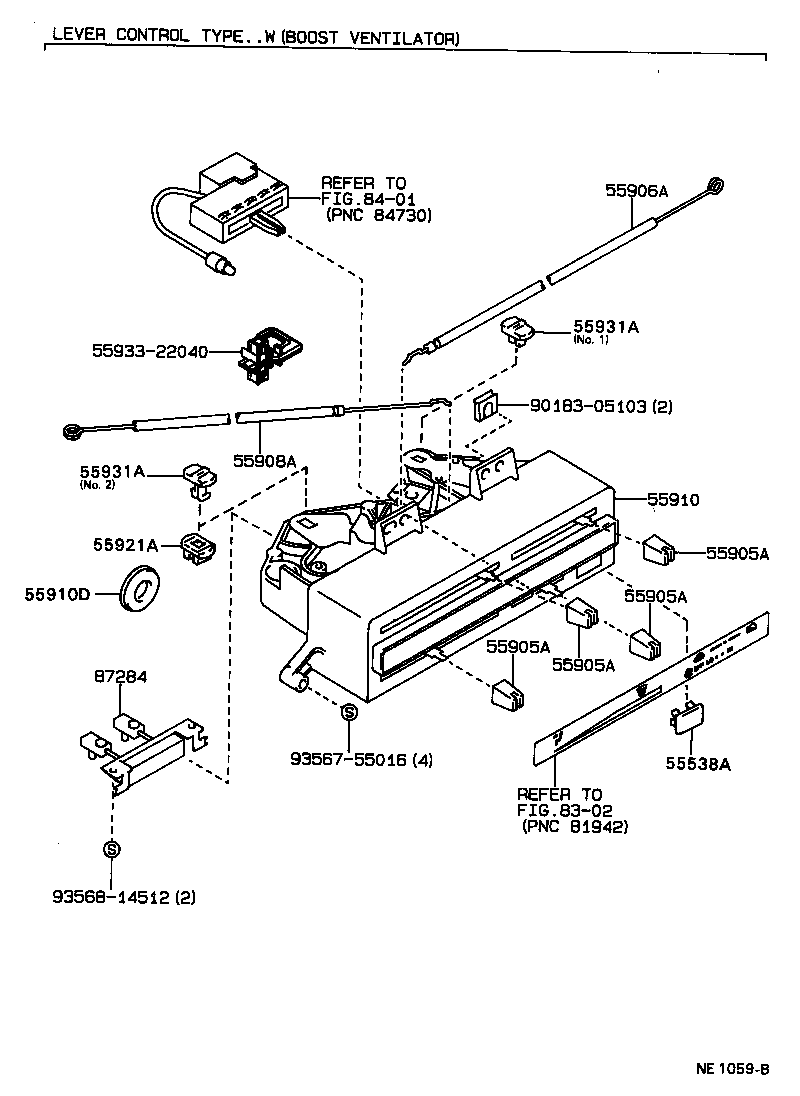

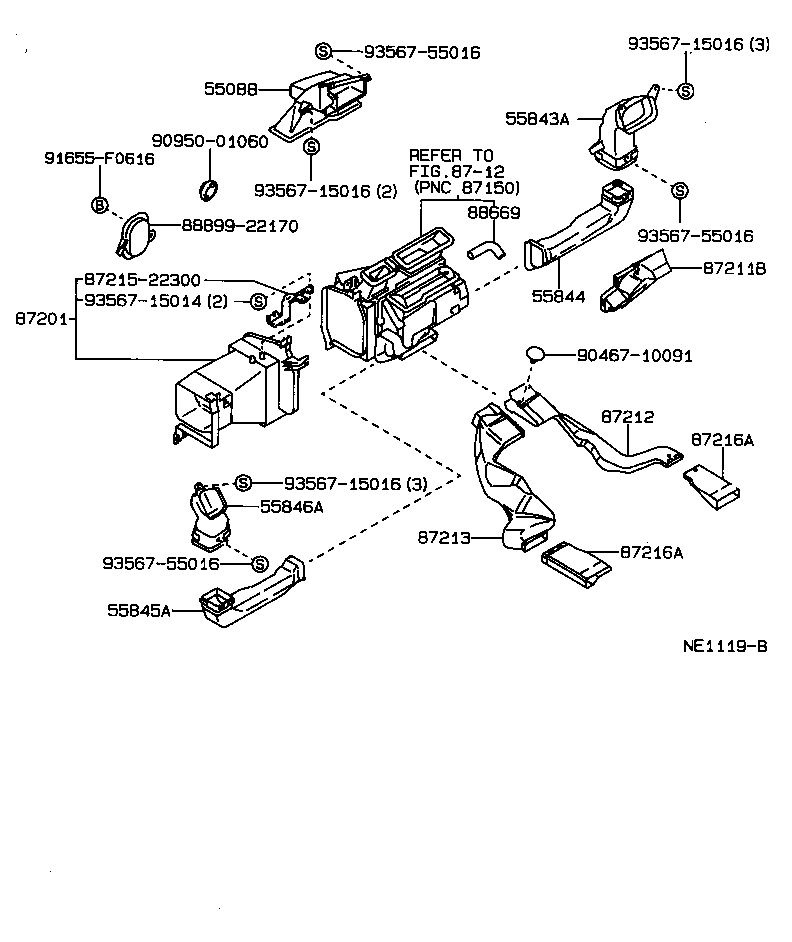

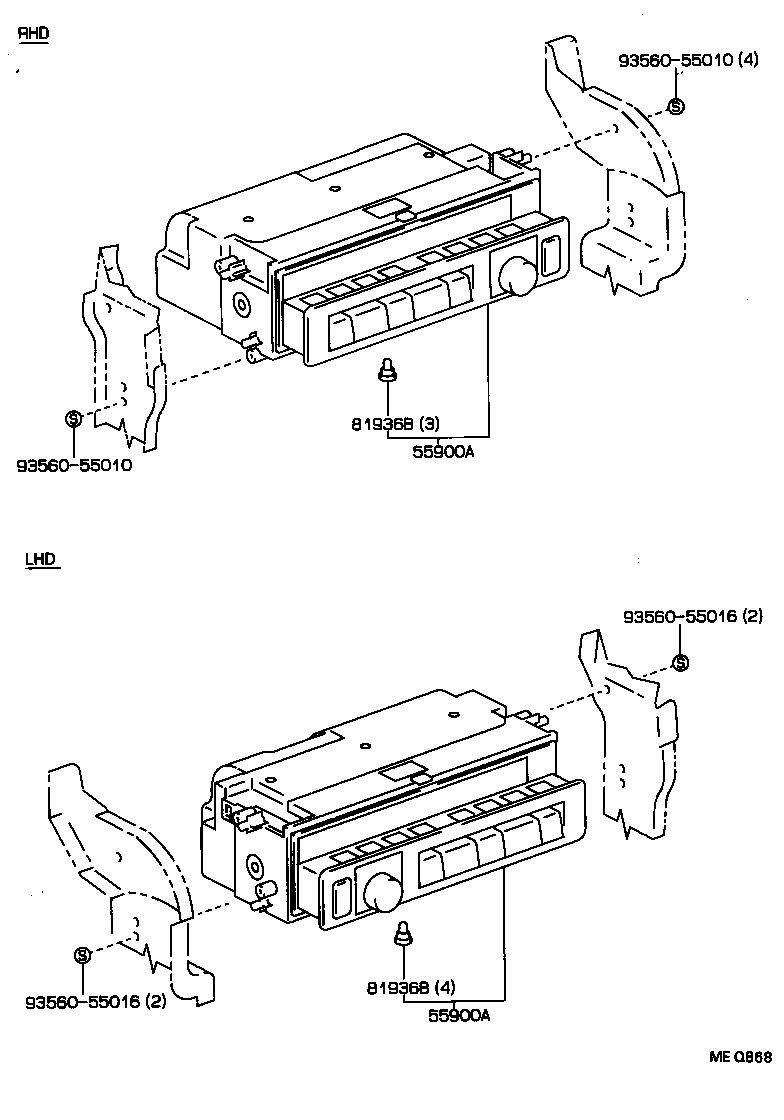

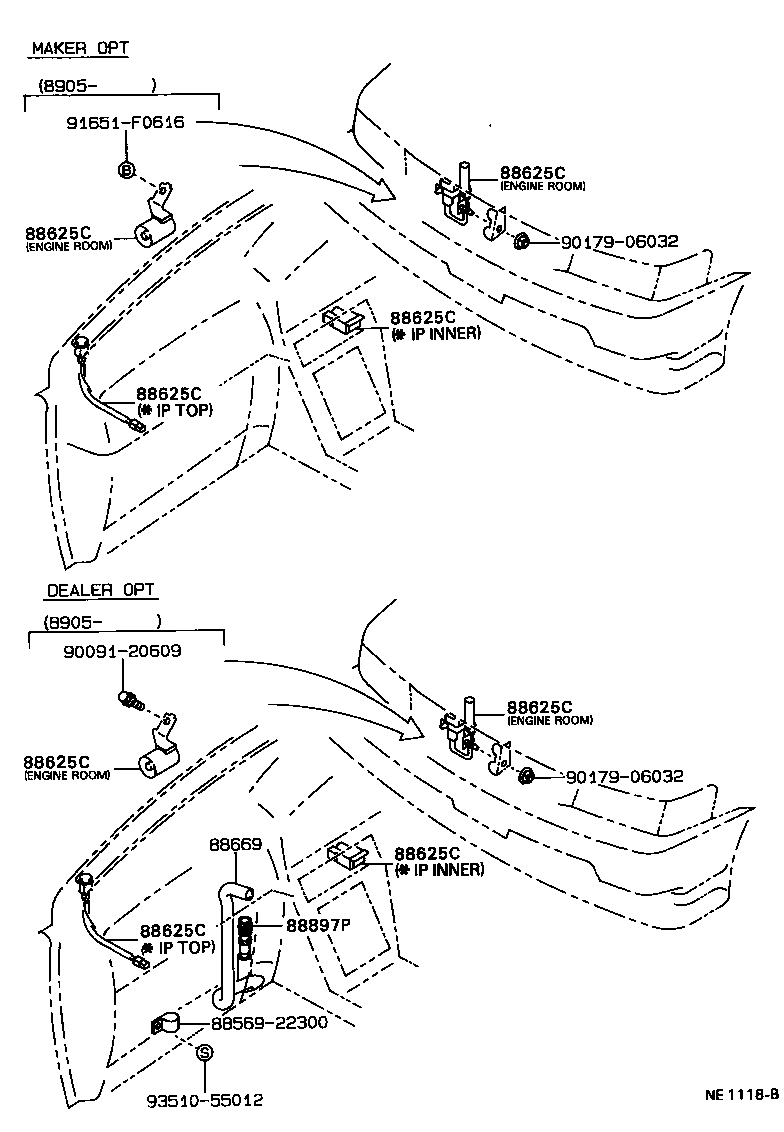

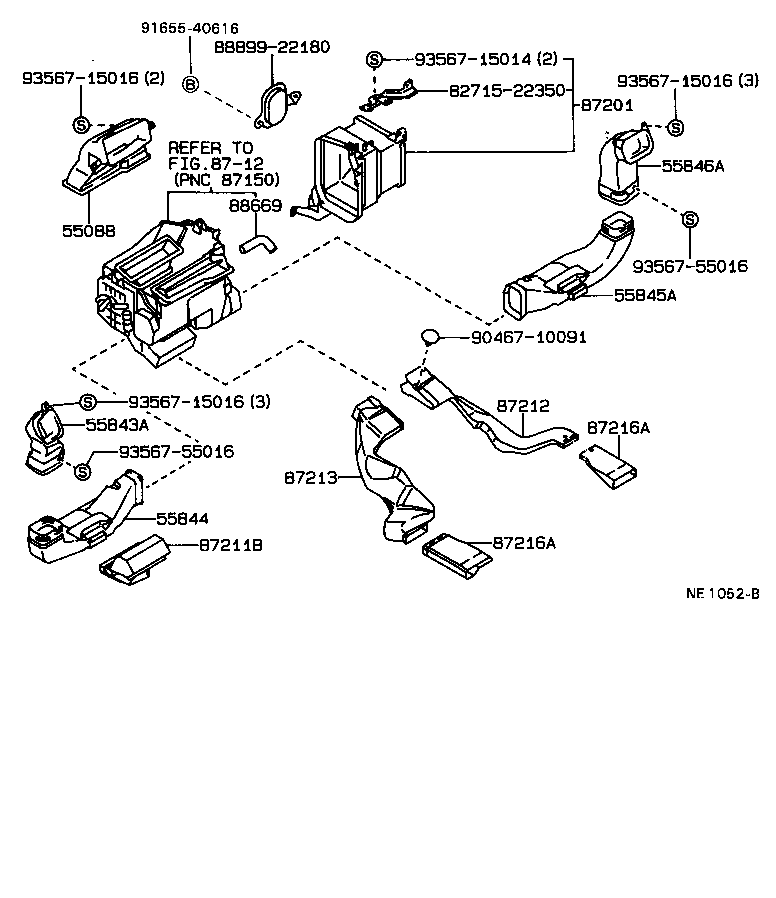

Figure NE1058B NE1058B 1988-08 → — Figure NE1059B NE1059B 1988-08 → — Figure 87J554 87J554 1988-08 → — Figure MEQ868 MEQ868 1990-08 → 1993-02 Figure NE1118B NE1118B 1988-08 → — Figure NE1119B NE1119B 1988-08 → 1993-02 Figure NE1052B NE1052B 1988-08 → —

Part groups

PNCDescription
55088 Duct Sub-assy, Heater TO Register, NO.5
55538A Cover, Cooler Switch Hole
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55900A Control & Accessory Assy, Heater
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
55910D Plug, Hole(FOR HEATER CONTROL CABLE HOLE)
55921A Retainer, Heater Control
55931A Shaft, Heater Control Lever
55937A Knob, Cooler Control Lever
81936B Bulb Assy, Cooler Control
87201 Duct Sub-assy, Air, NO.1
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87216A Duct, Air, Rear NO.5
87284 Resistor Sub-assy, Variable
88625C Thermistor, Cooler
88669 Hose, Cooler Air
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
