Heating & Air Conditioning - Vacuum Piping

5 part groups · 3 illustrations

Illustrations

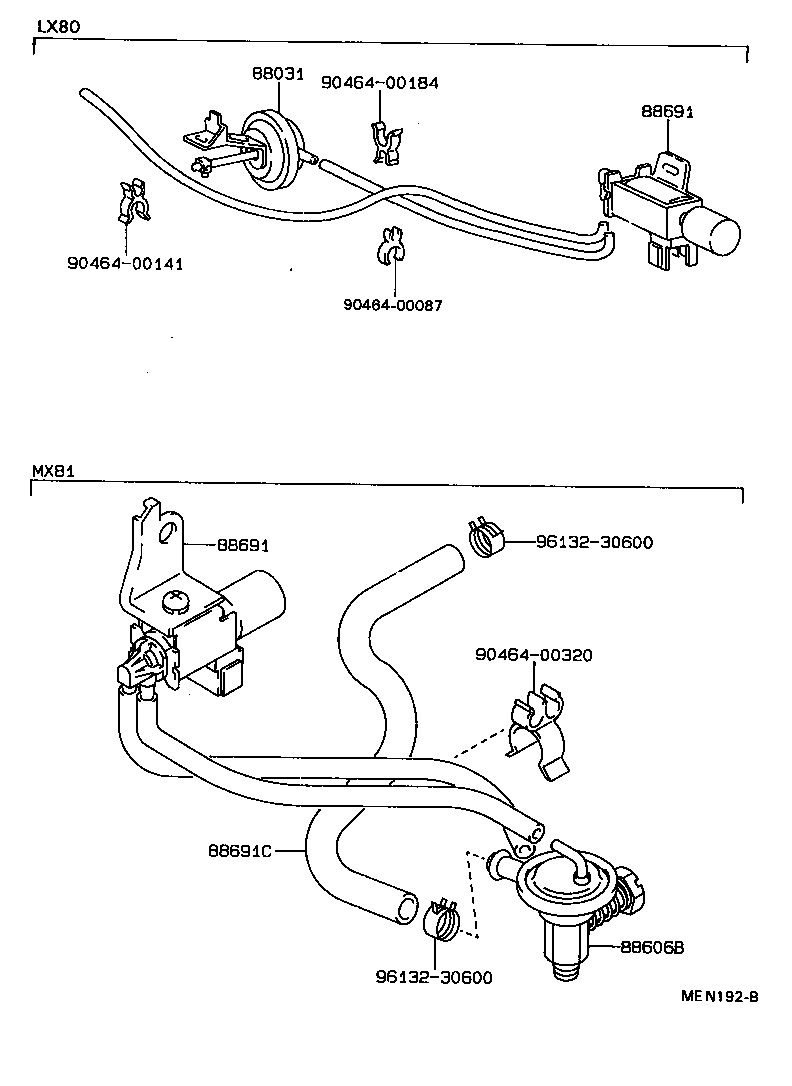

Figure NE1034C NE1034C 1988-08 → 1993-02 Figure NE1033C NE1033C 1988-08 → — Figure MEN192B MEN192B 1988-08 → 1993-02

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88606B Diaphragm Sub-assy, Cooler
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
