Toyota Lexus SC430
2001-05 → 2010-07 · chassis UZZ40 · catalogue 321250 · Europe
Discontinued model
Data version 2011-01

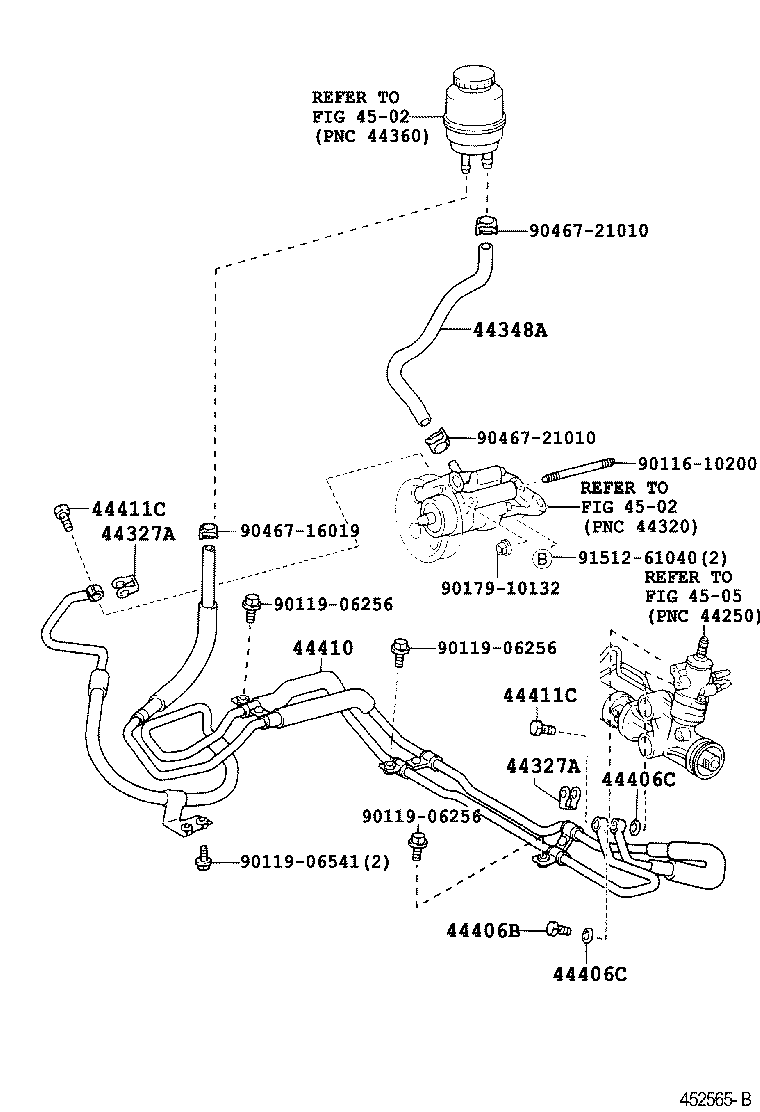

Power Steering Tube
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44406B | Bolt, Union(FOR RETURN TUBE) |
| 44406C | Gasket(FOR RETURN TUBE) |
| 44410 | Tube Assy, Pressure Feed |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
