Toyota Lexus SC430

2001-05 → 2010-07 · chassis UZZ40 · catalogue 321250 · Europe

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

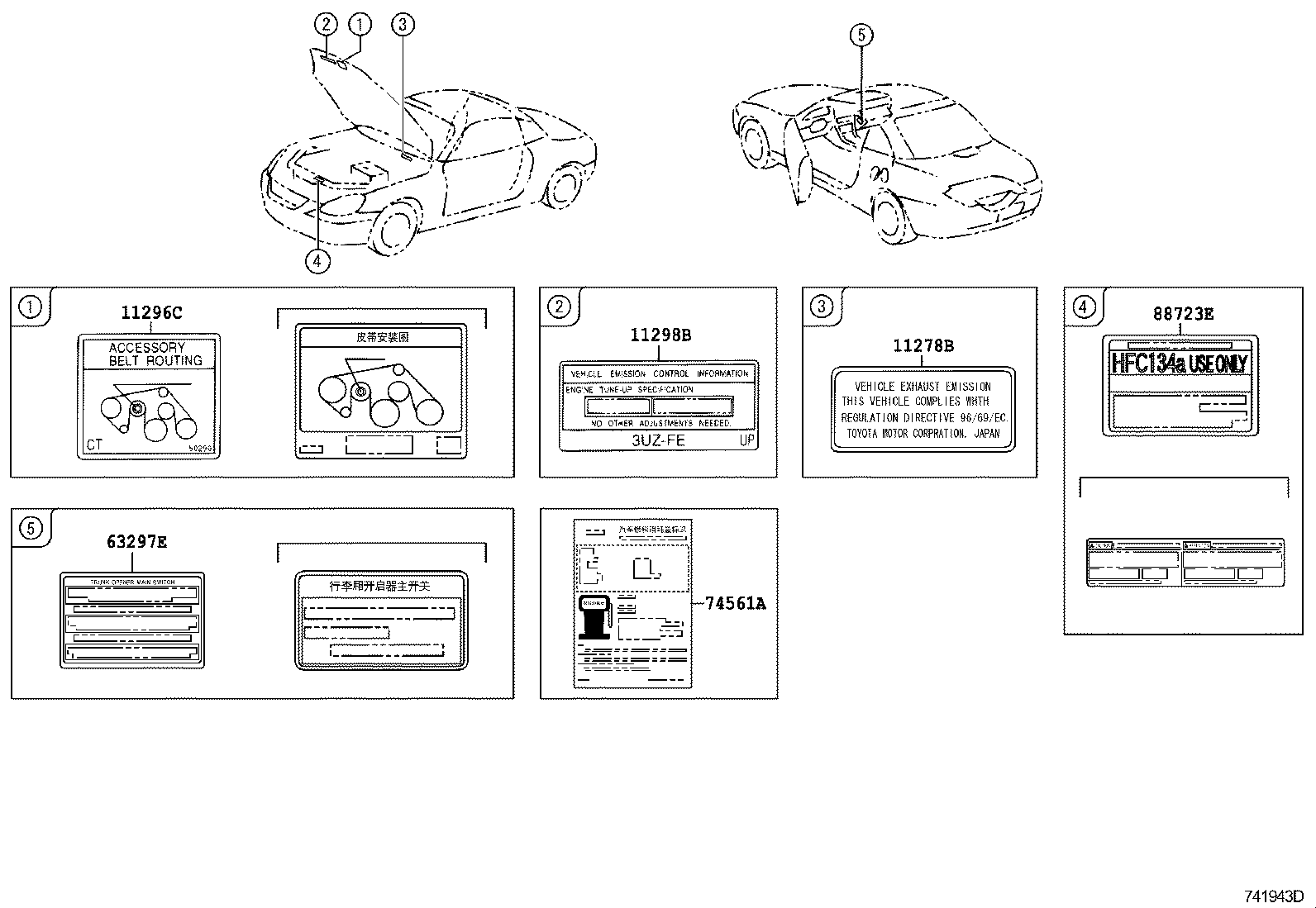

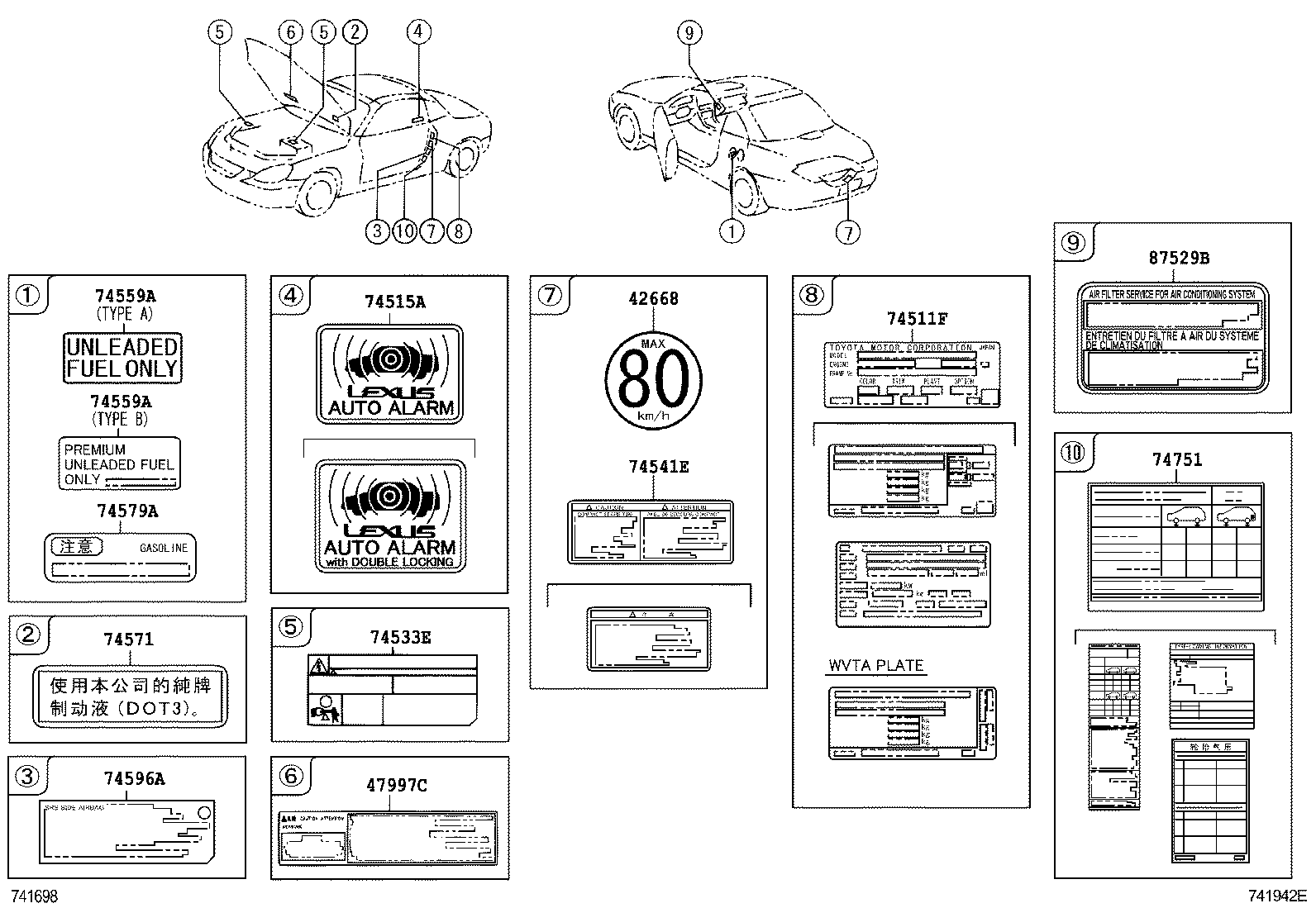

Figure 741941A 741941A 2001-05 → 2005-08 Figure 741942E 741942E 2005-08 → — Figure 741943D 741943D 2001-05 → —

Part groups

PNCDescription
11278B Label, Engine Emission Compliance Information
11296C Label, Engine Service Information
11298B Label, Emission Control Information
42668 Label, Compact Spare Tire Caution
47997C Label, Accumulator Caution, NO.1
63297E Label, Sliding Roof Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74533E Label, Headlamp Voltage Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74571 Plate, Brake Fluid Caution
74579A Label, Unleaded Fuel Information
74596A Label, Side Airbag Caution
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
