Toyota Lexus SC430

2001-05 → 2010-07 · chassis UZZ40 · catalogue 321250 · Europe

Discontinued model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

6 part groups · 2 illustrations

Illustrations

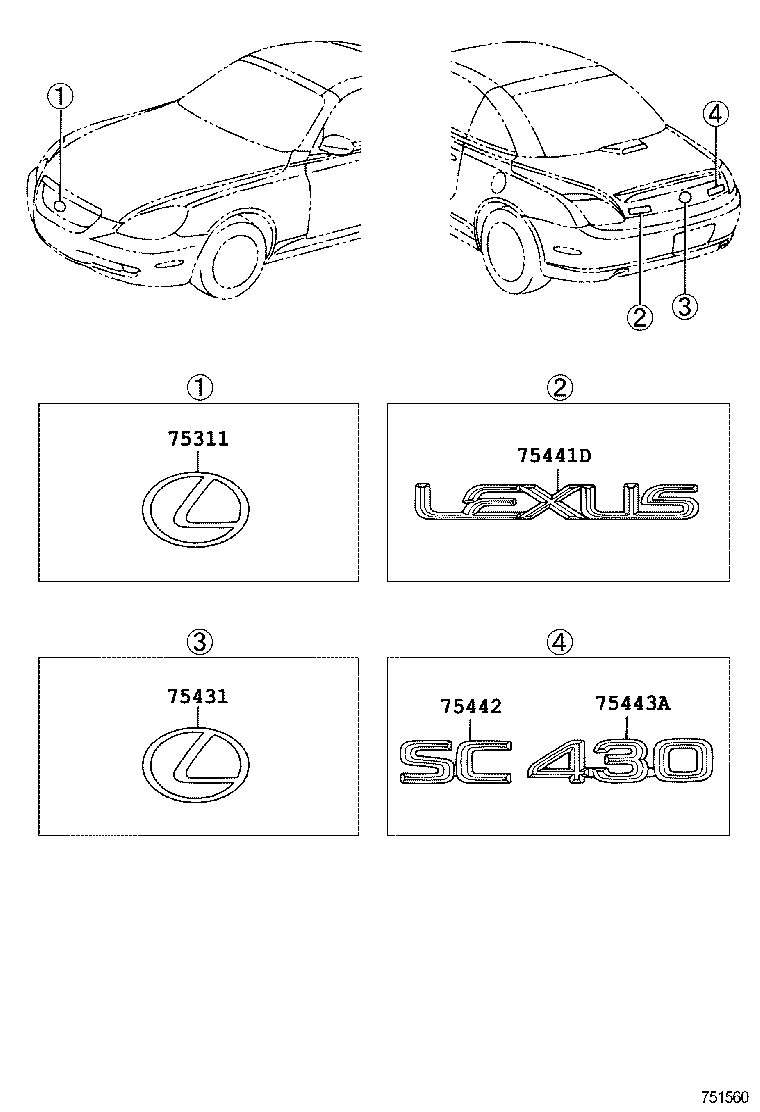

Figure 750841 750841 2001-05 → 2005-08 Figure 751560 751560 2005-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312 Base, Radiator Grille Emblem
75431 Emblem, Luggage Compartment Door
75441D Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
