Overdrive & Electronic Controlled Transmission

7 part groups · 4 illustrations

Illustrations

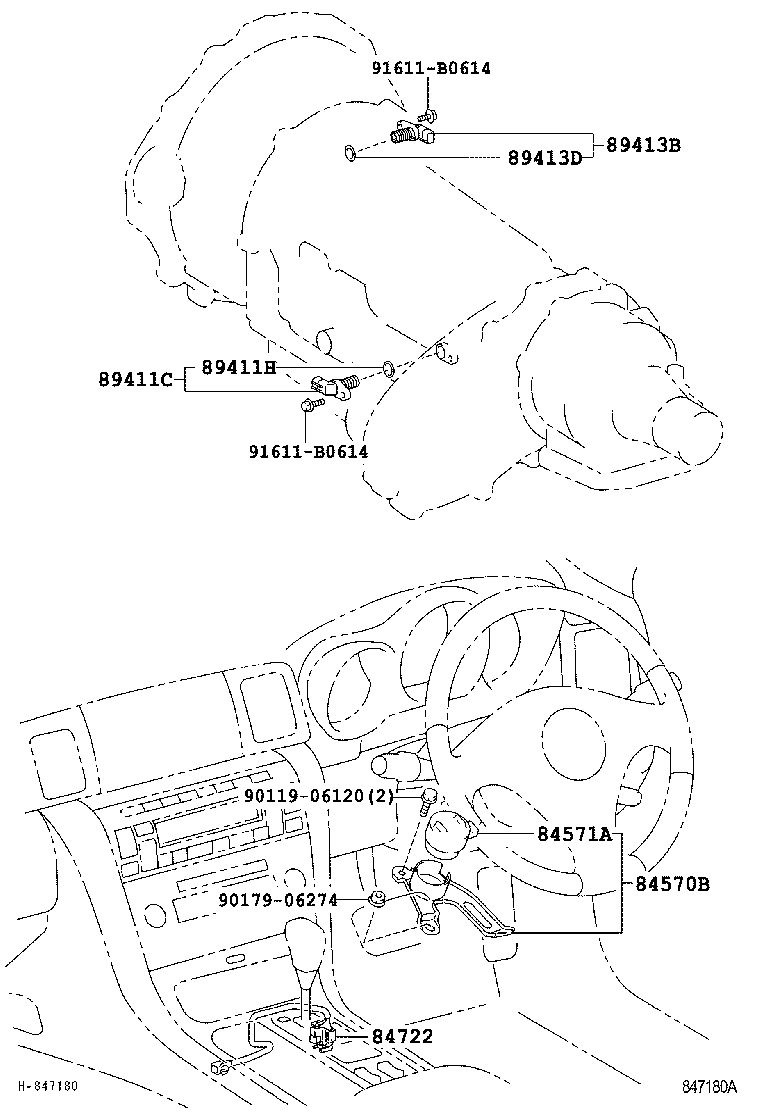

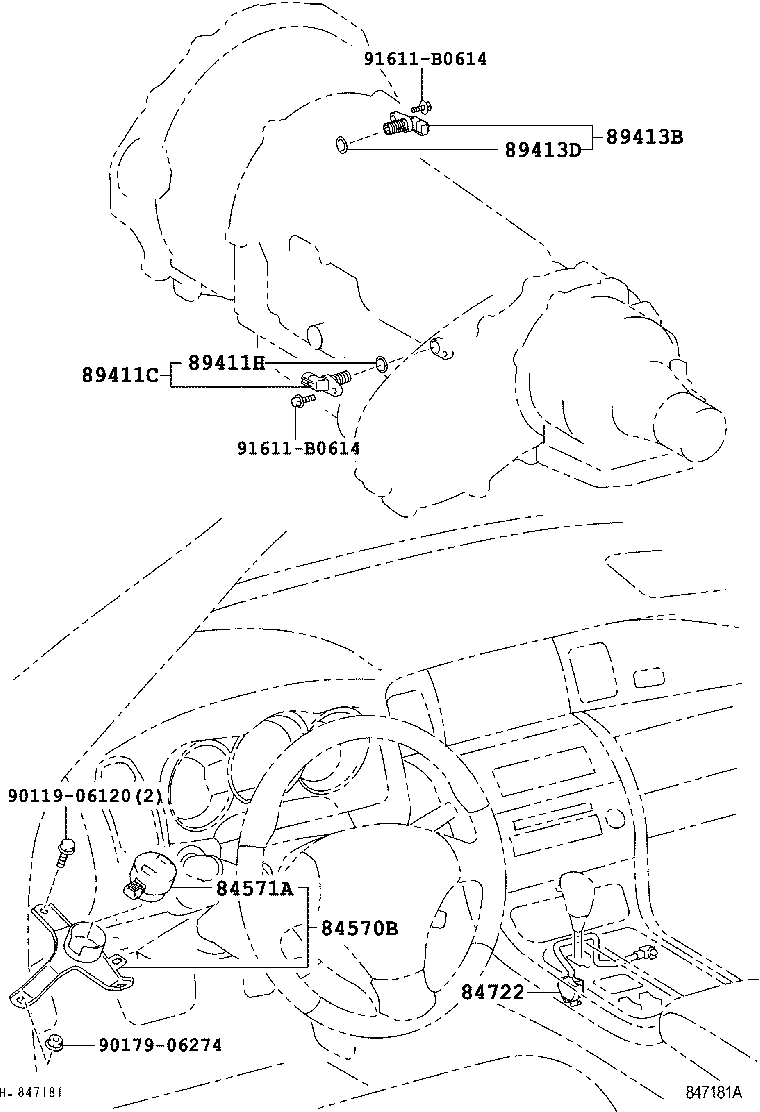

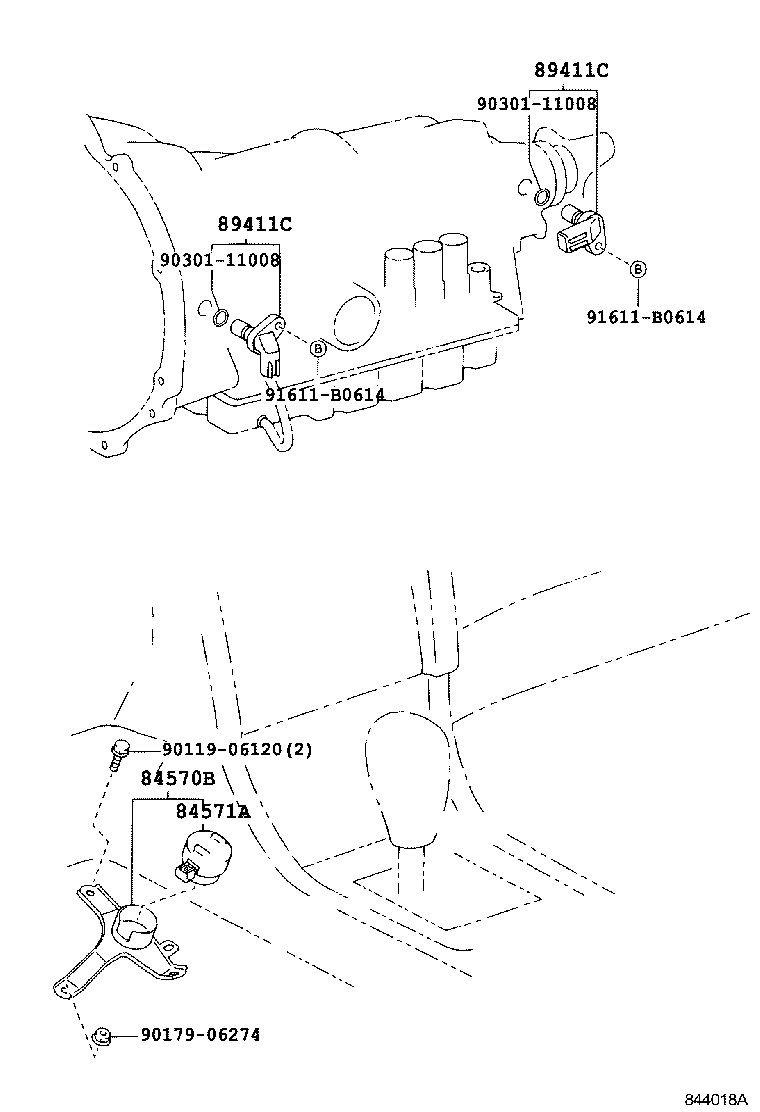

Figure 844017A 844017A 2001-05 → 2005-08 Figure 844018A 844018A 2001-05 → 2005-08 Figure 847180A 847180A 2005-08 → — Figure 847181A 847181A 2005-08 → —

Part groups

PNCDescription
84570B Switch Assy, Kick Down
84571A Switch, Kick Down
84722 Switch, Transmission Control
89411C Sensor, Speed
89411H Ring, O
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
