Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

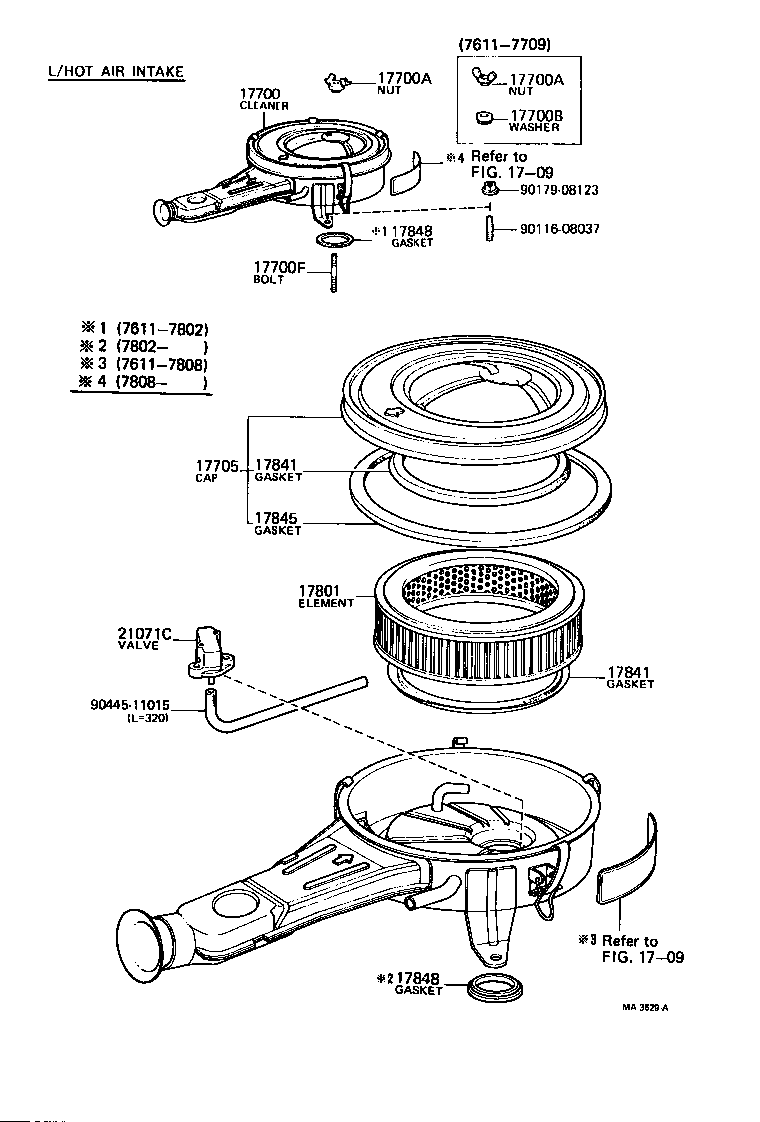

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-41143 note |
Cleaner Assy, Air
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD | — | |
| 17700-41143 note |
Cleaner Assy, Air
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 17700-41212 note |
Cleaner Assy, Air
1974-10 → 1976-04
ended
|
4M MS8#,95 BTP,DLX,SAL,STD | — | |
| 17700-41212 note |
Cleaner Assy, Air
1976-04 → 1976-11
ended
|
4M MS8#,95 GEN | — | |
| 17700-42083 note |
Cleaner Assy, Air
1974-10 → 1976-11
ended
|
4M MS8#,95 LHD | — | |
| 17700-44191 |
Cleaner Assy, Air
1974-10 → 1978-02
ended
|
5R RS80 | — | |
| 17700-44192 |
Cleaner Assy, Air
1978-02 → 1979-08
ended
|
5R RS80 | — | |
| 17700-44250 note |
Cleaner Assy, Air
1978-02 → 1979-08
ended
|
5R RS80 LHD 4F | — | |
| 17700-44250 note |
Cleaner Assy, Air
1975-04 → 1978-02
ended
|
5R RS80 LHD 4F | — | |
| 17700-45100 |
Cleaner Assy, Air
1976-04 → 1976-09
ended
|
4M MS83,85 ARL | — | |
| 17700-45120 note |
Cleaner Assy, Air
1976-11 → 1976-12
ended
|
4M MS8#,95 GEN | — | |
| 17700-45121 note |
Cleaner Assy, Air
1976-12 → 1978-02
ended
|
4M MS8#,95 GEN | — | |
| 17700-45130 note |
Cleaner Assy, Air
1976-11 → 1976-12
ended
|
4M MS8#,95 EUR,GEN | — | |
| 17700-45131 note |
Cleaner Assy, Air
1976-12 → 1978-02
ended
|
4M MS8#,95 EUR,GEN | — | |
| 17700-45150 |
Cleaner Assy, Air
1976-09 → 1976-11
ended
|
4M MS83,85 ARL | — | |
| 17700-45160 |
Cleaner Assy, Air
1976-11 → 1976-12
ended
|
4M MS83,85 ARL | — | |
| 17700-45161 |
Cleaner Assy, Air
1976-12 → 1978-02
ended
|
4M MS83,85 ARL | — | |
| 17700-45180 |
Cleaner Assy, Air
1978-02 → 1978-08
ended
|
4M MS85 ARL | — | |
| 17700-45190 note |
Cleaner Assy, Air
1978-02 → 1978-08
ended
|
4M MS8#,95 EUR,GEN | — | |
| 17700-45191 note |
Cleaner Assy, Air
1978-08 → 1979-03
ended
|
4M MS8#,95 EUR,GEN | — | |
| 17700-45192 note |
Cleaner Assy, Air
1979-03 → 1979-08
ended
|
4M MS8#,95 EUR,GEN | — | |
| 17700-45200 note |
Cleaner Assy, Air
1978-02 → 1978-08
ended
|
4M MS8#,95 GEN | — | |
| 17700-45201 note |
Cleaner Assy, Air
1978-08 → 1979-03
ended
|
4M MS8#,95 GEN | — | |
| 17700-45202 note |
Cleaner Assy, Air
1979-03 → 1979-08
ended
|
4M MS8#,95 GEN | — | |
| 17700-45220 |
Cleaner Assy, Air
1978-08 → 1979-03
ended
|
4M MS85 ARL | — | |
| 17700-45221 |
Cleaner Assy, Air
1979-03 → 1979-08
ended
|
4M MS85 ARL | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-09 → 1979-08
ended
|
4M MS8#,95 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1978-06 → 1979-08
ended
|
5R RS80 | — | |
| 90175-06026 |
Nut, Wing(FOR AIR CLEANER)
1976-12 → 1977-09
ended
|
4M MS8#,95 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1974-10 → 1976-12
ended
|
5R RS80 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1974-10 → 1976-12
ended
|
4M MS8#,95 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1976-12 → 1978-06
ended
|
5R RS80 | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1974-10 → 1976-12
ended
|
5R RS80 | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1974-10 → 1976-12
ended
|
4M MS8#,95 | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1976-12 → 1978-06
ended
|
5R RS80 | — | |
| 90210-09026 |
Washer, Seal(FOR AIR CLEANER)
1976-12 → 1977-09
ended
|
4M MS8#,95 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06143 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-10 → 1979-08
ended
|
5R RS80 | — | |
| 90116-06147 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 90116-06147 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-10 → 1976-11
ended
|
4M MS8#,95 LHD | — | |
| 90116-06147 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD (BTP,DLX,SAL,STD) | — | |
| 90116-06148 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 90116-06148 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1976-04 → 1976-11
ended
|
4M MS83,85 ARL | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1976-11 → 1979-08
ended
|
4M MS8#,95 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-41021 note |
Cap Sub-assy, Air Cleaner
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD | — | |
| 17705-41021 note |
Cap Sub-assy, Air Cleaner
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 17705-41090 |
Cap Sub-assy, Air Cleaner
1976-09 → 1976-11
ended
|
4M MS83,85 ARL | — | |
| 17705-41090 |
Cap Sub-assy, Air Cleaner
1976-11 → 1976-12
ended
|
4M MS8#,95 | — | |
| 17705-41120 |
Cap Sub-assy, Air Cleaner
1976-12 → 1979-08
ended
|
4M MS8#,95 | — | |
| 17705-44020 |
Cap Sub-assy, Air Cleaner
1974-10 → 1979-08
ended
|
5R RS80 | — | |
| 17705-45020 |
Cap Sub-assy, Air Cleaner
1976-04 → 1976-09
ended
|
4M MS83,85 ARL | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-33030 |
Element Sub-assy, Air Cleaner Filter
1974-10 → 1978-02
ended
|
5R RS80 | — | |
| 17801-34060 |
Element Sub-assy, Air Cleaner Filter
1978-02 → 1979-08
ended
|
5R RS80 | — | |
| 17801-41050 |
Element Sub-assy, Air Cleaner Filter
1974-10 → 1976-06
ended
|
4M MS8#,95 | — | |
| 17801-41090 |
Element Sub-assy, Air Cleaner Filter
1976-06 → 1979-08
ended
|
4M MS8#,95 | — | |
| 17801-44060 note |
Element Sub-assy, Air Cleaner Filter
1975-04 → 1978-02
ended
|
5R RS80 LHD 4F | — | |
| 17801-44060 note |
Element Sub-assy, Air Cleaner Filter
1978-02 → 1979-08
ended
|
5R RS80 LHD 4F | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-33011 |
Gasket, Filter Element
1974-10 → 1979-08
ended
|
5R RS80 | — | |
| 17841-41040 |
Gasket, Filter Element
1974-10 → 1976-06
ended
|
4M MS8#,95 | — | |
| 17841-41050 |
Gasket, Filter Element
1976-06 → 1979-08
ended
|
4M MS8#,95 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-33010 |
Gasket, Air Cleaner Cap
1974-10 → 1979-05
ended
|
5R RS80 | — | |
| 17845-33011 |
Gasket, Air Cleaner Cap
1979-05 → 1979-08
ended
|
5R RS80 | — | |
| 17845-41040 note |
Gasket, Air Cleaner Cap
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD (BTP,DLX,SAL,STD) | — | |
| 17845-41040 |
Gasket, Air Cleaner Cap
1976-11 → 1979-08
ended
|
4M MS8#,95 | — | |
| 17845-41040 note |
Gasket, Air Cleaner Cap
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 17845-41040 |
Gasket, Air Cleaner Cap
1976-04 → 1976-11
ended
|
4M MS83,85 ARL | — | |
| 17845-41040 |
Gasket, Air Cleaner Cap
1974-10 → 1976-11
ended
|
4M MS8#,95 LHD | — | |
| 17845-41050 note |
Gasket, Air Cleaner Cap
1976-04 → 1976-11
ended
|
4M MS85,88,95 RHD;4M MS83 +6 | — | |
| 17845-41050 note |
Gasket, Air Cleaner Cap
1974-10 → 1976-04
ended
|
4M MS8#,95 RHD | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 90430-72003 |
Gasket, Air Cleaner TO Carburetor
1978-02 → 1979-08
ended
|
4M MS8#,95 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1974-10 → 1978-02
ended
|
4M MS8#,95 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1974-10 → 1979-08
ended
|
5R RS80 | — | |
| 21071C — Valve Sub-assy, Thermostatic(FOR AIR CLEANER) | ||||
| 17728-41010 note |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1976-11 → 1978-02
ended
|
4M MS8#,95 | — | |
| 17728-41020 note |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1978-02 → 1979-08
ended
|
4M MS8#,95 | — | |
| 21071-45020 |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1976-04 → 1976-11
ended
|
4M MS83,85 ARL | — | |
| 21071-45021 note |
Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
1976-11 → 1979-08
ended
|
4M MS8#,95 GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
