Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

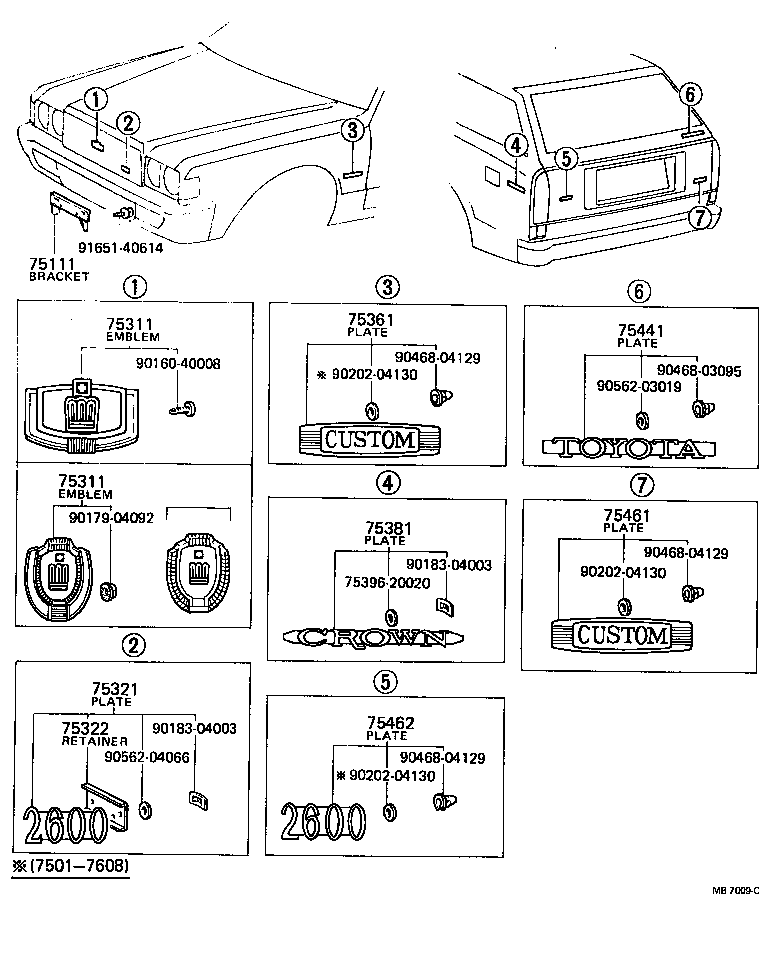

Exploded illustration MB7009C 9165140614 — not listed in this catalogue 75111 — BRACKET, FRONT LICENSE PLATE (1 parts) 75361 — PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK) (1 parts) 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75441 — PLATE, REAR NAME, NO.1 (2 parts) 9046804129 — not listed in this catalogue 9016040008 — not listed in this catalogue 9046803095 — not listed in this catalogue 9020204130 — not listed in this catalogue 9056203019 — not listed in this catalogue 75311 — EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) (4 parts) 75461 — PLATE, REAR NAME, NO.2 (MODEL MARK) (4 parts) 9017904092 — not listed in this catalogue 75381 — PLATE, QUARTER PANEL OR SIDE PANEL NAME (MODEL MARK) (2 parts) 9046804129 — not listed in this catalogue 9018304003 — not listed in this catalogue 9020204130 — not listed in this catalogue 7539620020 — not listed in this catalogue 75321 — PLATE, RADIATOR GRILLE OR FRONT PANEL NAME (1 parts) 75462 — PLATE, REAR NAME, NO.3 (DISPLACEMENT) (1 parts) 75322 — RETAINER, RADIATOR GRILLE NAME PLATE (1 parts) 9018304003 — not listed in this catalogue 9056204066 — not listed in this catalogue 9046804129 — not listed in this catalogue 9020204130 — not listed in this catalogue
MB7009C · 10 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
75111 — Bracket, Front License Plate
75111-30050 Bracket, Front License Plate
1974-10 → 1979-08 ended
MS8#,95,RS80 —
75311 — Emblem, Radiator Grille (OR FRONT PANEL)
75301-39095 Emblem, Radiator Grille (OR FRONT PANEL)
1974-10 → 1976-11 ended
MS8#,95,RS80 —
75301-39106 Emblem, Radiator Grille (OR FRONT PANEL)
1976-11 → 1978-02 ended
MS8#,95,RS80 —
75311-39025 Emblem, Radiator Grille (OR FRONT PANEL)
1978-02 → 1979-08 ended
MS8#,95,RS80 BTP,DLX,STD —
75311-39035 Emblem, Radiator Grille (OR FRONT PANEL)
1978-02 → 1979-08 ended
MS85 ROY,SAL —
75321 — Plate, Radiator Grille OR Front Panel Name
75321-39055 note Plate, Radiator Grille OR Front Panel Name
1974-10 → 1979-08 ended
MS8#,95 —
75322 — Retainer, Radiator Grille Name Plate
75324-30020 Retainer, Radiator Grille Name Plate
1974-10 → 1979-08 ended
MS8#,95 —
75361 — Plate, Front Fender Name, NO.1 (MODEL MARK)
75445-91701 note Plate, Front Fender Name, NO.1 (MODEL MARK)
1975-01 → 1979-08 ended
MS83 —
75381 — Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
75381-39016 note Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
1974-10 → 1979-08 ended
MS83,88 —
75381-39016 note Plate, Quarter Panel OR Side Panel Name (MODEL MARK)
1974-10 → 1979-08 ended
MS95 2D —
75441 — Plate, Rear Name, NO.1
75431-30131 note Plate, Rear Name, NO.1
1974-10 → 1979-08 ended
MS83,88,95 —
75461-30060 note Plate, Rear Name, NO.1
1978-02 → 1979-08 ended
MS85,RS80 —
75461 — Plate, Rear Name, NO.2 (MODEL MARK)
75442-30030 note Plate, Rear Name, NO.2 (MODEL MARK)
1974-10 → 1979-08 ended
MS85 DLX —
75442-30050 note Plate, Rear Name, NO.2 (MODEL MARK)
1974-10 → 1979-08 ended
MS85 SAL —
75442-30060 note Plate, Rear Name, NO.2 (MODEL MARK)
1975-11 → 1979-08 ended
MS85 ROY —
75445-91701 note Plate, Rear Name, NO.2 (MODEL MARK)
1975-01 → 1979-08 ended
MS83 —
75462 — Plate, Rear Name, NO.3 (DISPLACEMENT)
75444-30020 note Plate, Rear Name, NO.3 (DISPLACEMENT)
1974-10 → 1979-08 ended
MS8#,95 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
