Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

35 part groups · 6 illustrations

Illustrations

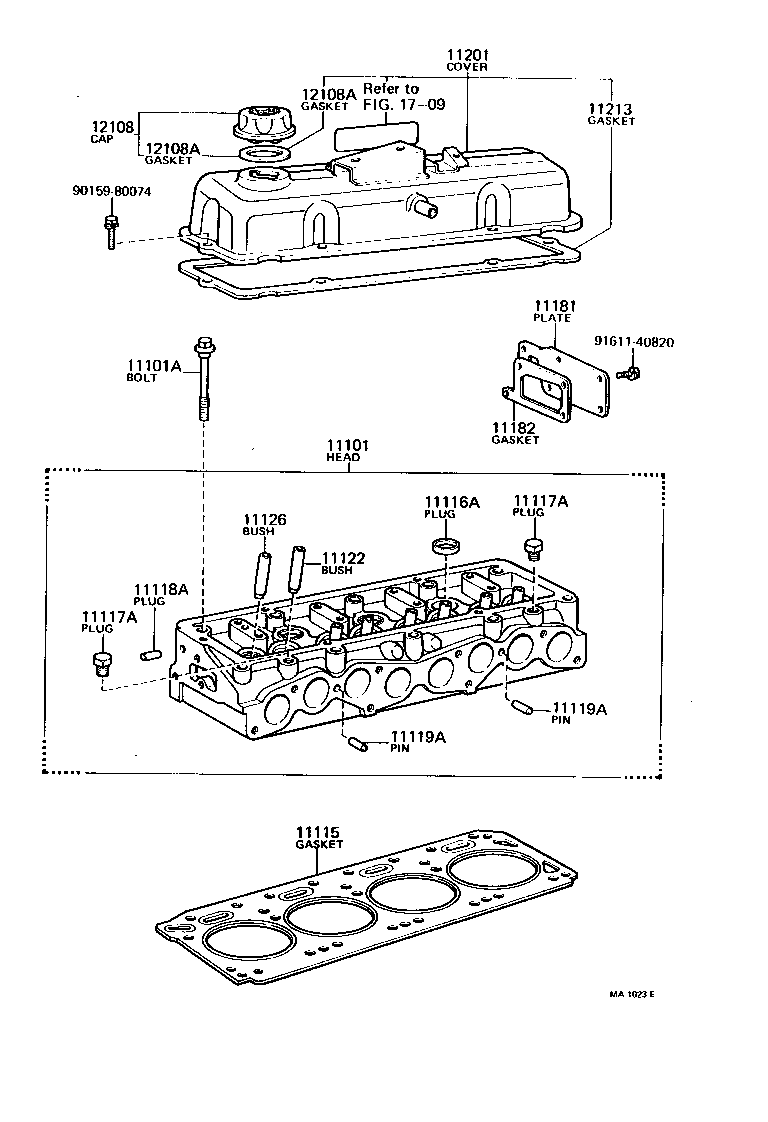

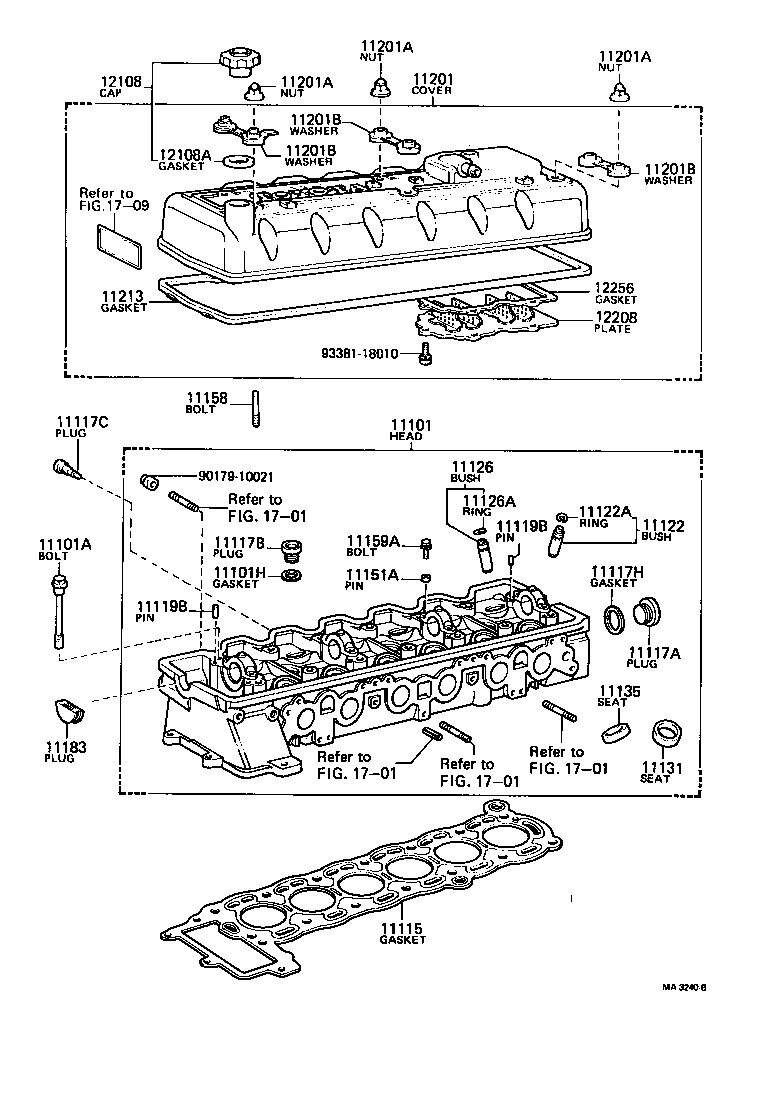

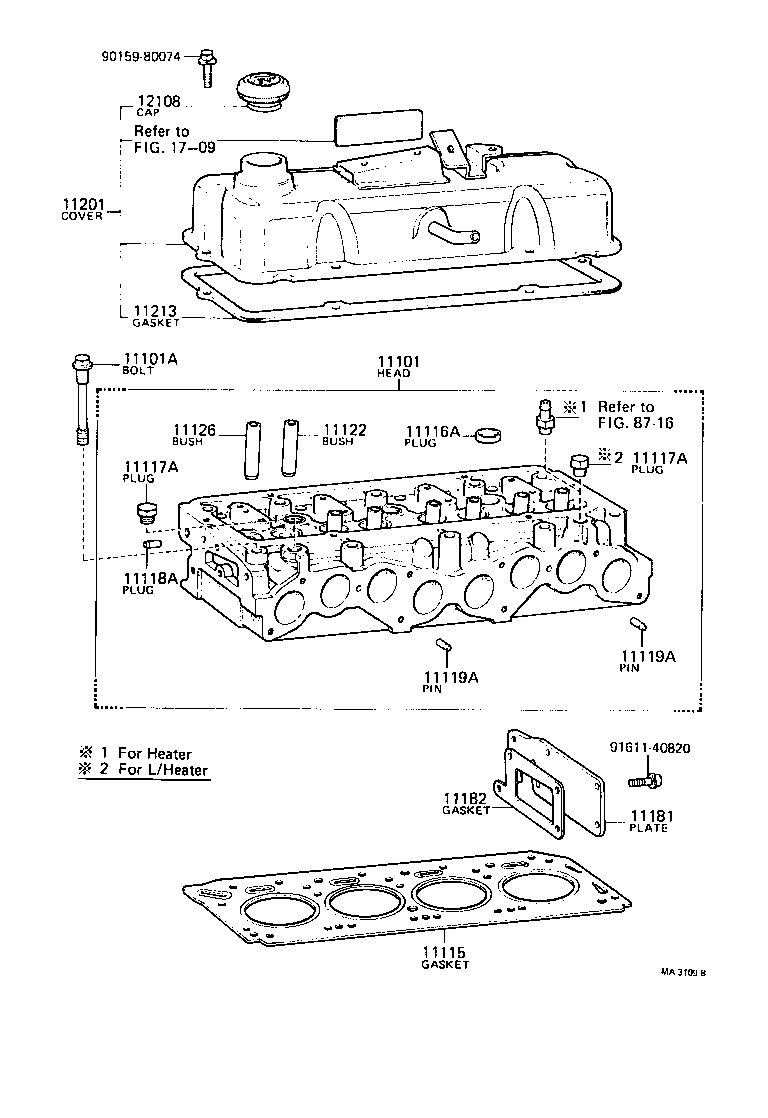

Figure MA0788G MA0788G 1974-10 → 1976-04 Figure MA2465D MA2465D 1976-04 → 1976-11 Figure MA2465D MA2465D 1976-11 → 1978-02 Figure MA3240B MA3240B 1978-02 → 1979-08 Figure MA1023E MA1023E 1974-10 → 1974-12 Figure MA3109B MA3109B 1974-12 → 1979-08

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11117C Plug, W/Head Taper Screw, NO.3
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11119A Pin, Straight, NO.1
11119B Pin, Straight, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159 Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12208 Plate Sub-assy, Ventilation Baffle
12216 Plate, Ventilation Baffle
12256 Gasket, Ventilation Baffle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
