Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

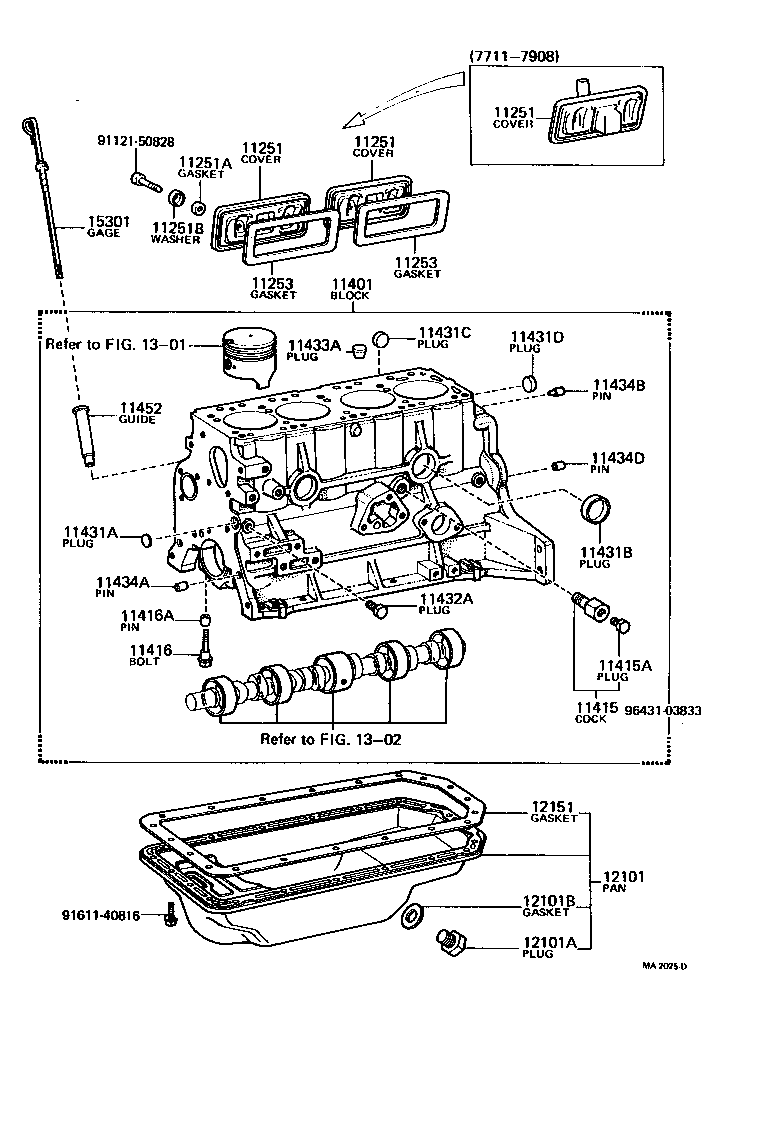

Cylinder Block
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11022 | Bearing Set, Pump Drive Shaft |
| 11251 | Cover, Valve Push Rod |
| 11251A | Gasket(FOR VALVE PUSH ROD COVER BOLT) |
| 11251B | Washer, Seal(FOR VALVE PUSH ROD COVER BOLT) |
| 11253 | Gasket, Valve Push Rod Cover |
| 11401 | Block Sub-assy, Cylinder |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11418 | Bush, Solid(FOR DISTRIBUTOR) |
| 11419 | Bolt, Stud(FOR FUEL PUMP) |
| 11427 | Bolt, Stud(FOR TIMING CHAIN COVER SET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431D | Plug, Tight, NO.4(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11432C | Plug, W/Head Taper Screw, NO.3 |
| 11432D | Gasket, W/Head Taper Screw Plug |
| 11432E | Gasket, W/Head Taper Screw Plug |
| 11433A | Plug, Straight, NO.1 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11437 | Bush, Oil Pump Shaft Guide |
| 11452 | Guide, Oil Level Gage |
| 11492 | Plate, Water Seal |
| 11493 | Gasket, Water Seal Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12151 | Gasket, Oil Pan |
| 12238 | Plate, Ventilation Baffle |
| 15301 | Gage Sub-assy, Oil Level |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
