Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

16 part groups · 5 illustrations

Illustrations

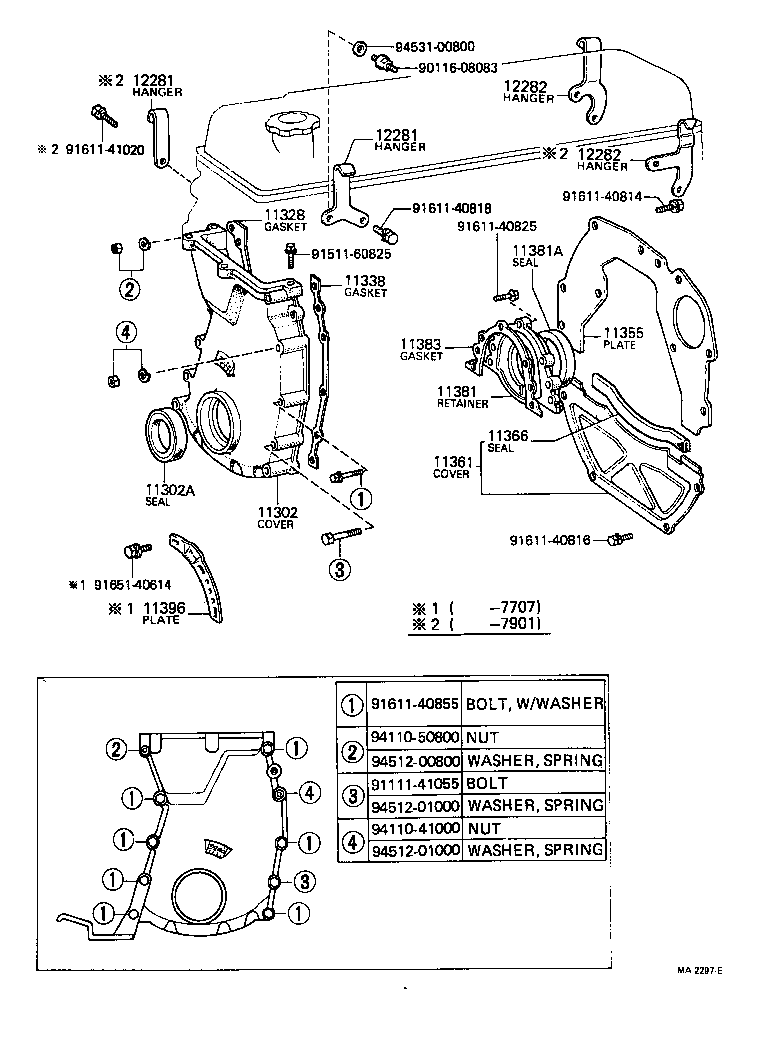

Figure MA0594F MA0594F 1974-10 → 1976-04 Figure MA2297E MA2297E 1976-04 → 1976-11 Figure MA2297E MA2297E 1976-11 → 1979-08 Figure MA1515A MA1515A 1974-10 → 1975-11 Figure MA2026D MA2026D 1975-11 → 1979-08

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
11396 Plate, Timing Mark
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
