Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 5 illustrations

Illustrations

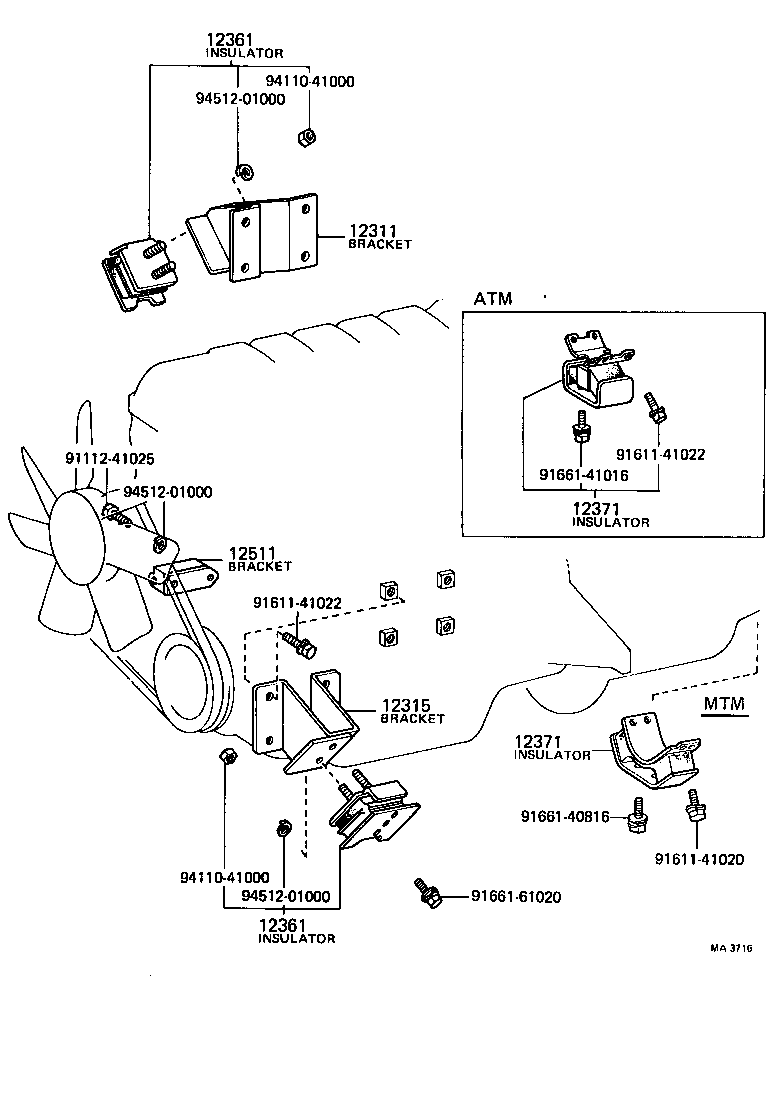

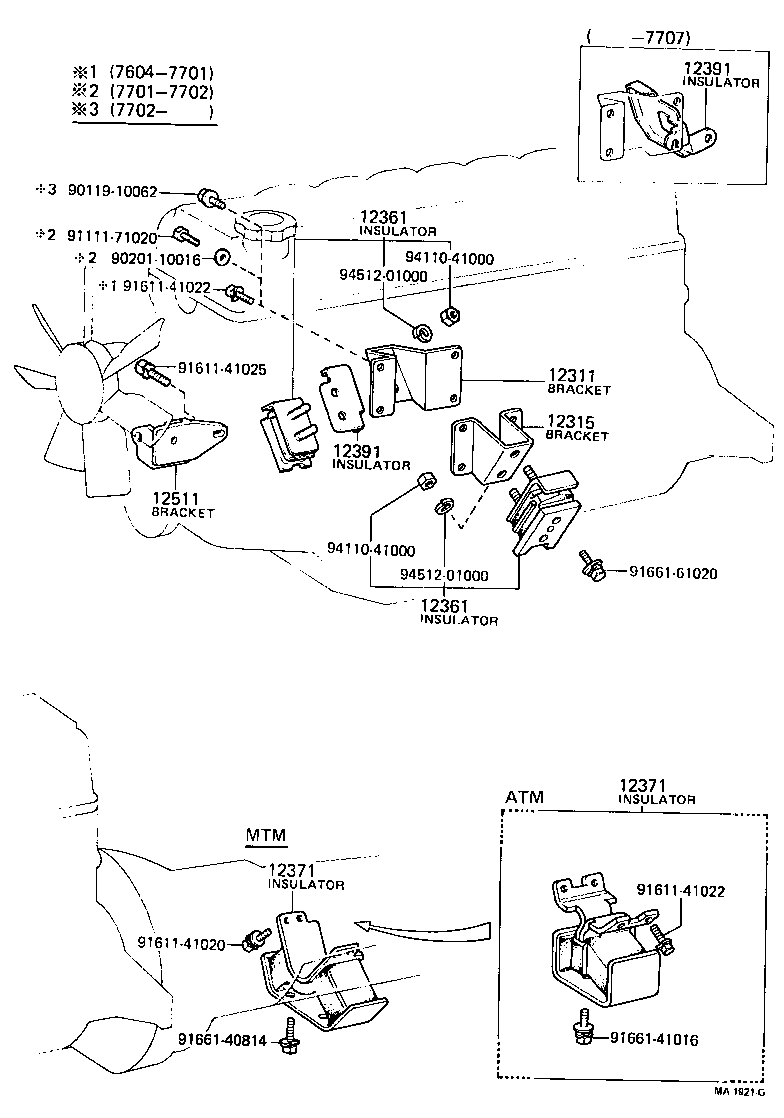

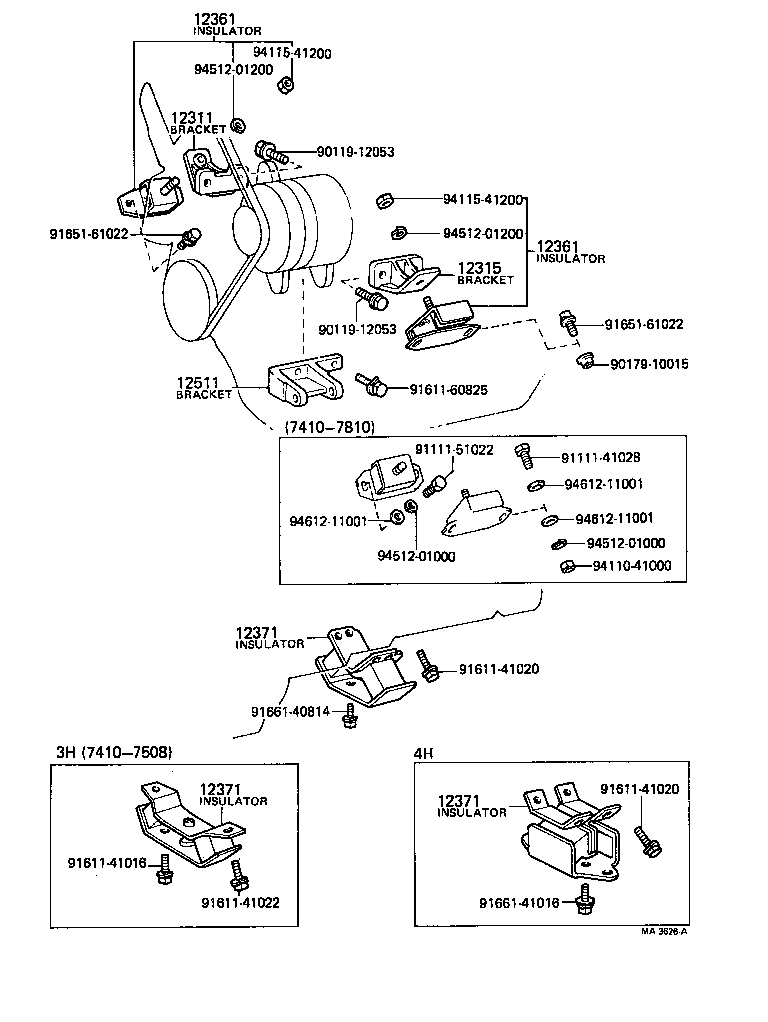

Figure MA1496D MA1496D 1974-10 → 1975-10 Figure MA3716 MA3716 1975-10 → 1976-04 Figure MA1921G MA1921G 1976-04 → 1976-11 Figure MA1921G MA1921G 1976-11 → 1979-08 Figure MA3626A MA3626A 1974-10 → 1979-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
