Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01

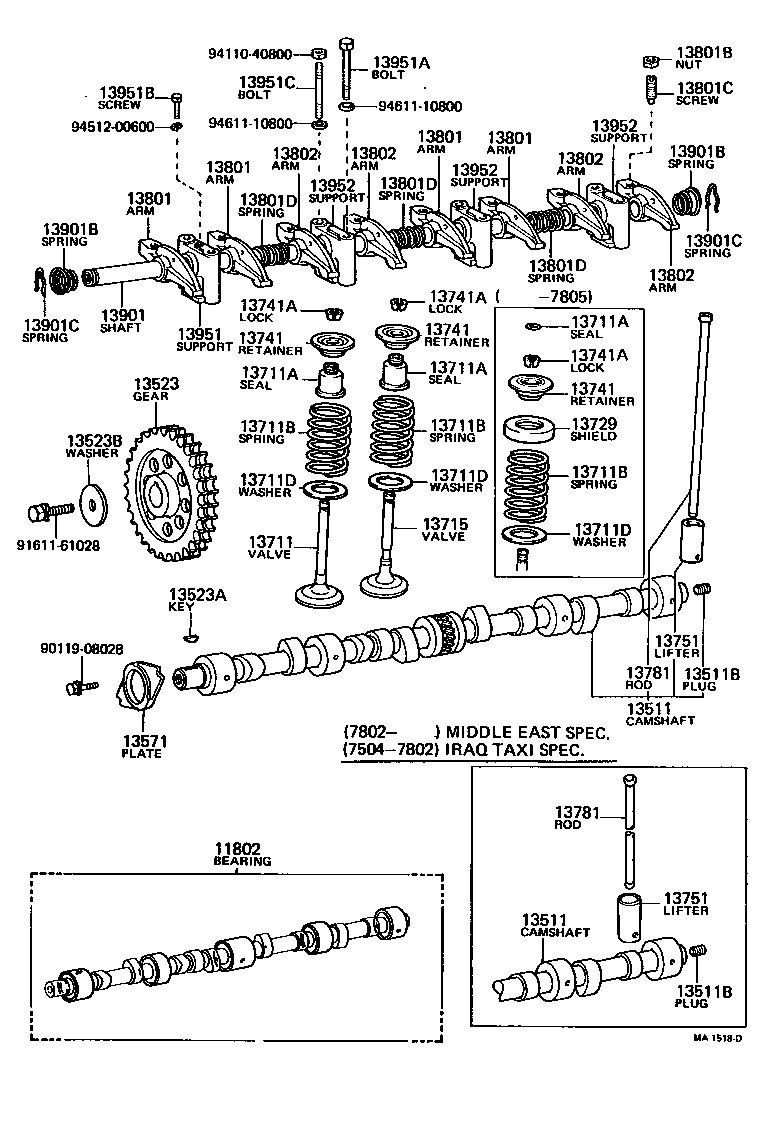

Camshaft & Valve

42 part groups · 4 illustrations

PNC	Description
11802	Bearing Set, Camshaft
13511	Camshaft
13511A	Pin, Straight(FOR CAMSHAFT KNOCK)
13511B	Plug, Expansion(FOR CAMSHAFT)
13523	Gear OR Sprocket, Camshaft Timing
13523A	Key, Woodruff(FOR TIMING GEAR)
13523B	Washer, Plate(FOR TIMING GEAR)
13571	Plate, Camshaft Thrust
13576	Bolt, Camshaft Timing Gear
13577	Plate, Lock
13579	Washer, Camshaft Timing Gear Bolt
13711	Valve, Intake
13711A	Seal OR Ring, O(FOR VALVE STEM OIL)
13711B	Spring, Compression(FOR INNER)
13711C	Spring, Compression(FOR OUTER)
13711D	Washer, Plate(FOR VALVE SPRING SEAT)
13715	Valve, Exhaust
13729	Shield, Valve Stem Oil
13741	Retainer, Valve Spring
13741A	Lock, Valve Spring Retainer
13751	Lifter, Valve
13781	Rod, Valve Push
13801	Arm Sub-assy, Valve Rocker, NO.1
13801A	Bush, Bimetal Formed(FOR ROCKER ARM)
13801B	Nut, Hexagon(FOR VALVE ADJUSTING)
13801C	Screw, Valve Adjusting
13801D	Spring, Compression(FOR ROCKER ARM)
13802	Arm Sub-assy, Valve Rocker, NO.2
13901	Shaft Sub-assy, Valve Rocker, NO.1
13901B	Spring, Conical(FOR VALVE ROCKER SHAFT)
13901C	Spring, Retainer(FOR VALVE ROCKER SHAFT)
13902	Shaft Sub-assy, Valve Rocker, NO.2
13951	Support, Valve Rocker, NO.1
13951A	Bolt(FOR ROCKER SUPPORT SET)
13951B	Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13951C	Bolt, Stud(FOR ROCKER SUPPORT)
13952	Support, Valve Rocker, NO.2
13953	Support, Valve Rocker, NO.3
13954	Support, Valve Rocker, NO.4
13955	Support, Valve Rocker, NO.5
15707	Pipe Sub-assy, Oil
15707A	Bolt, Union(FOR OIL PIPE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
