Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

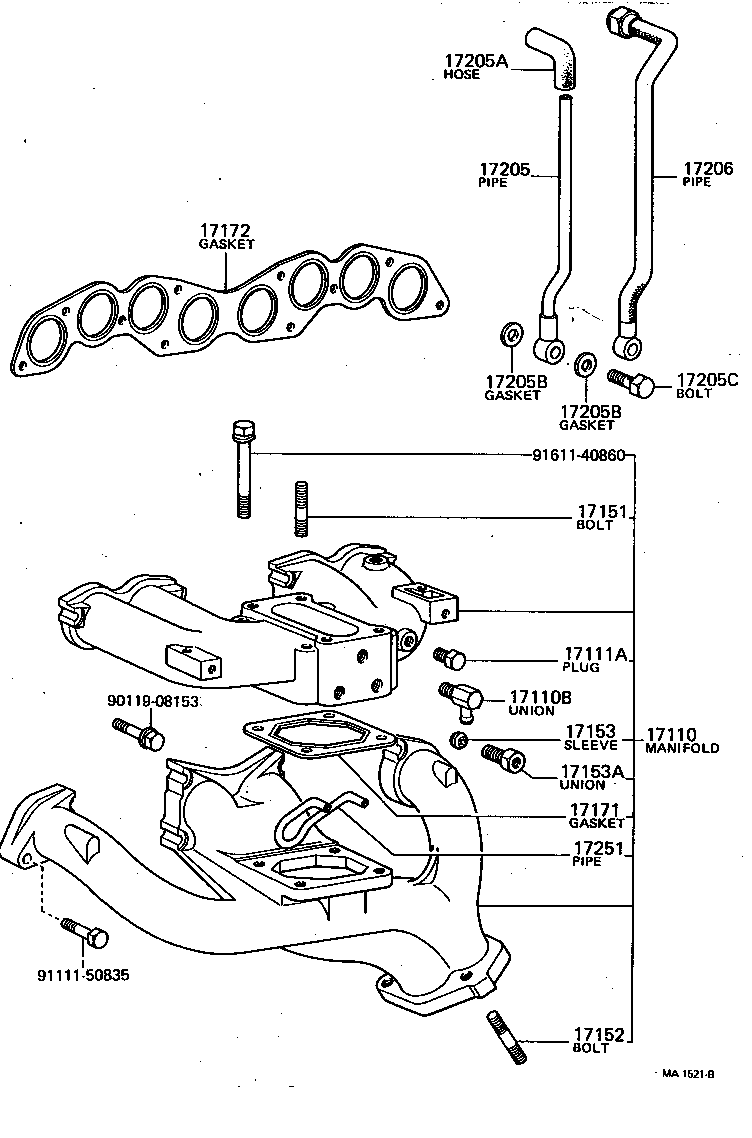

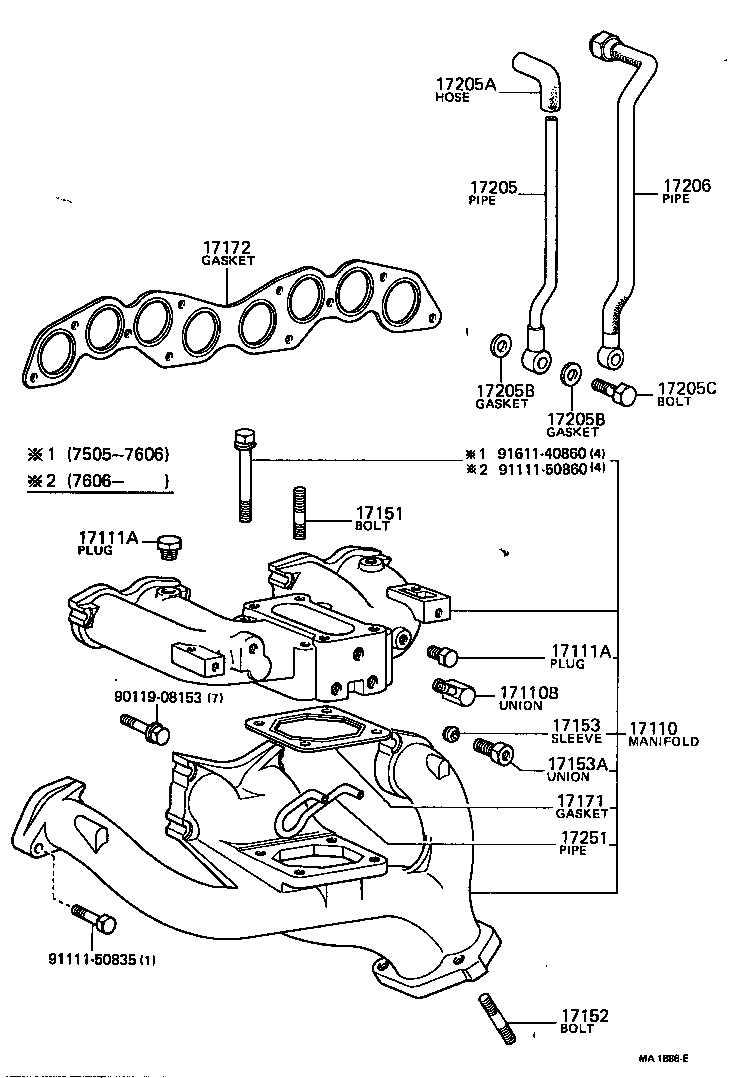

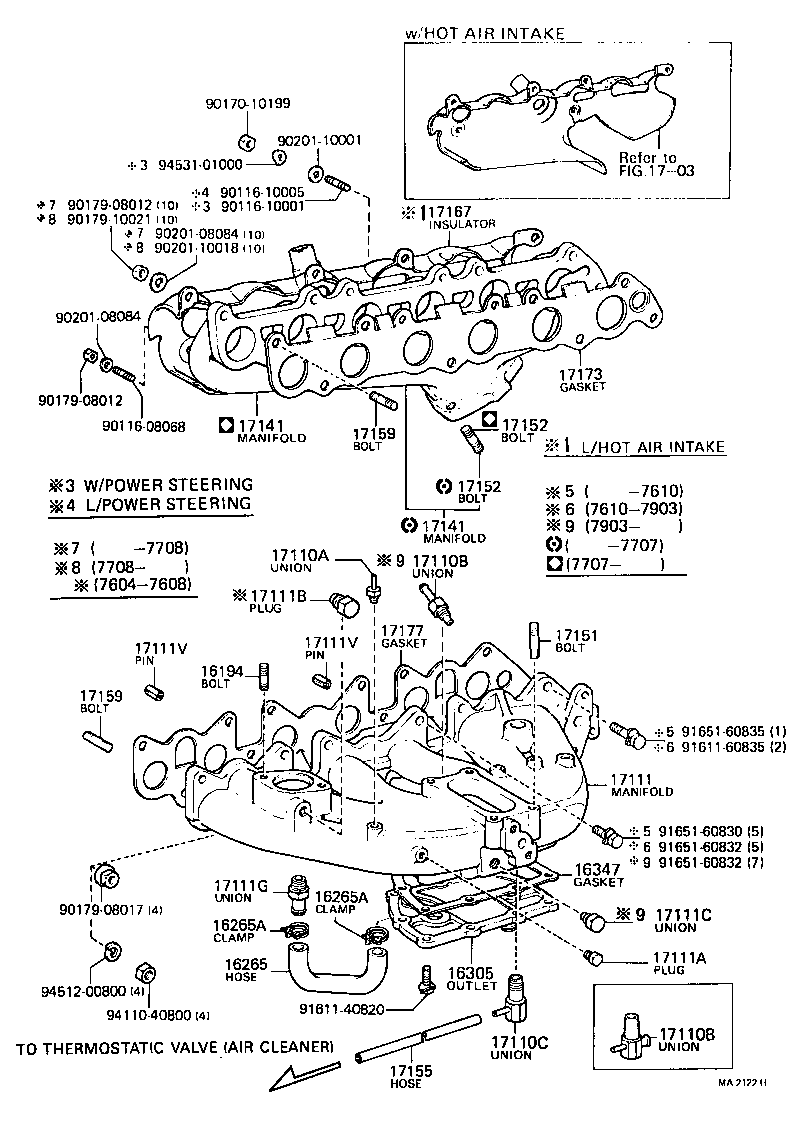

Manifold
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12269 | Union |
| 16194 | Bolt, Stud(FOR WATER OUTLET SETTING) |
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 16347 | Gasket, Water By-pass |
| 17110 | Manifold Assy |
| 17110A | Union, Vacuum Hose |
| 17110B | Union(FOR VENTILATION HOSE TO MANIFOLD) |
| 17110C | Union(FOR AIR CLEANER TO MANIFOLD) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17111C | Plug, NO.3 |
| 17111G | Union(FOR INTAKE MANIFOLD WATER) |
| 17111V | Pin, Straight(FOR INTAKE MANIFOLD SETTING) |
| 17141 | Manifold, Exhaust |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17153 | Sleeve, Ball(FOR AUTOMATIC CHOKE STOVE PIPE) |
| 17153A | Union(FOR AUTOMATIC CHOKE STOVE PIPE) |
| 17155 | Hose(FOR MANIFOLD) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17178 | Gasket, Intake Manifold TO Head, NO.2 |
| 17182 | Orifice, Water |
| 17205 | Pipe, Automatic Choke Stove Inlet |
| 17205A | Hose(FOR AUTOMATIC CHOKE STOVE PIPE) |
| 17205B | Gasket(FOR AUTOMATIC CHOKE STOVE PIPE) |
| 17205C | Bolt, Union(FOR AUTOMATIC CHOKE STOVE PIPE) |
| 17206 | Pipe, Automatic Choke Stove Outlet |
| 17251 | Pipe,Automatic Choke Stove |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
