Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

26 part groups · 12 illustrations

Illustrations

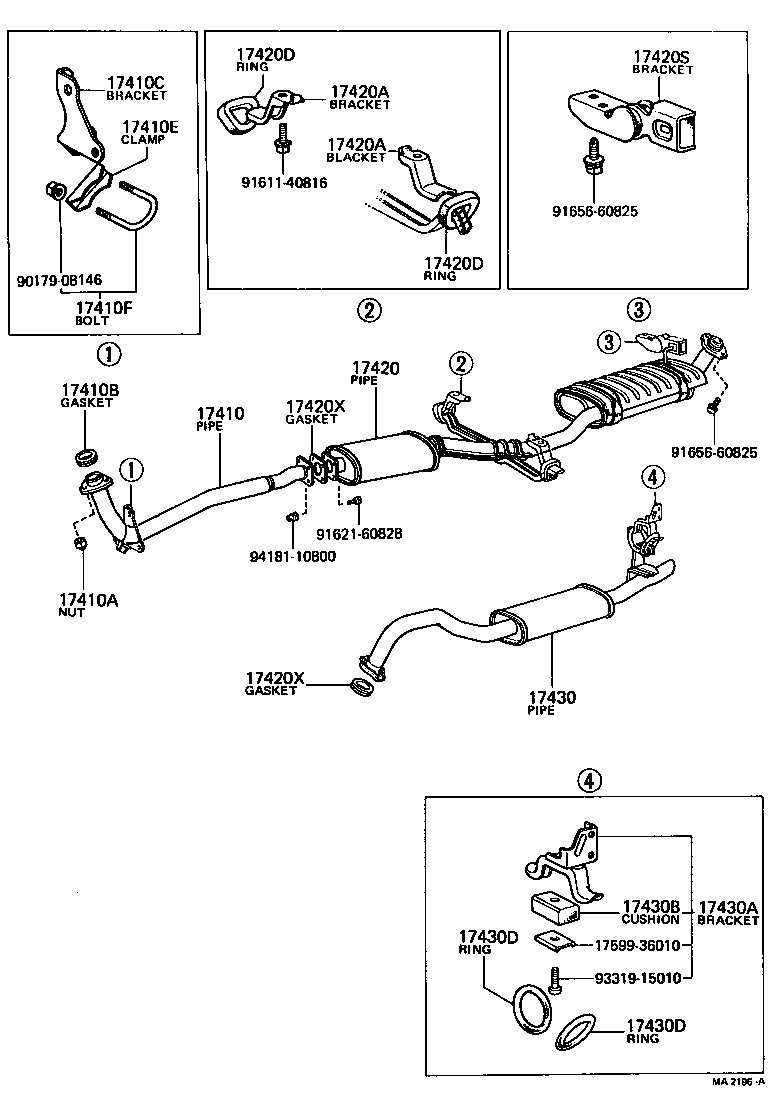

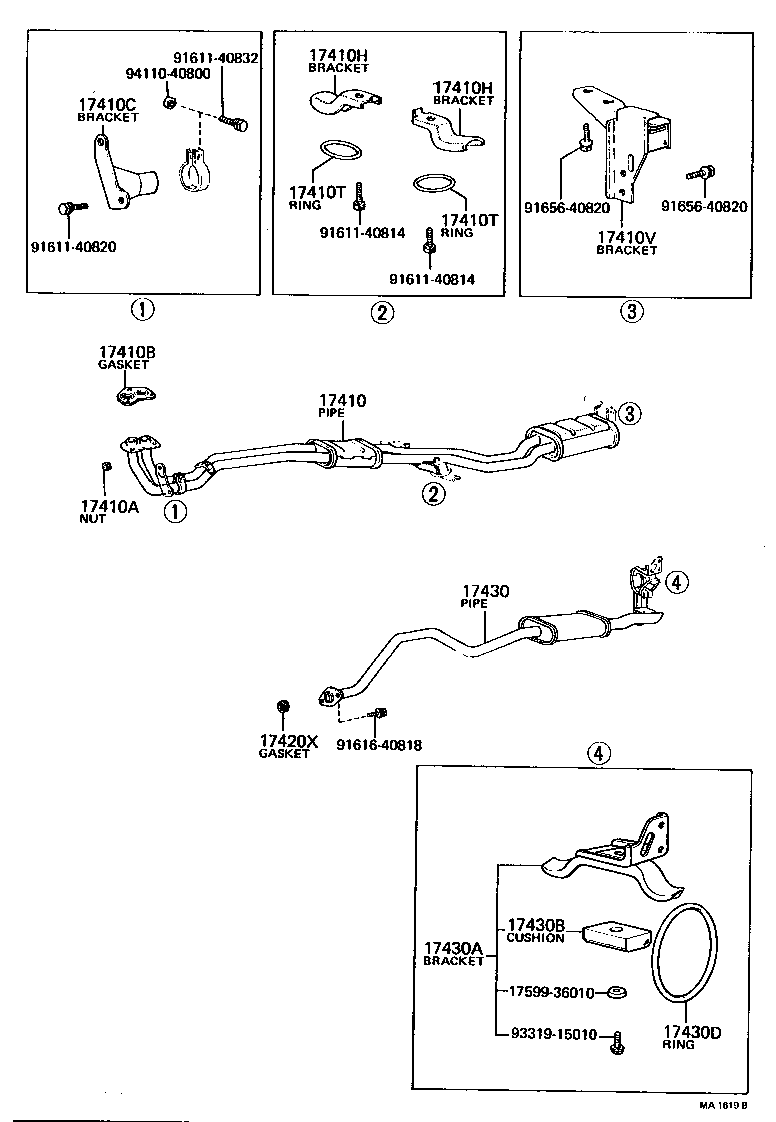

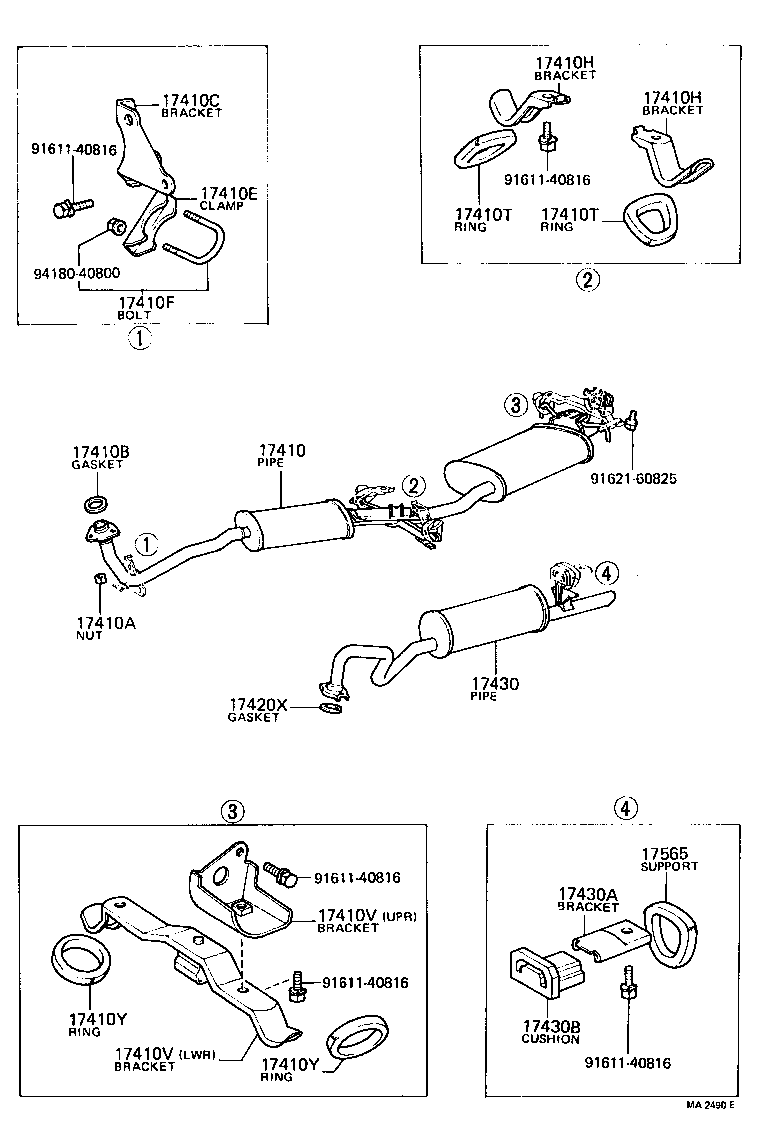

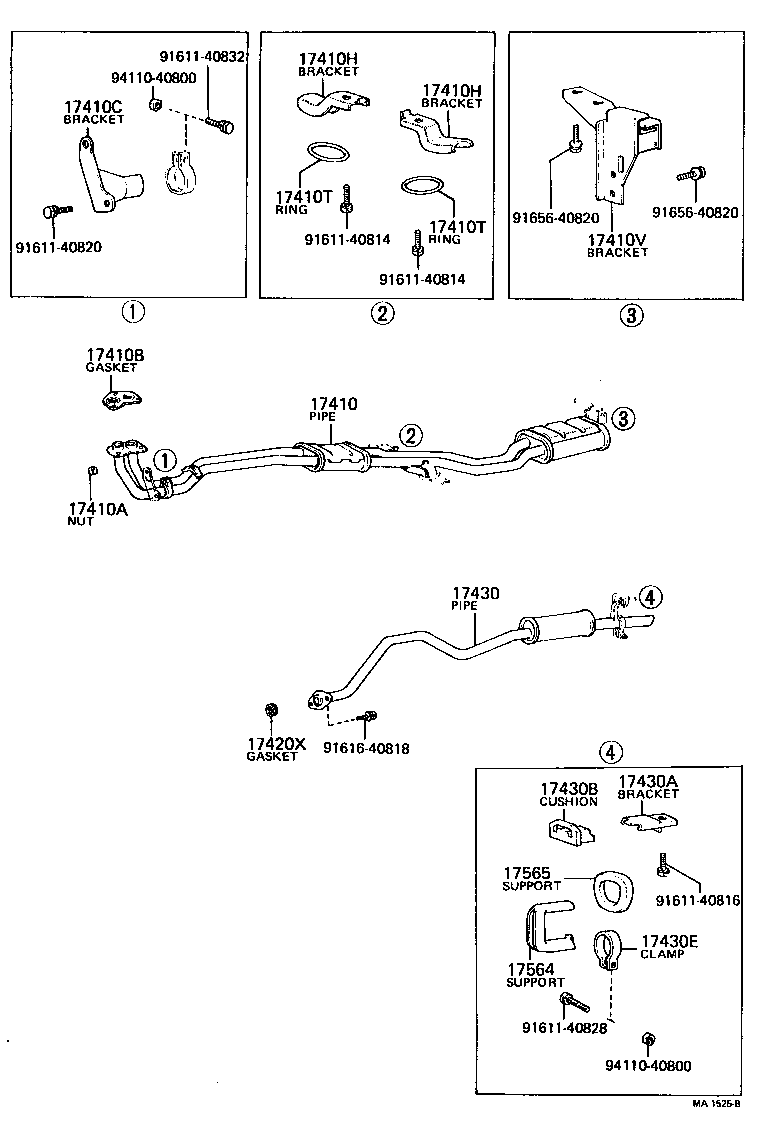

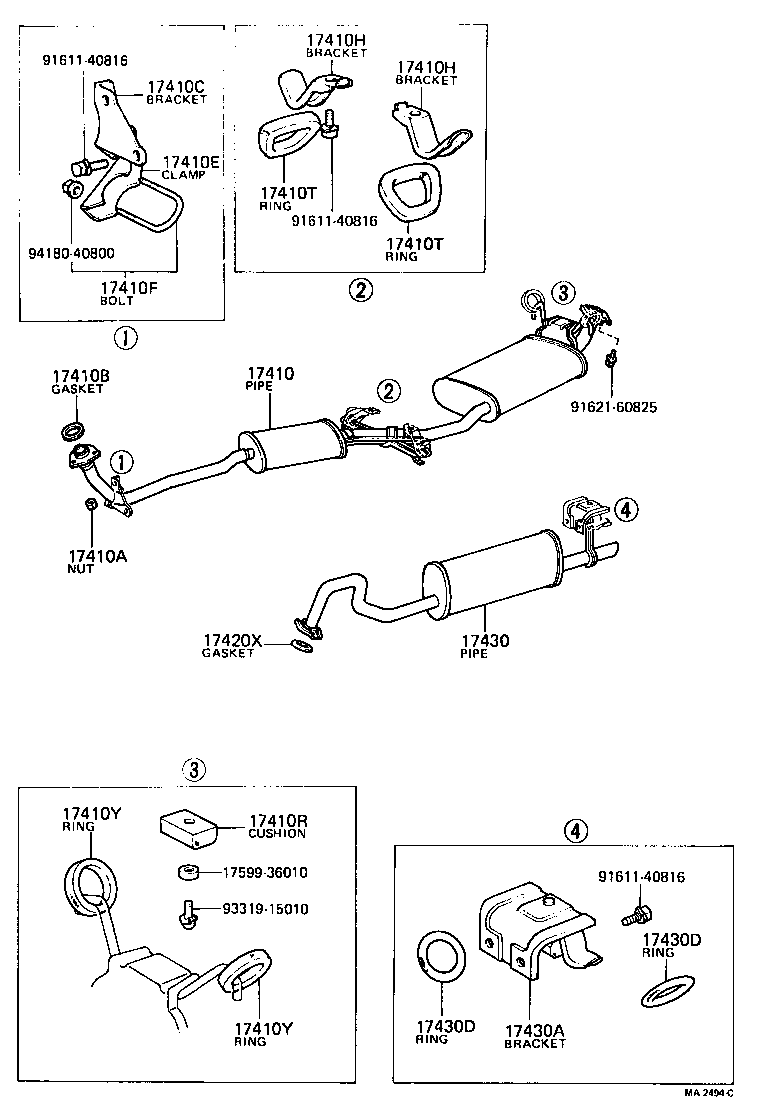

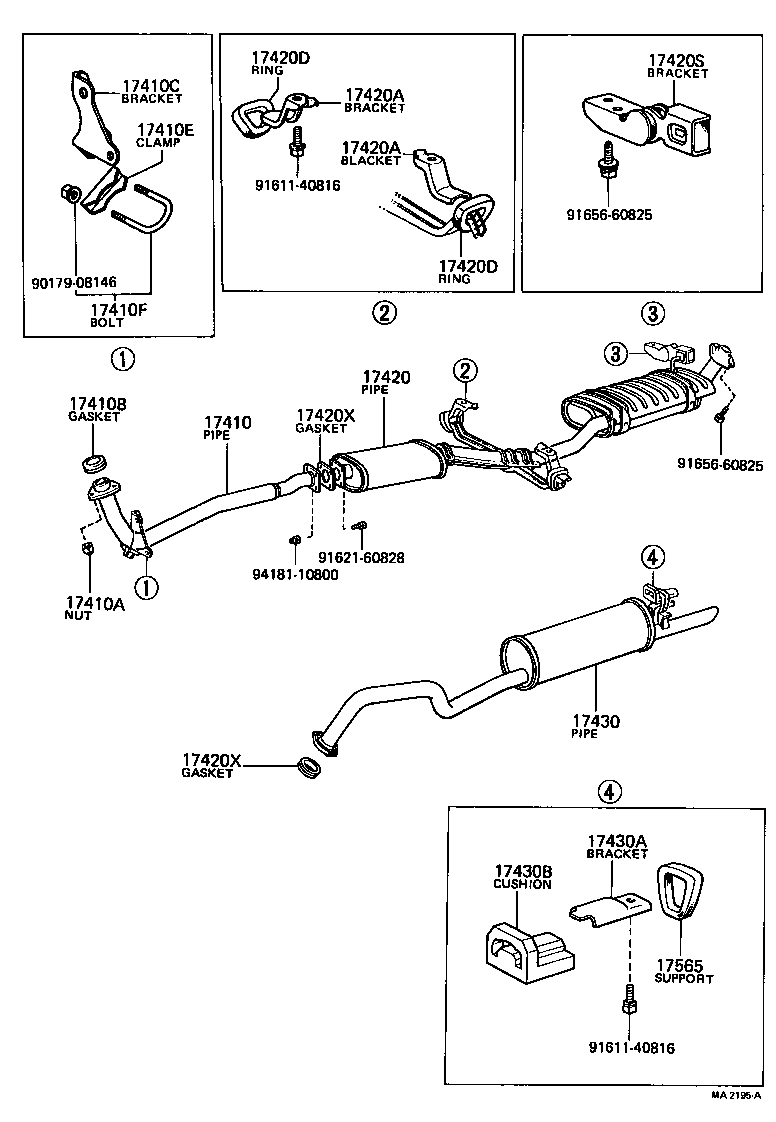

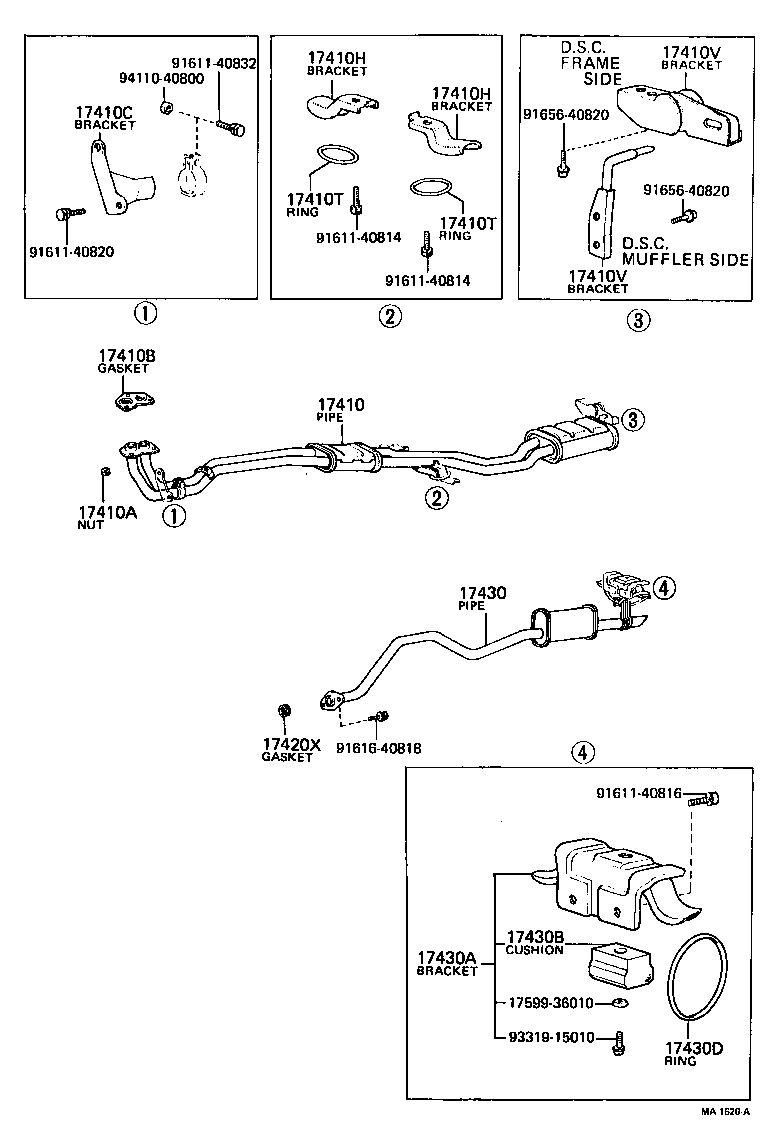

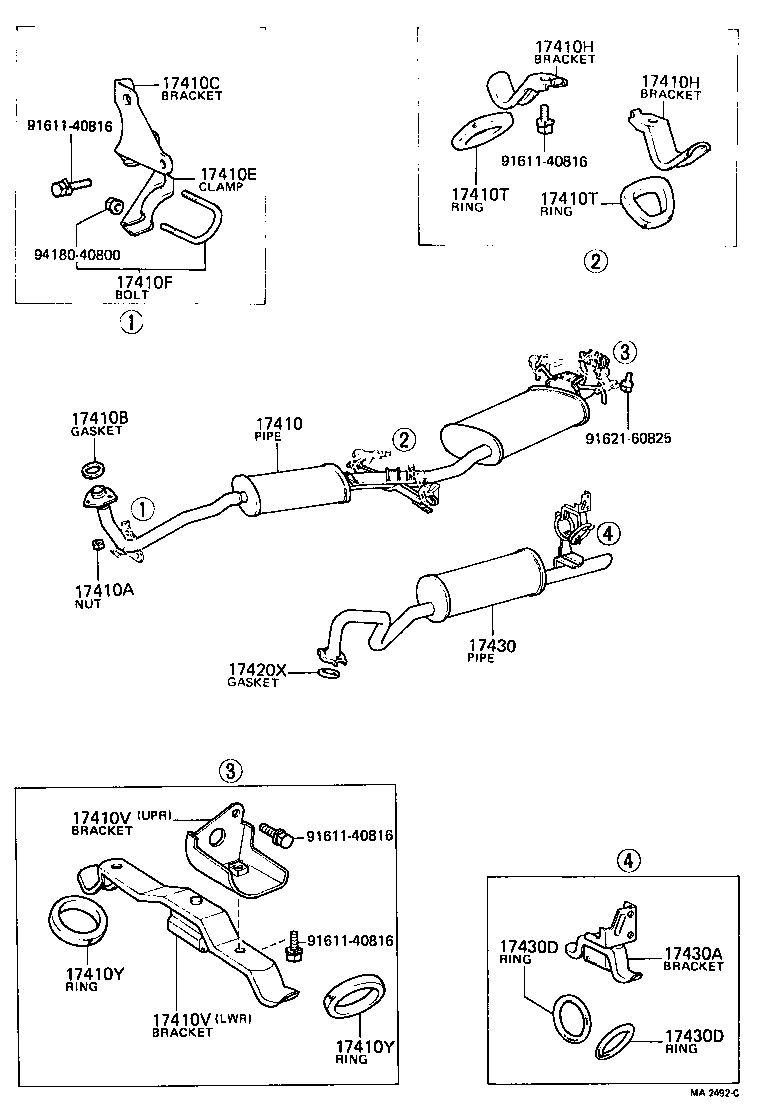

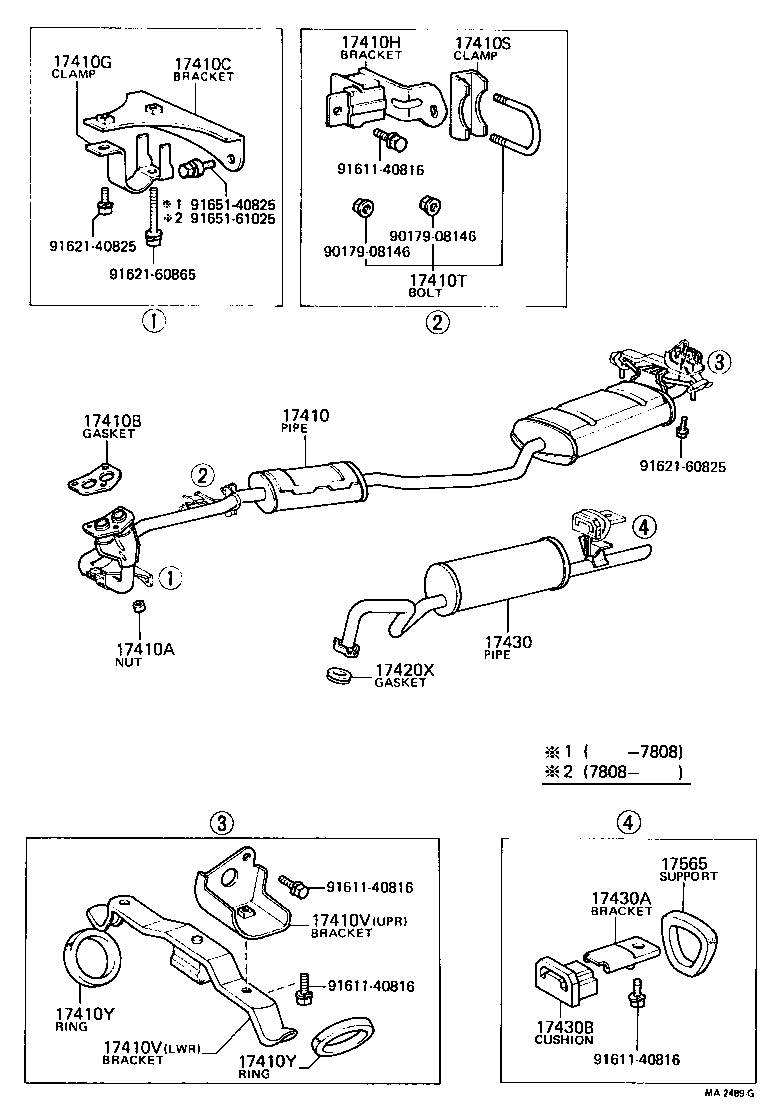

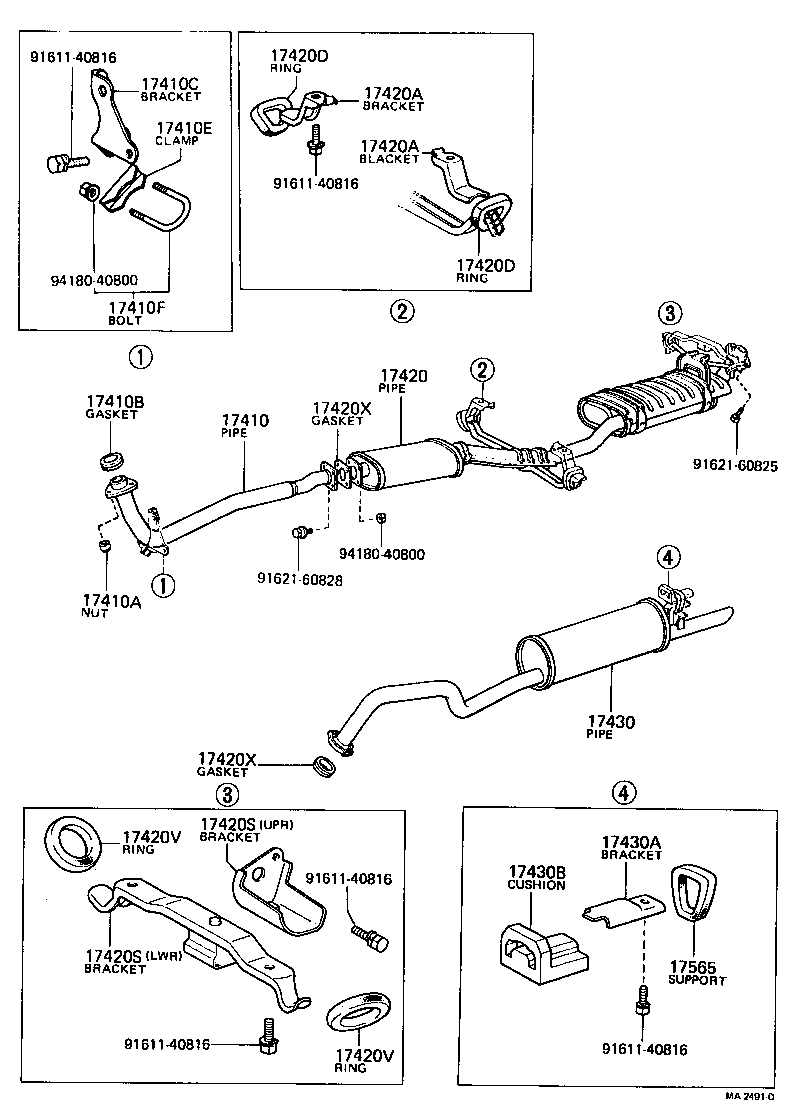

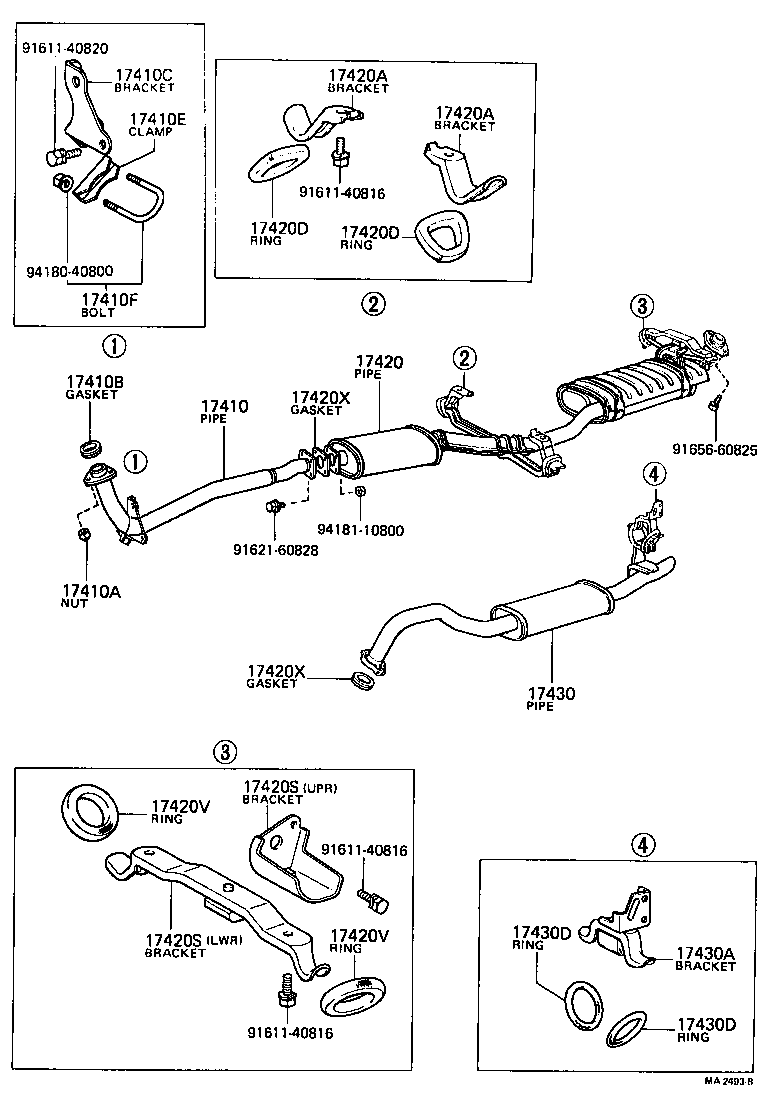

Figure MA1524D MA1524D 1974-10 → 1976-11 Figure MA2489G MA2489G 1976-11 → 1979-08 Figure MA1525B MA1525B 1974-10 → 1976-04 Figure MA2490E MA2490E 1976-11 → 1979-08 Figure MA2195A MA2195A 1976-04 → 1976-11 Figure MA2491D MA2491D 1976-11 → 1979-08 Figure MA1619B MA1619B 1975-01 → 1976-04 Figure MA2492C MA2492C 1976-11 → 1979-08 Figure MA2196A MA2196A 1976-04 → 1976-11 Figure MA2493B MA2493B 1976-11 → 1978-02 Figure MA1620A MA1620A 1975-01 → 1976-11 Figure MA2494C MA2494C 1976-11 → 1979-08

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410G Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410R Cushion, Exhaust Pipe Front (FOR CENTER)
17410S Clamp NO.1, Exhaust Pipe Front (FOR CENTER)
17410T Bolt OR Ring, Exhaust Pipe Front (FOR CENTER)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420S Bracket, Exhaust Pipe Center, Rear
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
