Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 8 illustrations

Illustrations

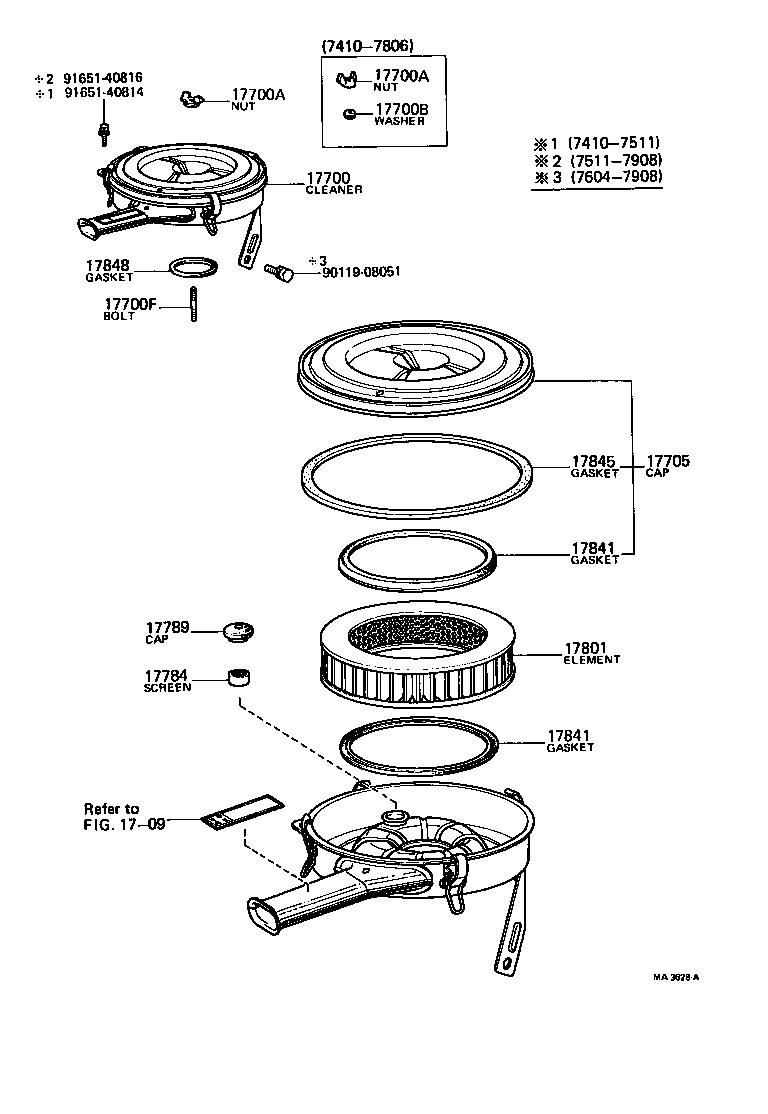

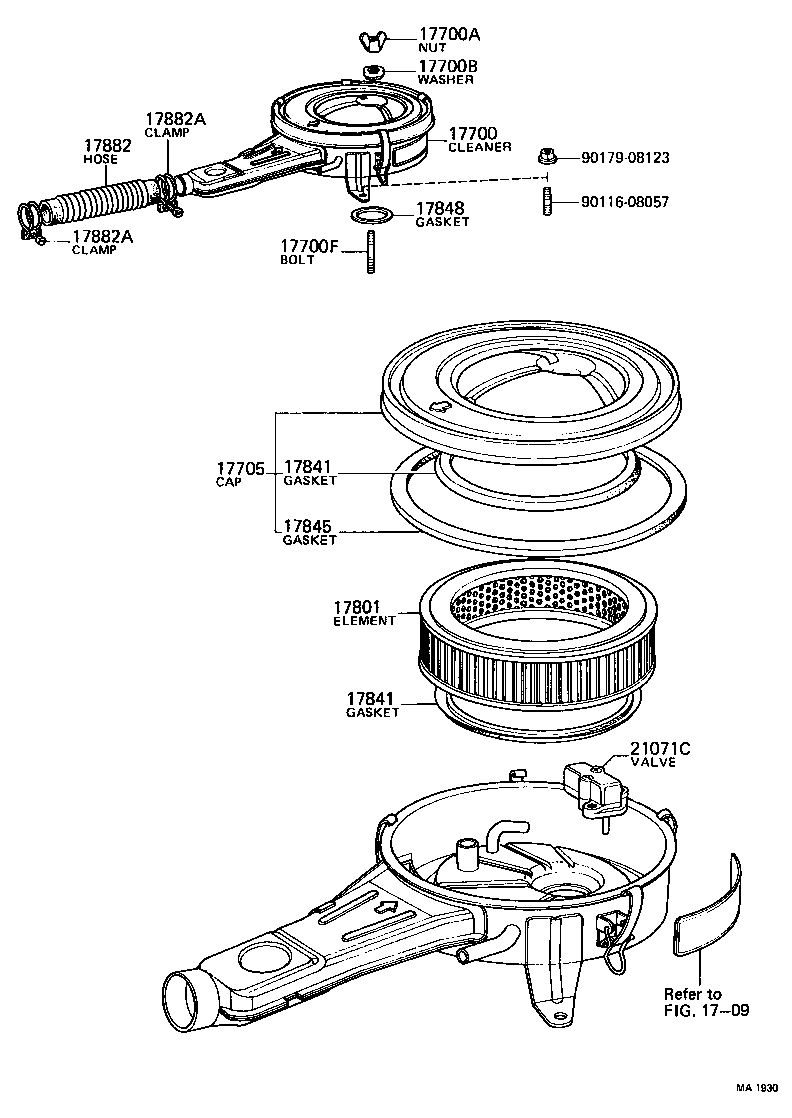

Figure MA1068E MA1068E 1974-10 → 1976-04 Figure MA1503B MA1503B 1974-10 → 1976-11 Figure MA1063D MA1063D 1974-10 → 1976-04 Figure MA1930 MA1930 1976-04 → 1976-09 Figure MA3556B MA3556B 1976-09 → 1976-11 Figure MA3556B MA3556B 1976-11 → 1979-08 Figure MA3629A MA3629A 1976-11 → 1979-08 Figure MA3628A MA3628A 1974-10 → 1979-08

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
21071C Valve Sub-assy, Thermostatic(FOR AIR CLEANER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
