Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 10 illustrations

Illustrations

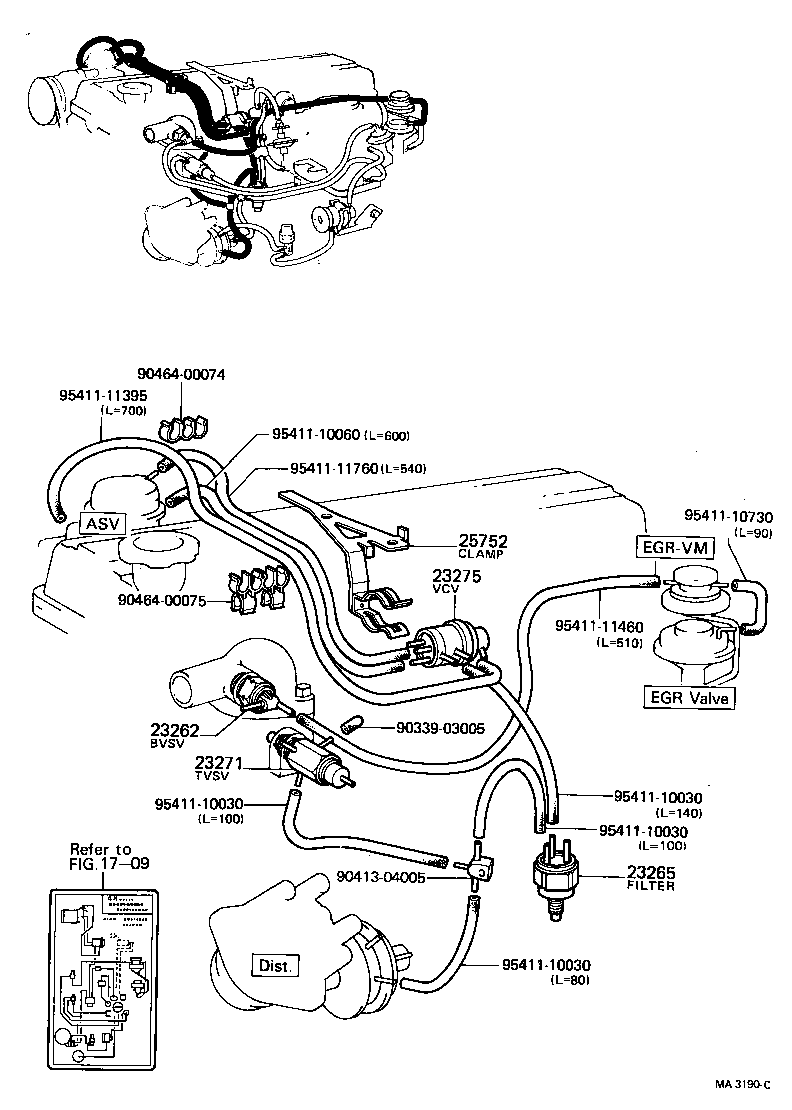

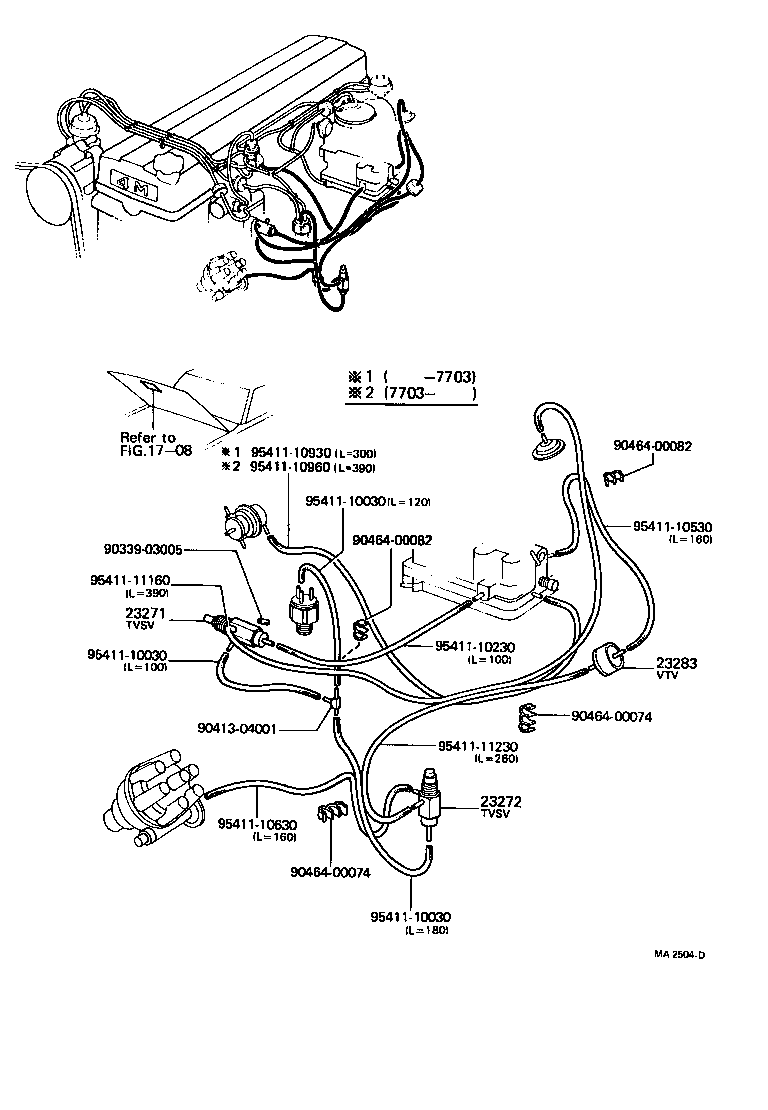

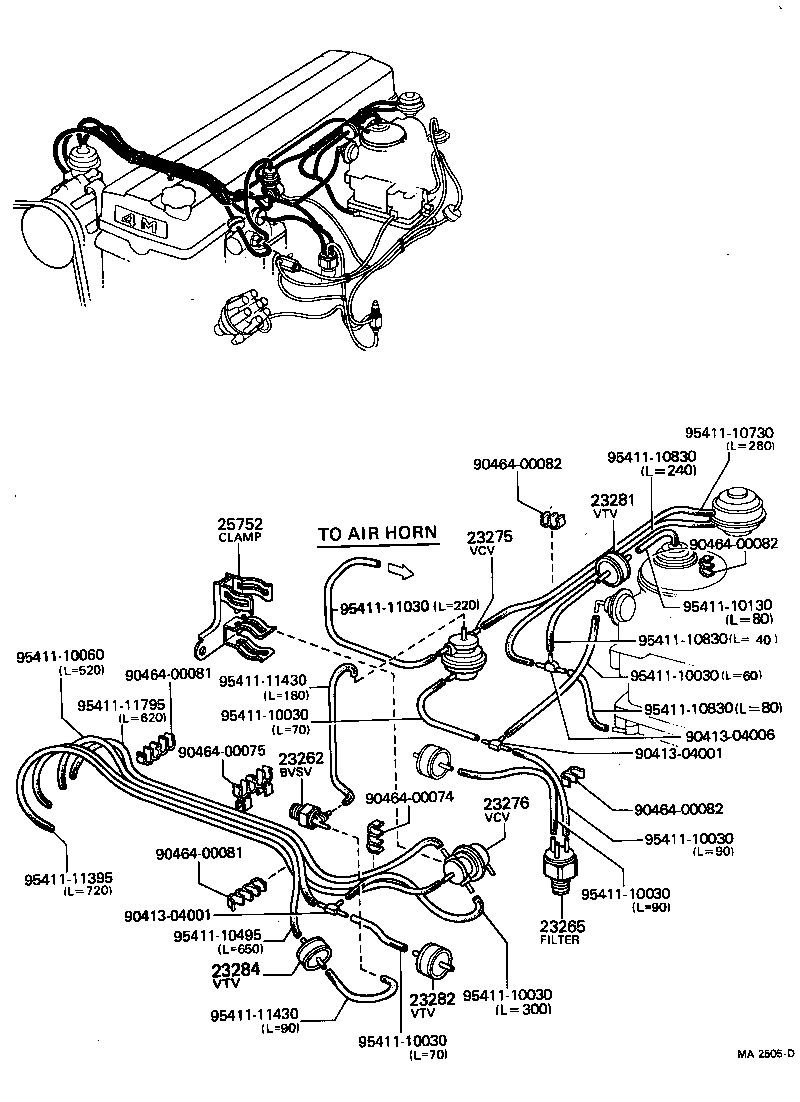

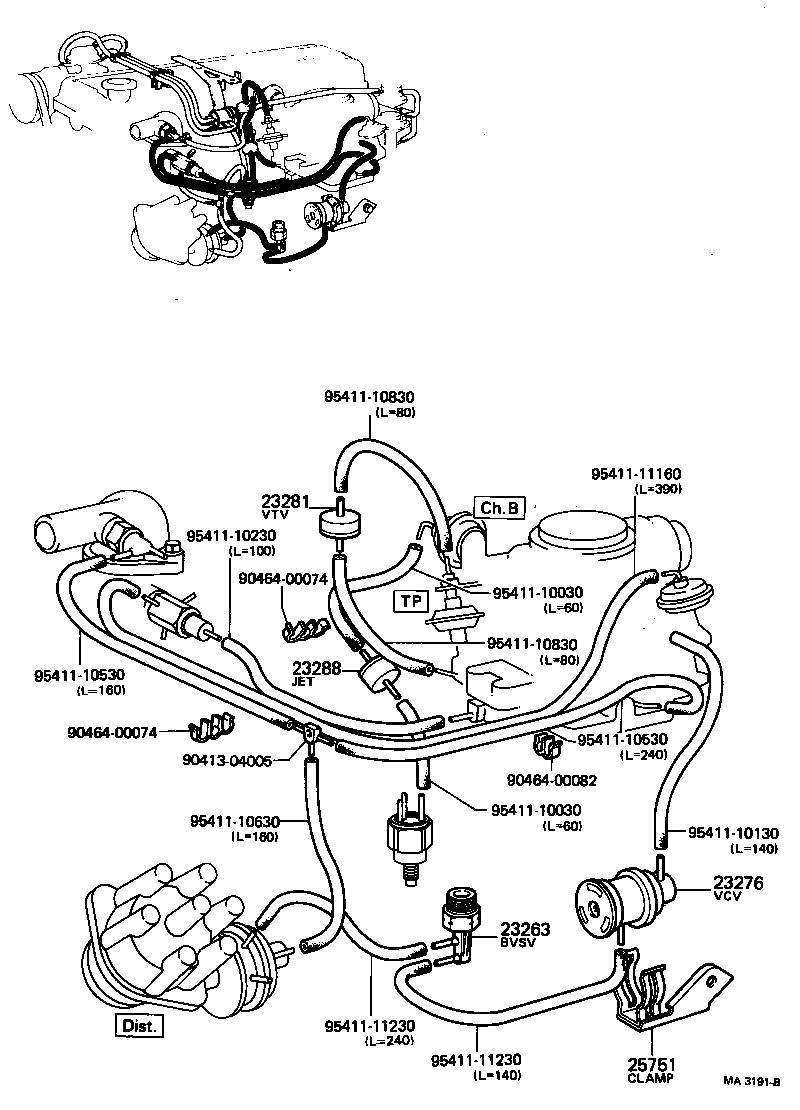

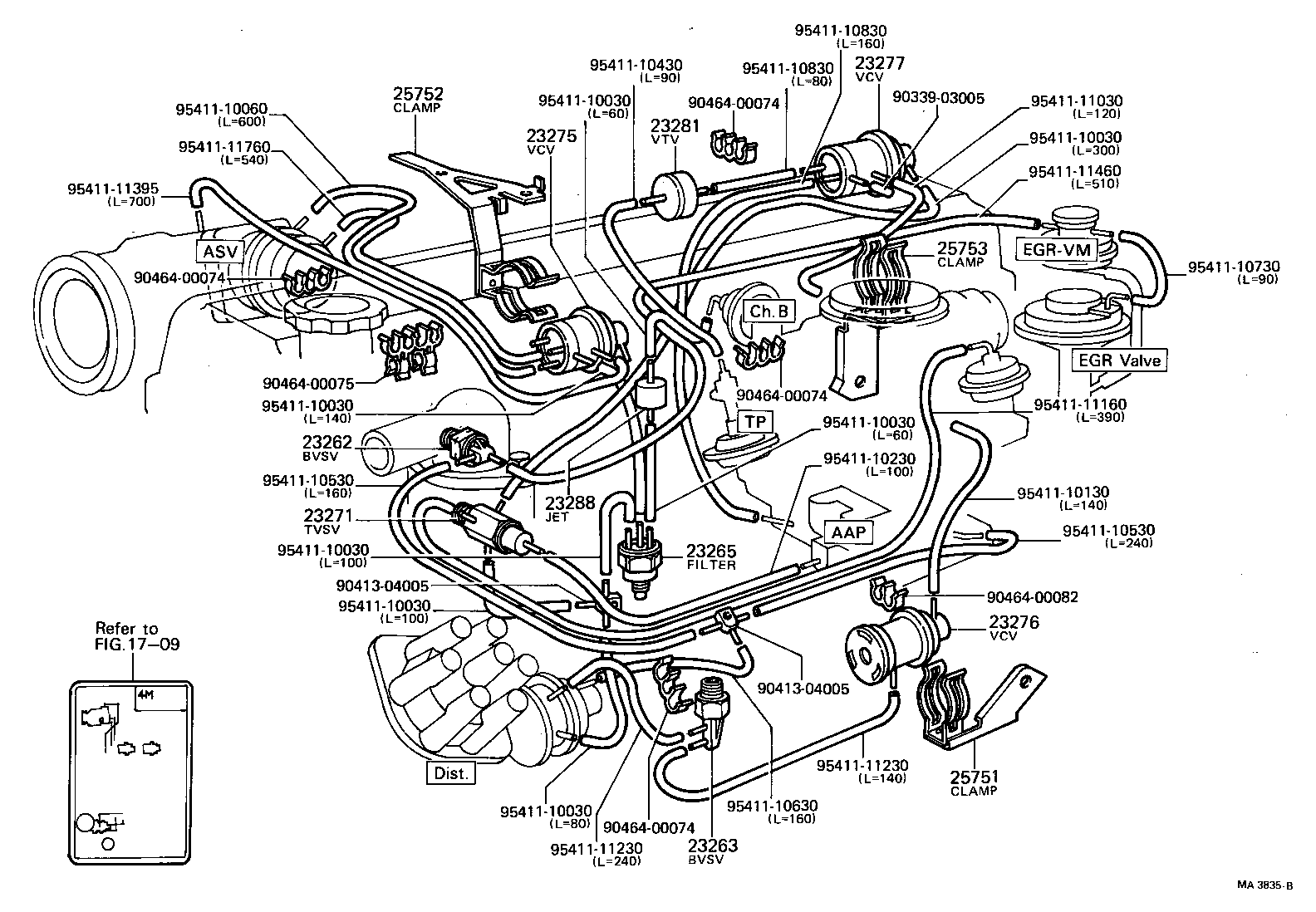

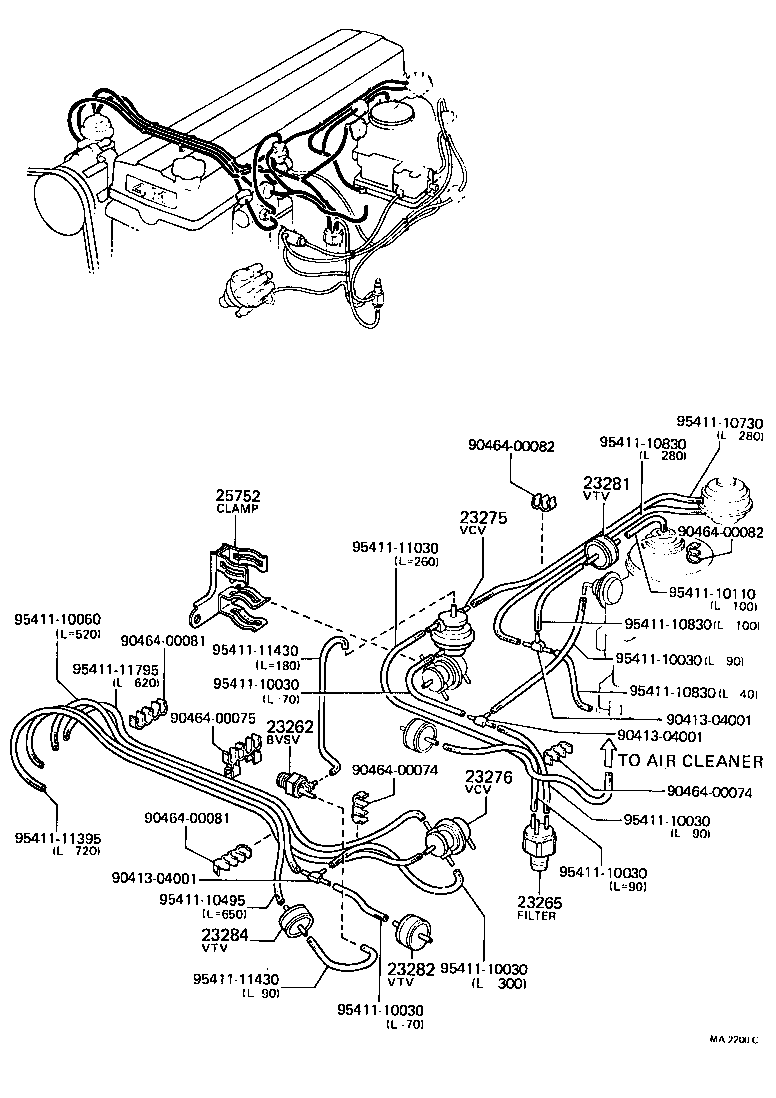

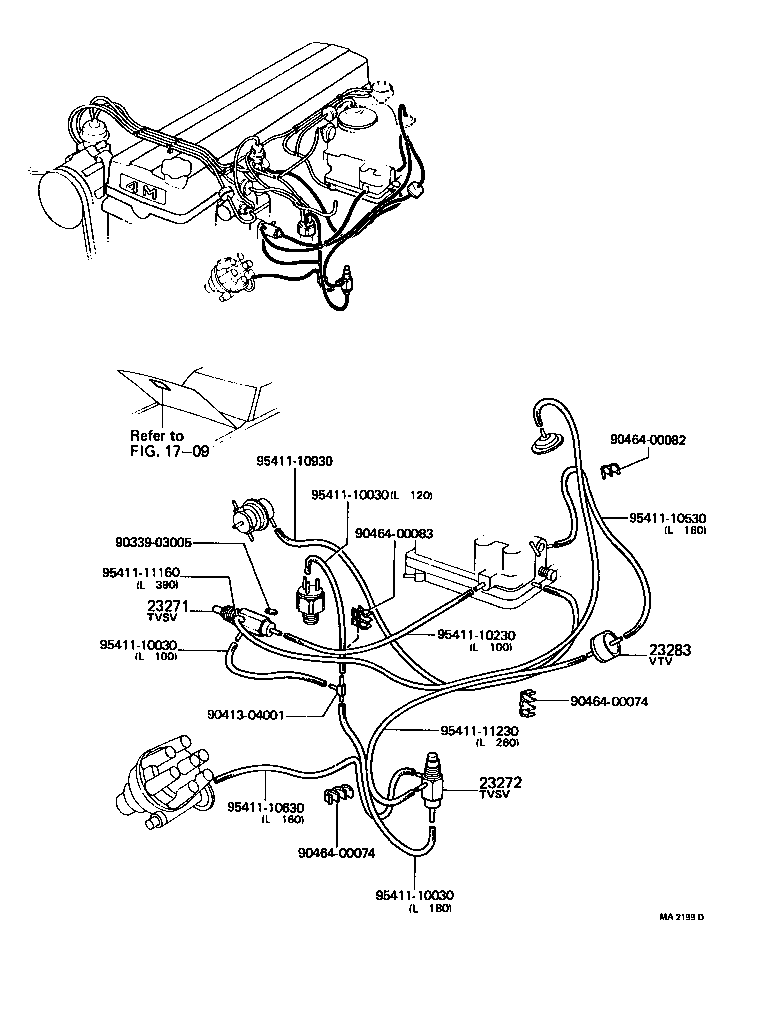

Figure MA9501 MA9501 1976-04 → 1979-08 Figure MA2199D MA2199D 1976-04 → 1976-11 Figure MA2200C MA2200C 1976-04 → 1976-11 Figure MA2504D MA2504D 1976-11 → 1978-02 Figure MA2505D MA2505D 1976-11 → 1978-02 Figure MA3190C MA3190C 1978-02 → 1979-02 Figure MA3191B MA3191B 1978-02 → 1979-02 Figure MA3835B MA3835B 1979-02 → 1979-08 Figure MA2507E MA2507E 1976-11 → 1979-08 Figure MA9501 MA9501 1976-04 → 1979-08

Part groups

PNCDescription
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23272 Valve, Thermostatic Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23277 Valve, Vacuum Control, NO.3
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23284 Valve, Vacuum Transmitting, NO.4
23288 Jet, NO.1
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25753 Clamp, Vacuum Control Valve, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
