Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

6 part groups · 4 illustrations

Illustrations

Figure MF1121B

MF1121B 1974-10 → 1976-04

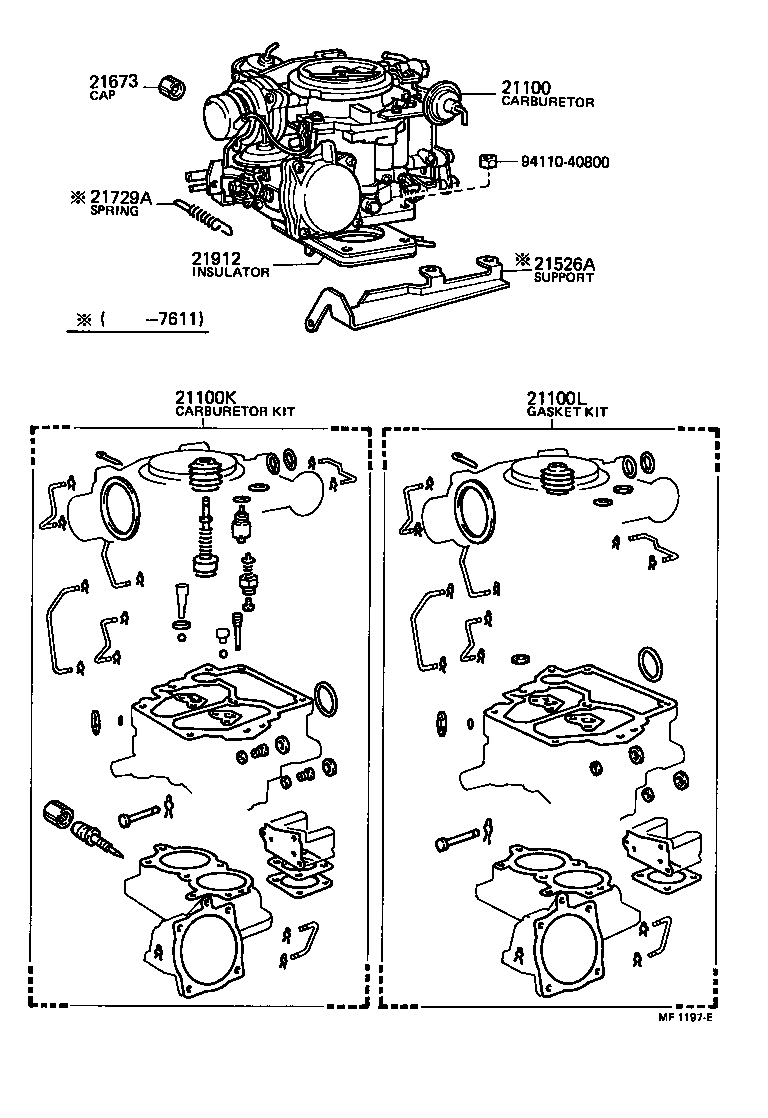

Figure MF1197E

MF1197E 1976-04 → 1976-11

Figure MF1197E

MF1197E 1976-11 → 1979-08

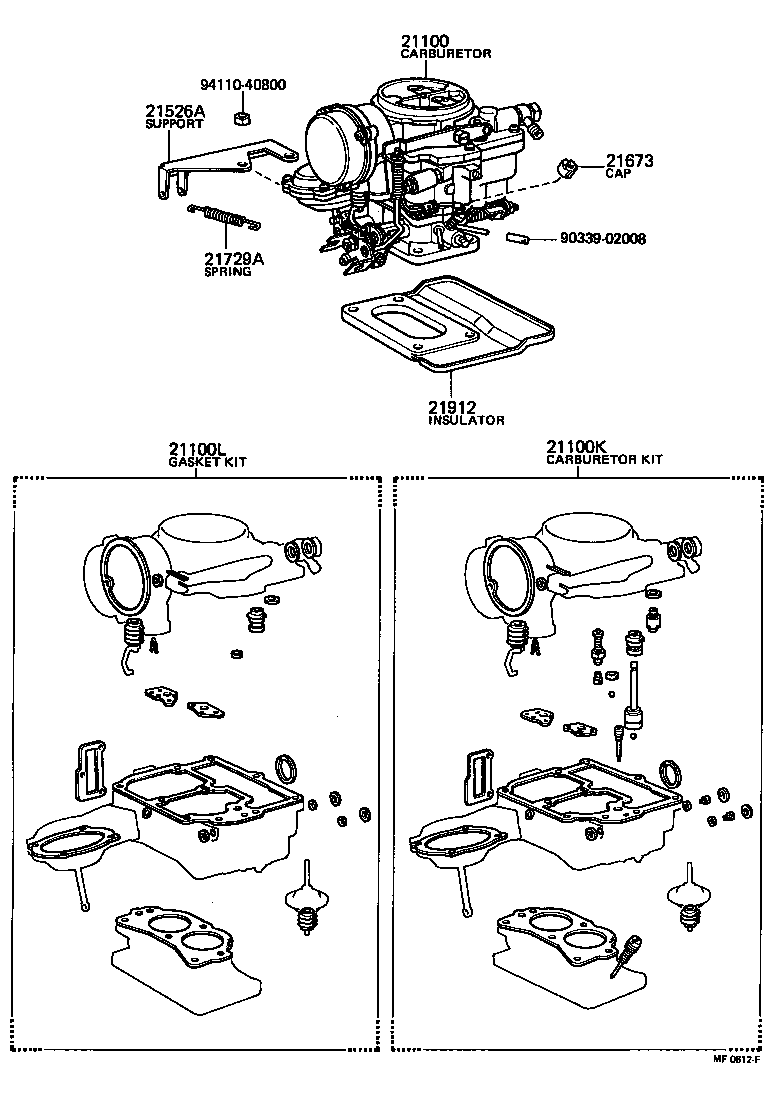

Figure MF0812F

MF0812F 1974-10 → 1979-08

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21526A	Support, Back Spring
21673	Cap, Idle Limit
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
