Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

23 part groups · 5 illustrations

Illustrations

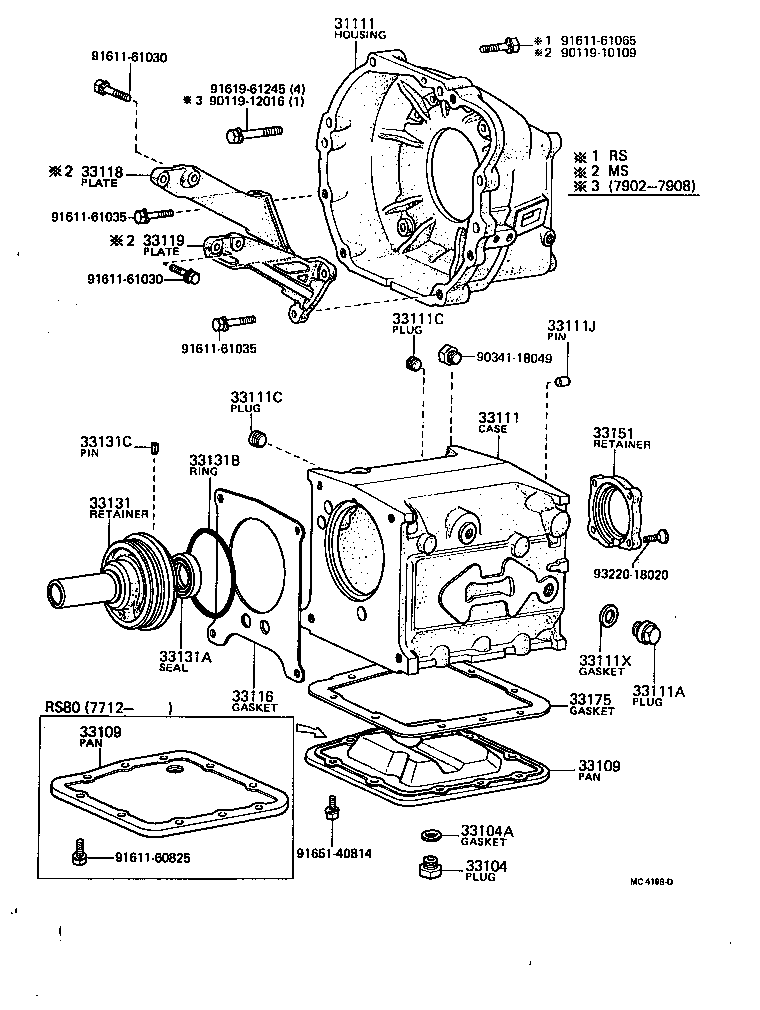

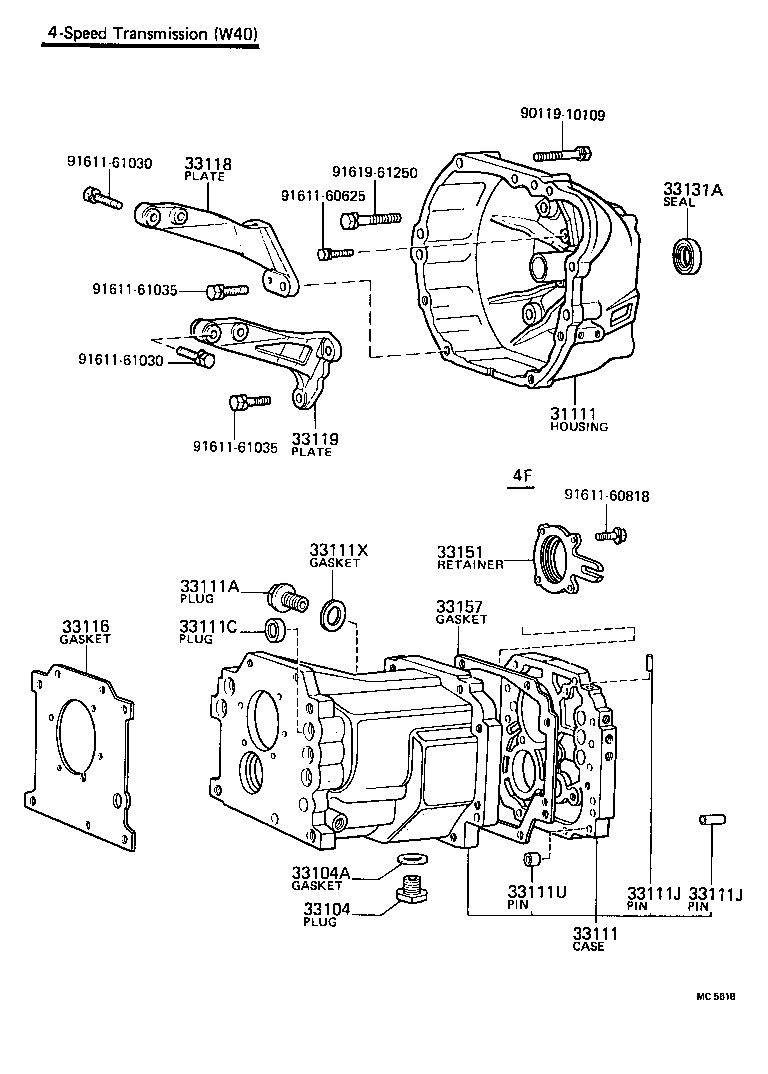

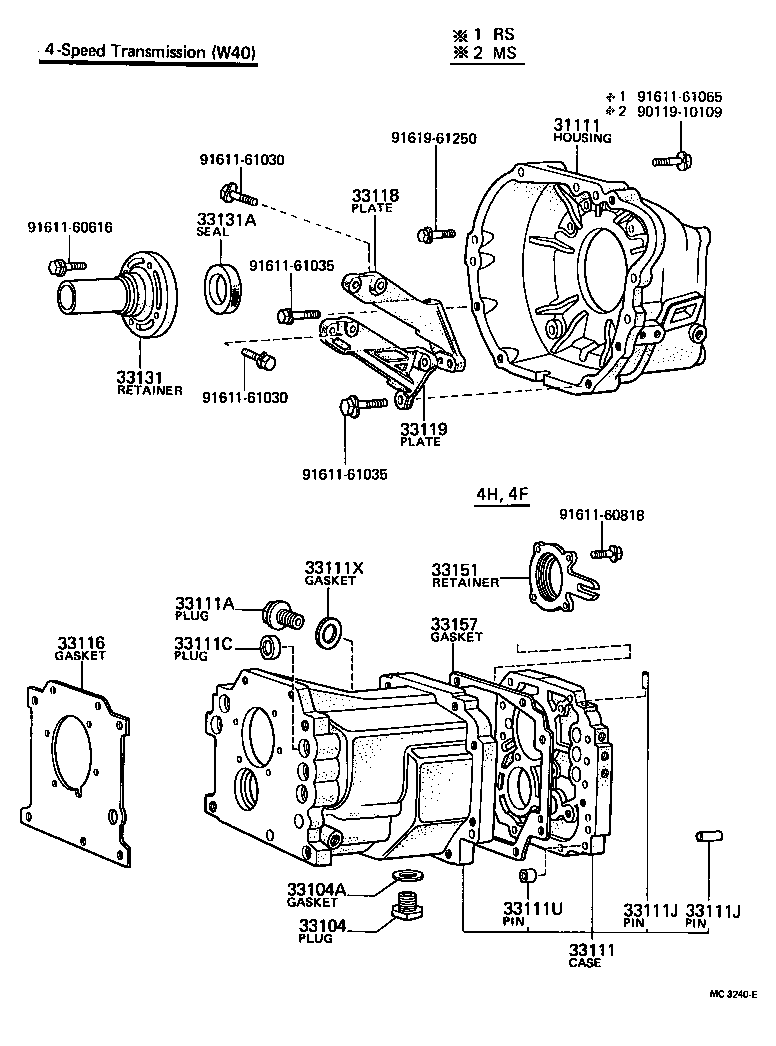

Figure MC4158 MC4158 1974-10 → 1975-10 Figure MC4198D MC4198D 1975-10 → 1979-08 Figure MC3240E MC3240E 1974-10 → 1978-02 Figure MC3240E MC3240E 1978-02 → 1979-08 Figure MC5618 MC5618 1978-02 → 1979-08

Part groups

PNCDescription
31111 Housing, Clutch
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33109 Pan Sub-assy, Transmission Oil(MTM)
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111J Pin, Straight(FOR MANUAL TRANSMISSION CASE)
33111U Pin, Ring(FOR MANUAL TRANSMISSION CASE)
33111X Gasket, Transmission Case Plug
33116 Gasket, Manual Transmission Case
33118 Plate, Stiffener, RH(MTM)
33119 Plate, Stiffener, LH(MTM)
33131 Retainer, Bearing, Front(MTM)
33131A Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
33131B Ring, O(FOR TRANSMISSION FRONT BEARING RETAINER)
33131C Pin, Slotted Spring(FOR TRANSMISSION FRONT BEARING RETAINER)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33151A Pin, Slotted Spring(FOR OUTPUT SHAFT REAR BEARING RETAINER)
33157 Gasket, Transmission Case, NO.2
33172 Plate, Transmission Oil Pan, NO.1
33173 Plate, Transmission Oil Pan, NO.2
33175 Gasket, Manual Transmission Oil Pan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
