Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

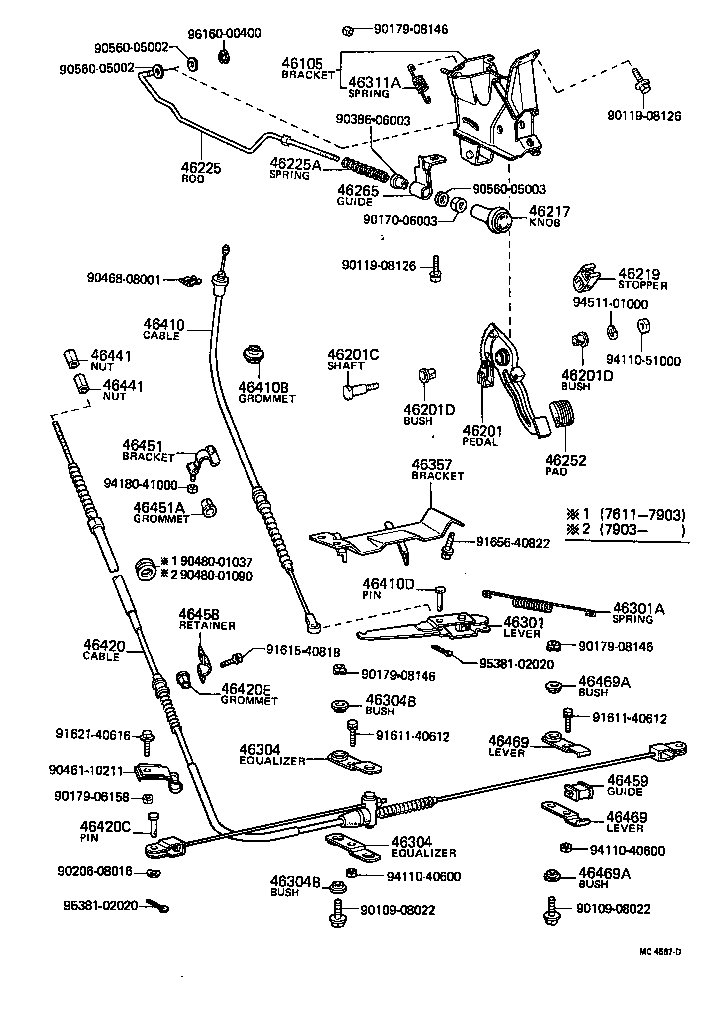

Parking Brake & Cable
75 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46105 | Bracket Sub-assy, Parking Brake Planger OR Pedal |
| 46110 | Handle Assy, Parking Brake Control |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46144 | Anti-rattle, Parking Brake Plunger |
| 46201 | Pedal Sub-assy, Parking Brake |
| 46201C | Shaft, Pedal |
| 46201D | Bush(FOR PARKING BRAKE PEDAL) |
| 46217 | Knob, Parking Brake Release Rod |
| 46219 | Stopper, Parking Pedal |
| 46225 | Rod, Parking Brake Pawl Release |
| 46225A | Spring, Compression(FOR PARKING BRAKE PAWL ROD) |
| 46252 | Pad, Parking Pedal |
| 46265 | Guide, Parking Brake Release Rod |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46304B | Bush(FOR PARKING BRAKE EQUALIZER) |
| 46311 | Pawl, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46311B | Pin, Parking Brake Pawl Pivot |
| 46357 | Bracket, Lever Support |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410B | Grommet(FOR PARKING BRAKE FRONT CABLE) |
| 46410D | Pin(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46420D | Grommet OR Bush(FOR PARKING BRAKE CABLE CLAMP) |
| 46420E | Grommet(FOR PARKING BRAKE CABLE CLAMP) |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46451 | Bracket, Cable Support |
| 46451A | Grommet(FOR PARKING BRAKE CABLE BRACKET) |
| 46458 | Retainer, Cable |
| 46459 | Guide, Cable |
| 46469 | Lever, Cable Guide Support |
| 46469A | Bush, Cable Guide Support Lever |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |

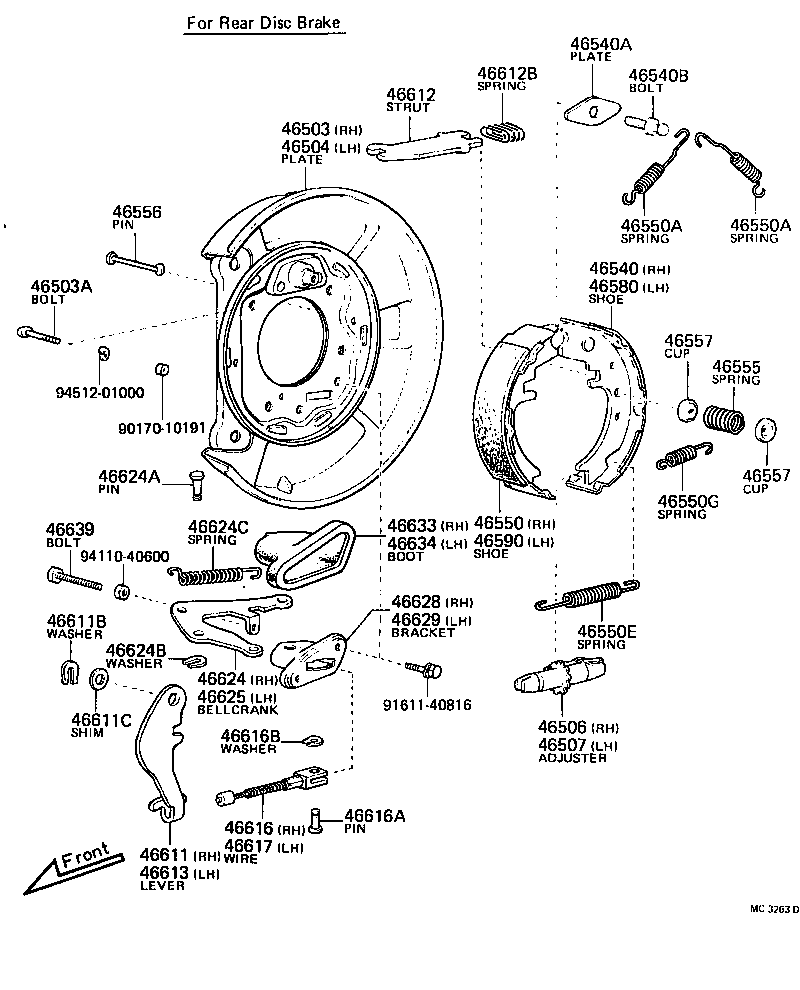

| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46503A | Bolt(FOR PARKING BRAKE PLATE TO REAR AXLE HOUSING) |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46506 | Adjuster Sub-assy, Parking Brake Shoe, RH OR Center |
| 46507 | Adjuster Sub-assy, Parking Brake Shoe, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46540A | Plate, Parking Brake Shoe Guide |
| 46540B | Bolt, Parking Brake Shoe Guide Plate Set |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46555 | Spring, Brake Shoe Hold Down |
| 46556 | Pin, Shoe Hold Down Spring |
| 46557 | Cup, Brake Shoe Hold Down |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46611 | Lever, Parking Brake Shoe, RH OR Center |
| 46611B | Washer, C(FOR PARKING BRAKE SHOE LEVER) |
| 46611C | Shim(FOR PARKING BRAKE SHOE LEVER) |
| 46612 | Strut, Parking Brake Shoe Lever |
| 46612B | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
| 46613 | Lever, Parking Brake Shoe, LH |
| 46616 | Wire, Parking Brake, RH |
| 46616A | Pin, Parking Brake Wire |
| 46616B | Washer, C(FOR PARKING BRAKE WIRE PIN) |
| 46617 | Wire, Parking Brake, LH |
| 46624 | Bellcrank, Parking Brake, RH |
| 46624A | Pin, Parking Brake Bellcrank |
| 46624B | Washer, C(FOR PARKING BRAKE BELLCRANK PIN) |
| 46624C | Spring, Tension(FOR PARKING BRAKE BELLCRANK RETURN) |
| 46625 | Bellcrank, Parking Brake, LH |
| 46628 | Bracket, Bellcrank, RH |
| 46629 | Bracket, Bellcrank, LH |
| 46633 | Boot, Parking Brake Bellcrank, RH |
| 46634 | Boot, Parking Brake Bellcrank, LH |
| 46639 | Bolt, Bellcrank Stopper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
