Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

38 part groups · 7 illustrations

Illustrations

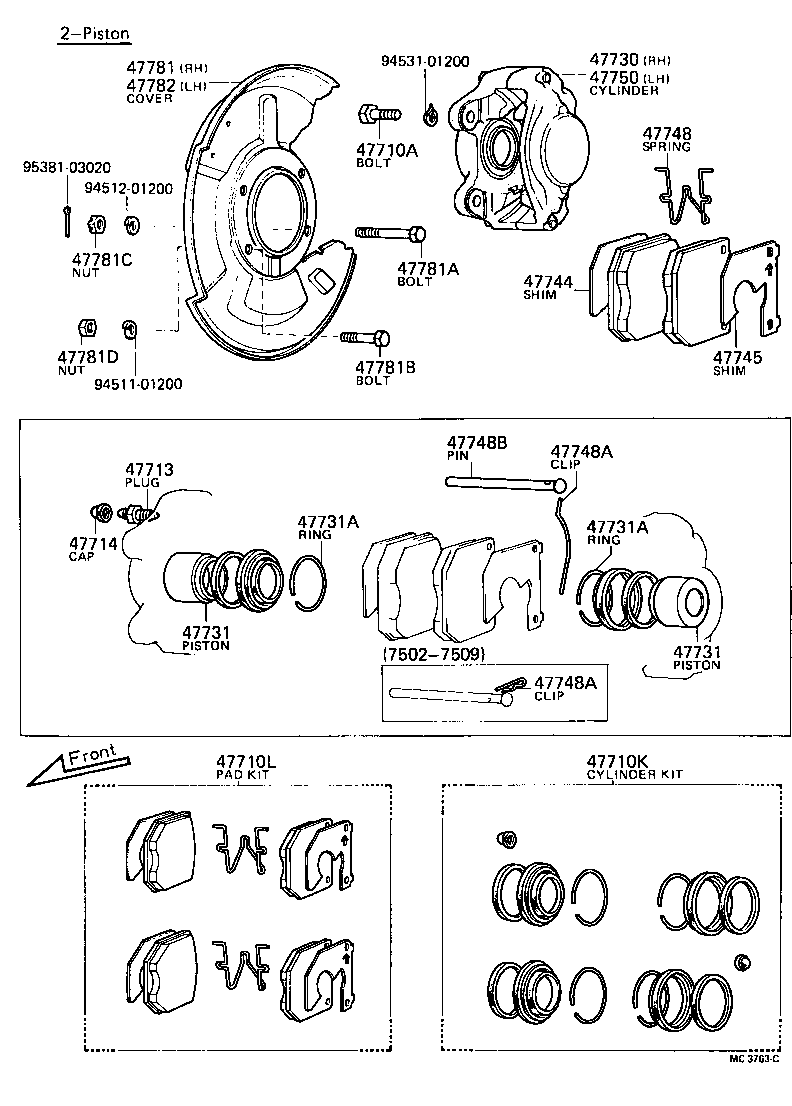

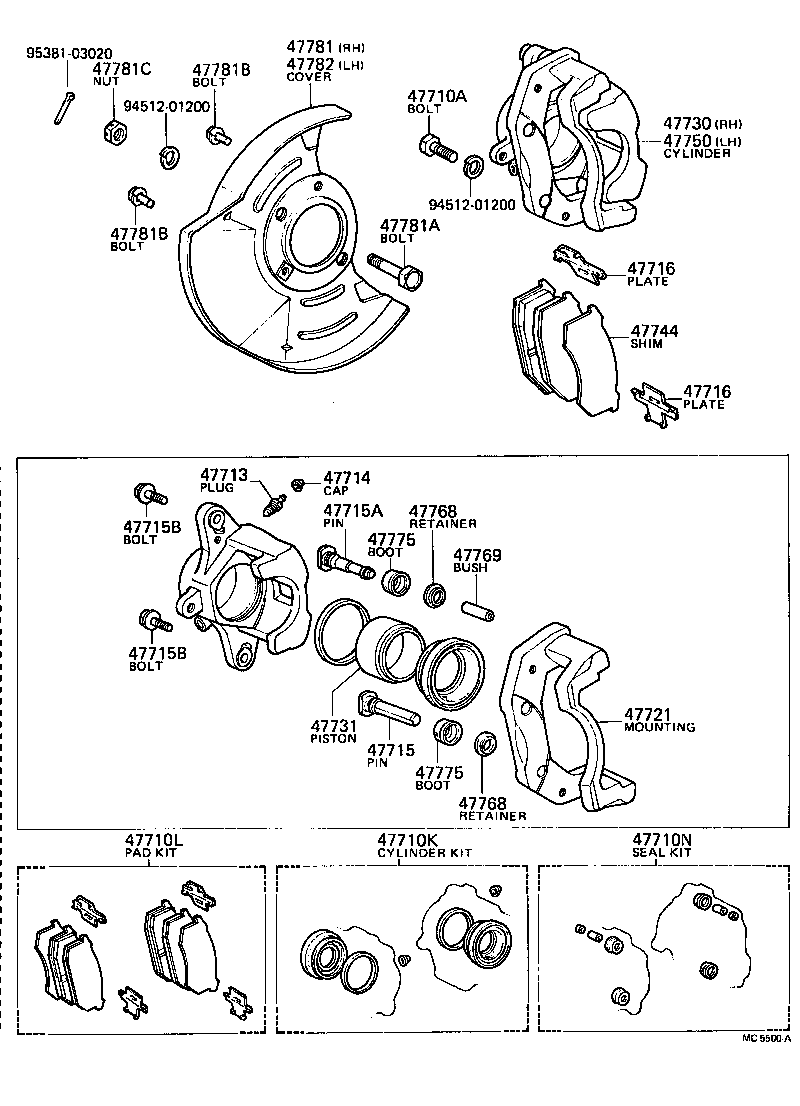

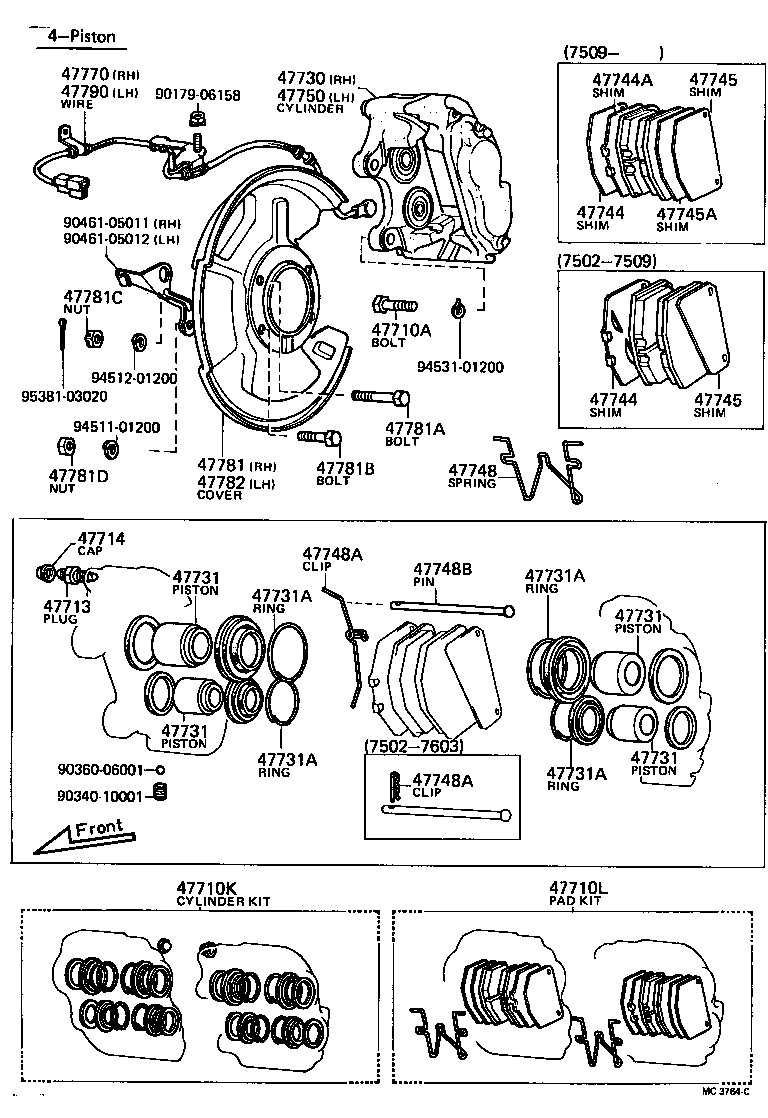

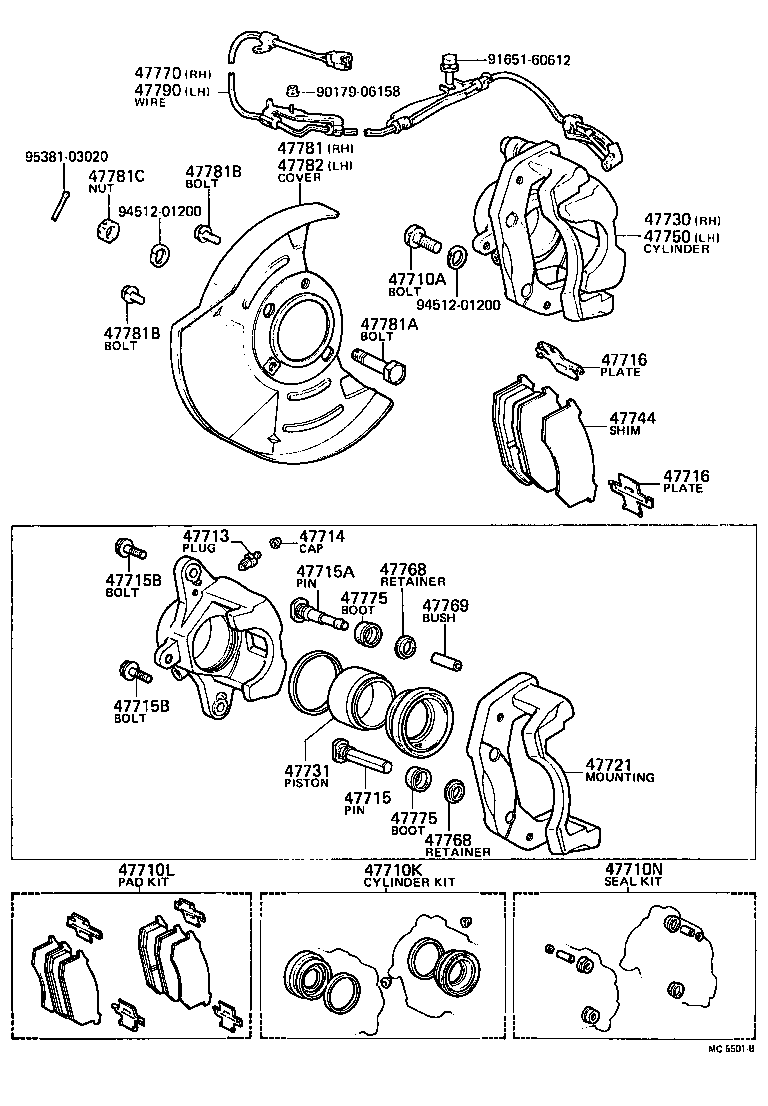

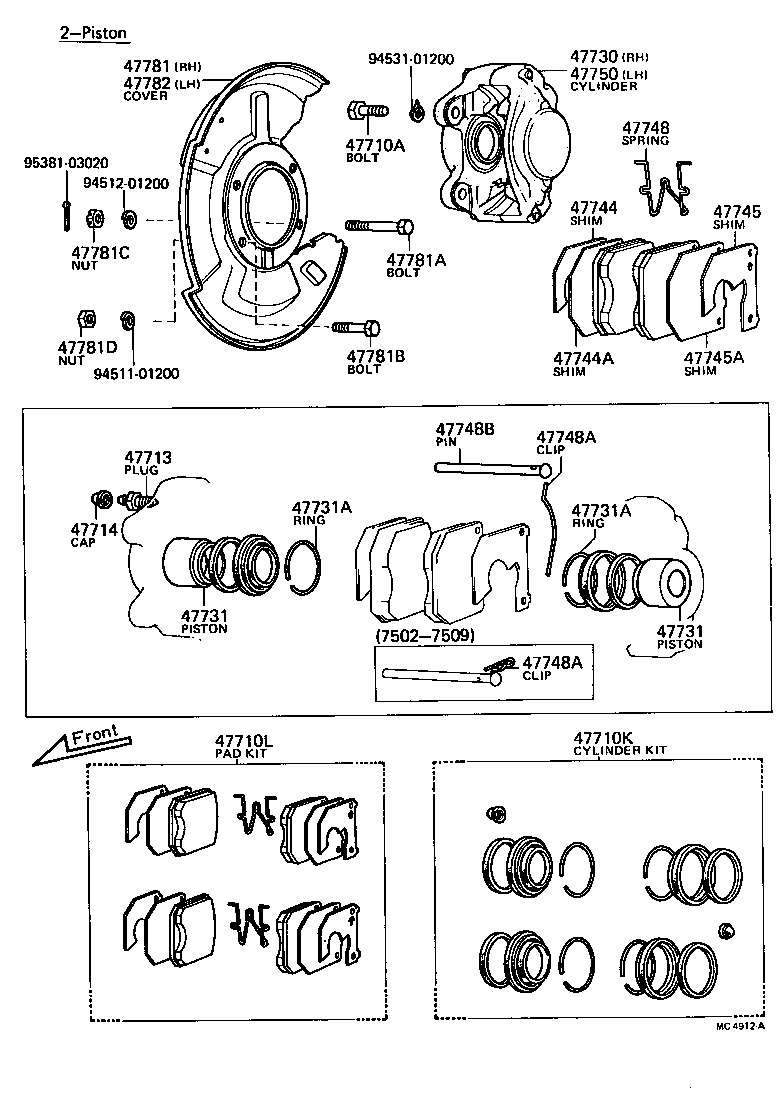

Figure MC3270B MC3270B 1974-10 → 1975-02 Figure MC3763C MC3763C 1975-02 → 1976-12 Figure MC4912A MC4912A 1976-12 → 1978-02 Figure MC5500A MC5500A 1978-02 → 1979-08 Figure MC3764C MC3764C 1975-11 → 1978-02 Figure MC5501B MC5501B 1978-02 → 1979-08 Figure MCT614 MCT614 1974-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47710 Caliper Assy, Disc Brake, Front, RH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47710K Cylinder Kit, Disc Brake, Front
47710L Pad Kit, Disc Brake, Front
47710N Seal Kit, Disc Brake, Front
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47715 Pin, Main(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47720 Caliper Assy, Disc Brake, Front, LH
47721 Mounting, Front Disc Brake Cylinder, RH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47744A Shim, Anti-squeal, NO.3(FOR FRONT DISC BRAKE)
47745 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745A Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47750 Cylinder Assy, Disc Brake, LH
47768 Retainer, Dust Seal
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47770 Wire Assy, Pad Wear Indicator, Front RH
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781B Bolt(FOR DUST COVER SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781D Nut(FOR DUST COVER SETTING)
47782 Cover, Disc Brake Dust, Front LH
47790 Wire Assy, Pad Wear Indicator, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
