Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

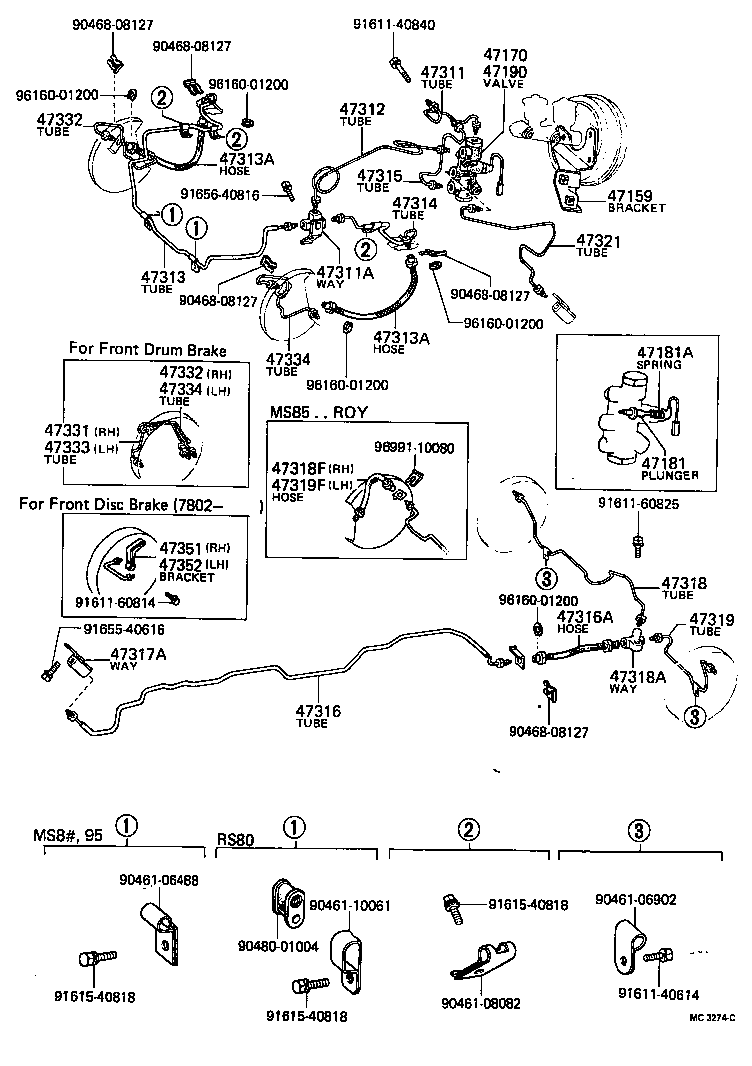

Brake Tube & Clamp
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47159 | Bracket, Proportioning Valve |
| 47170 | Valve Assy, Brake Combination |
| 47181 | Plunger, Differential Switch |
| 47181A | Spring, Compression(FOR DIFFERENTIAL VALVE SWITCH) |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317A | Way(FOR BRAKE TUBE) |
| 47318 | Tube, Front Brake, NO.8 |
| 47318A | Way(FOR REAR RH BRAKE TUBE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47331 | Tube, Rear Brake, NO.10 |
| 47332 | Tube, Rear Brake, NO.11 |
| 47333 | Tube, Rear Brake, NO.12 |
| 47334 | Tube, Rear Brake, NO.13 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
