Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

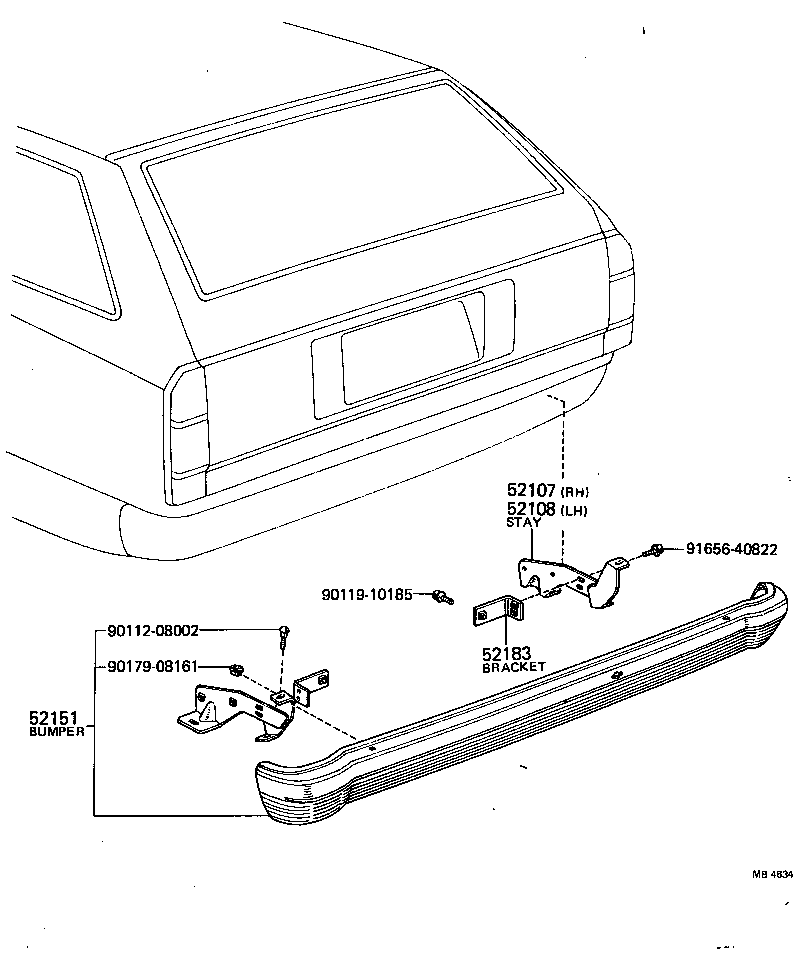

Figure MB6266B MB6266B 1974-10 → 1979-08 Figure MB4634 MB4634 1975-01 → 1979-08

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52170 Guard Sub-assy, Rear Bumper
52183 Bracket, Rear Bumper, Center
52445 Protector, Rear Bumper, RH
52446 Protector, Rear Bumper, LH
52506 Extension Sub-assy, Rear Bumper, RH
52507 Extension Sub-assy, Rear Bumper, LH
52552 Filler, Rear Bumper, RH
52553 Filler, Rear Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
