Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 3 illustrations

Illustrations

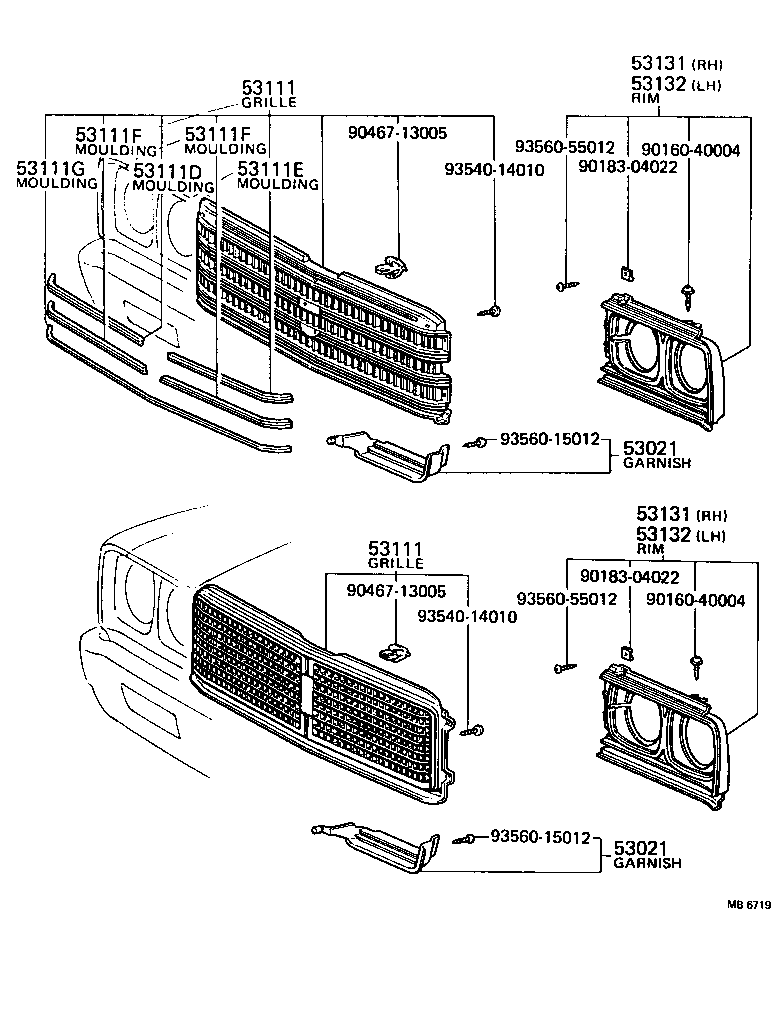

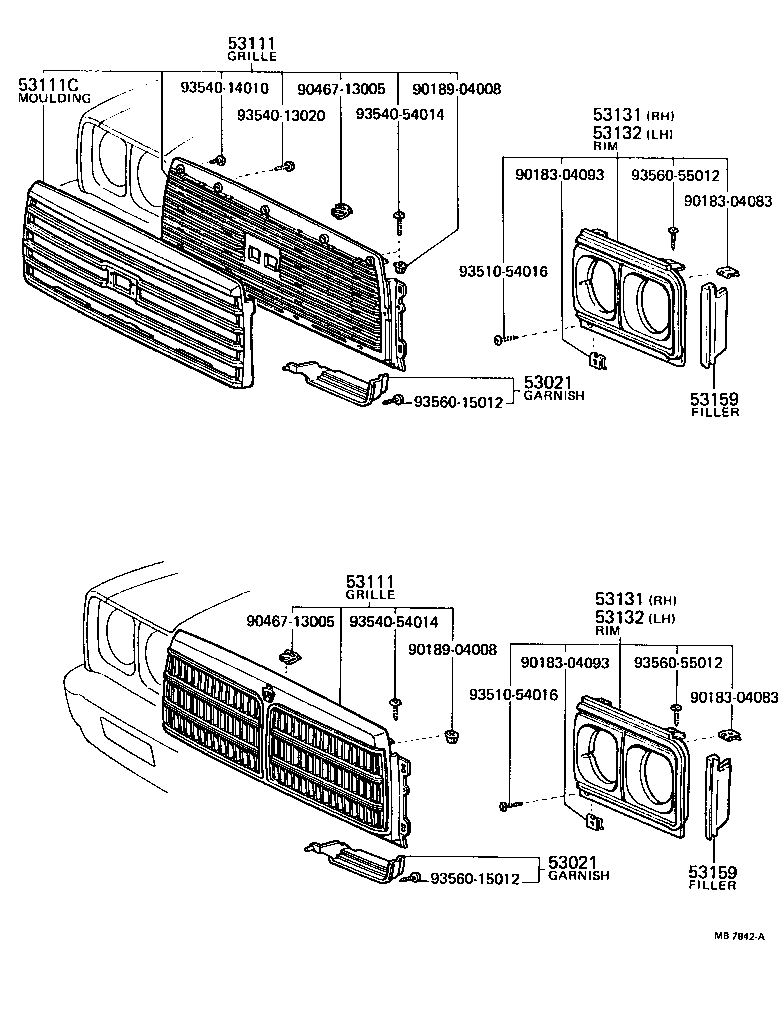

Figure MB6718A MB6718A 1974-10 → 1976-11 Figure MB6719 MB6719 1976-11 → 1978-02 Figure MB7842A MB7842A 1978-02 → 1979-08

Part groups

PNCDescription
53021 Garnish, Radiator Grille, Lower
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111D Moulding, Radiator Grille, RH
53111E Moulding, Radiator Grille, LH
53111F Moulding, Radiator Grille, Center
53111G Moulding, Radiator Grille, Lower
53131 Rim, Headlamp, RH
53132 Rim, Headlamp, LH
53159 Filler, Headlamp Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
