Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

24 part groups · 3 illustrations

Illustrations

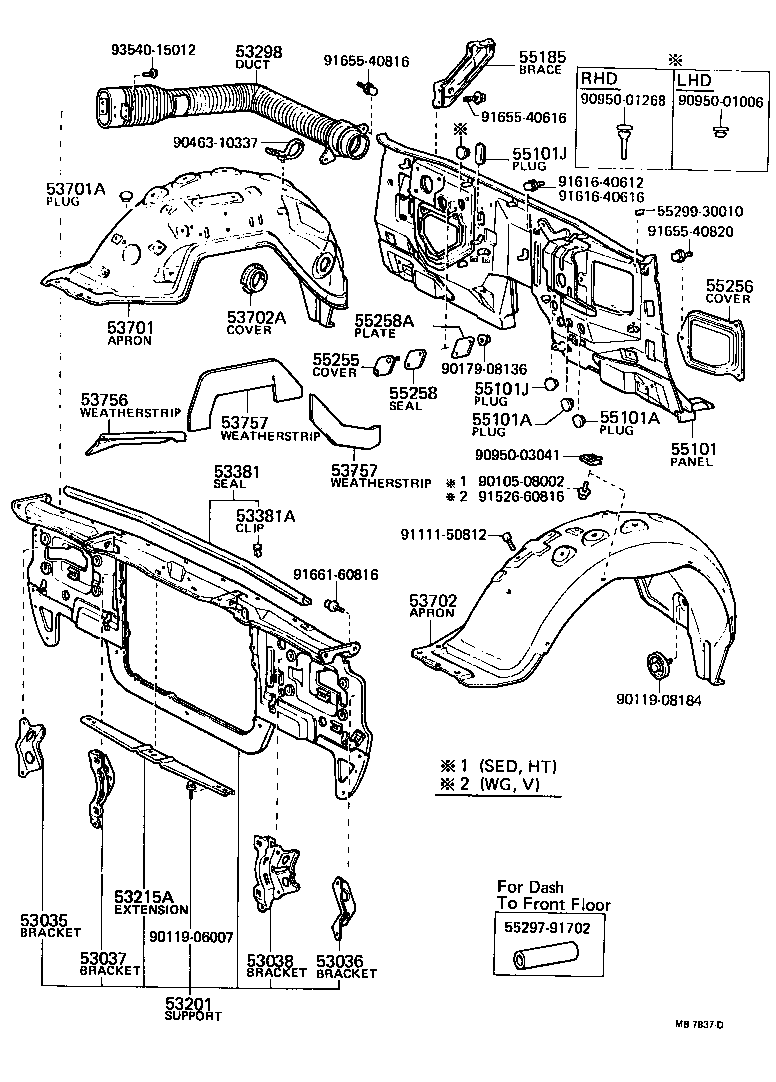

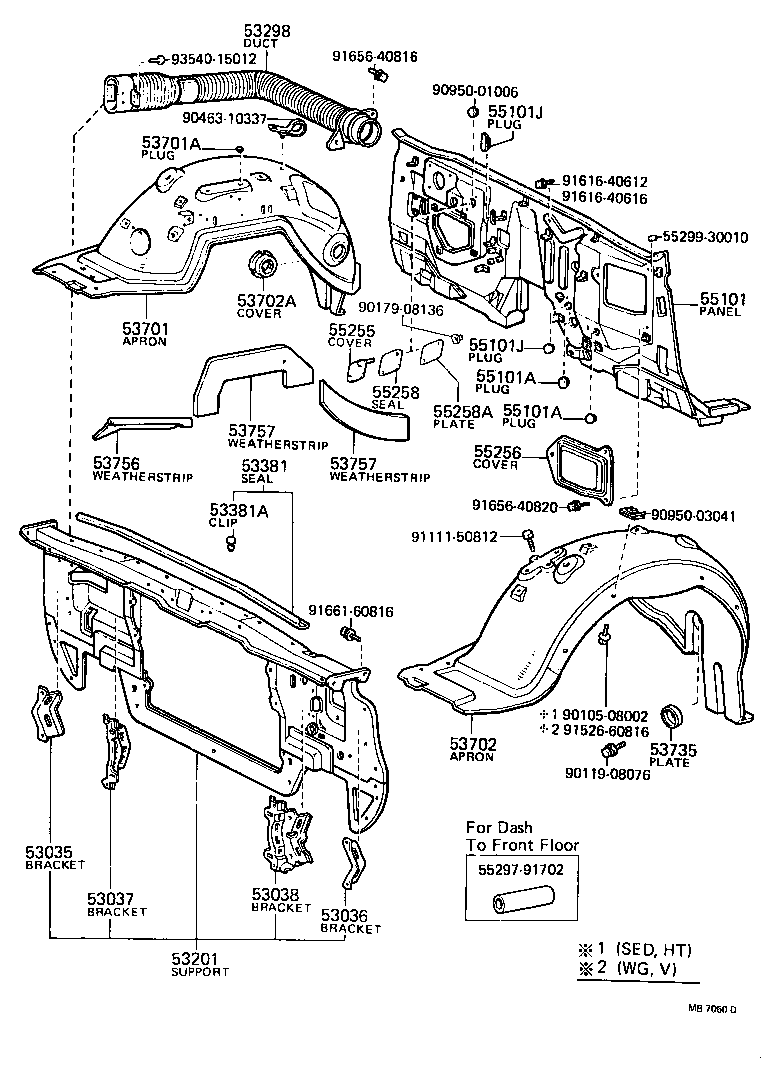

Figure MB7059C MB7059C 1974-10 → 1976-11 Figure MB7060D MB7060D 1976-11 → 1978-02 Figure MB7837D MB7837D 1978-02 → 1979-08

Part groups

PNCDescription
53035 Bracket Sub-assy, Headlamp, Outer RH
53036 Bracket Sub-assy, Headlamp, Outer LH
53037 Bracket Sub-assy, Headlamp, Inner RH
53038 Bracket Sub-assy, Headlamp, Inner LH
53201 Support Sub-assy, Radiator
53215A Extension, Radiator Support, Upper
53298 Duct, Cool Air Intake
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53701 Apron Sub-assy, Front Fender, RH
53701A Plug, Hole(FOR FRONT FENDER APRON)
53702 Apron Sub-assy, Front Fender, LH
53702A Cover, Front Fender Apron(FOR SERVICE HOLE)
53735 Plate, Front Fender Apron Mounting
53756 Weatherstrip, Front Fender Apron TO Frame, NO.1
53757 Weatherstrip, Front Fender Apron TO Frame, NO.2
55101 Panel Sub-assy, Dash
55101A Plug, Hole, NO.1(FOR DASH PANEL)
55101J Plug, Hole, NO.3(FOR DASH PANEL)
55185 Brace, Dash Panel TO Cowl
55255 Cover, Clutch Master Cylinder Hole
55256 Cover, Heator Blower Opening
55258 Seal, Clutch Master Cylinder Hole
55258A Plate, Clutch Master Cylinder Hole Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
