Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

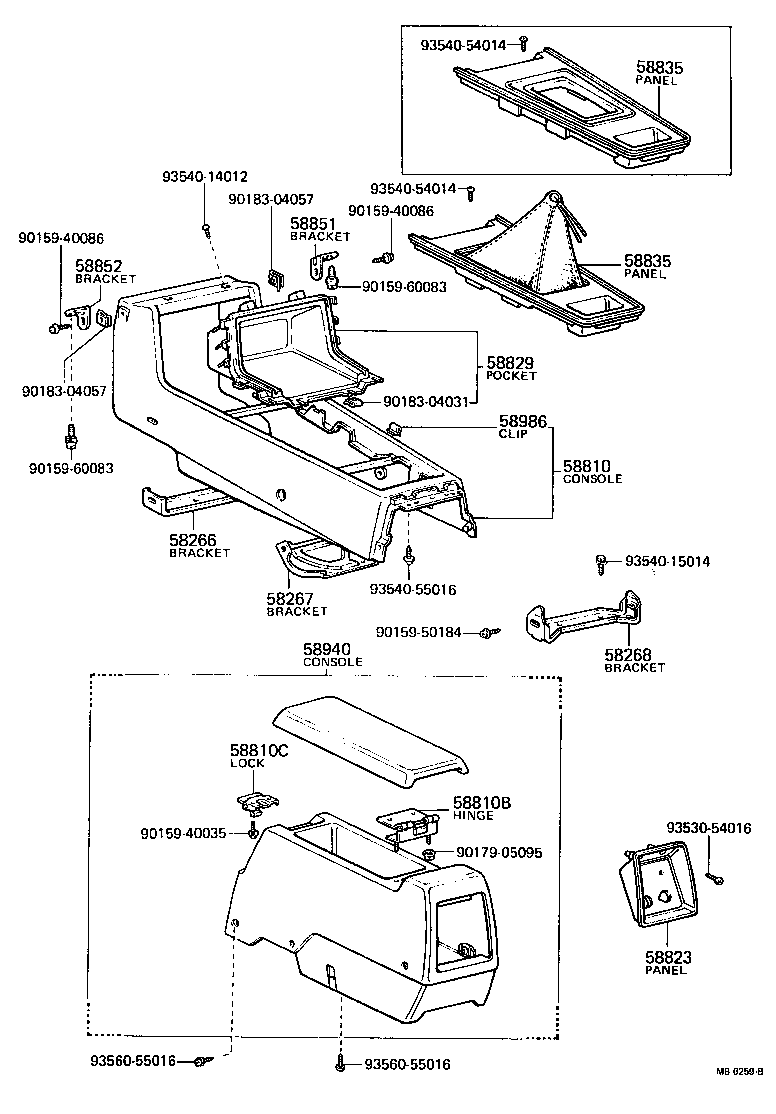

Figure MB4450E MB4450E 1974-10 → 1976-11 Figure MB6259B MB6259B 1976-11 → 1979-08

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58810 Console Assy
58810B Hinge Sub-assy,Console Compartment Door
58810C Lock Sub-assy, Console Compartment Door
58823 Panel, Console, Rear
58829 Pocket, Console Box
58835 Panel, Console, Upper
58851 Bracket, Console Support, Upper RH
58852 Bracket, Console Support, Upper LH
58940 Console Assy, Rear
58986 Clip, Console, Finish Palte
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
