Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

13 part groups · 2 illustrations

Illustrations

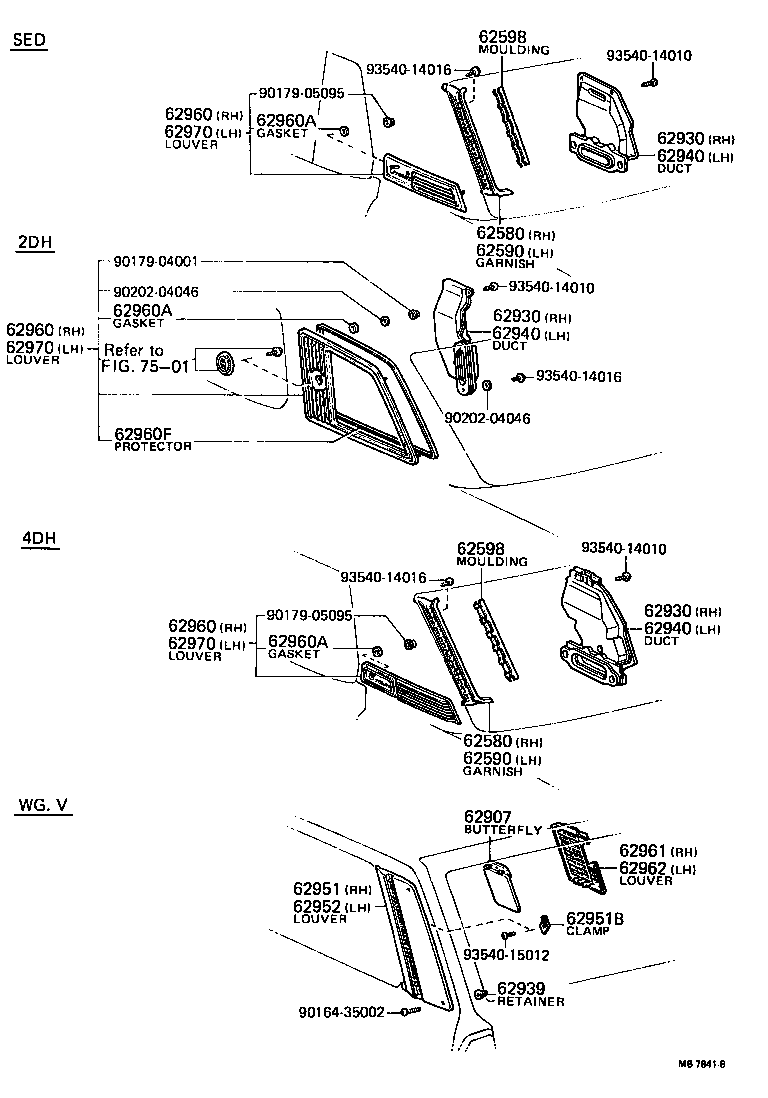

Figure MB4858D MB4858D 1974-10 → 1978-02 Figure MB7841B MB7841B 1978-02 → 1979-08

Part groups

PNCDescription
62580 Garnish Assy, Quarter Ventilation Louver, RH
62590 Garnish Assy, Quarter Ventilation Louver, LH
62598 Moulding, Quarter Ventilation Louver
62930 Duct Assy, Roof Side Vent, RH
62939 Retainer, Roof Side Vent
62940 Duct Assy, Roof Side Vent, LH
62951B Clamp(FOR ROOF SIDE VENT LOUVER)
62960 Louver Assy, Roof Side Vent, RH
62960A Gasket(FOR ROOF SIDE VENT LOUVER)
62960F Protector, Roof Side Vent Louver
62961 Louver, Roof Side Vent Inlet, RH
62962 Louver, Roof Side Vent Inlet, LH
62970 Louver Assy, Roof Side Vent, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
