Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

17 part groups · 3 illustrations

Illustrations

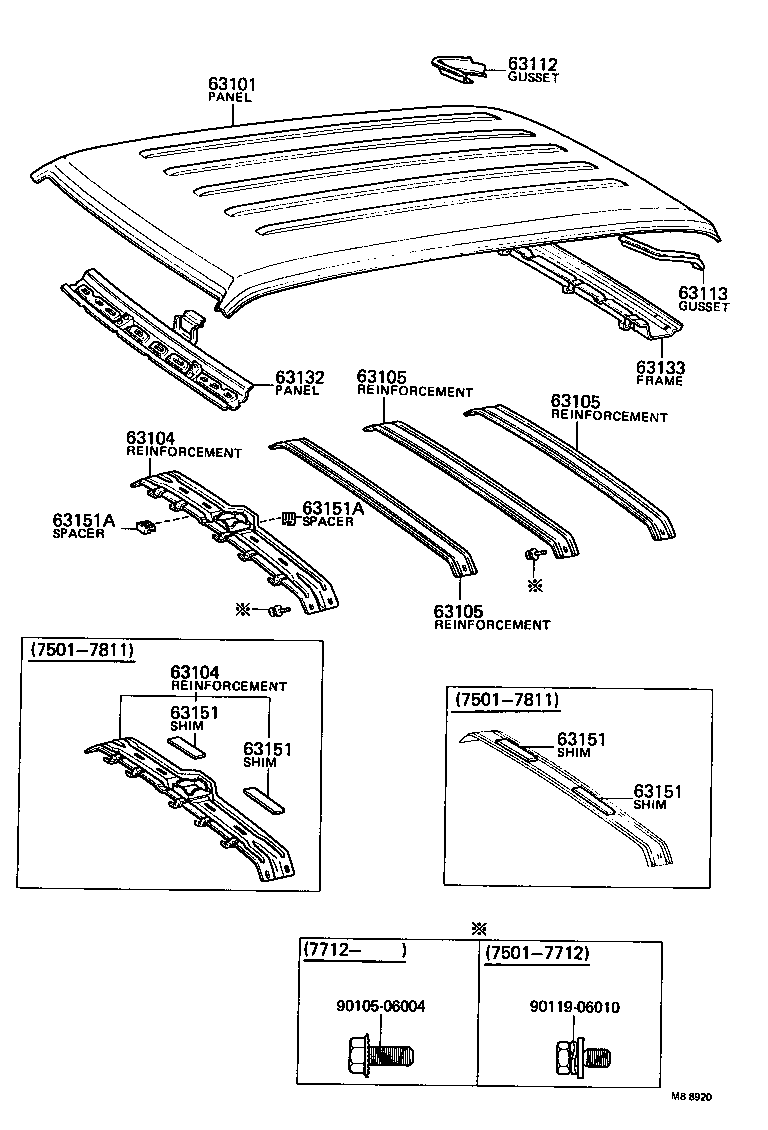

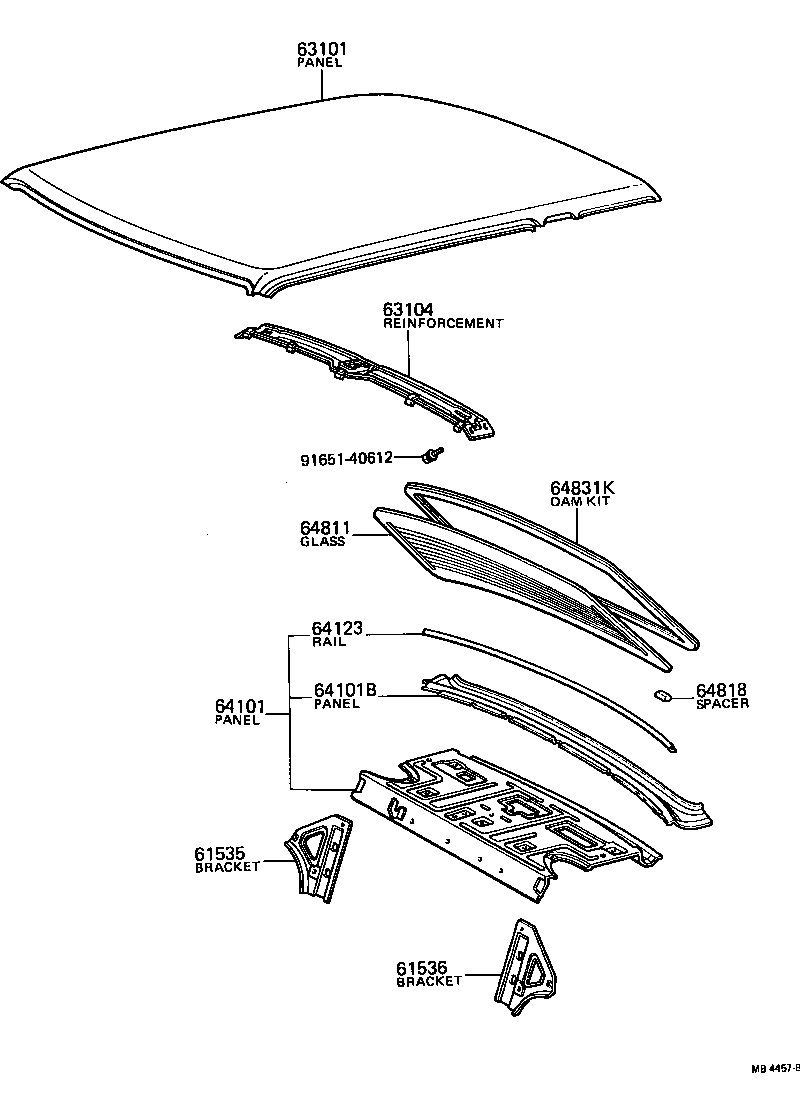

Figure MB4456B MB4456B 1974-10 → 1979-08 Figure MB4457B MB4457B 1974-10 → 1979-08 Figure MB8920 MB8920 1975-01 → 1979-08

Part groups

PNCDescription
61535 Bracket, Package Tray Mount, RH
61536 Bracket, Package Tray Mount, LH
63101 Panel Sub-assy, Roof
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63112 Gusset, Roof Panel Side, RH
63113 Gusset, Roof Panel Side, LH
63132 Panel, Windshield Header, Inner
63133 Frame, Back Window Opening, Upper
63151 Shim, Roof Reinforcement
63151A Spacer, Roof Reinforcement
64101 Panel Sub-assy, Upper Back
64101B Panel, Upper Back
64123 Rail, Back Window Opening
64811 Glass, Back Window
64818 Spacer, Back Window Glass
64831K Dam Kit, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
