Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

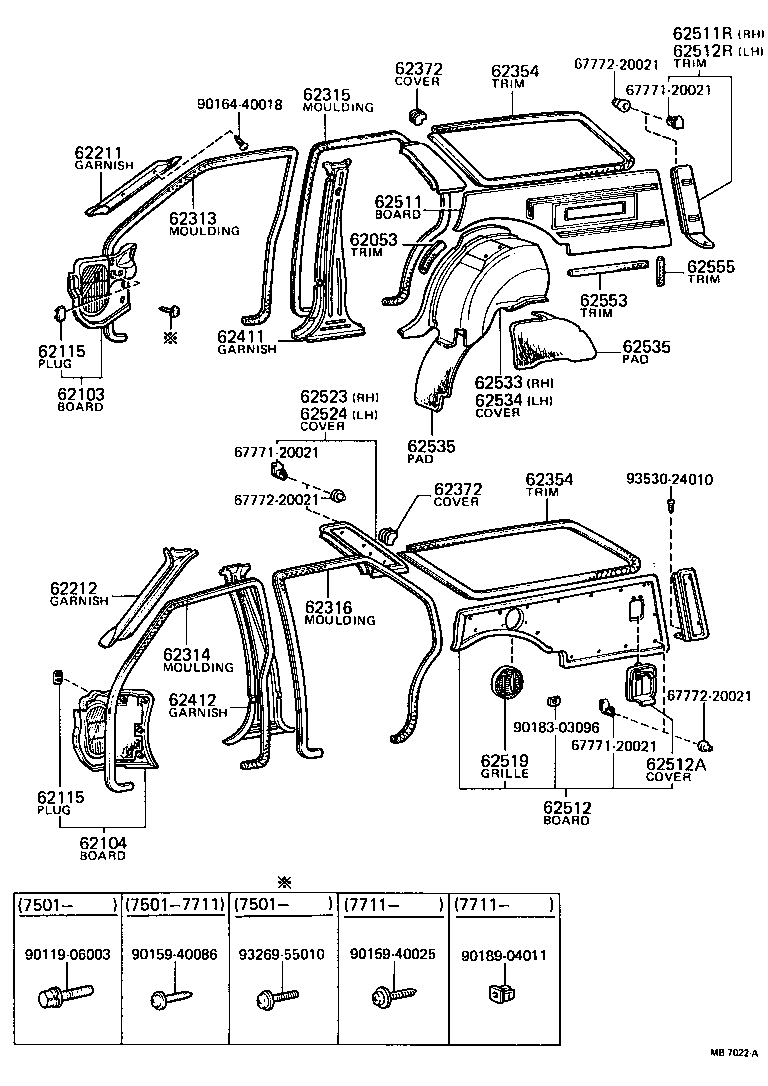

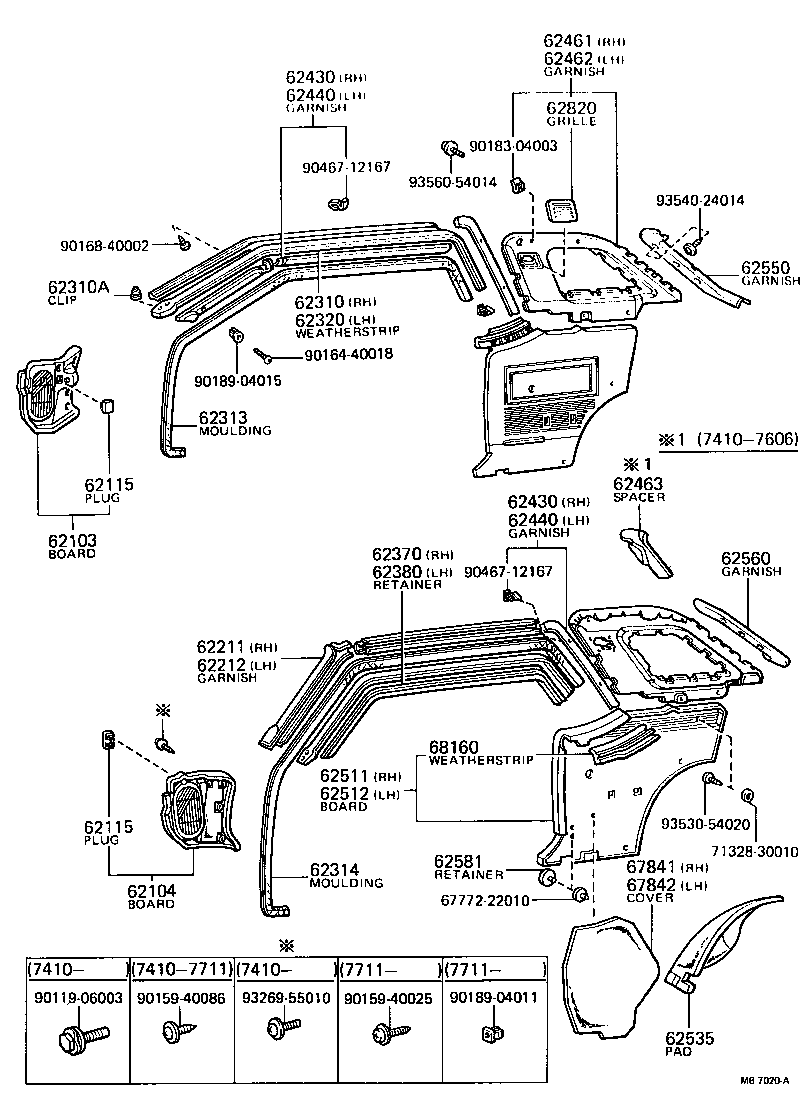

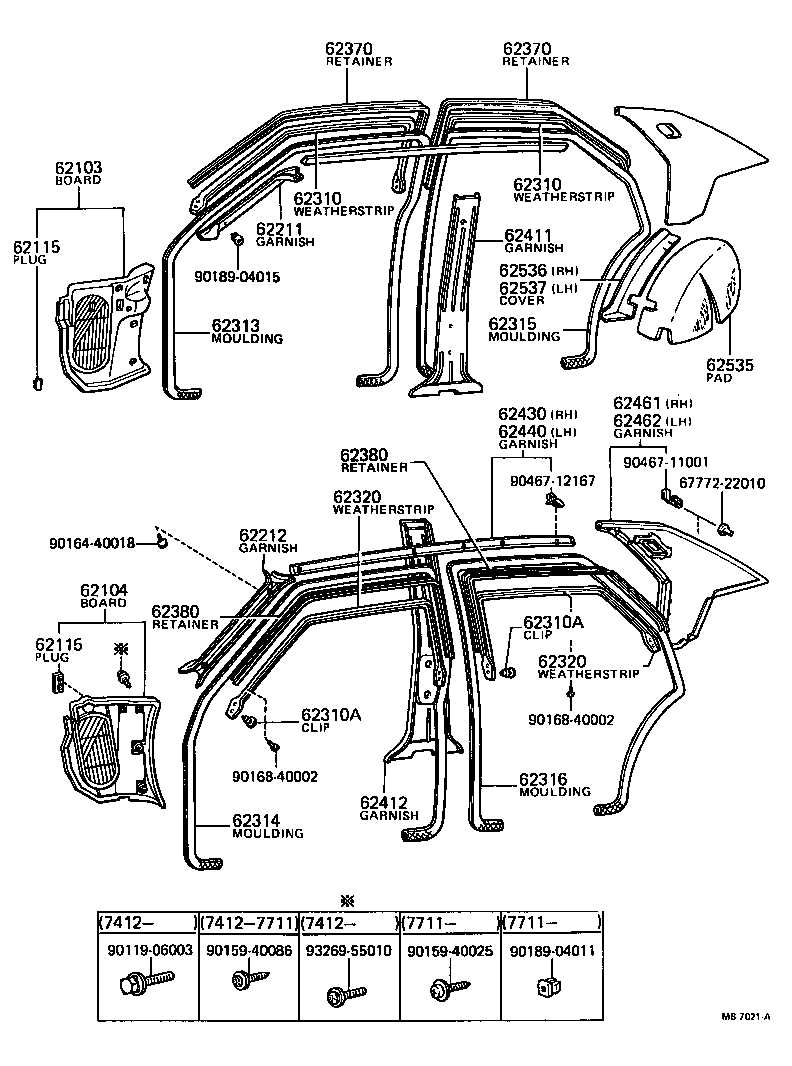

Inside Trim Board & Door Opening Trim Moulding
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62053 | Trim Sub-assy, Wiring Protector |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62115 | Plug, Cowl Side Trim |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62310A | Clip, Roof Side Rail Weatherstrip |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62370 | Retainer Assy, Roof Side Rail Weatherstrip, RH |
| 62372 | Cover, Quarter Window Inside Trim |
| 62380 | Retainer Assy, Roof Side Rail Weatherstrip, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62463 | Spacer, Roof Side Garnish, NO.1 |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511R | Trim, Rear Body Inside, Rear RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62512A | Cover, Quarter Trim Washer |
| 62512R | Trim, Rear Body Inside, Rear LH |
| 62519 | Grille, Speaker |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62533 | Cover, Quarter Wheel House Side Trim, RH |
| 62534 | Cover, Quarter Wheel House Side Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62536 | Cover, Quarter Wheel House Trim Front, RH |
| 62537 | Cover, Quarter Wheel House Trim Front, LH |
| 62550 | Garnish Assy, Rear Body Pillar, RH |
| 62553 | Trim, Floor Side |
| 62555 | Trim, Back Side |
| 62560 | Garnish Assy, Rear Body Pillar, LH |
| 62581 | Retainer, Quarter Trim |
| 62820 | Grille, Room Ventilator |
| 67841 | Cover, Quarter Service Hole, NO.1 RH |
| 67842 | Cover, Quarter Service Hole, NO.1 LH |
| 68160 | Weatherstrip Assy, Rear Quarter, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
