Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

26 part groups · 3 illustrations

Illustrations

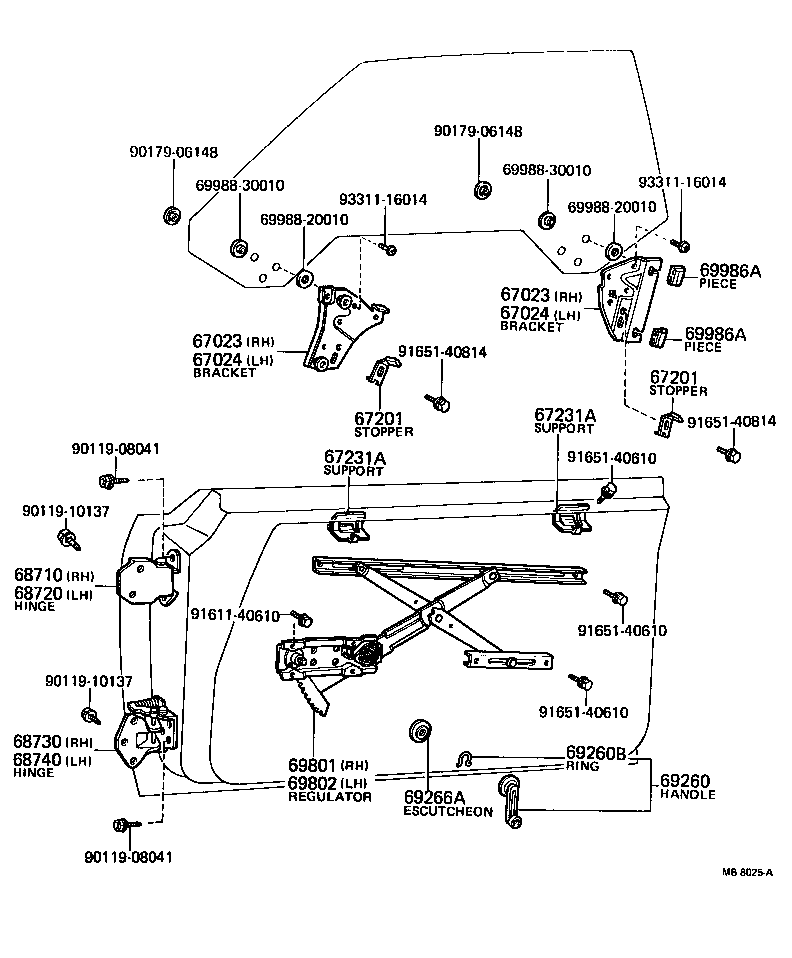

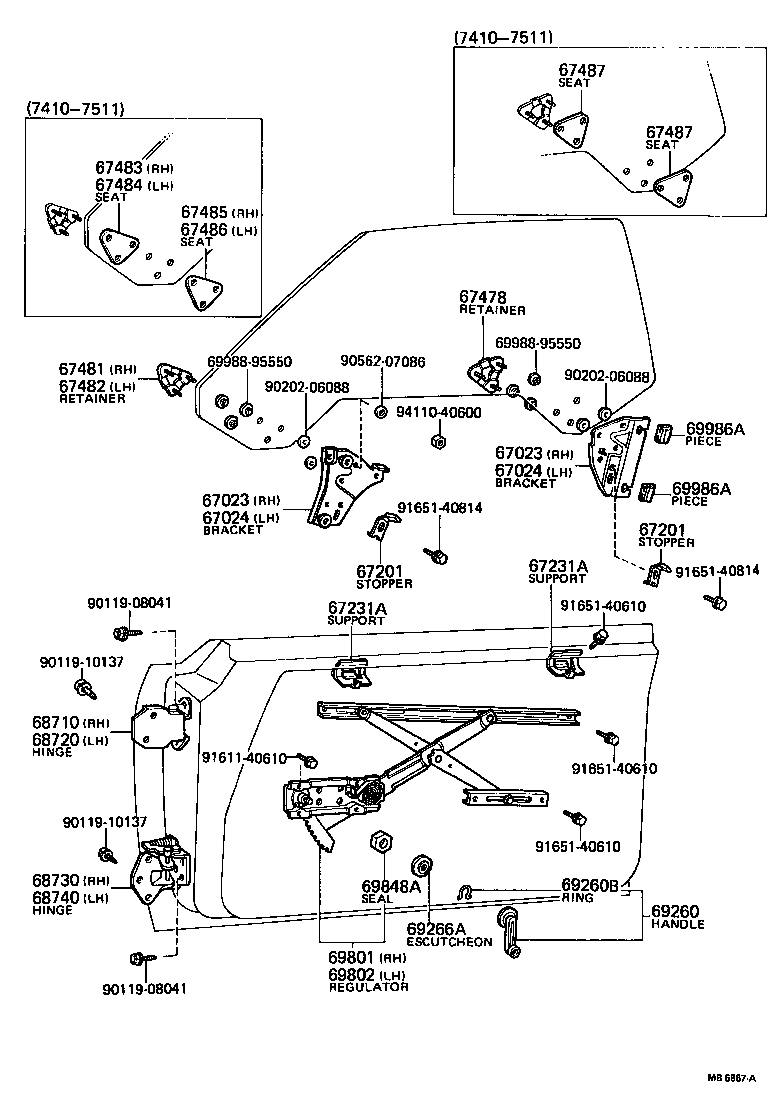

Figure MB4466C MB4466C 1974-10 → 1979-08 Figure MB6867A MB6867A 1974-10 → 1978-04 Figure MB8025A MB8025A 1978-04 → 1979-08

Part groups

PNCDescription
67023 Bracket Sub-assy, Front Door Glass Support, RH
67024 Bracket Sub-assy, Front Door Glass Support, LH
67201 Stopper Assy, Door Glass(FOR FRONT DOOR)
67231A Support, Front Door Trim
67478 Retainer, Front Door Glass, Rear
67481 Retainer, Front Door Glass, Front RH
67482 Retainer, Front Door Glass, Front LH
67483 Sheet, Front Door Glass Front Outside, RH
67484 Sheet, Front Door Glass Front Outside, LH
67485 Sheet, Front Door Glass Front Inside, RH
67486 Sheet,Front Door Glass Front Inside, LH
67487 Sheet, Front Door Glass, Rear
68171 Weatherstrip, Front Door Glass Channel
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69848A Seal, Window Regulator Hole(FOR FRONT DOOR)
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
69986A Piece, Front Door Glass Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
