Toyota Crown
1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe
Discontinued model
Data version 1980-01

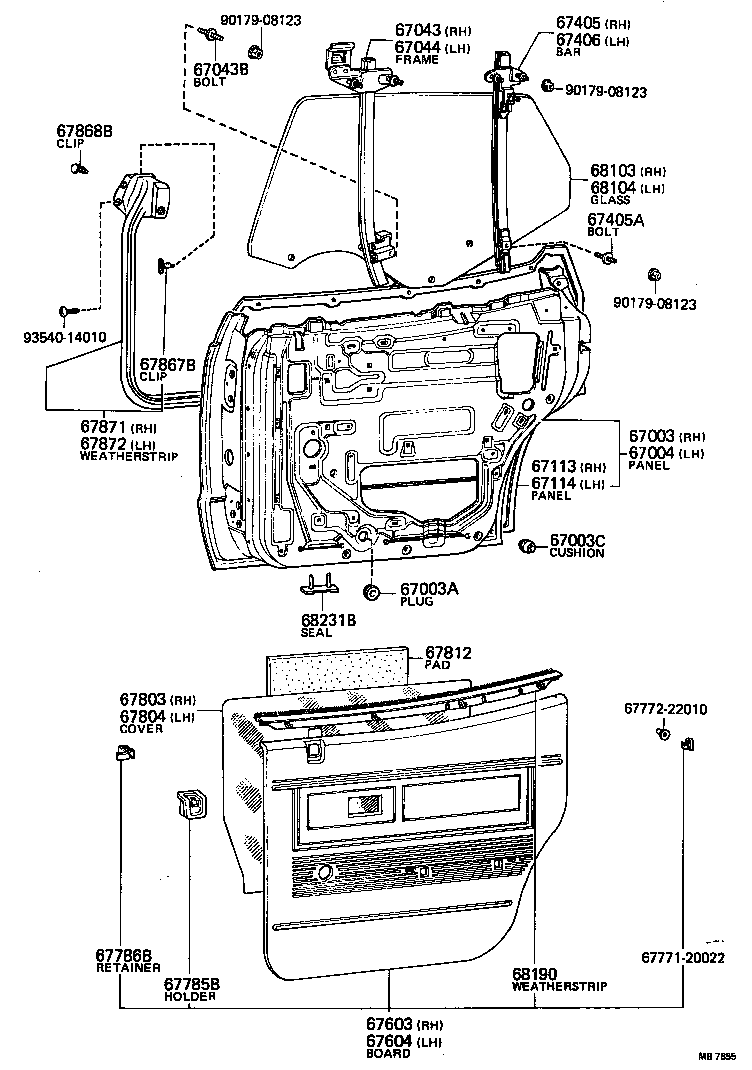

Rear Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003A | Plug, Hole(FOR REAR DOOR PANEL) |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67043 | Frame Sub-assy, Rear Door Window, RH |
| 67043B | Bolt, Stud(FOR REAR DOOR WINDOW FRAME) |
| 67044 | Frame Sub-assy, Rear Door Window, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67223 | Frame, Rear Door Quarter Window, Lower |
| 67405 | Bar Sub-assy, Rear Door Window Division, RH |
| 67405A | Bolt, Stud(FOR REAR DOOR WINDOW DIVISION BAR) |
| 67406 | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67785B | Holder, Door Locking Button Collar(FOR REAR DOOR) |
| 67786B | Retainer, Door Locking Button Collar(FOR REAR DOOR) |
| 67803 | Cover Sub-assy, Rear Door Service Hole, RH |
| 67804 | Cover Sub-assy, Rear Door Service Hole, LH |
| 67812 | Pad, Rear Door Silencer |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868B | Clip, Door Glass Weatherstrip(FOR REAR DOOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142 | Run, Rear Door Glass |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68231B | Seal, Rear Door Drain Hole Dust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
