Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

23 part groups · 2 illustrations

Illustrations

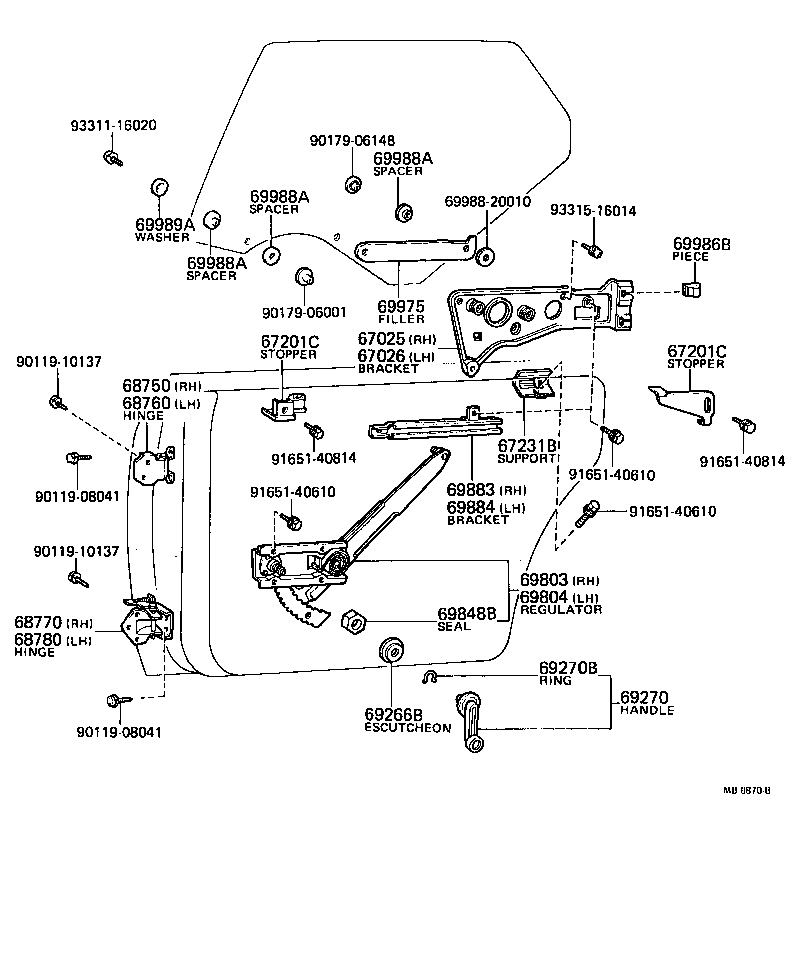

Figure MB4470C MB4470C 1974-10 → 1979-08 Figure MB6870B MB6870B 1974-12 → 1979-08

Part groups

PNCDescription
67025 Bracket Sub-assy, Rear Door Glass Support, RH
67026 Bracket Sub-assy, Rear Door Glass Support, LH
67201C Stopper Assy, Door Glass(FOR REAR DOOR)
67231B Support, Rear Door Trim
68173 Weatherstrip, Rear Door Glass Channel
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69266B Escutcheon, Door Regulator Handle(FOR REAR DOOR)
69270 Handle Assy, Rear Door Window Regulator
69270B Ring, Shaft Snap(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69848B Seal, Window Regulator Hole(FOR REAR DOOR)
69883 Bracket, Rear Door Window Regulator Lift Arm, RH
69884 Bracket, Rear Door Window Regulator Lift Arm, LH
69903 Channel Sub-assy, Rear Door Glass, RH
69904 Channel Sub-assy, Rear Door Glass, LH
69975 Filler, Rear Door Glass Bracket
69986B Piece, Rear Door Glass Guide
69988A Spacer, Rear Door Glass
69989A Washer, Rear Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
