Toyota Crown

1974-10 → 1979-08 · chassis RS80,MS8#,95 · catalogue 331230 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

54 part groups · 7 illustrations

Illustrations

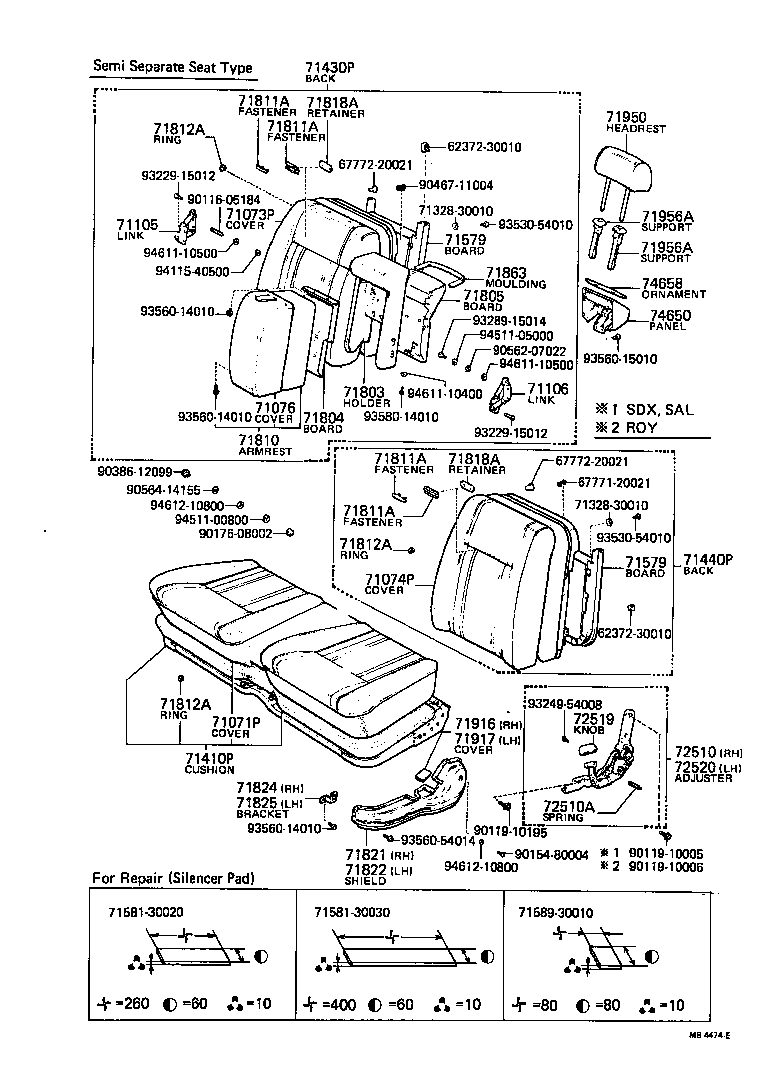

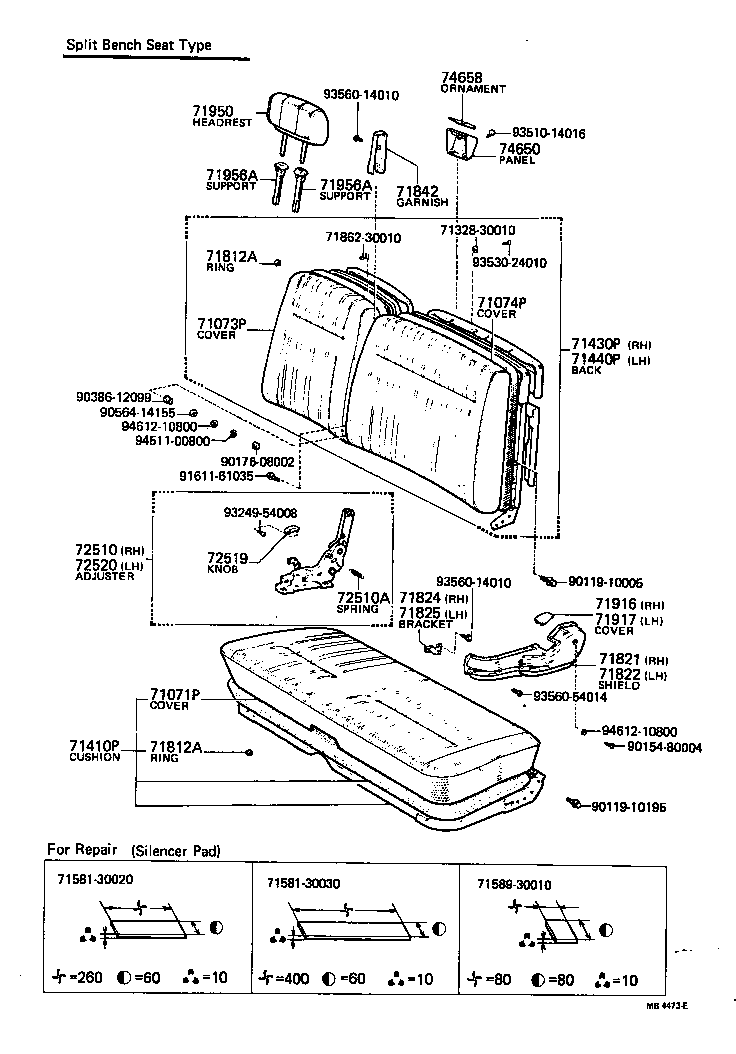

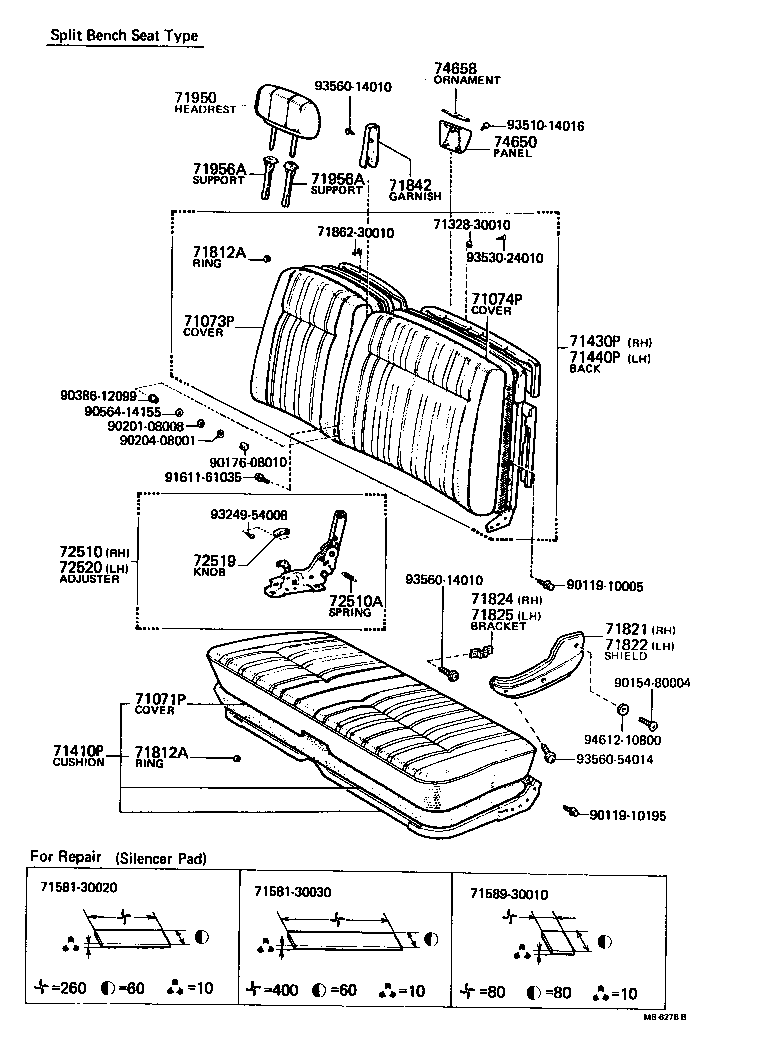

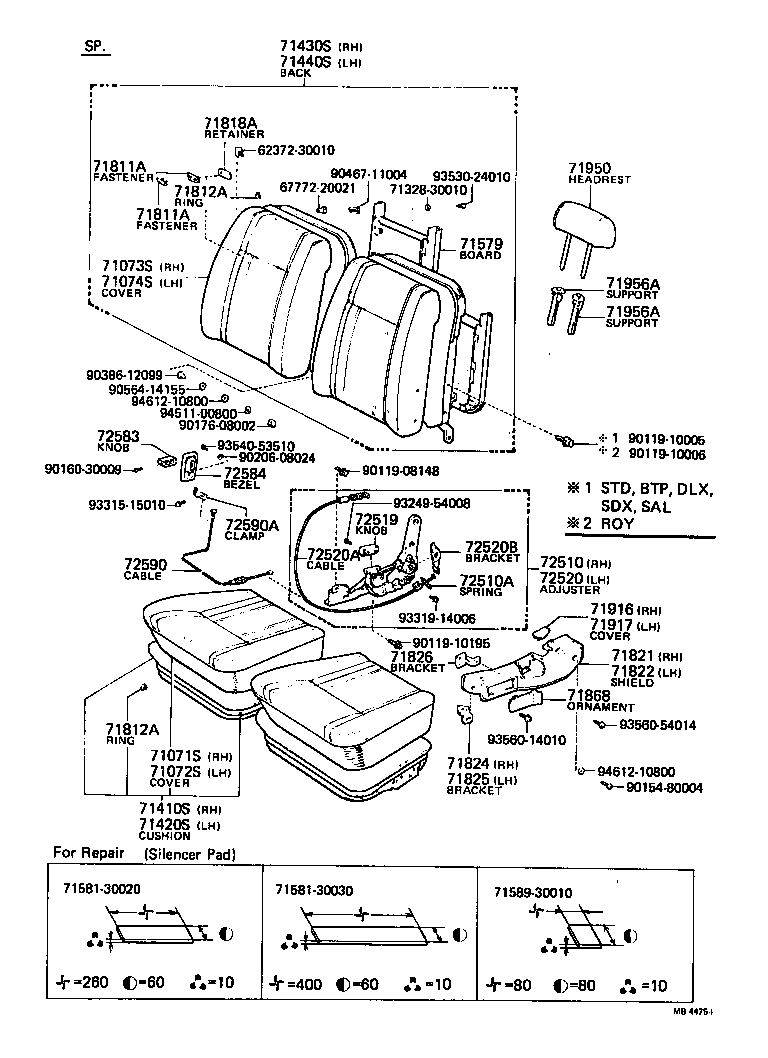

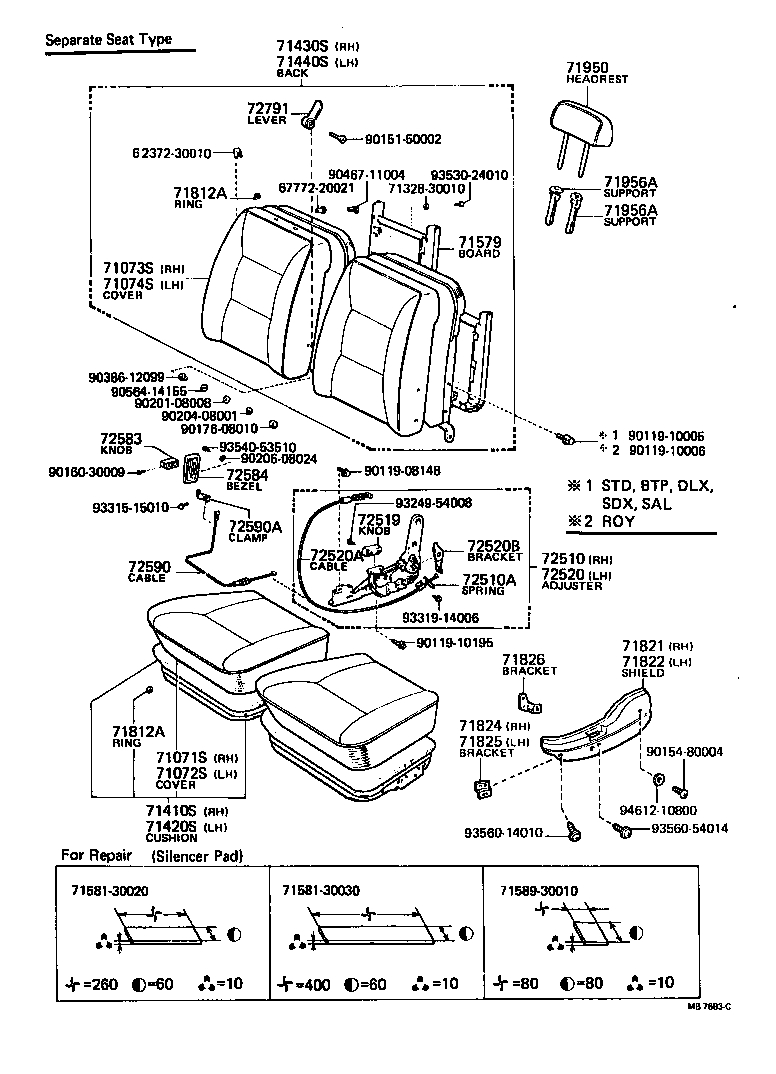

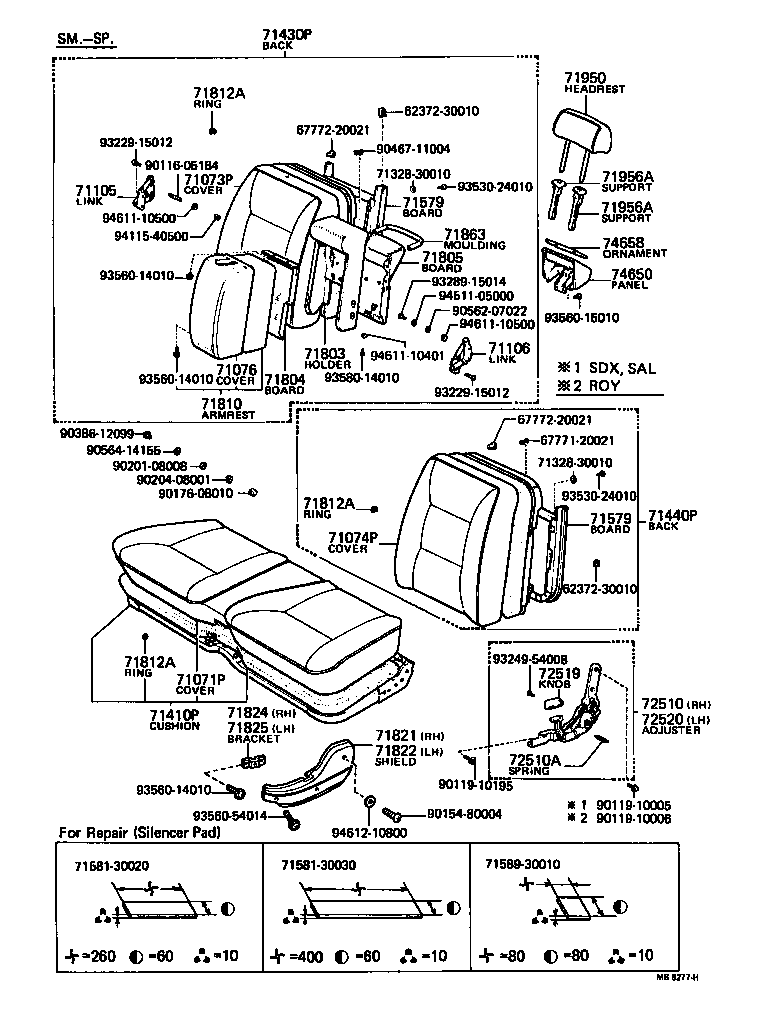

Figure MB4472E MB4472E 1974-10 → 1979-08 Figure MB4473E MB4473E 1974-10 → 1976-11 Figure MB6276B MB6276B 1976-11 → 1979-08 Figure MB4474E MB4474E 1974-10 → 1976-11 Figure MB6277H MB6277H 1976-11 → 1979-08 Figure MB4475I MB4475I 1974-10 → 1976-11 Figure MB7683C MB7683C 1976-11 → 1979-08

Part groups

PNCDescription
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071P Cover, Front Seat Cushion(FOR SEMI-SEPARATE TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073P Cover, Front Seatback, RH(FOR SEMI-SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074P Cover, Front Seatback, LH(FOR SEMI-SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71076 Cover Sub-assy, Front Seat Center Armrest
71105 Link Sub-assy, Front Seat Center Armrest, RH
71106 Link Sub-assy, Front Seat Center Armrest, LH
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410P Cushion Assy, Front Seat(FOR SEMI-SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430P Back Assy, Front Seat, RH(FOR SEMI-SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440P Back Assy, Front Seat, LH(FOR SEMI-SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71579 Board, Front Seatback
71803 Holder Sub-assy, Front Seat Armrest
71804 Board Sub-assy, Front Seat Armrest Hole
71805 Board Sub-assy, Front Seat Armrest Holder
71810 Armrest Assy, Front Seat Center
71811A Fastener (FOR FRONT SEAT COVER)
71812A Ring, Hog, Small (FOR FRONT SEAT)
71818A Retainer, Front Seat Cover Fastener
71821 Shield, Front Seat Side, RH
71822 Shield, Front Seat Side, LH
71824 Bracket, Front Seat Side, NO.1 RH
71825 Bracket, Front Seat Side, NO.1 LH
71826 Bracket, Front Seat Side, NO.2
71842 Garnish, Front Seatback
71863 Moulding, Front Seat Armrest Holder Board
71868 Ornament, Front Seat Cushion Side
71916 Cover, Seat Belt Hole, RH
71917 Cover, Seat Belt Hole, LH
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72520A Cable, Adjuster TO Seat Track
72520B Bracket, Adjuster TO Seat Track Cable
72583 Knob, Reclining Control Handle
72584 Bezel, Reclining Control Handle
72590 Cable Assy, Seatback Control
72590A Clamp(FOR SEATBACK CONTROL CABLE)
72791 Lever, Lumbar Support
74650 Panel Assy, Front Seatback Control
74658 Ornament, Front Seatback Control Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
